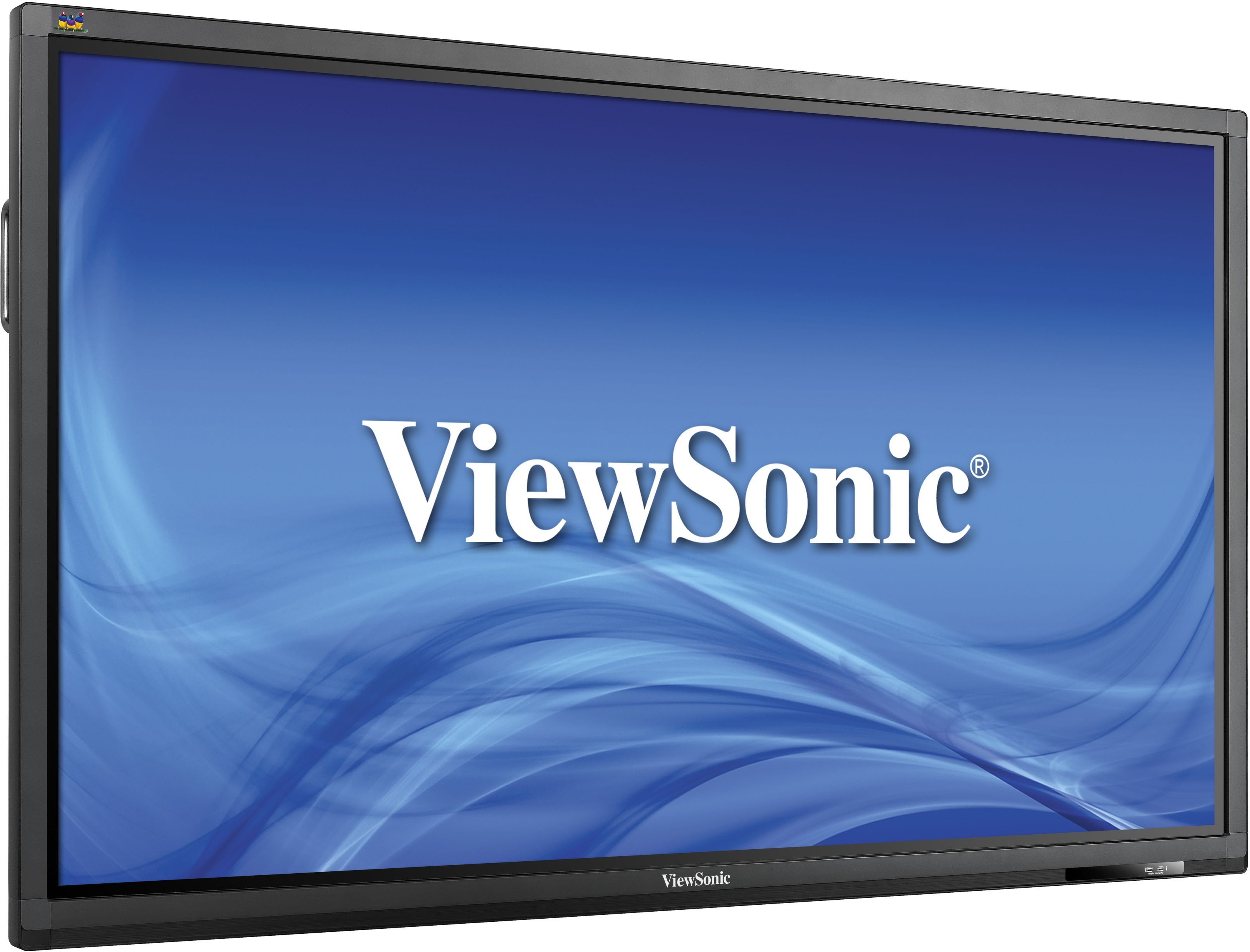

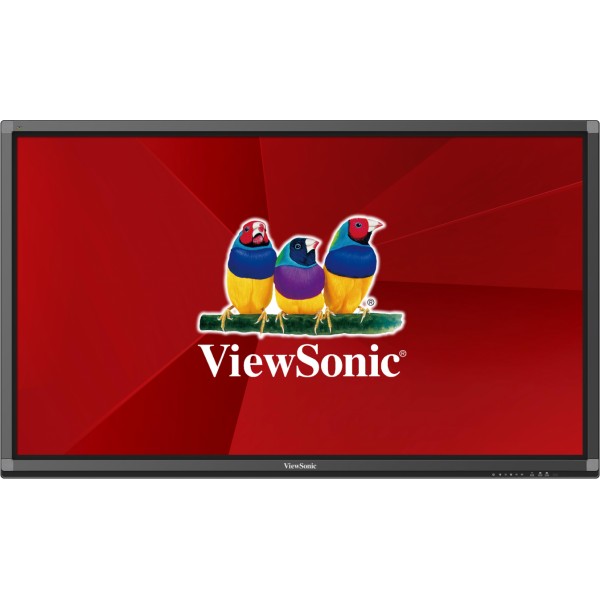

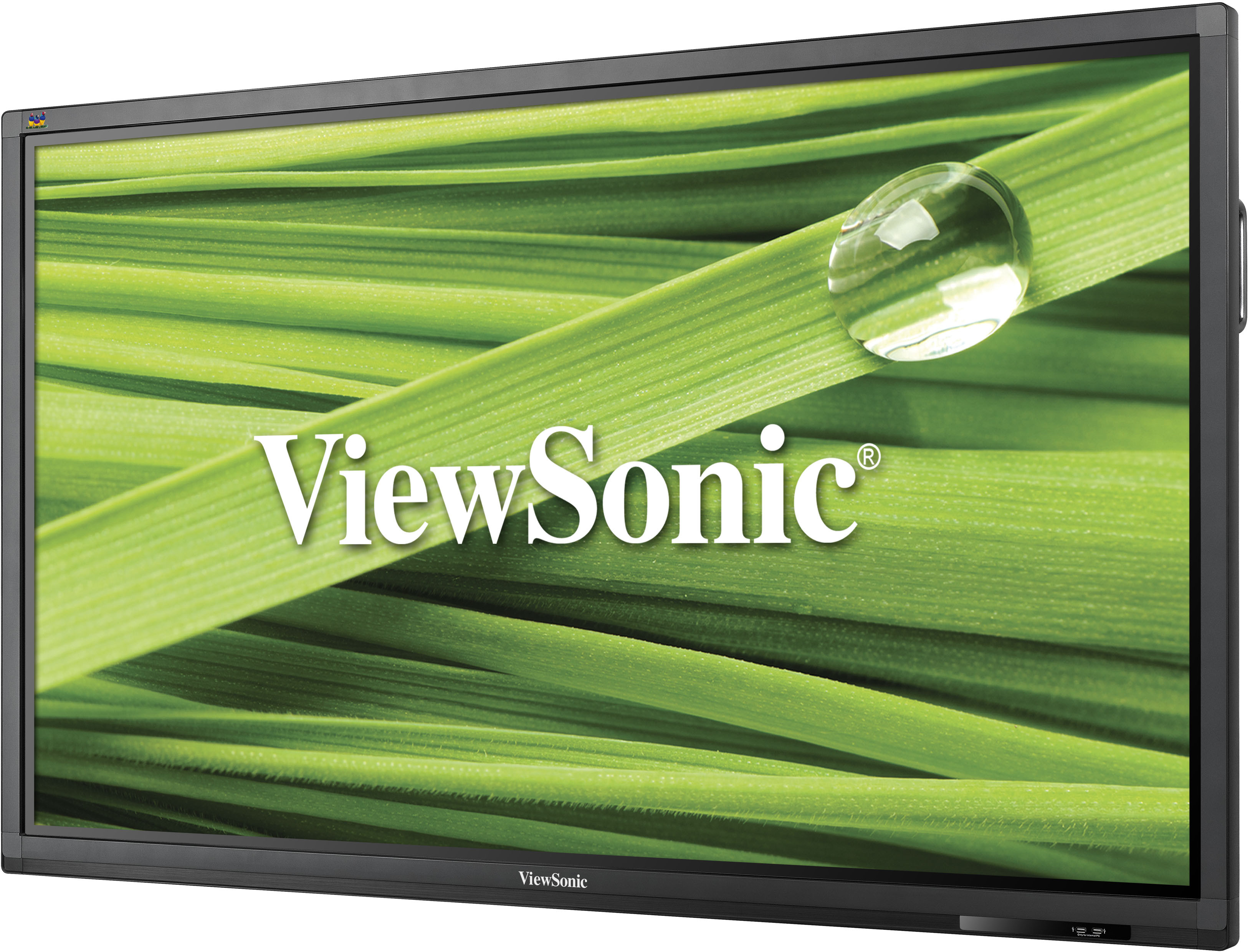

CDE8452T

Large-format display with multi-touch interactivity to encourage collaboration

LCD
Display Area: 1860.48mm(H) x 1046.52mm(V), 84” diagonal
Optimum Resolution: 3840 x 2160
Kontrast Oranı: 1600:1 (typ)
İzleme Açıları: 178º horizontal, 178º vertical
Tepki Süresi: 8 ms
Işık Kaynağı: Long life, 50,000 hrs. (typ)
Parlaklık: 350 cd/m2 (typ)
En Boy Oranı: 16:9
Panel Surface: Anti-glare, hard coating 7H scratch resistant
Touch Type: Yes, Infrared, 10 point multi touch
Tür: 84" colour TFT LCD Module with LED Backlight
INPUT
Video Output: VGA
Control Input/Output: RS232
Görüntü Girişi: HDMI, Component, VGA, CVBS

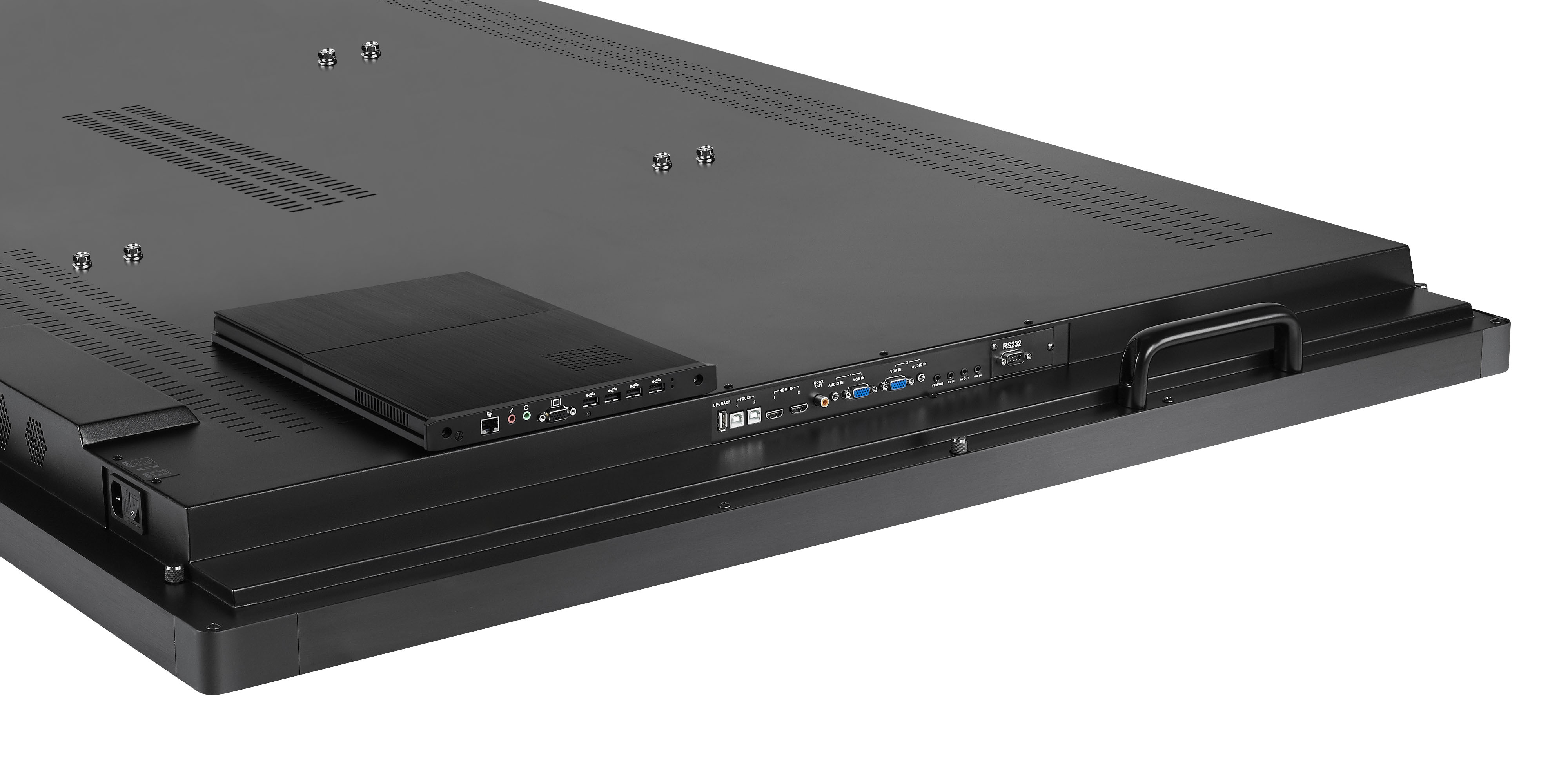

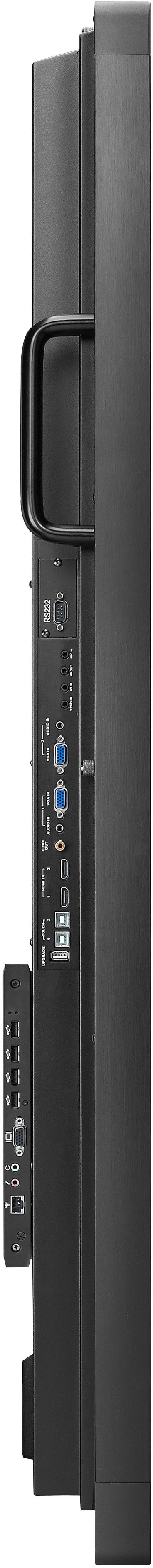

CONNECTOR
Analog: 3x VGA in (D-SUB), 1x VGA out (D-SUB), 1x CVBS
Ses: 3x PC Audio in (3.5mm Jack)
USB: 3x USB A type (2.0), 1x USB A type (3.0), 1x USB B type (Touch function)
Digital: 3x HDMI (up to 1080p), 1x HDMI (up to 4K2K)

AUDIO
Speakers: 2x Internal 15 Watt
VIDEO SIGNAL
HDMI resolution: up to 3840x2160 (30Hz)
CVBS resolution: 640x480 (480i)
VGA resolution: up to 1920x1200 (60Hz)
CONTROLS
Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF Mode, AD Switch
OSD: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer
Panel: Power, Input, PC/VGA, Vol+, Vol-, Zoom, Energy Saving
Set Up: OSD Language, TT Language, Hearing Imparied, PVR File System, Record list, Aspect Ratio, Blue Screen, First Time Installation, Reset, Software Update (USB)
Advanced Options: Lock System, Set Password, Block Program, Parental Guidance, Key Lock
Picture: Picture Mode, Contrast, Brightness, Colour, Tint, Sharpness, Colour Temperature, Noise Reduction
POWER
Tüketim: 500W (Typ), <0.5W (suspend)
Voltaj: AC 100–240V (universal), 50–60Hz
OPERATING CONDITIONS
Nem: 20–80% (non-condensing)
Sıcaklık: 0-40º C, Landscape mount only
DIMENSIONS
Ekran: 1978 x 1187 x 95 mm / 77.9 x 46.7 x 3.7 in.
Packaging: 2170x1370x320 mm, 85.4x53.9x12.6 in
WEIGHT
Net: 107kg/235.89 lb
Brüt: 135kg/297.62 lb
WALL MOUNT
VESA®: 600 x 600mm
INCLUDED ACCESSORIES
•CDE8452T display

•Power cables (EU, UK)

•VGA cable

•Audio cable

•USB cable

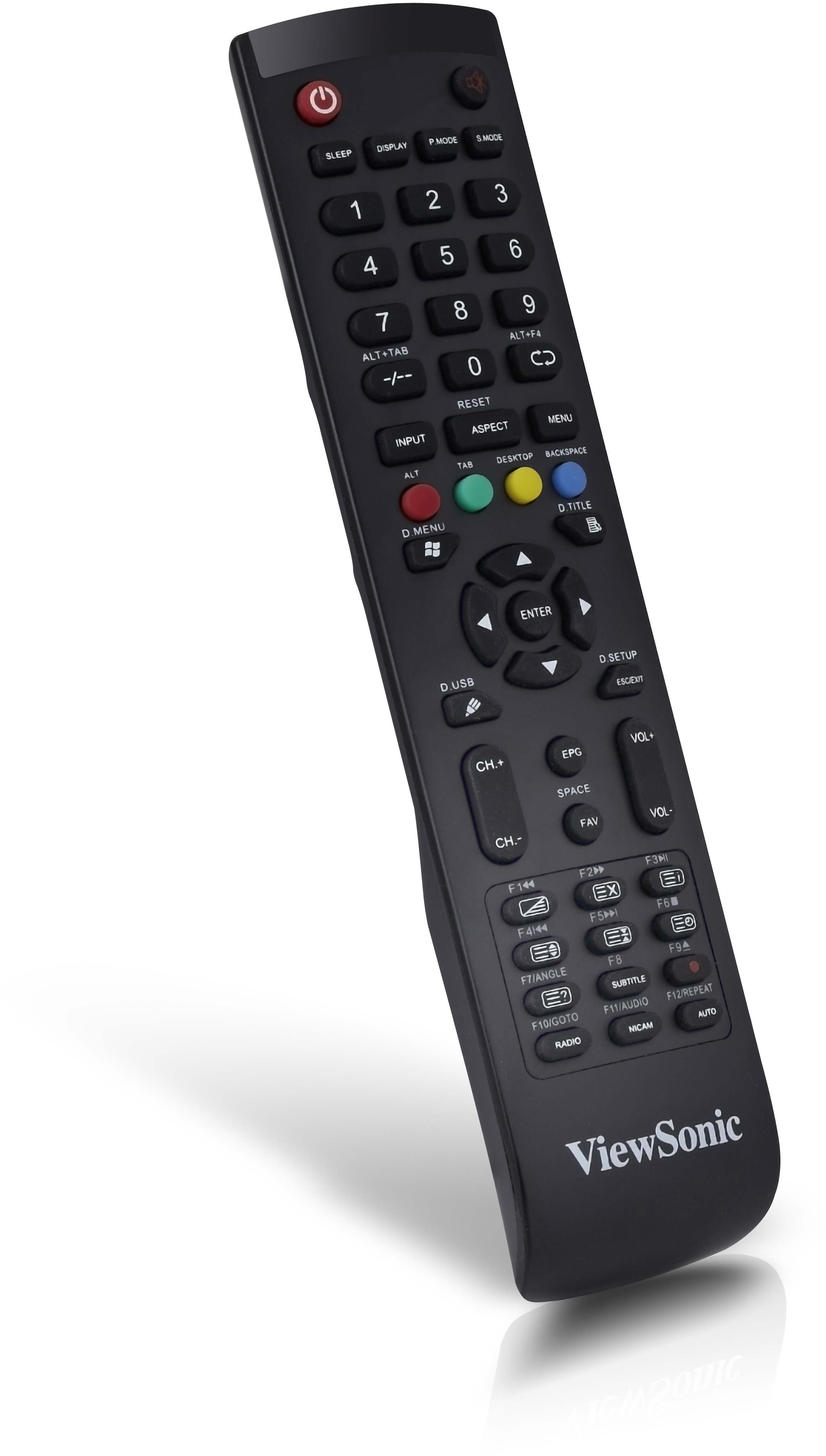

•Remote control with batteries

•Stylus (x3)

•ViewSonic Wizard CD (User Guide and ViewBoard Software)
OPTIONAL ACCESSORIES

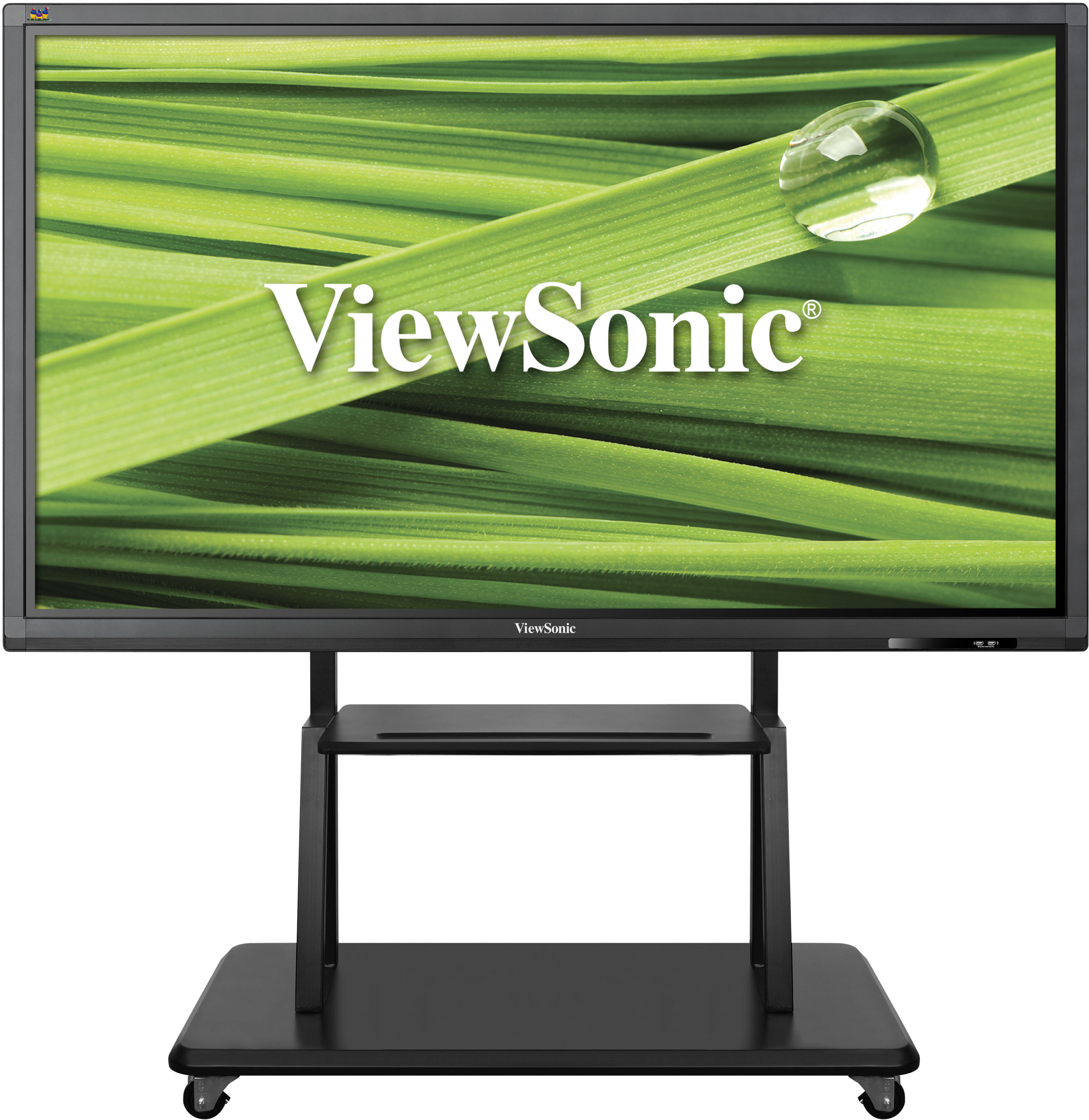

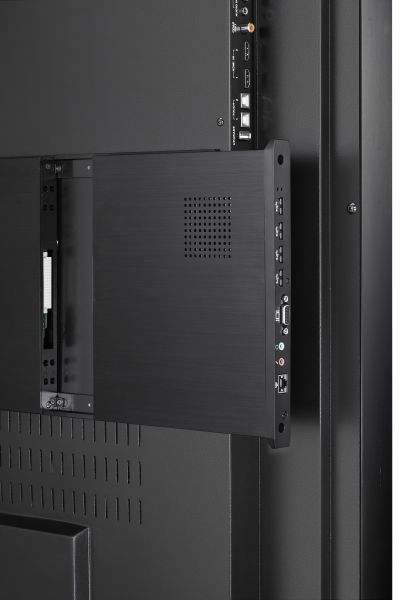

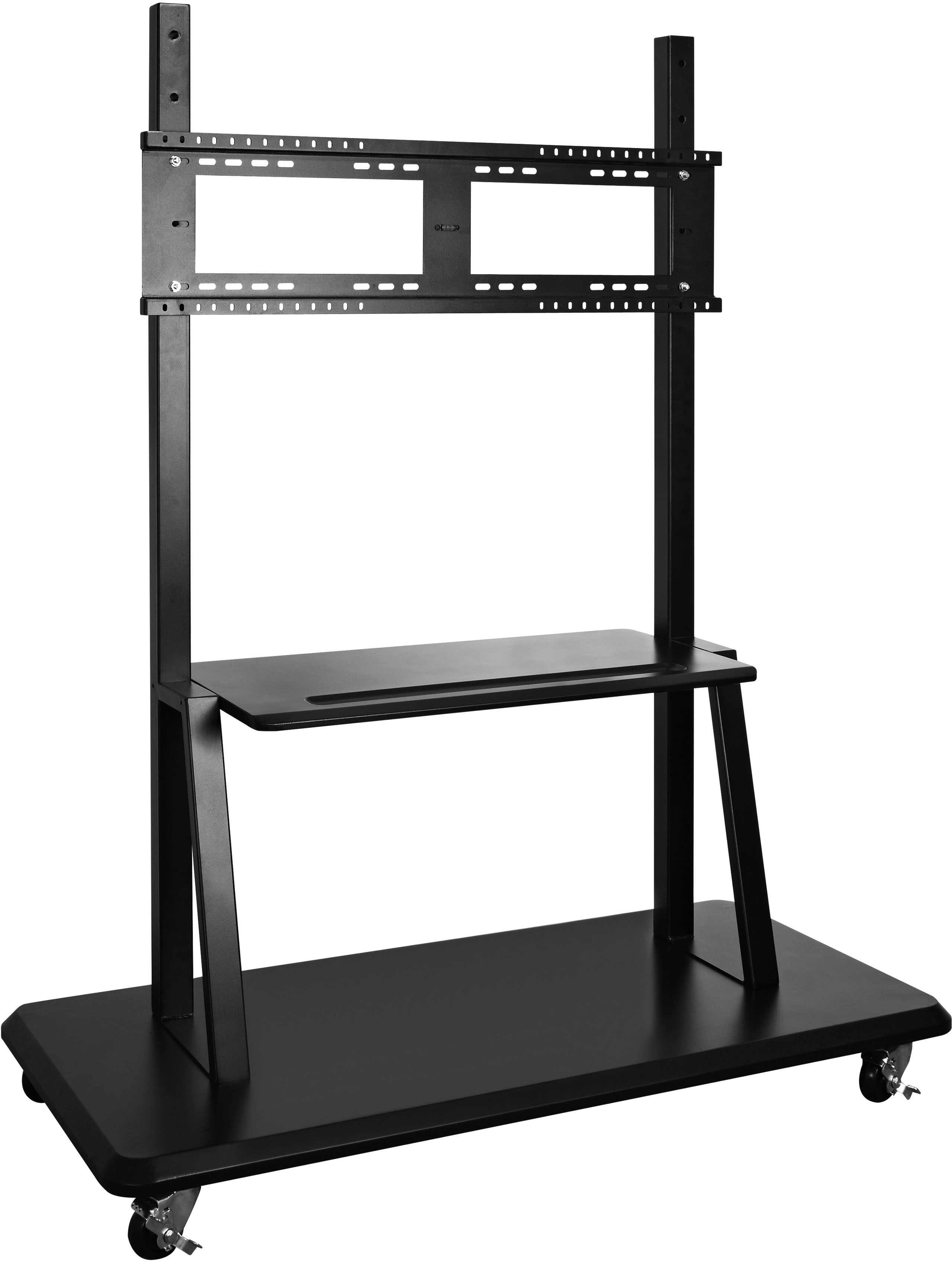

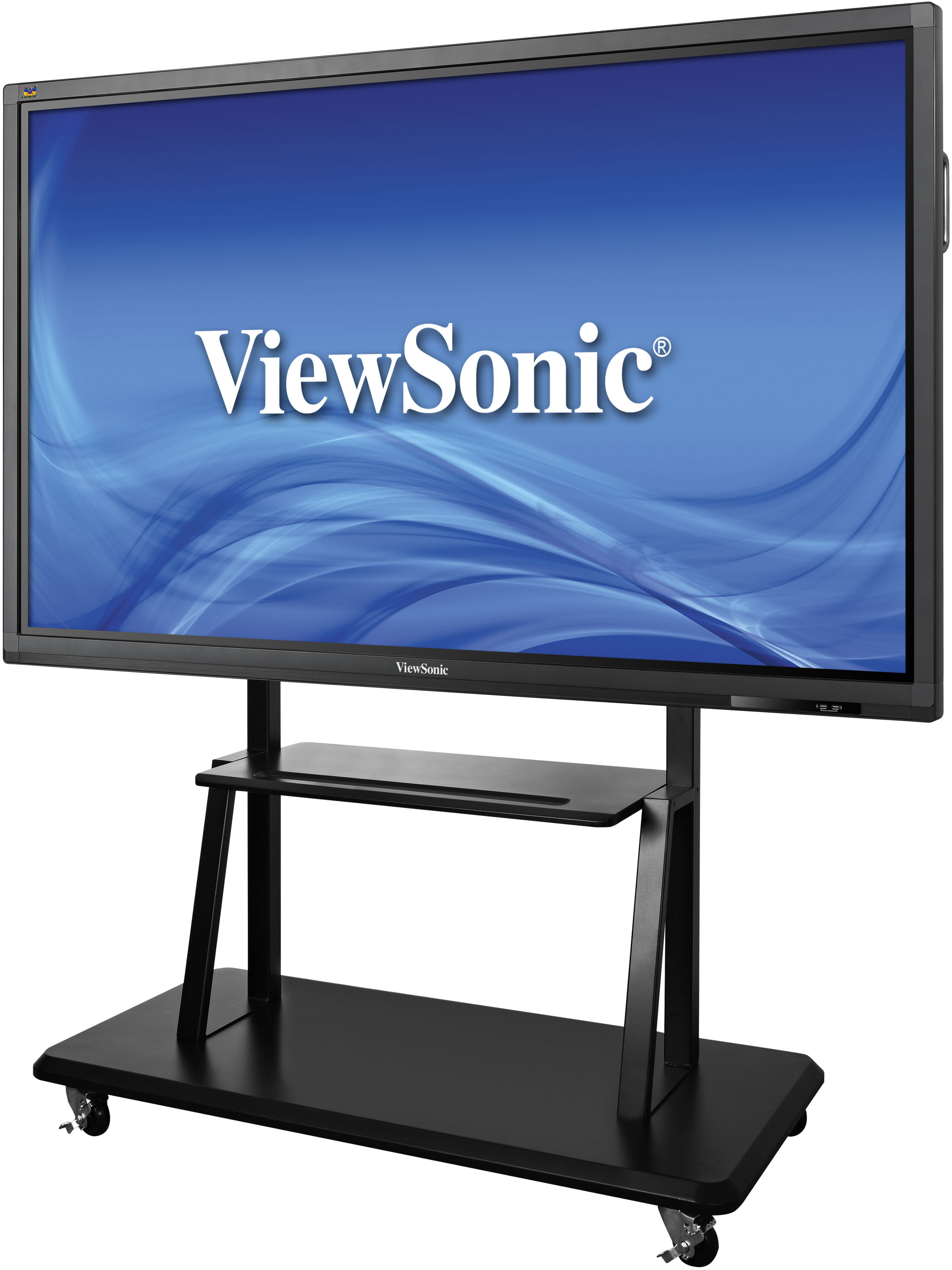

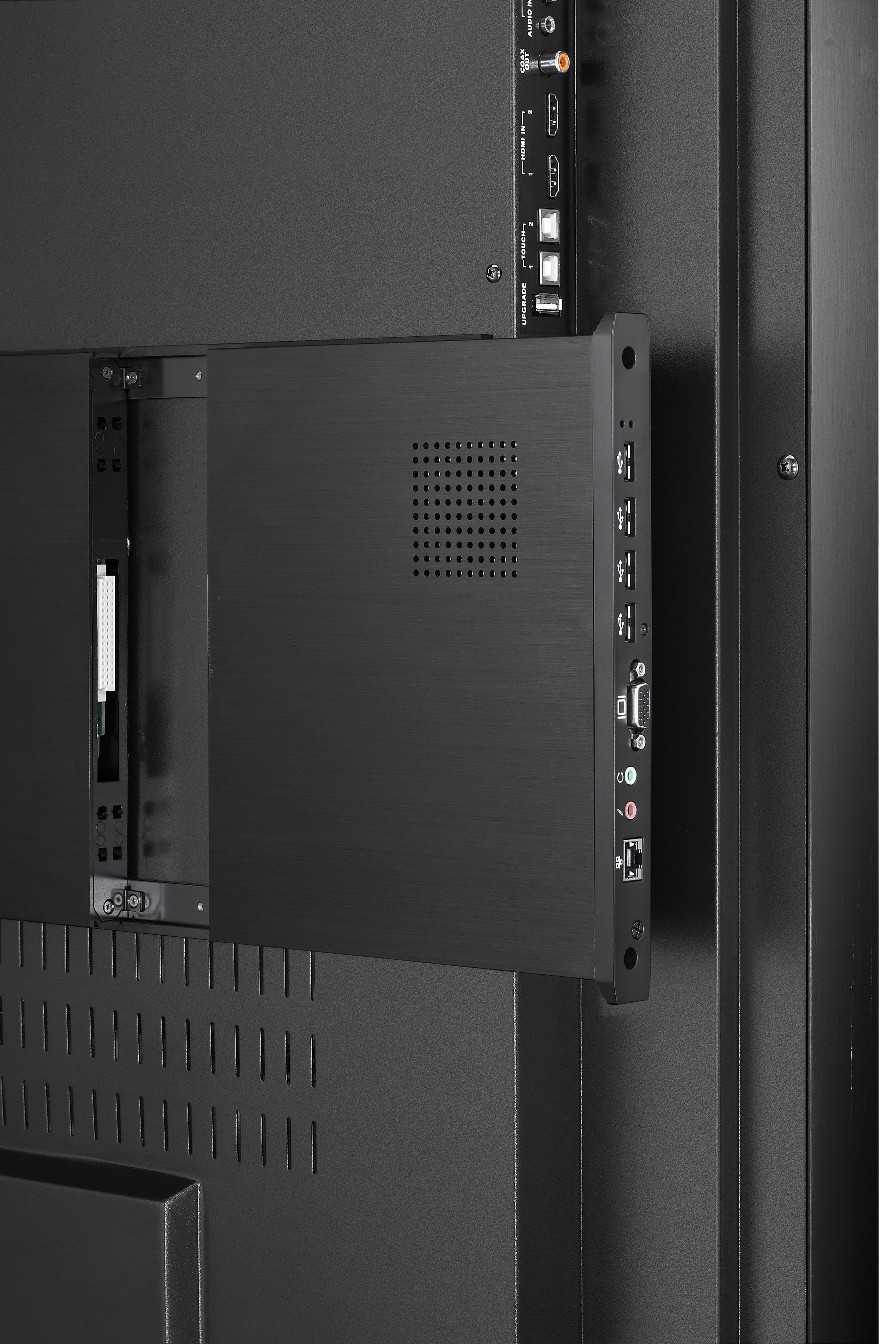

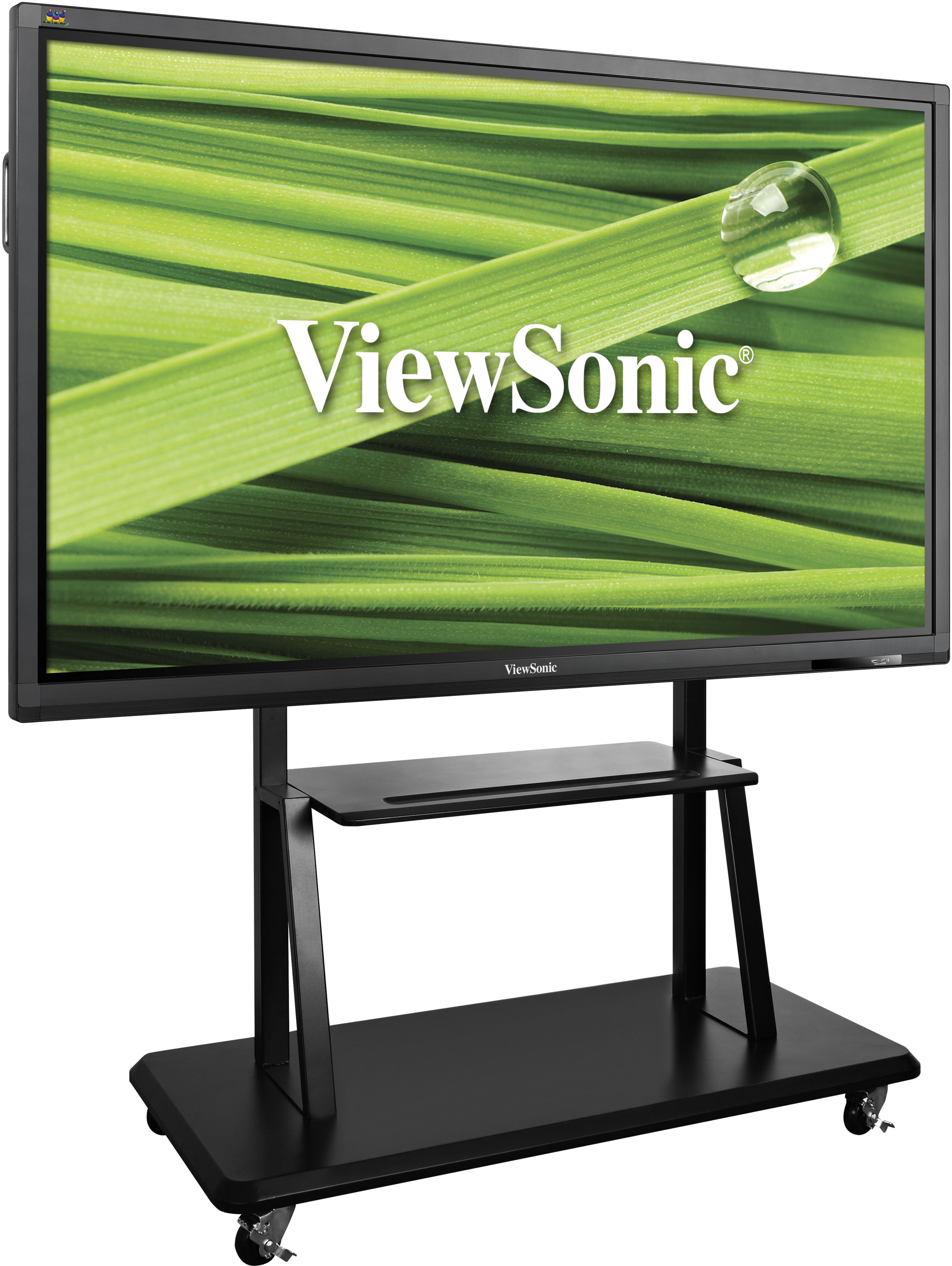

PC Module (NMP711-P10), Trolley (LB-STND-003)
