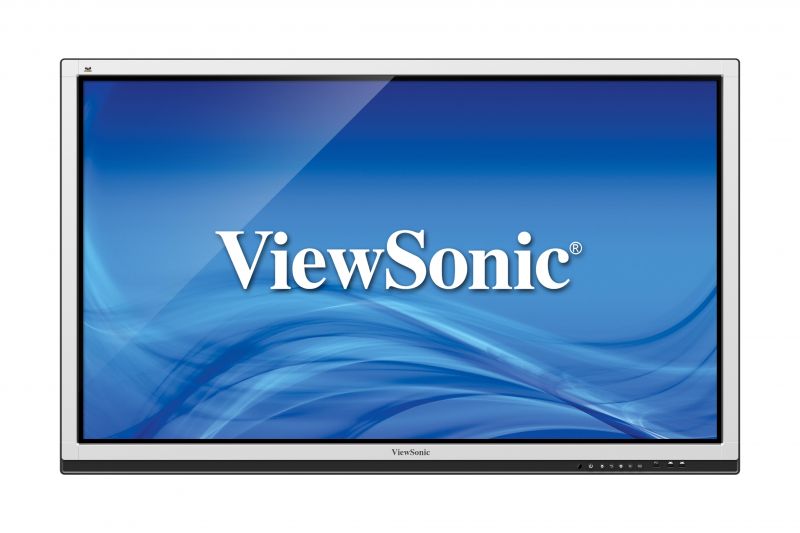

ViewSonic ViewBoard CDE7061T

CDE7061T

70” Full HD Commercial LED Display

GALLERY

SPECIFICATIONS

LCD PANEL
Panel Size: 70"
Type/Tech: TFT LCD Module with LED Backlight
Display Area: 1549.44 x 871.56
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Colors: 16.7 M colors
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1 Typ.
Response Time: 5ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours Typ.
TOUCH
Type/Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 point for gesture, 10 point for writing
INPUT
HDMI: x3
RGB / VGA: x3
Audio: x3 PC audio(3.5 mm)
CVBS: x1
RS232: x1
OPS: PC Slot (proprietary)

OUTPUT
RGB / VGA: x1
Audio: x1 Earphone Out
SPDIF: x1
LAN
RJ45: x1
USB
Type A: x3 (USB 2.0 including 2 USB ports in front), x1 (USB 3.0)
Type B: x1 (for touch)
SPEAKERS
10Wx2
COMPATIBILITY
RGB PC/HDMI PC: up to 1920x1080@60Hz/1080p
CVBS: 480i
HDMI: 480i, 480p,720p, up to 1080p
POWER
Voltage: 100V-240V AC 50/60HZ
Consumption: "On": 222W (typ)
"Off": < 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA ): 600 x 400 mm
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 65.6 x 40.0 x 3.9 / 1665 x 1015 x 98
WEIGHT
Net (lb / kg): 121.25 / 55
PACKAGE CONTENTS
VGA cable / Power cable x 4 / Remote control / USB cable / Audio cable / Touching pen / User manual CD wizard / RS232 adapter
