SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested

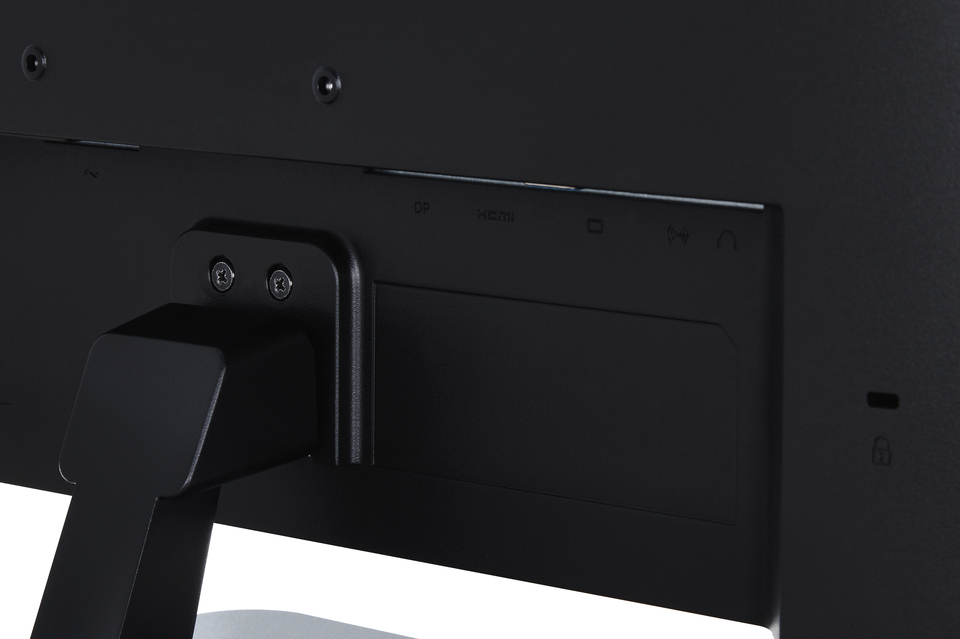

Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- PowerEco Mode (Conserve): 14W
Eco Mode (optimized): 18W
Consumption (typical): 21W
Consumption (max): 25W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1

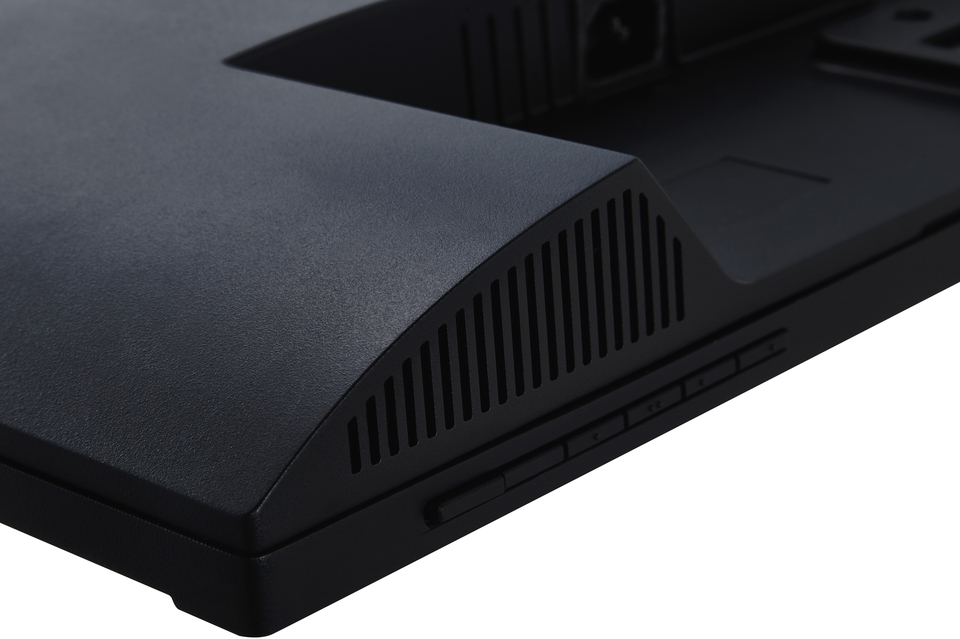

- ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: RGB Analog: 24 ~ 84KHz, HDMI (v1.4): 15 ~ 84KHz
Frequency Vertical: RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -4º / 20º
- Weight (imperial)Net (lbs): 7.3
Net Without Stand (lbs): 6.4
Gross (lbs): 10.6 - Weight (metric) Net (kg): 3.3
Net Without Stand (kg): 2.9
Gross (kg): 4.8 - Dimensions (imperial) (wxhxd)Packaging (in.): 21.4 x 15.1 x 5
Physical (in.): 19.3 x 14.3 x 7.8
Physical Without Stand (in.): 19.3 x 11.7 x 1.9 - Dimensions (metric) (wxhxd)Packaging (mm): 544 x 384 x 128
Physical (mm): 490 x 362 x 198
Physical Without Stand (mm): 490 x 297 x 48 - GeneralPACKAGE CONTENTS: VA2256-H x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
