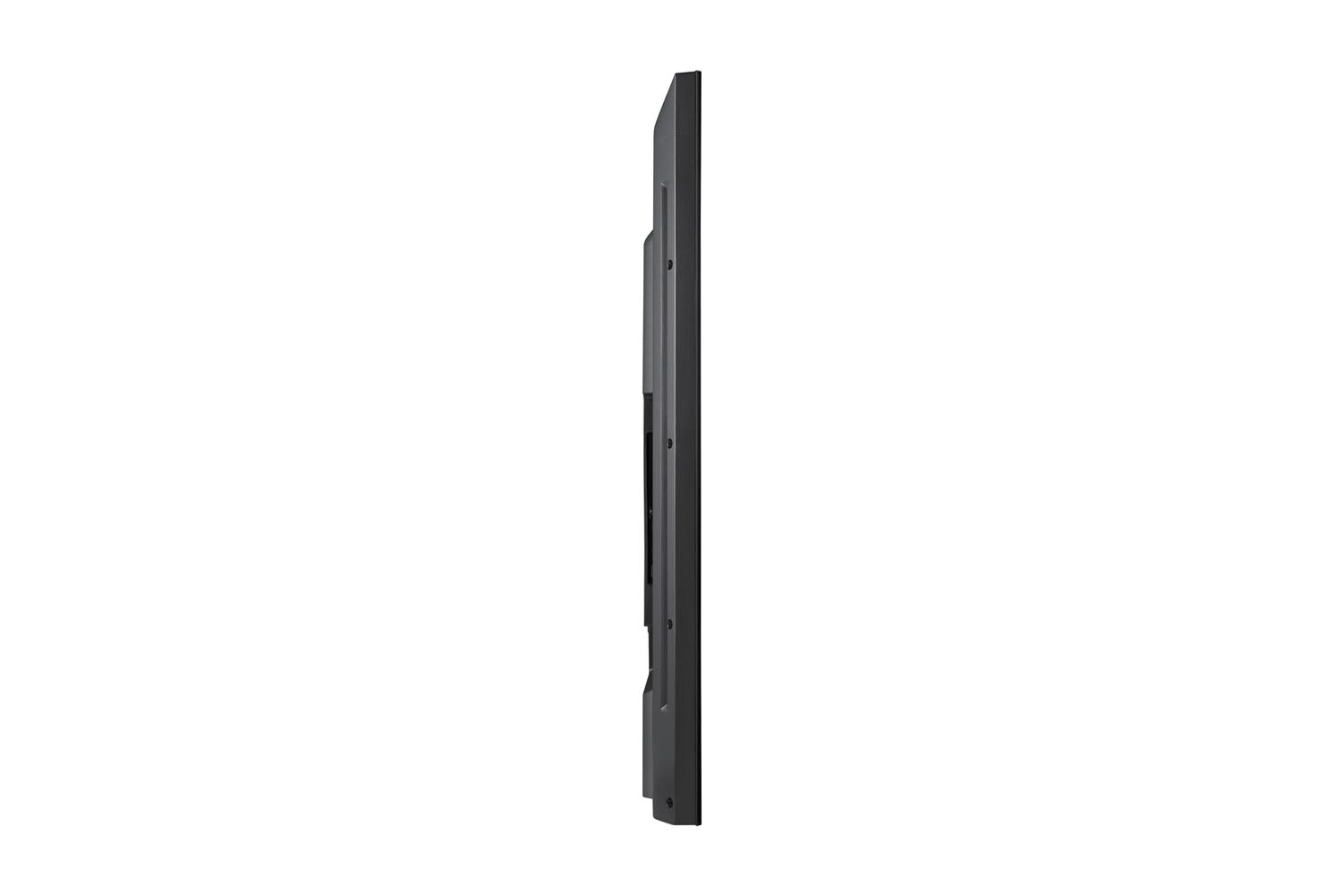

CDE5502

55" (54.6" viewable) Full HD Direct-lit LED Commercial Display

DISPLAY
Panel Size: 54.66”
Type/ Tech: TFT LCD Module. with LED Backlight
Display Area (mm): 1209.6(H) x 680.4 (V) (54.64” diagonal)
Aspect Ratio: 16:9
Resolution: 1920x1080
Colors: 16.7M
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 (typ.)
Response Time: 9 ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight Life: 30,000 Hours (typ.)
Orientation: Landscape/Portrait

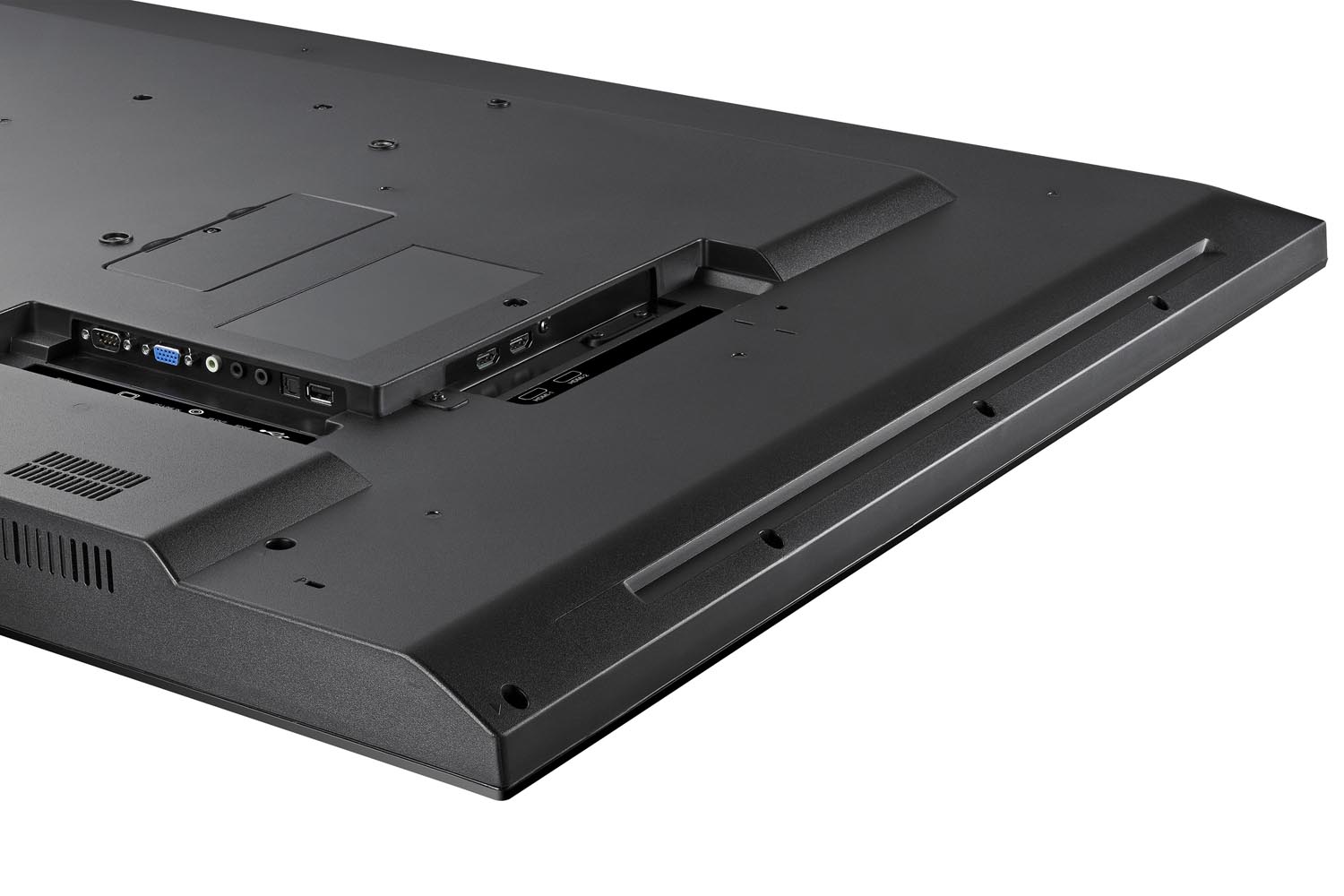

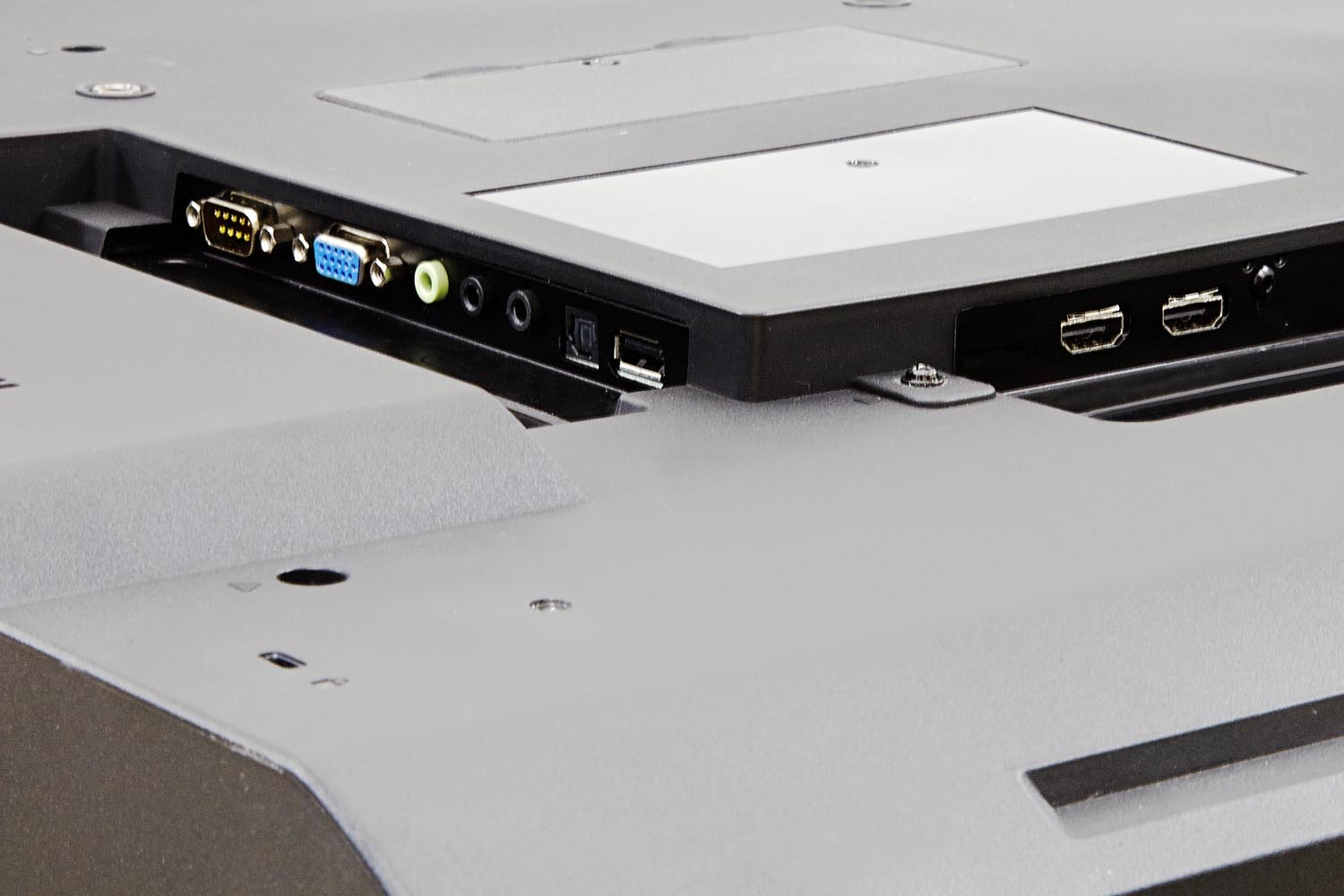

INPUT
HDMI: x2
RGB / VGA: x1
Audio : x1 PC audio(3.5mm)
RS232: x1
OUTPUT
Audio: x1 Earphone Out
SPDIF: x1
IR Pass Thru: x1
Remote Control Out: x1

USB
Type A: x1
SPEAKERS
10W x2
COMPATIBILITY
RGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p
CONTROLS
Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
SOUND: Auto sound, Equalizer, Balance, Reset sound settings Sleep timer, Date/Time.
GENERAL SETTINGS: Language, PC settings, HDMI CEC, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features Photo, Music, Movie
Multimedia: PICTURE: BMP, JPG, JPEG, PNG
VIDEO: MP4, AVI, MKV, VOB, MPG, MPEG, TS, TRP, TP
AUDIO: MP3, M4A, AAC
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: "On" 105W "Off" (Suspend) < 0.5 W
ERGONOMICS
Wall Mount (VESA® ): 200x200mm / 400x400mm
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20%~80% @40℃ non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 48.76 x 29.59 x 12.98 / 1238.6x751.7x329.6 (w/ Stand)
48.76 x 28.0 x 2.36 / 1238.6 x 711.1 x 59.9 (w/o Stand)
Packaging (inch / mm): 53.74 x 34.02 x 7.28 / 1365 x864 x185 (w/o Stand)
WEIGHT
Net (lb / kg): 35.27 / 16.0 (w/o Stand)39.40 / 17.87 (with Stand)
Gross (lb / kg): 50.71 / 23.0
PACKAGE CONTENTS
1. CDE5502 commercial display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 cable
