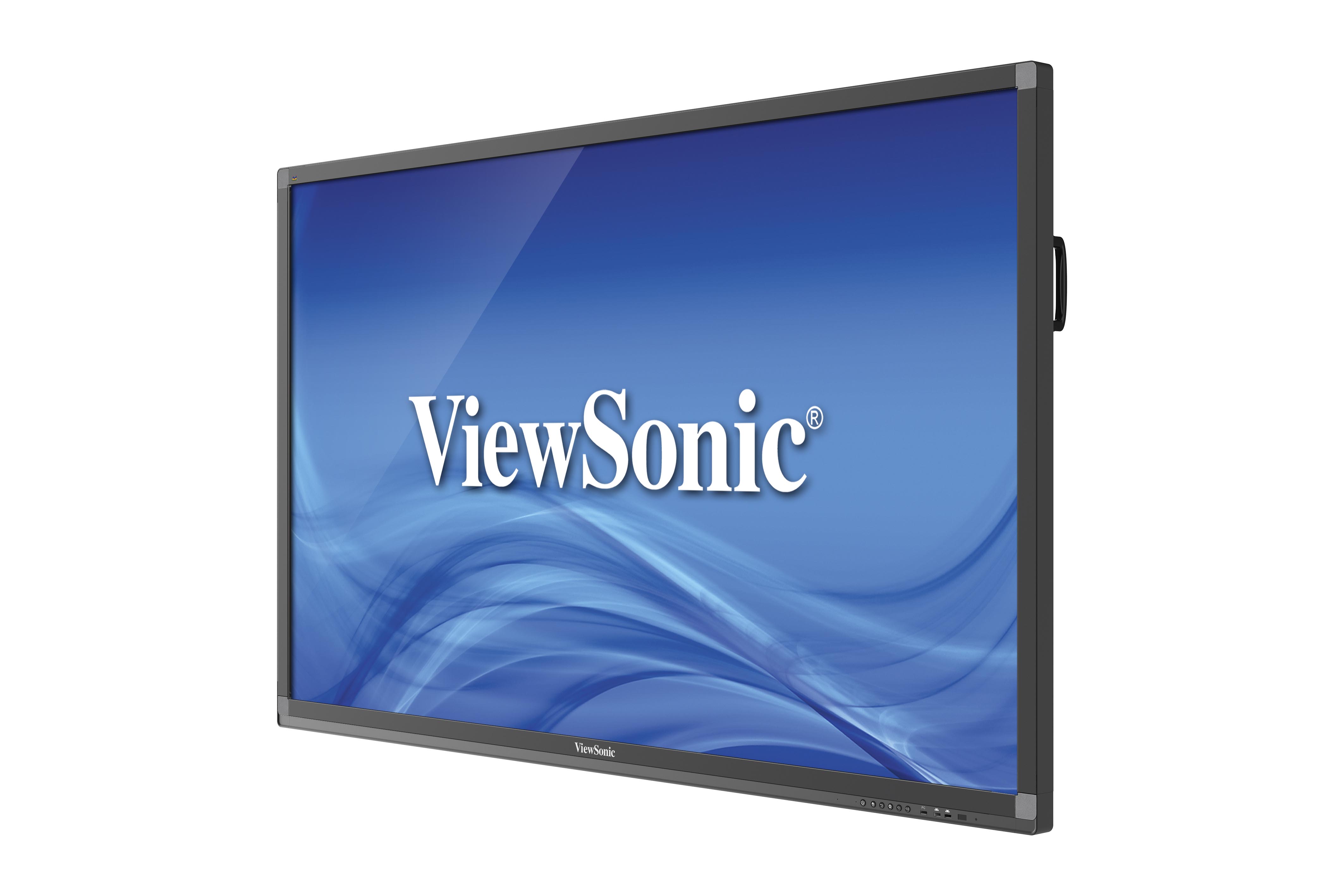

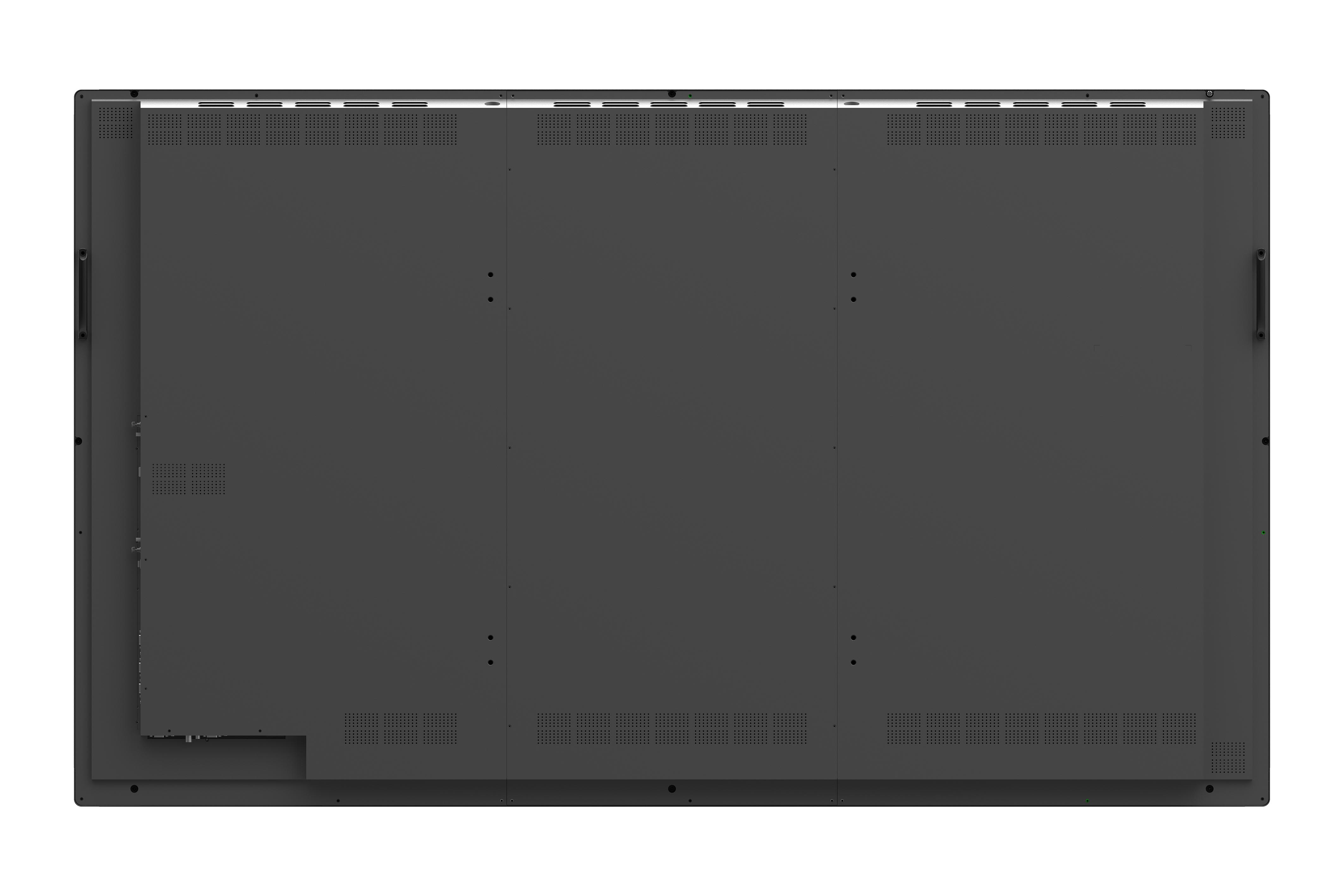

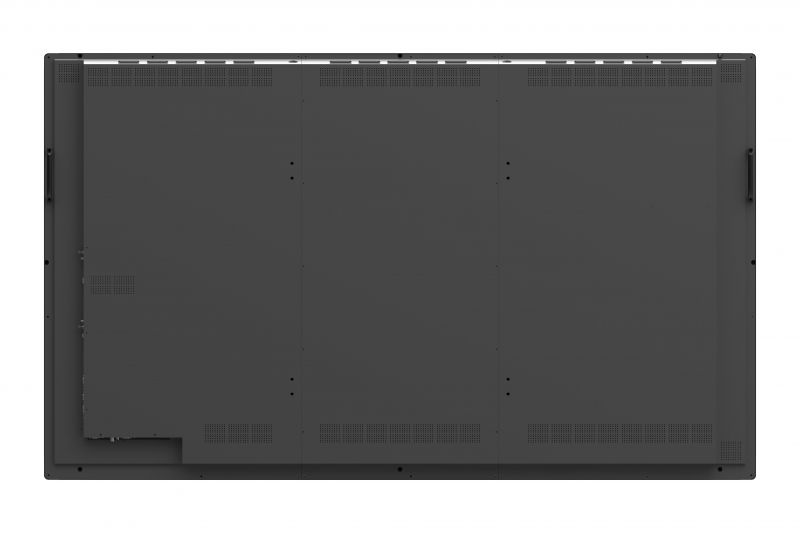

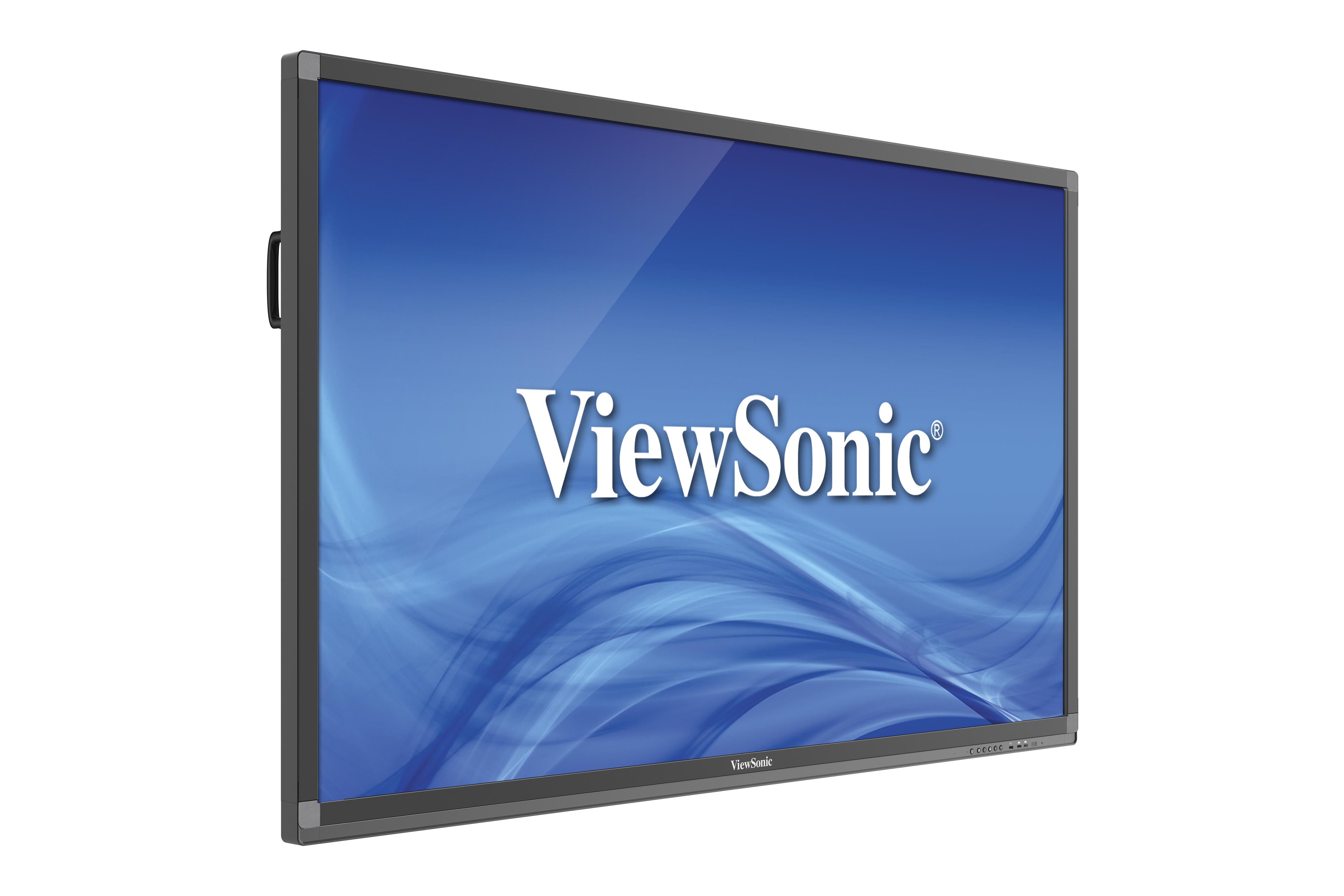

CDE8452T

84" Ultra HD Interactive Commercial Display

LCD PANEL
Panel Size: 84.04"
Type/Tech: TFT LCD Module with LED Backlight
Display Area: 1860.48 x 1046.52
Aspect Ratio: 16:9
Native Resolution: 3840 x 2160
Colors: 1.06 Billion
Brightness: 350 nits (typ.)
Contrast Ratio: 1600:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours Typ.
TOUCH
Type/Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 10-point for gesture, 5 points writing
INPUT
HDMI: x3 (1080P), x1 HDMI (4K2K)
RGB / VGA: x3
Audio: x3 PC audio(3.5 mm)
CVBS: x1
RS232: x1
OPS: PC Slot (proprietary)

OUTPUT
RGB / VGA: x1
Audio: x1 Earphone Out
SPDIF: x1
LAN
RJ45: x1
USB
Type A: x3 (2.0), x1 (3.0)
Type B: x1 (for touch)
SPEAKERS
10Wx2
COMPATIBILITY
RGB PC/HDMI PC: up to 1920x1080@60Hz/1080p
CVBS: 480i, 576i
HDMI: 480i, 480p,720p, up to 1080p / 480i, 480p,720p, 1080p, up to 4K2K (HDMI 4K2K)
POWER
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: "On": 550W (typ)
"Off": < 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA ): 600 x 600 mm
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% (non-condensing)
DIMENSIONS (W x H x D)
Physical (inch / mm): 77.9x46.7x3.7 / 1978x1187x95
WEIGHT
Net (lb / kg): 235.89 / 107
PACKAGE CONTENTS
VGA cable / Power cable x 4 / Remote control / USB cable / Audio cable / Touching pen x 3 (LB-PEN-003) / User manual CD wizard / RS232 adapter
