PD1611

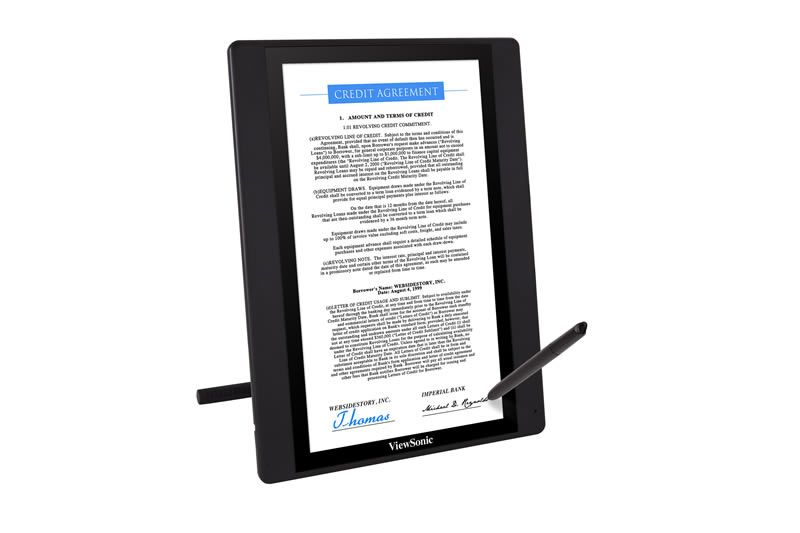

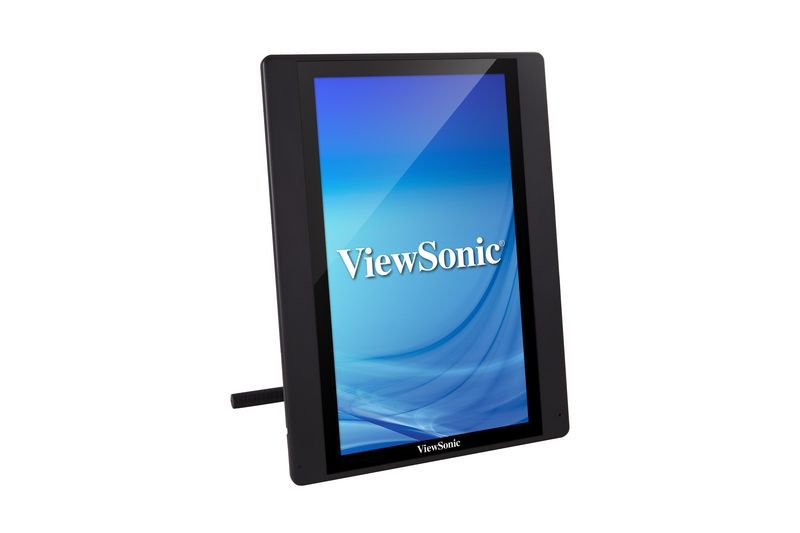

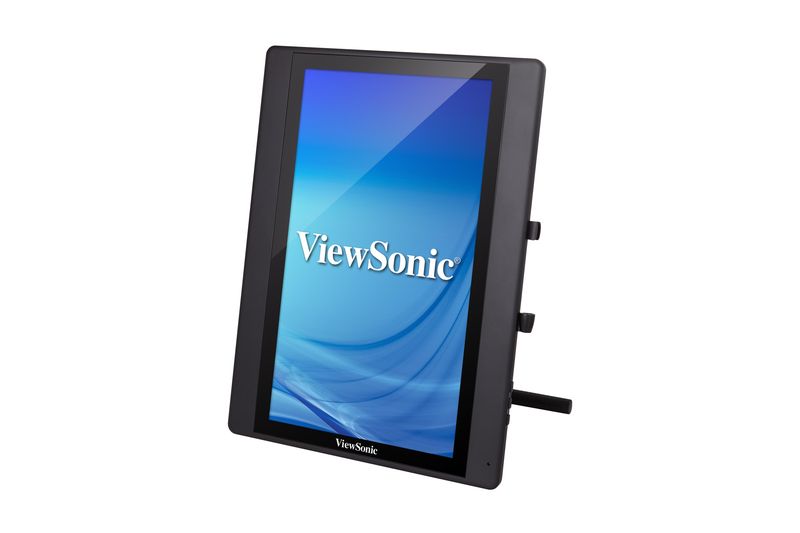

16'' (15.6'' viewable) Pen Display, can display A4 size electronic documents vertically
SPECIFICATIONS
- LCD PanelDisplay Area: 344.232 (W)X195.538 (H) mm
Optimum Resolution: 1366 x 768, 16:9
Brightness: 220 cd/m2
Contrast Ratio: 1000 : 1
Viewing Angles: 130° (V) / 90° (H)
Backlight: LED Light-Bar

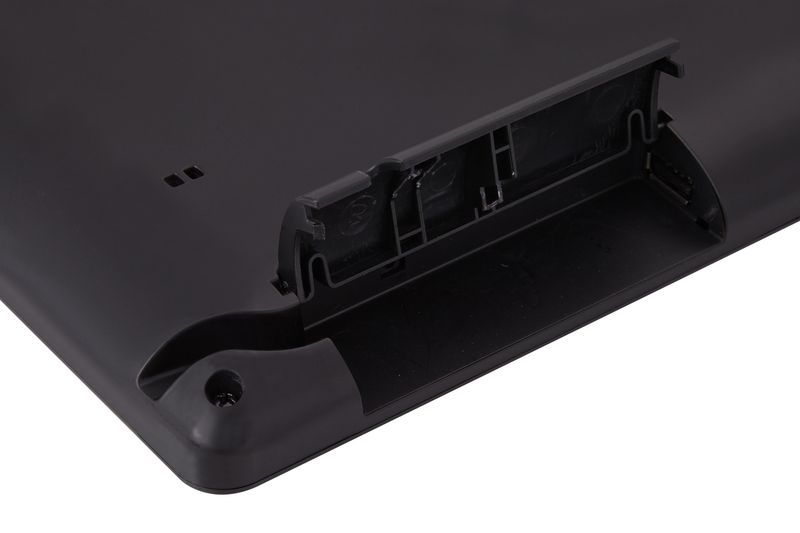

Surface Treatment: 8H tempered glass - ConnectorVideo: USB2.0
USB: x 1
Power: Share with USB - TouchTechnology: Electromagnetic Resonance
Touch Pen: Battery-Free
Digitizer Resolution: 5080 LPI
Writing Response: 200 PPS (point per second)
Accuracy: ± 0.5mm (center), ± 2 mm (edge)
Pressure Level: 2048 Levels
Detectable Height: 5 - 10mm above glass

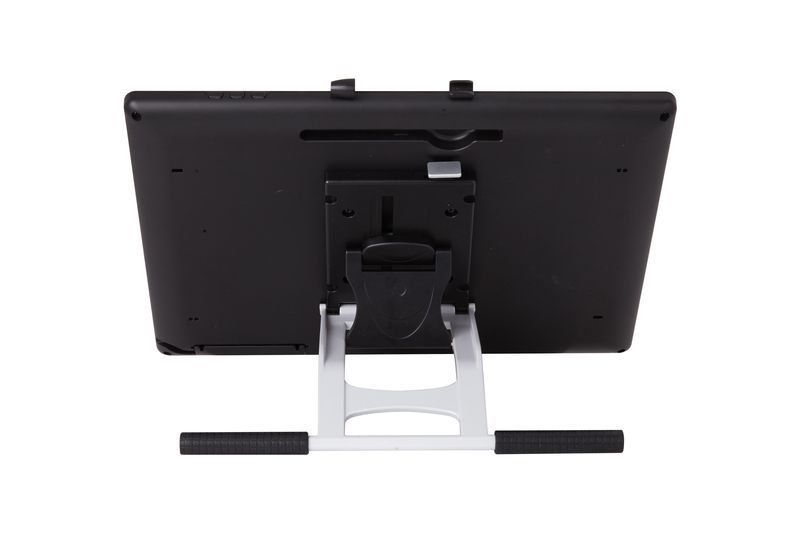

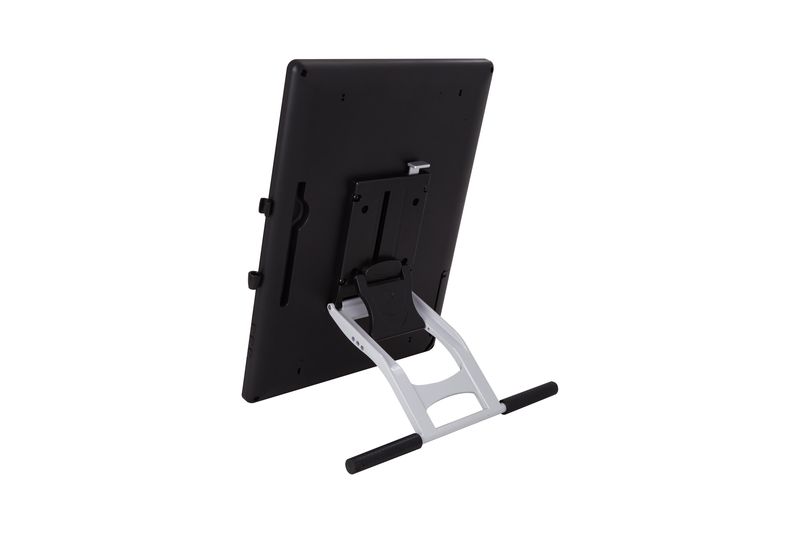

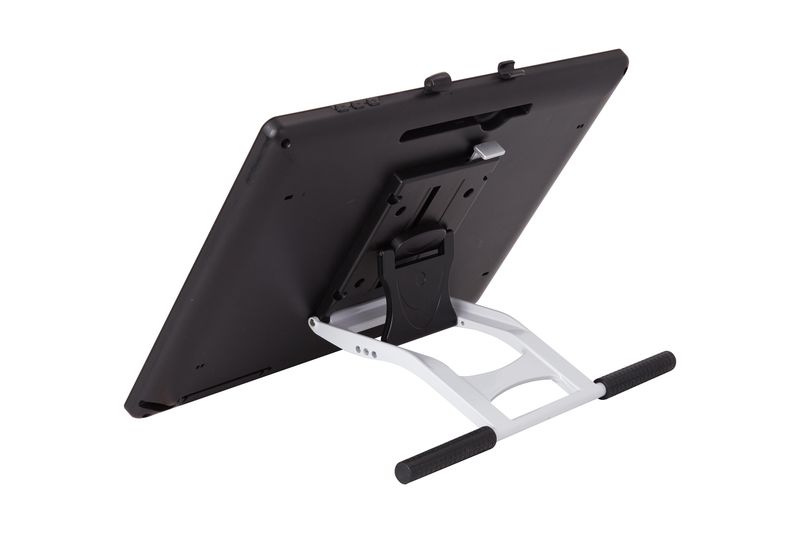

- ERGONOMICsTilt: 11°~85°
- CompatibilityPC: Windows XP, Windows 7, Windows 8
- InputFrequency: Horizontal:30-48kHz, Vertical:56-70Hz
- PowerVoltage: 12V / 2A
Consumption: 6.5 W - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity: 20% - 80%(Max), Non-Condensation - DimensionsPhysical (in / mm): 15.35” x 11.41” x 0.88” inch , 390 x 290 x 22.35 mm
Box (in / mm): 17.87” x 14.76” x 5.12” inch , 454 x 375 x130 mm - WeightNet (lb / kg): 1.88 kg
Gross (lb / kg): 2.39 kg - WHAT'S IN THE BOX1. Pen Display*1 2. Quick Star Guide *1 3. Driver CD*1 4. USB 2.0 Y-cable*1 5. Adapter*1 6. Replacement tool of Pen tip*1 7. Pen*1 8. Pen tip*3 9. Warranty card*1(VSCN only)*1 10. Pen rope*1 11. Stand 12. User Guide *1 (e-file) *Actual content may differ from market to market
