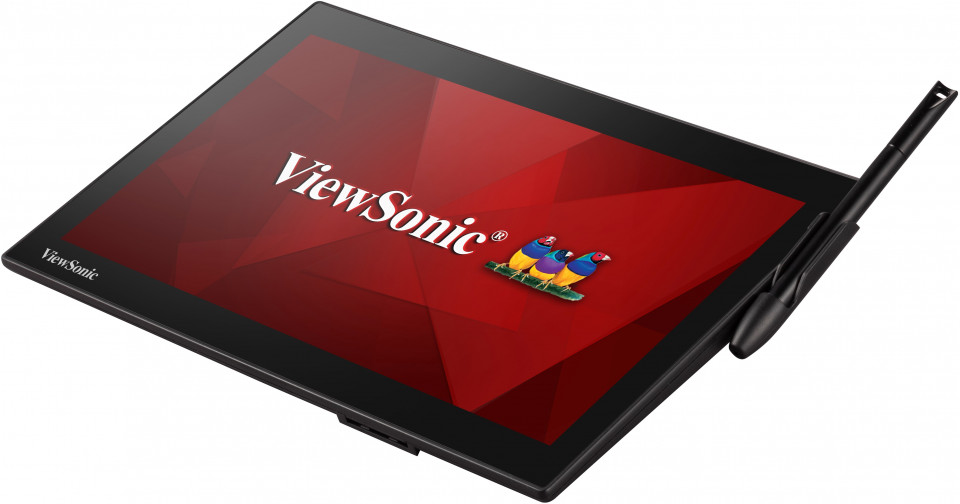

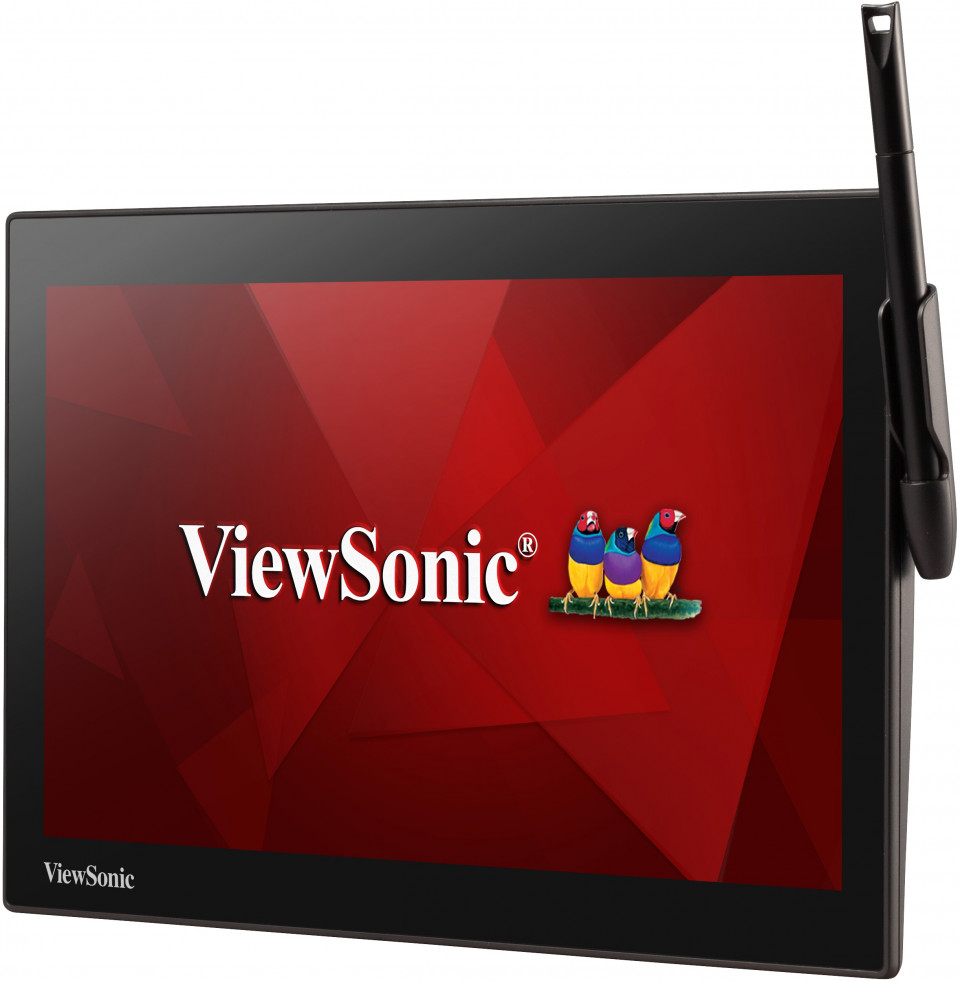

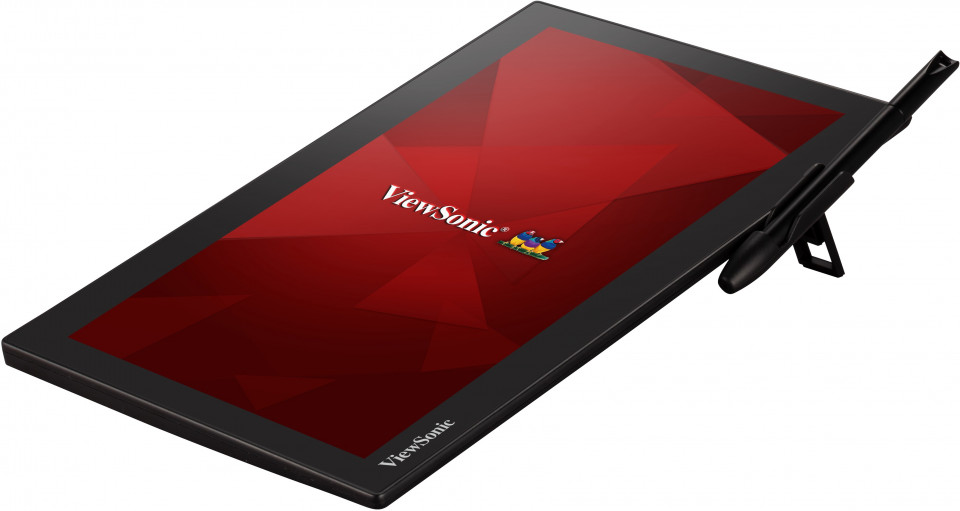

PD1233
An ideal pen display solution for optimizing user experience with streamlined service
- Implemented antimicrobial technology on pen and housing
- High Performance and e-Signature precision with 2048 pen pressure

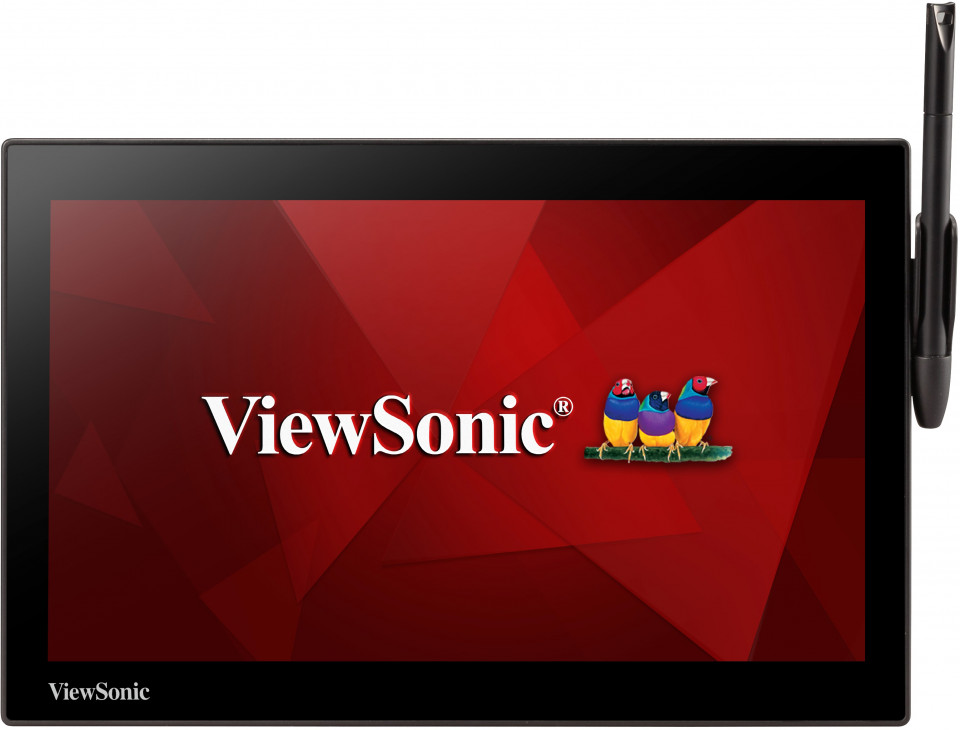

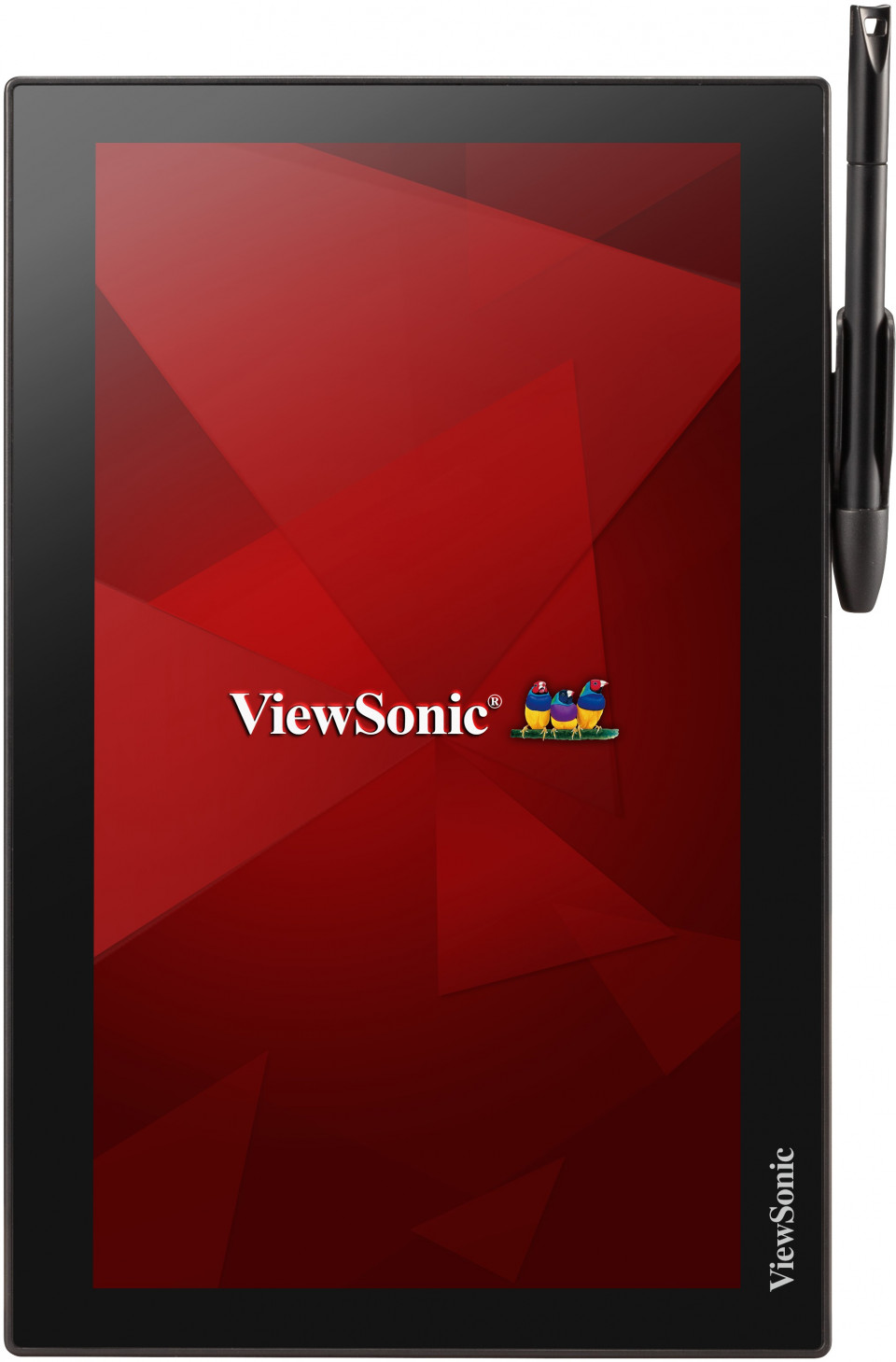

- Design portrait and landscape mode for comfortable working

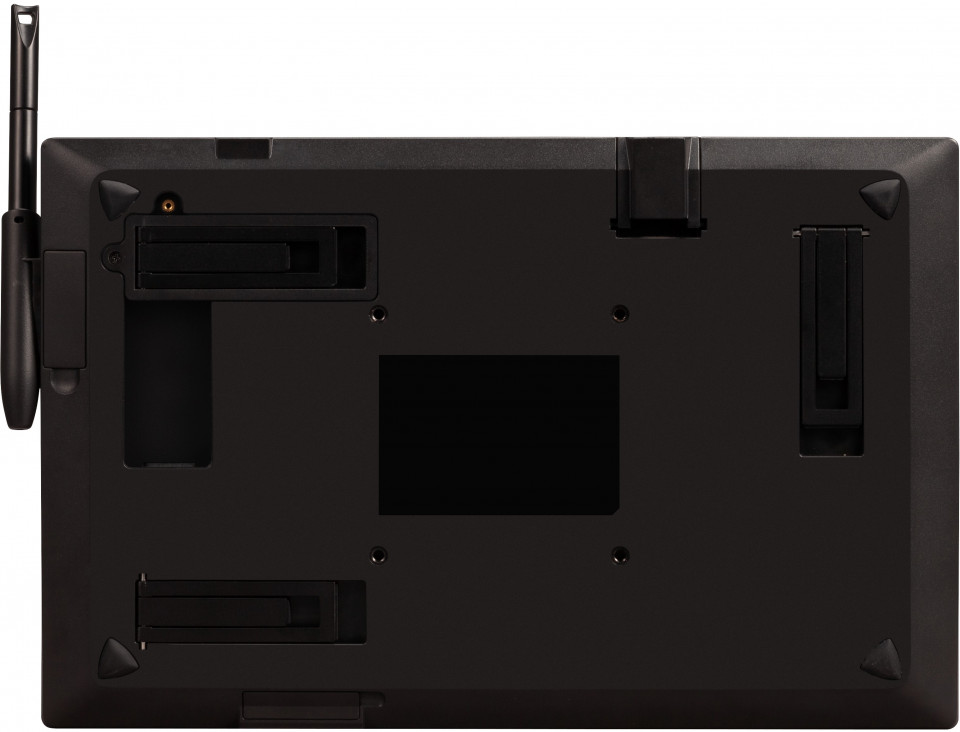

- Ergonomic design, VESA-compliance, and Kensington lock security
- Windows® compatible and support e-Signature software
- 8H glass with anti-scratch, anti-glare, and anti-fingerprint
SPECIFICATIONS
- LCD PANELDisplay Area : 256.32 x 144.18 mm (11.6" TFT LCD)
Optimum Resolution: 1920 x 1080 pixels
Brightness: 200 cd/m2
Contrast Ratio: 1000:1
Backlight: LED Light-Bar
Viewing Angles: H:170° (85°/ 85°) V:170° (85°/ 85°)
Panel Surface: Anti-glare, Hard coating (8H) - CONNECTORVideo: Mini HDMI (1.4) x 1
USB: USB 2.0 x 1 by 3-in-1 cable
Power: Adapter : 5V/2A by 3-in-1 cable - TOUCHAccuracy: +/- 0.5mm(center)

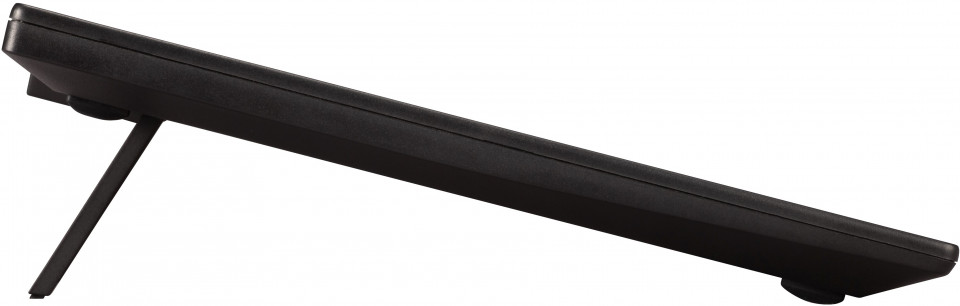

- ERGONOMICSTilt: Portrait : 0/ 15°/ 20°
Landscape: 0/ 9°/ 13° - COMPATIBILITYPC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request) - POWERVoltage: USB 5V
Consumption: 7.26W (Typ.) / 8.06W (Max.) - OPERATING CONDITIONSTemperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 287.0 X 185.6 X 14.3 mm
Box (in / mm): 350.0 X 273.0 X 76.0 mm - WEIGHTNet (lb / kg): 0.7 kg
Gross (lb / kg): 1.28 kg - WARRANTY1 Year
- WHAT'S IN THE BOX1. PD1233 Pen display x 1
2. Mini HDMI 3-in-1 cable x 1

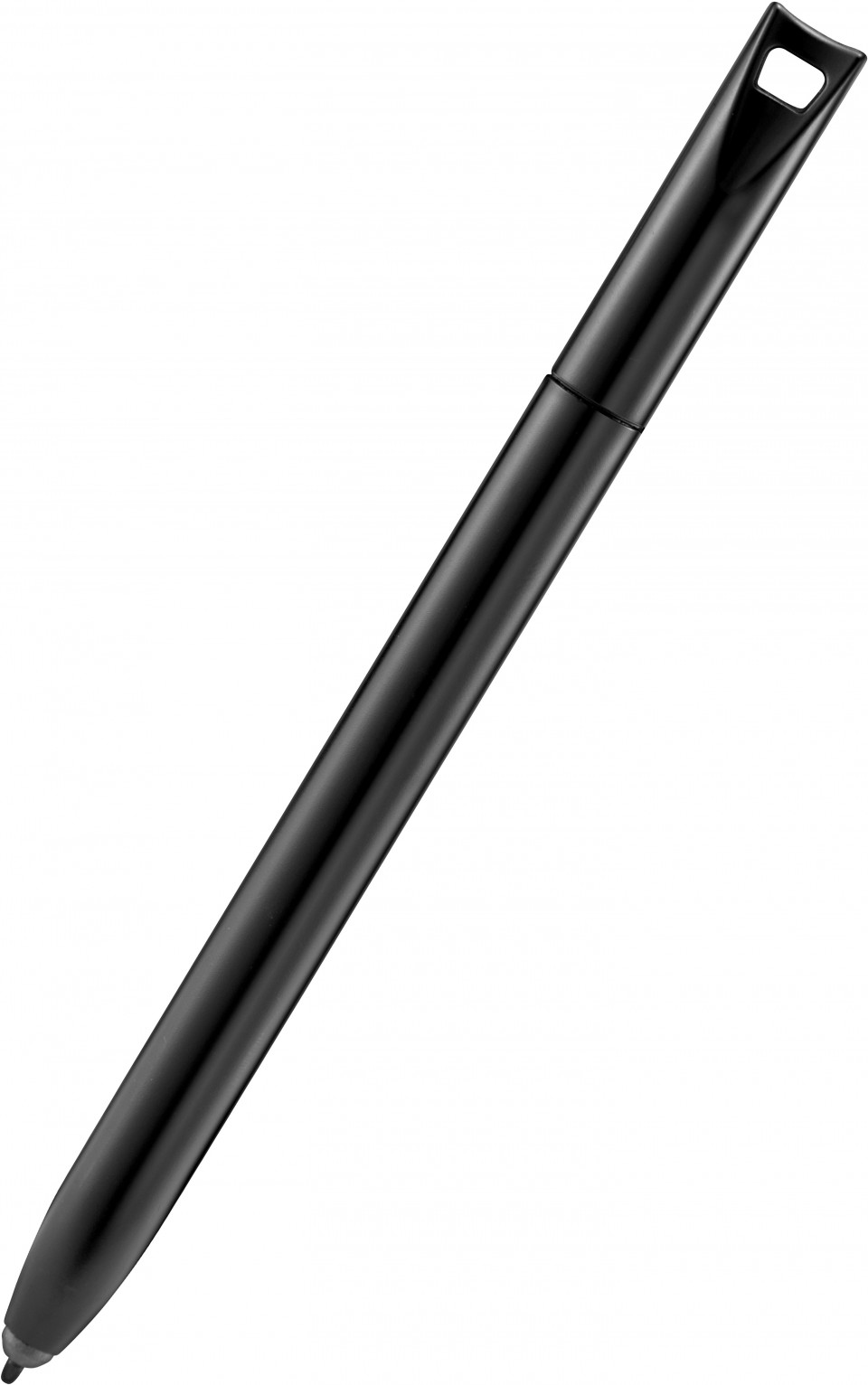

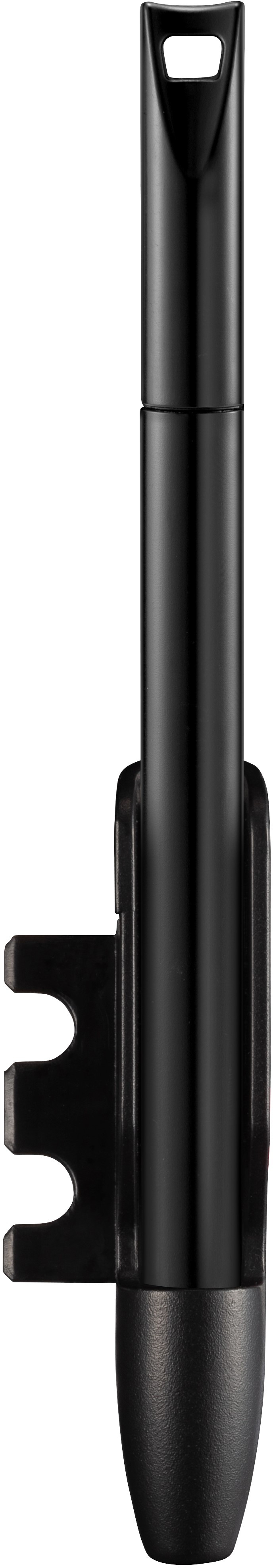

3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power adapter 5V/2A x 1
9. Quick start guide x 1
