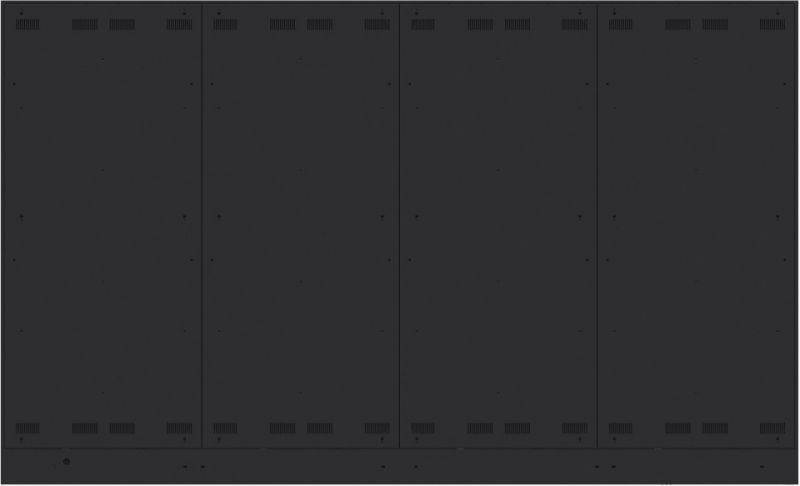

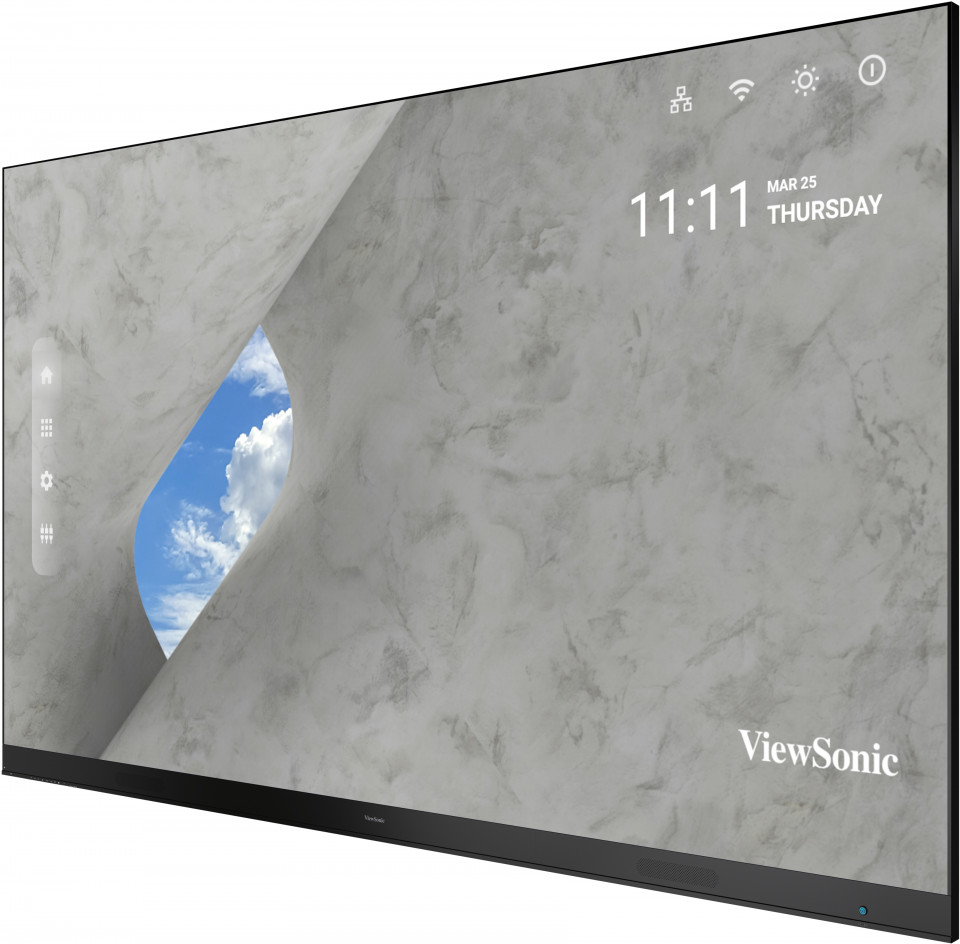

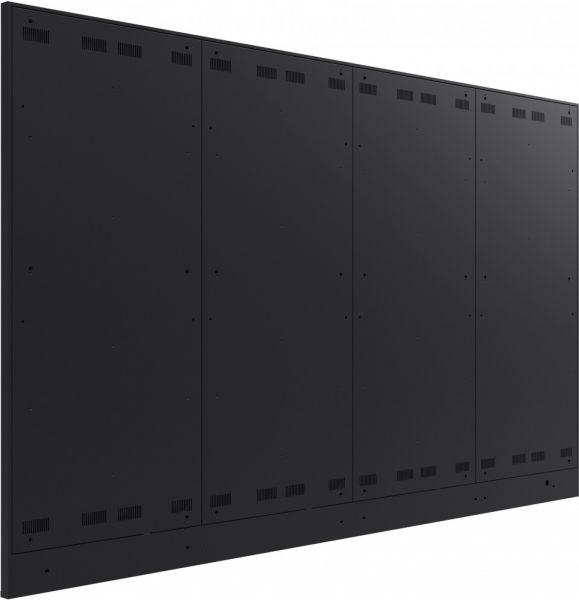

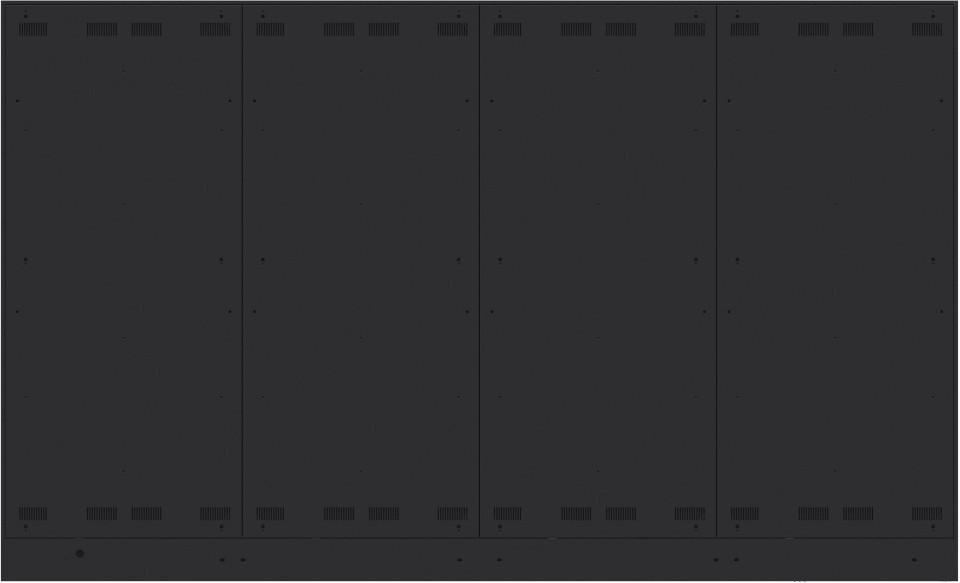

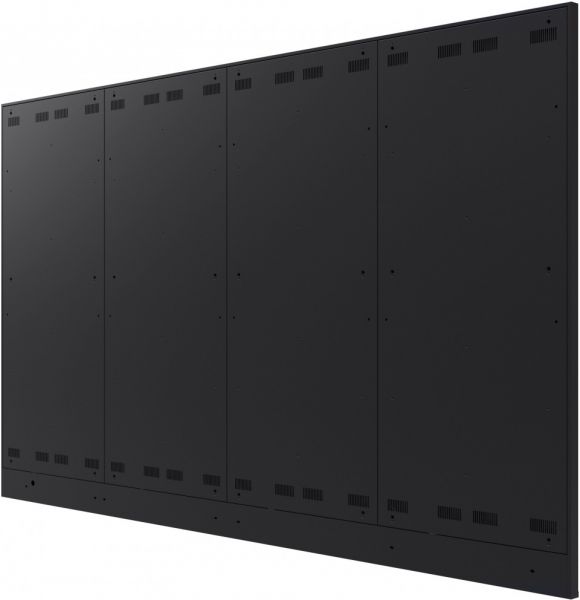

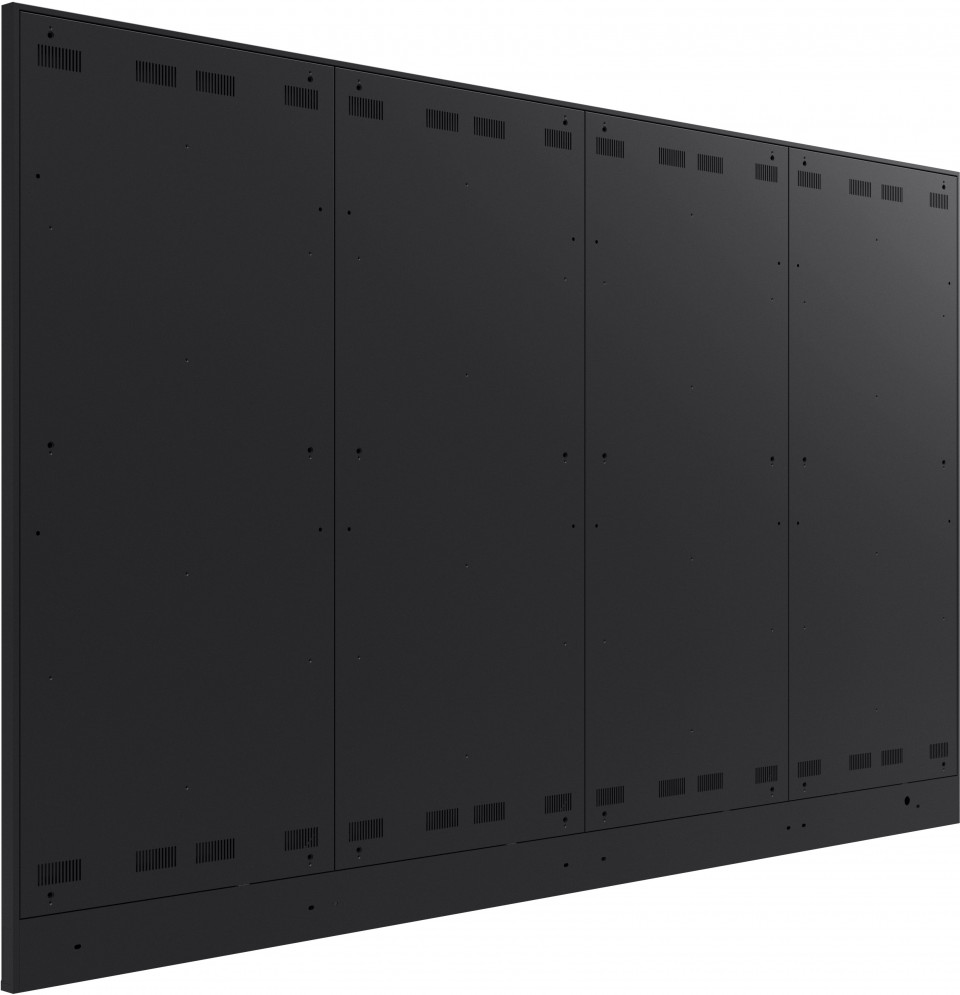

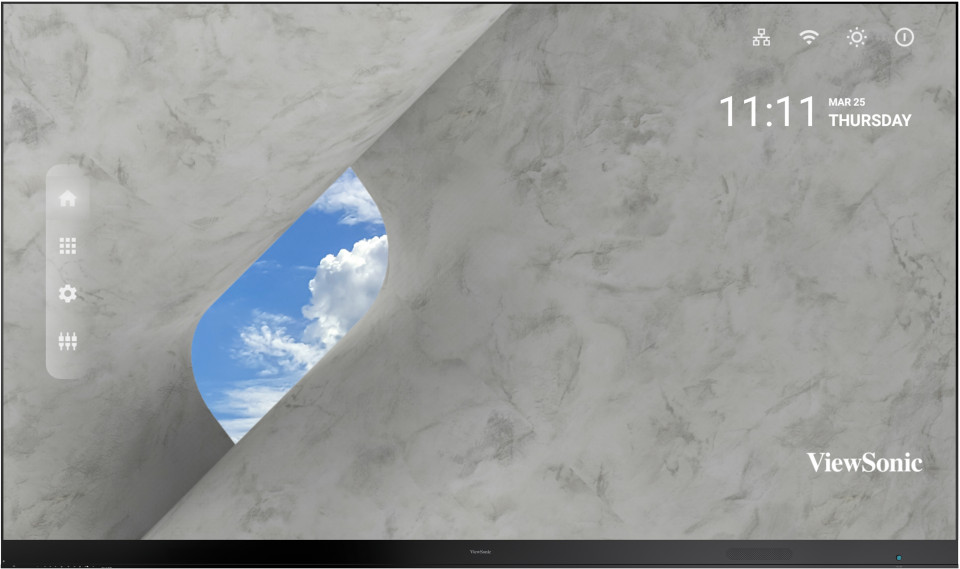

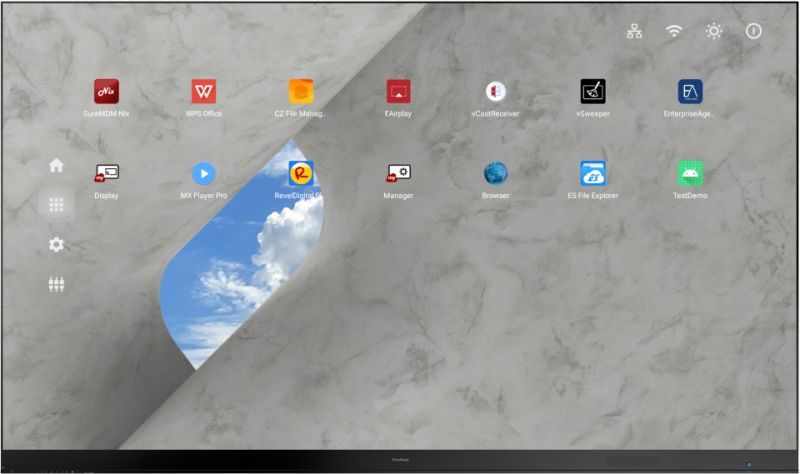

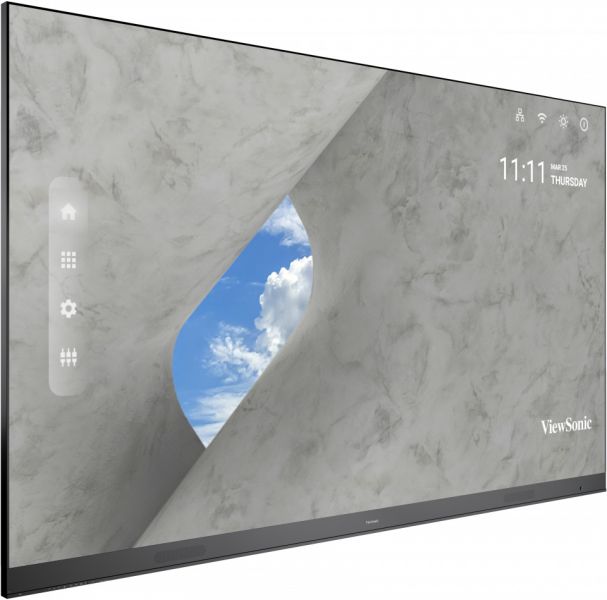

LD108-121

108” Premium All-in-One Direct View LED Display

  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

SPECIFICATIONS


  • Specification
    Screen Size: 108''
    Display Area (mm): 2400 (H) x 1350(V)
    Native Resolution: 1920x1080
    Panel Technology: Direct view LED
    Pixel Pitch (mm): 1.25
    Refresh Rate: up to 4440Hz
    Brightness (max.): 500 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 32GB (26GB available storage)
    Resolution Support: HDMI(640 x 480) to 1080p(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • Input
    HDMI: x2(HDMI 1.4, HDCP 1.4)
    USB Type A: x3(USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • Output
    HDMI out: x1(HDMI 1.4, HDCP 1.4)
    Speaker: 5W*2
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input(5V/1A x1, 5V/0.5A x2)
