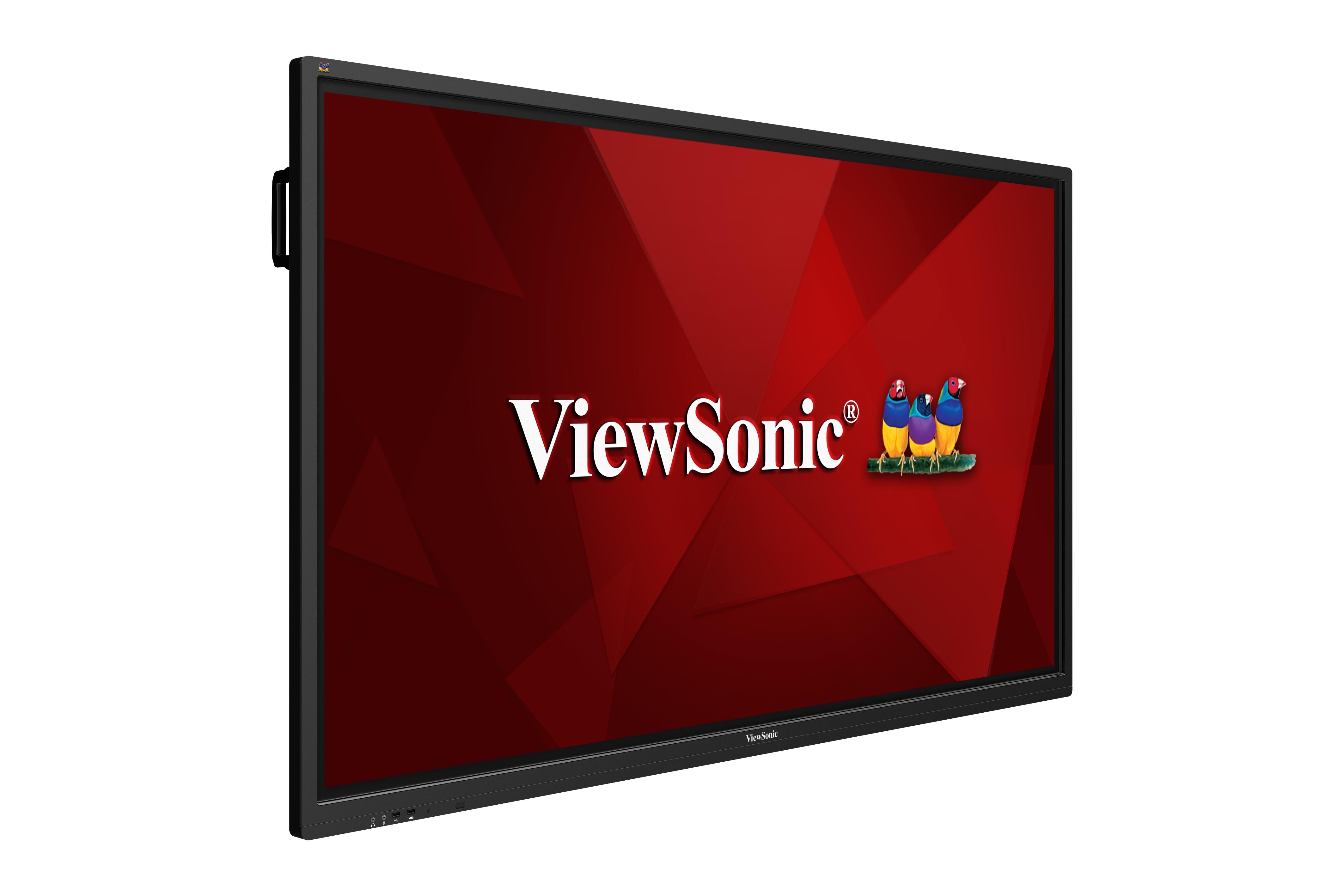

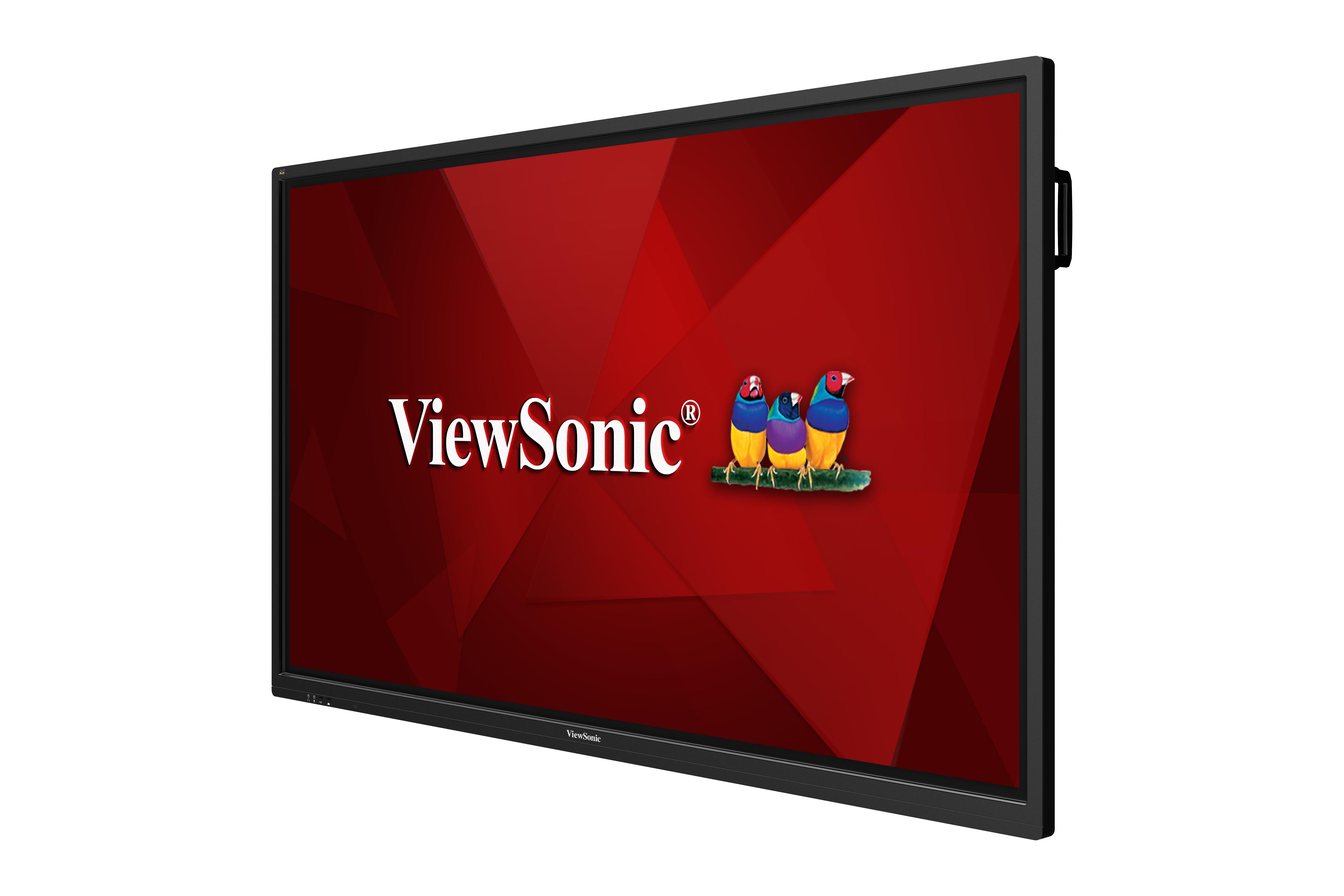

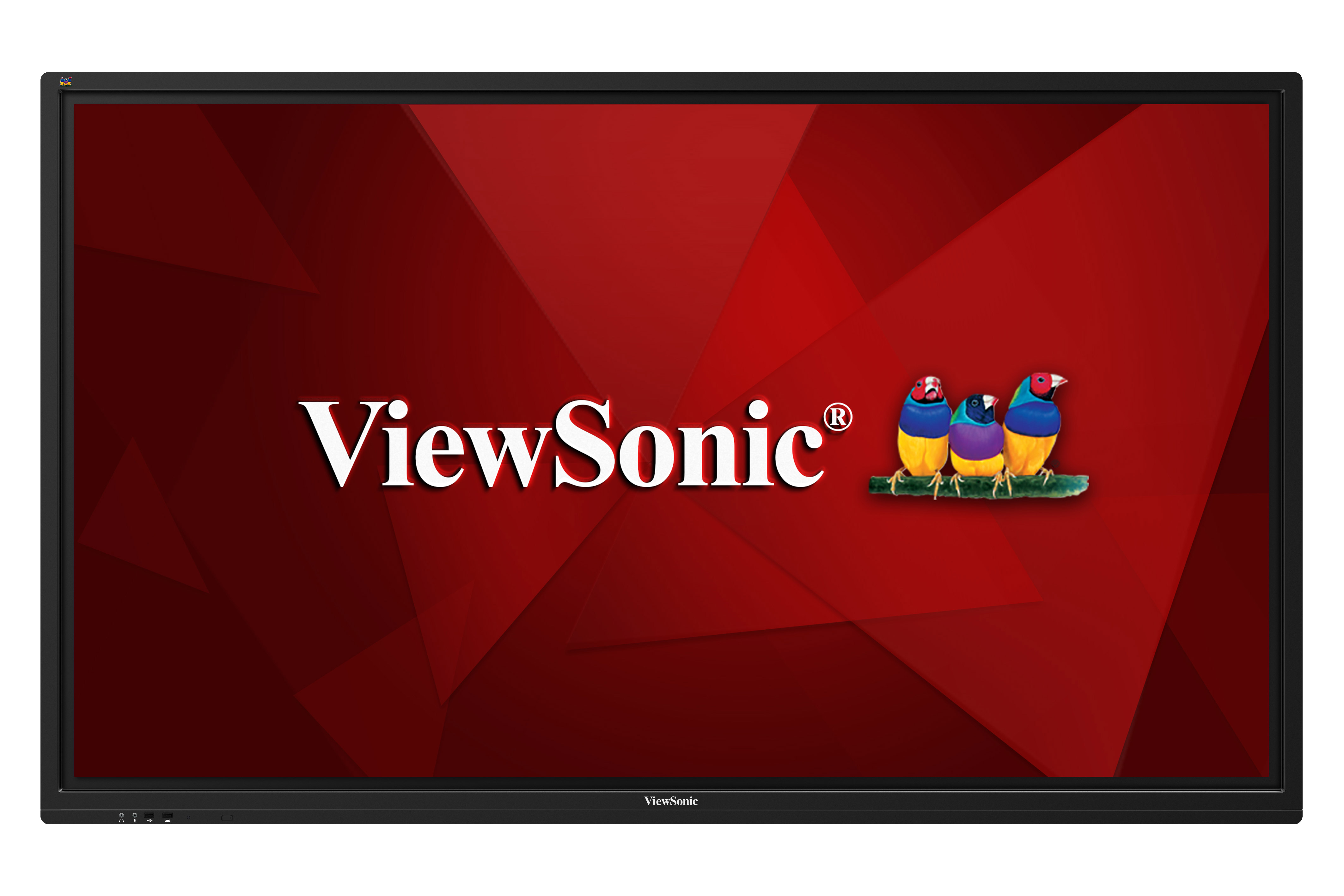

IFP7500
75" 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
스펙
- LCD PANEL패널 크기: 75"
유형/기술: TFT LCD Module with DLED Backlight
표시면적(mm): 1649.66(H) x 927.94(V) (74.5” viewable)
가로 세로 비율: 16:9
결의안: 3840 x 2160
Colors: 1.07B colors (10bit)
밝기: 400 nits (typ.) 350 nits (min.)
대비 비율: 1200:1 (typ.)
응답 시간: 8 ms
보기 각도: H = 178, V = 178 (typ.)
Backlight: DLED
백라이트 라이프: 30,000 Hours Min.
Hardness: 7H - TOUCH유형/기술: IR Recognition
터치 해상도: 32767 x 32767
터치 포인트: 20 points touch, 10 points writing
응답 시간: <10ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome

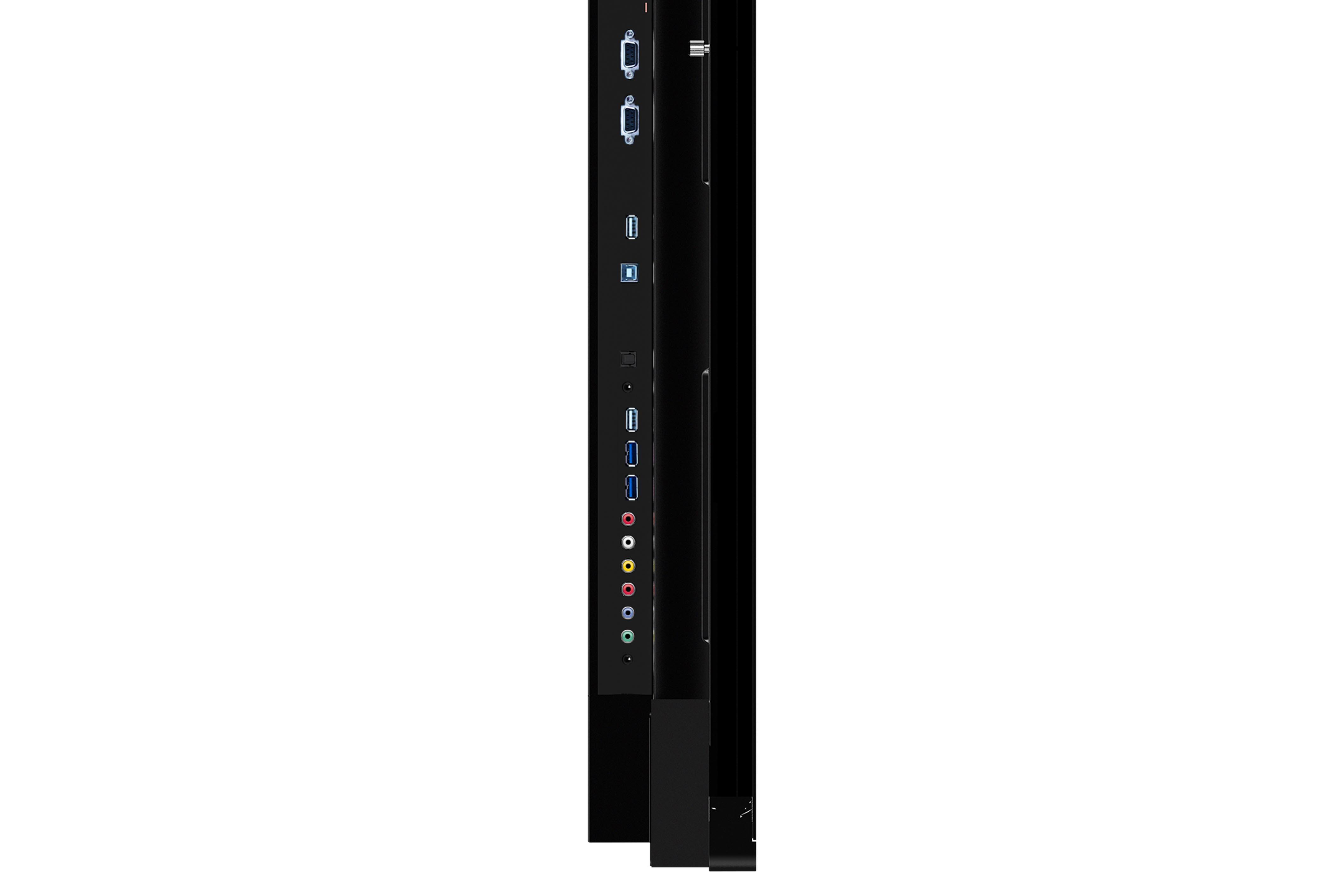

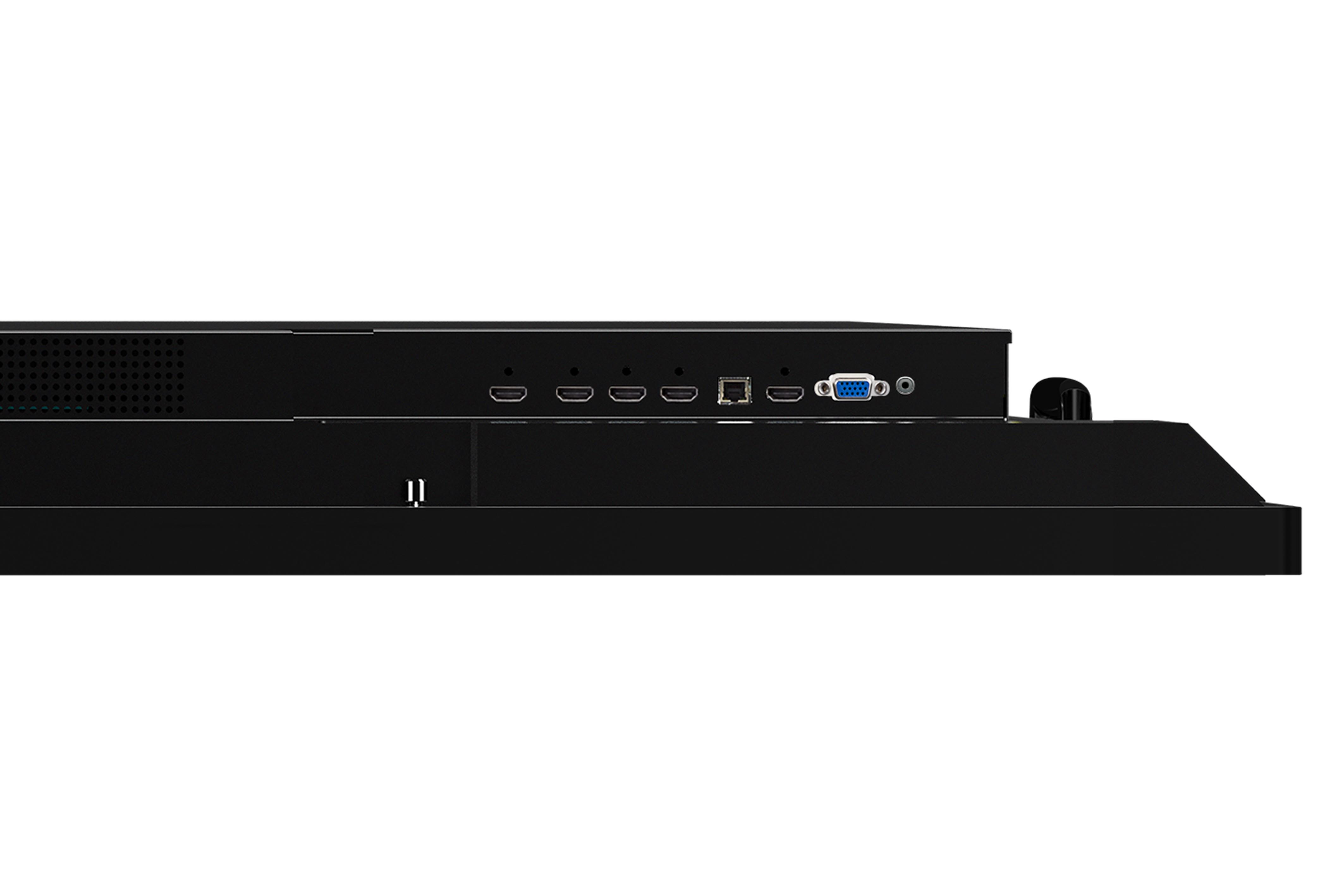

Life Time: 60,000hrs - INPUTHDMI: x 4
RGB / VGA: x 1
오디오: x 1
CVBS (AV): x 1
YPbPr: x 1
RS232: x 1
PC Slot: x1 PC Slot (Intel OPS Standard)
x1 SDM
- OUTPUTHDMI: x 1 (for one of HDMI1/2/3)
Audio (Earphone out): x 2 (front x1, side x1)
CVBS (AV): x 1
SPDIF: x 1
RS232: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 3 (front x1, side x1, top x1)
3.0 Type A: x 2
2.0 A type (Dedicated for OPS PC): x 2 (front x1, side x1)
2.0 Type B (For Touch): x 1 - 스피커20W x 2
- BUILT-IN PC프로세서: ARM Cortex A53 Quad Core 1.5G Hz CPU
Graphic: ARM Mali-450MP4
기억: 2GB DDR3
보관소: 16GB eMMC
Networking: 10/100M auto-identification and DHCP - COMPATIBILITYVGA: Refer to timing table
HDMI: 480i, 480p,720p, 1080p, up to 2160p
CVBS: 480i - CONTROLSPhysical- Top OSD: Input, Up, Down, Right(VOL+), Left(VOL-), Menu, Power
- POWER전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: 333.4 W - ERGONOMICS벽면 장착(VESA® ): 600 x 400mm; Screw: M8 x 20mm
- OPERATING CONDITIONS온도(θ C): 32°F to 104°F (0°C to 40°C)
습도: 10% ~ 90% non-condensing - 치수(가로 x 세로 x 세로)Physical w/o Stand (mm / inch): 1736.8 x 1035.3 x 108.2 mm / 68.38 x 40.76 x 4.26 inch
Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 inch - WEIGHTNet (kg / lb): 60.64kg / 133.69lbs
Gross (kg / lb): 80.4kg / 177.25lbs - What's in the box?VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)/AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 2
