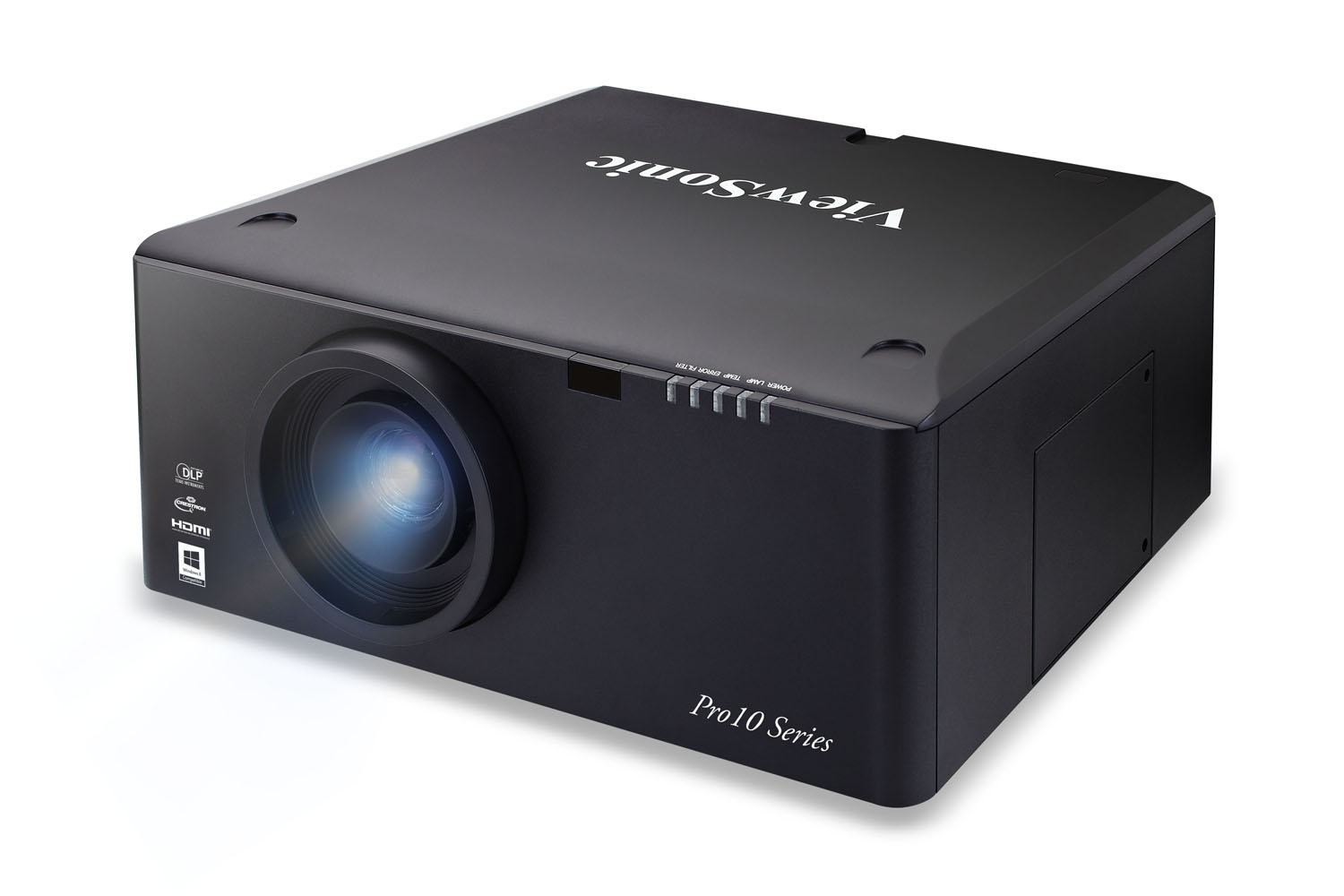

Pro10100

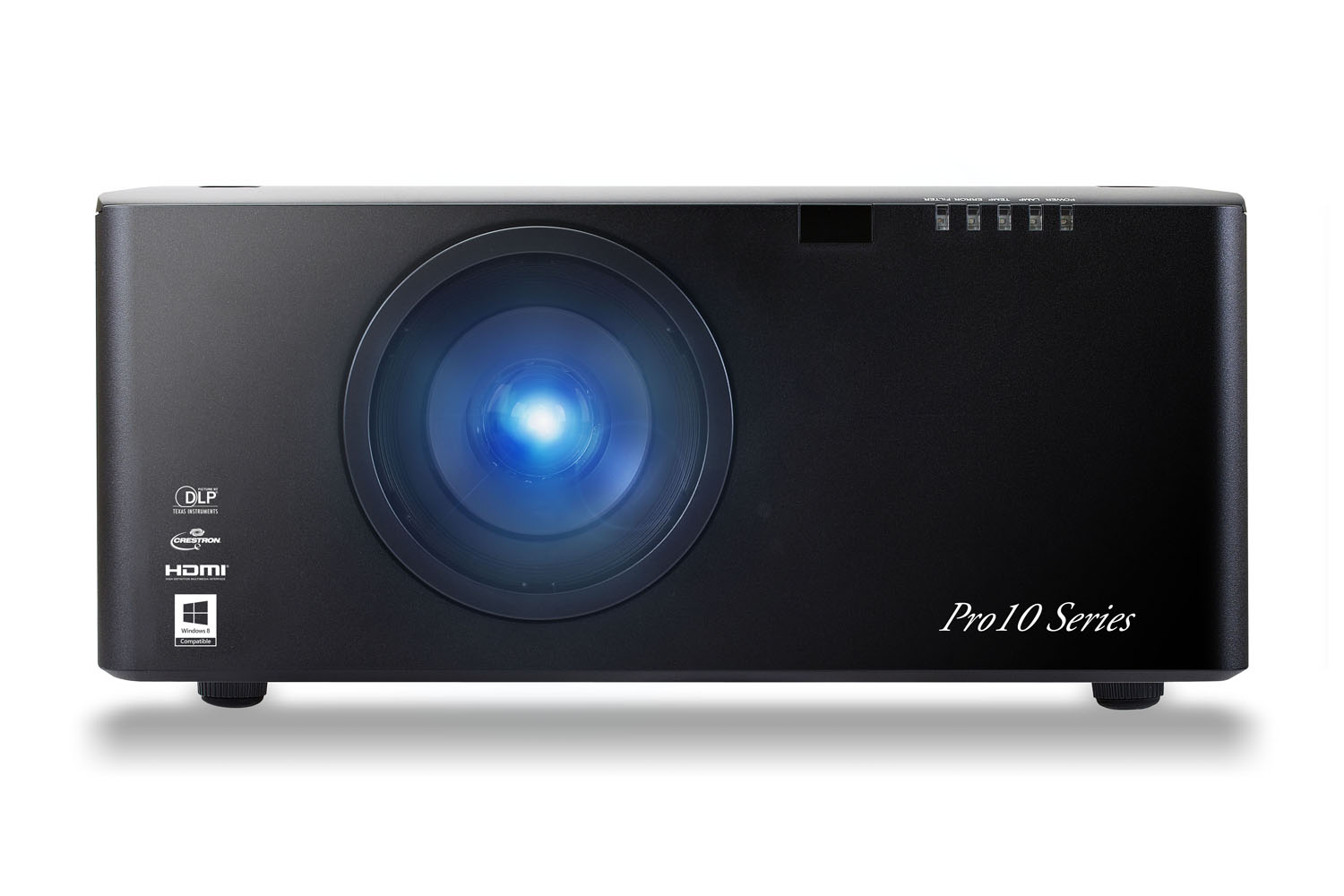

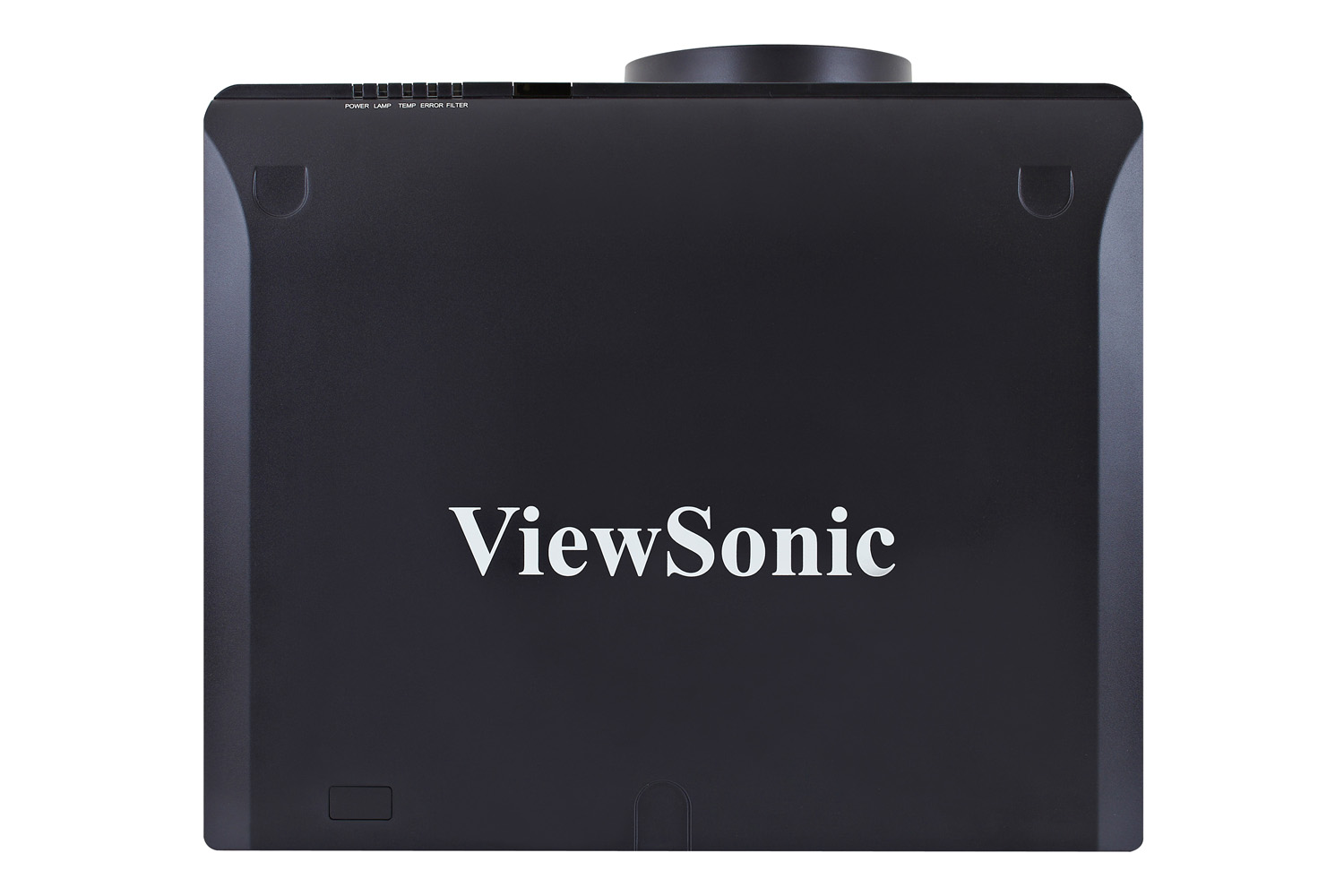

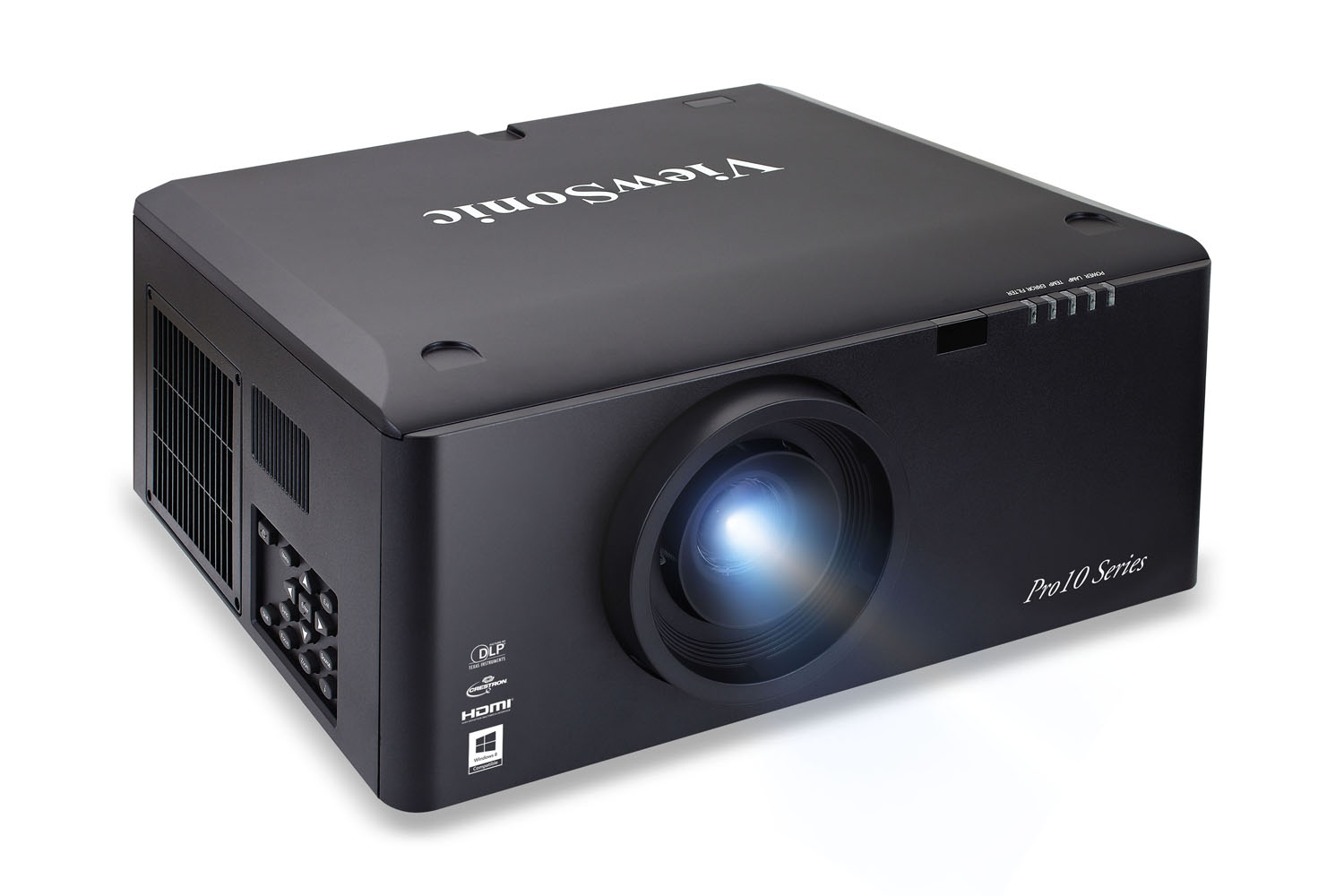

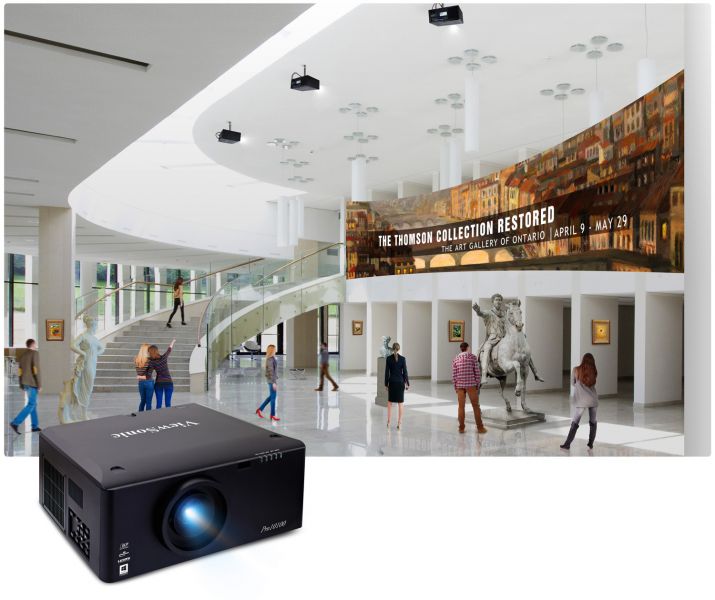

Ultra High Brightness Large-Venue Installation Projector

표시
유형: TI DMD 0.7" XGA 2xLVDS Type A DMD, Dark chip 3
결의안: 1024x768

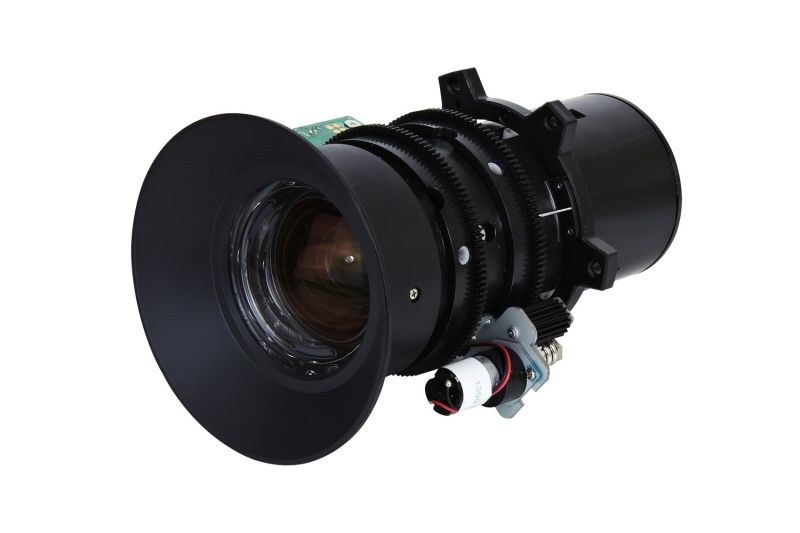

렌즈: Optical focus 1.25x / Digital zoom 1.28x /Lens shift 1.9x
Size: 50 - 300 inch
투척 거리: 1.3m - 9.6m
Lamp: 370 Watt
Lamp source life (Nor/SuperEco): 1500/2000
밝기: 6000 ANSI Lumens
대비 비율: 4,400:1 (DCR)
Keystone Correction: Manual: +/-20°
가로 세로 비율: 4:3
Lens Shift: Horizontal : +/-15% (min) Vertical: +/-50% (min) (Dim corner larger than 50%)
Color Depth: 30 bits, 1.07B Color (10+10+10)
오디오
Speakers: 10-watt (x1)
입력 신호
Video: NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N,60) SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p 720p (50/60Hz) , 1080i (50/60Hz), 1080p(24/25/30/50/60Hz)
Frequency: Fh: 15-100KHz; Fv: 48-100Hz

호환성
PC: VGA to WSXGA+ (1680x1050)
Mac: Up to 1152x870 (may require MAC adaptor)

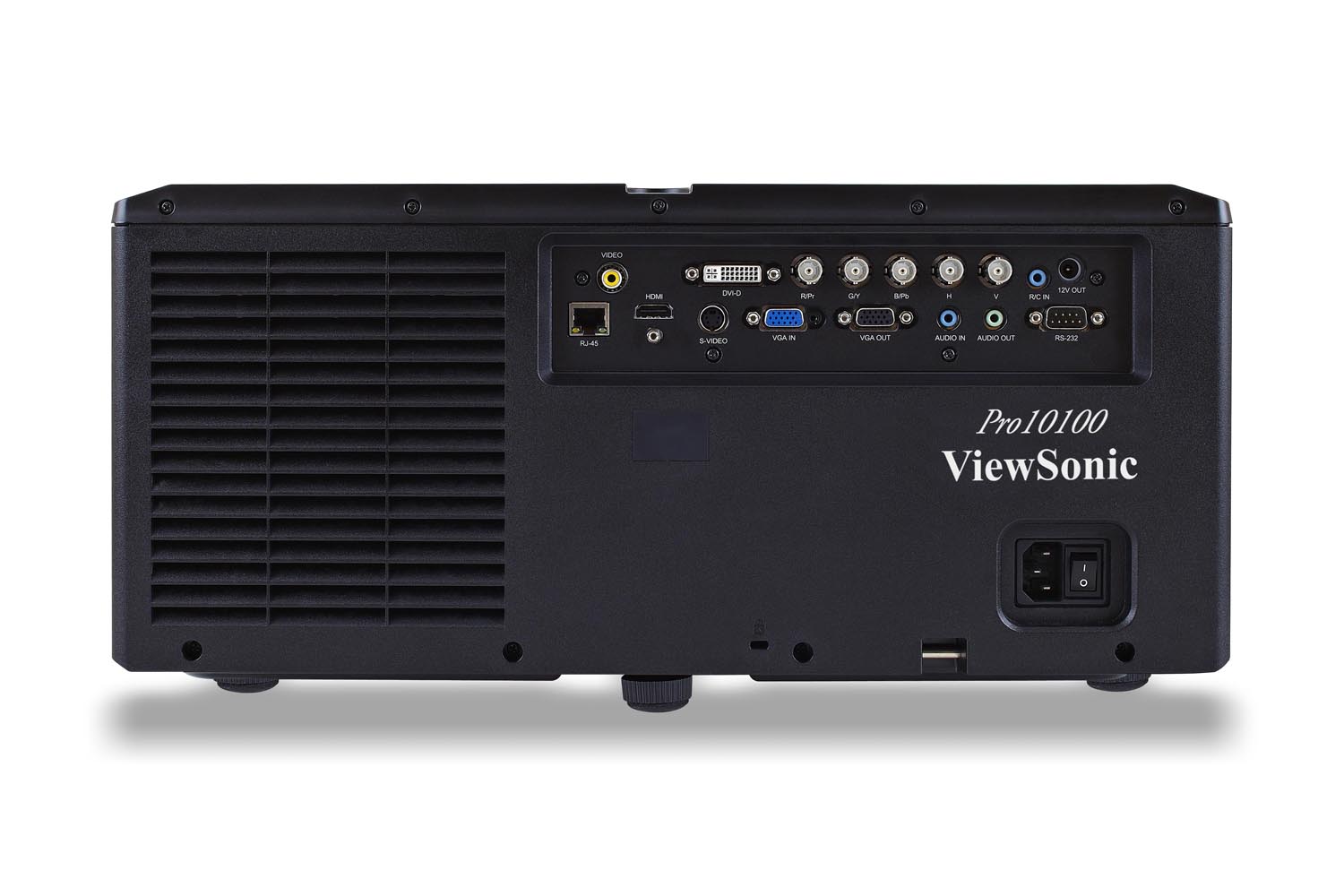

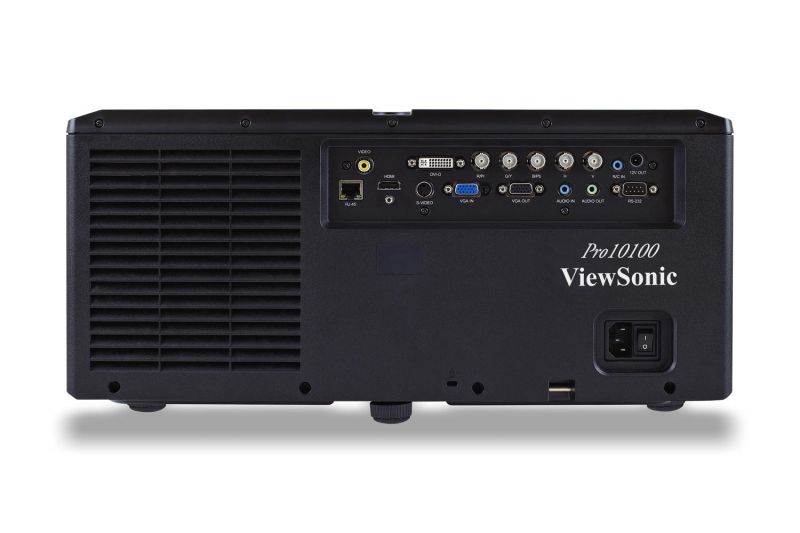

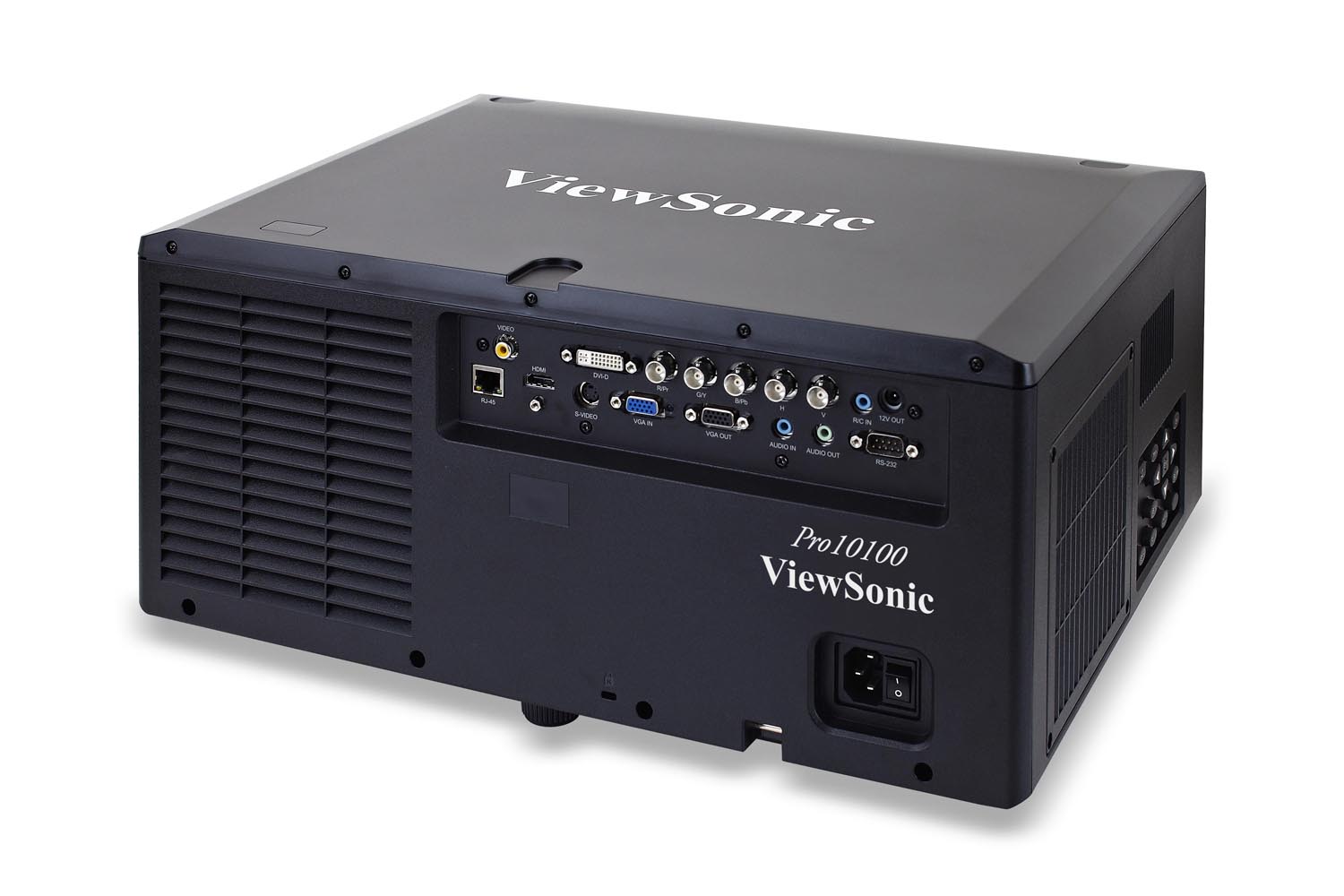

커넥터
RGB Input: 15-pin mini D-sub x 1
RGB Output: 15-pin mini D-sub x 1
Composite Video: BNC(RGBHV, Y/Pb/Pr, Y/Cb/Cr) x 1
S Video: 4-pin mini-DIN
Component Video: RCA Type x 1
Digital: HDMI x 1
오디오: Input: 3.5mm Mini-stereo Jack x 1; Output: 3.5mm Mini-stereo Jack x 1
통제: RS232(DB-9) x 1
Network: RJ45x1
Trigger Out: 12 V Triggerx1
힘
전압: 100~240Vac 50/60Hz (Auto Switching)
소비.: < 515W +/- 10%.@AC110V
컨트롤
Basic: Power, arrow keys, menu, exit, sync, enter, source, shift, focus, zoom, info
OSD:
Picture, Screen, Setting, Options (See user guide for full OSD functionality)
작동 조건
온도: 41°~104°F (5°~40°C)
습도: 10%~90% Non-Condensation
치수
Physical: 398.9mm (width) x 212mm (height) x 452.9mm (depth)
체중
그물: 13.9 kg
Package Contents

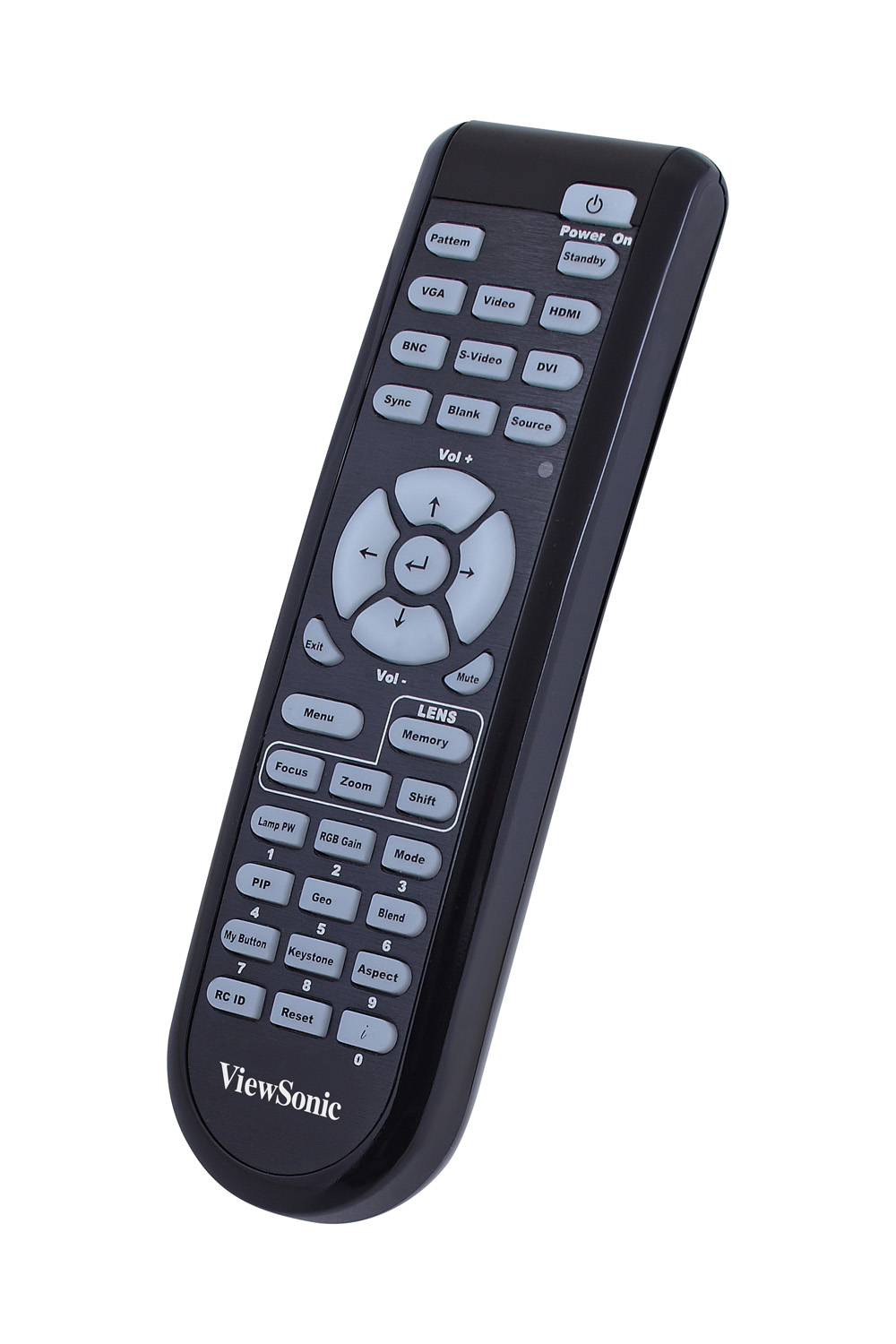

Pro10100 projector (without lens), power cable, VGA cable, remote control with batteries,
Quick Start Guide, ViewSonic Wizard CD (with User Guide)
