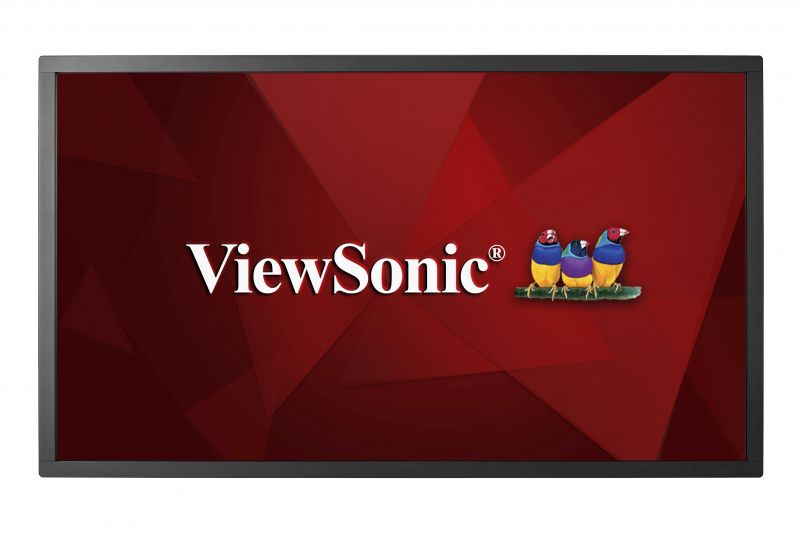

CDM5500T
55" 10-point Multi-touch Commercial Display
- 24 hours a day 7 days a week operations
- Built-in Quad Core Media Player with 16GB Storage
- Embedded LAN
- Internal Scheduler
- Content Management Software
스펙
- LCD PANEL패널 크기: 55'' (54.64" diagonal)
유형/기술: IPS
표시면적(mm): 1209.6 (H) x 680.4 (V)
가로 세로 비율: 16:9
결의안: 1920 x 1080
Colors: 16.7 M colors
밝기: 450 nits (typ.)
대비 비율: 1100:1 (typ.)
응답 시간: 12 ms
보기 각도: H = 178, V = 178 (typ.)
Backlight: ELED
백라이트 라이프: 50,000 Hours (typ.)
Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%) - TOUCH유형/기술: Infrared
터치 포인트: 10 Points - INPUTHDMI: x 2 (HDMI1.4)
디스플레이 포트: x 1
DVI: x 1
오디오: x 1
RS232: x 1
SD/SDHC: Micro SD card slot (Up to 32GB)
IR: x 1
- OUTPUT디스플레이 포트: x 1
DVI: x 1
RS232: x 1
IR: x 1 - LANRJ45: x 1
- USBA형: x 2 (Multi-media playback x 1, 5V/2A x 1)
B형: x 1 (Touch out)
마이크로 USB: x 1 (Support USB OTG) - AUDIO스피커: 10W x 2
- BUILT-IN PC프로세서: Quad core A9, 1.6G
보관소: eMMC 16G - COMPATIBILITYVGA: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p
디스플레이 포트: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz - POWER전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: Normal 76W, Max 143W - ERGONOMICSWall Mount (VESA® ): 400x400mm ; Screw: M6*(10+X) mm (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperature (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
습도: 20% ~ 80% non-condensing - DIMENSIONS (W x H x D)물리적(인치/mm): 50.0 x 31.87 x 15.75 / 1271 x 809.45 x 400
Physical w/o Stand (inch / mm): 50.0 x 29.2 x 2.52 / 1271 x 741.8 x 64
포장(inch/mm): 60.12 x 38.78 x 11.02 / 1527 x 985 x 280 - WEIGHT순(lb/kg): 77.38 / 35.1
Net w/o Stand (lb / kg): 68.34 / 31
총중량(파운드/kg): 87.3 / 39.6 - What's in the box?CDM5500T commercial display/Remote Control with batteries/User manual CD wizard/Quick Start Guide/Power Cables/DVI to VGA cable/RS232 cable/RS232 daisy chain cable (2.4mm – 2.4mm)./IR sensor cable/USB cable (Type A-B)
