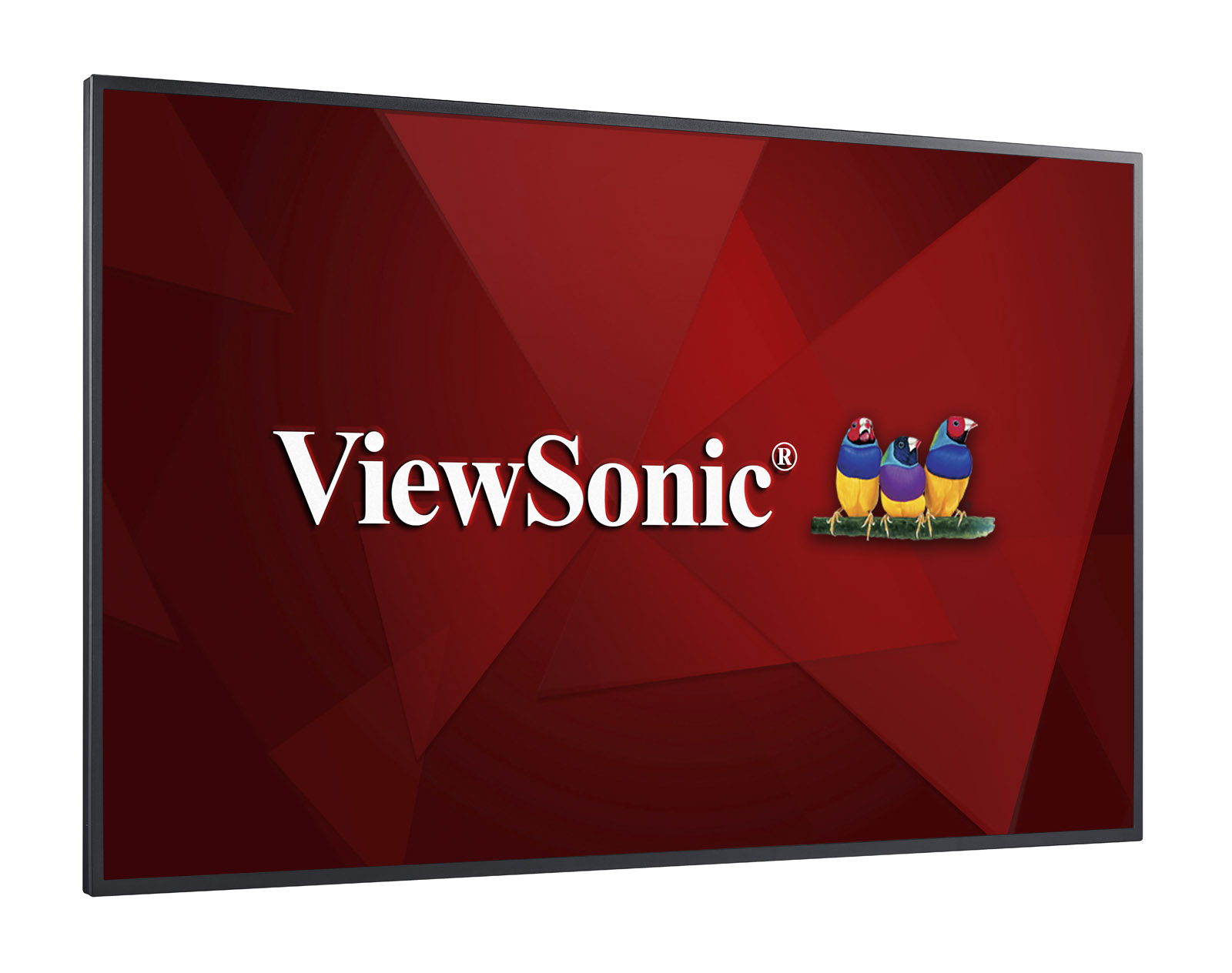

CDE5510

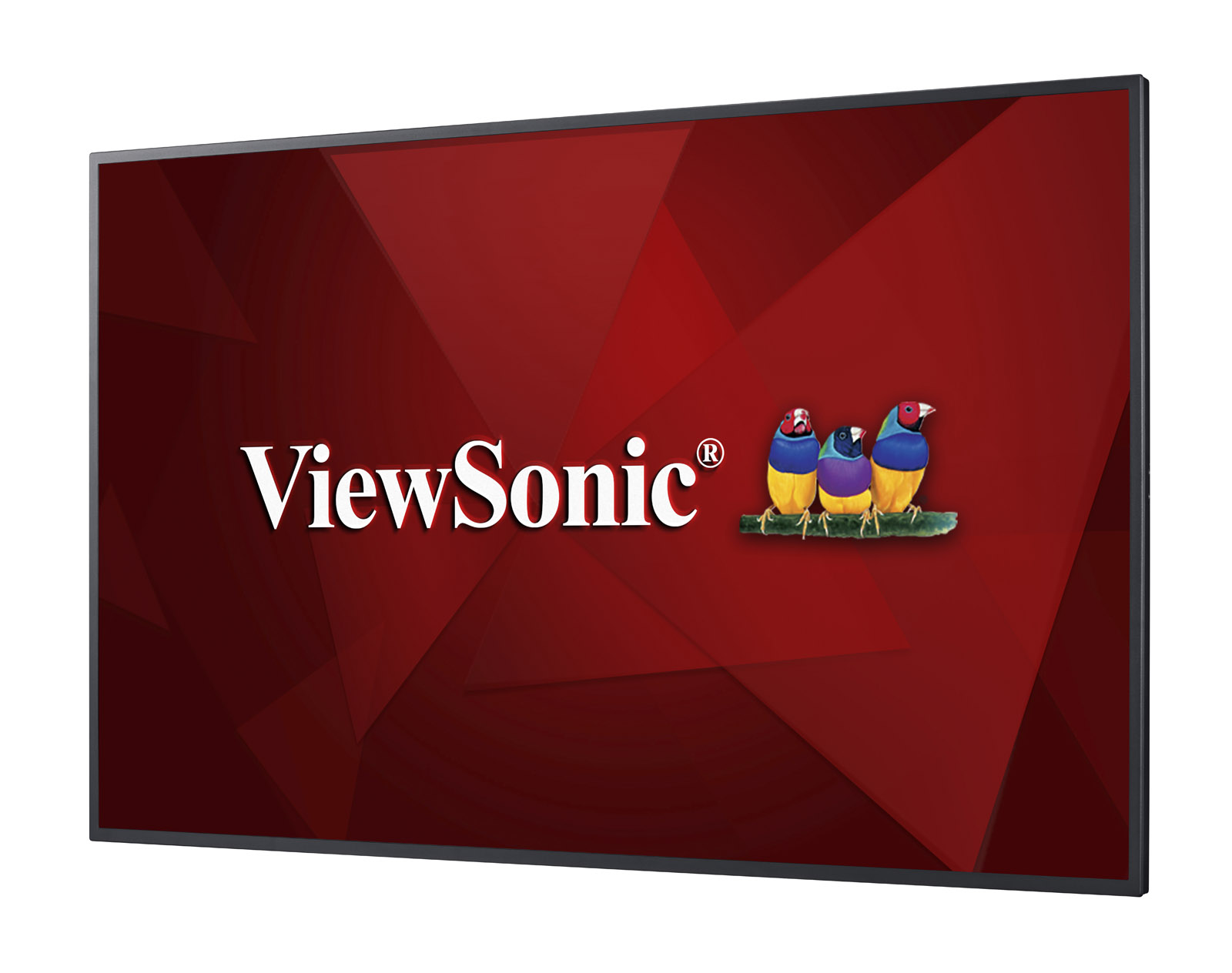

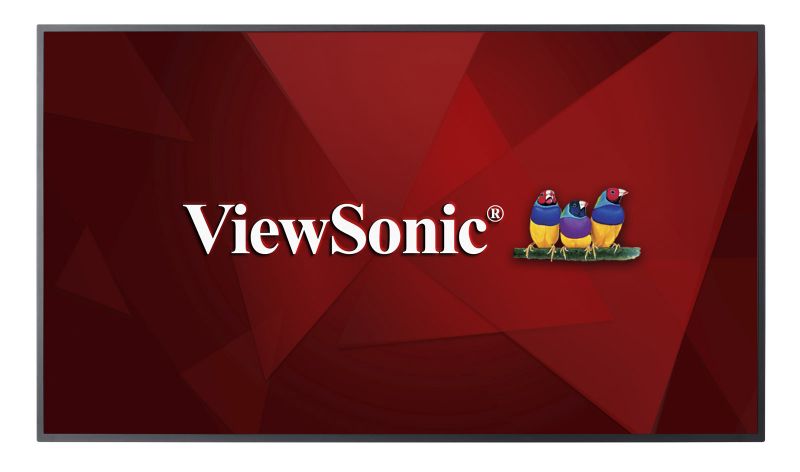

55" 4K Ultra HD Commercial Display
- Embedded Android SOC supports Andriod apps
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through

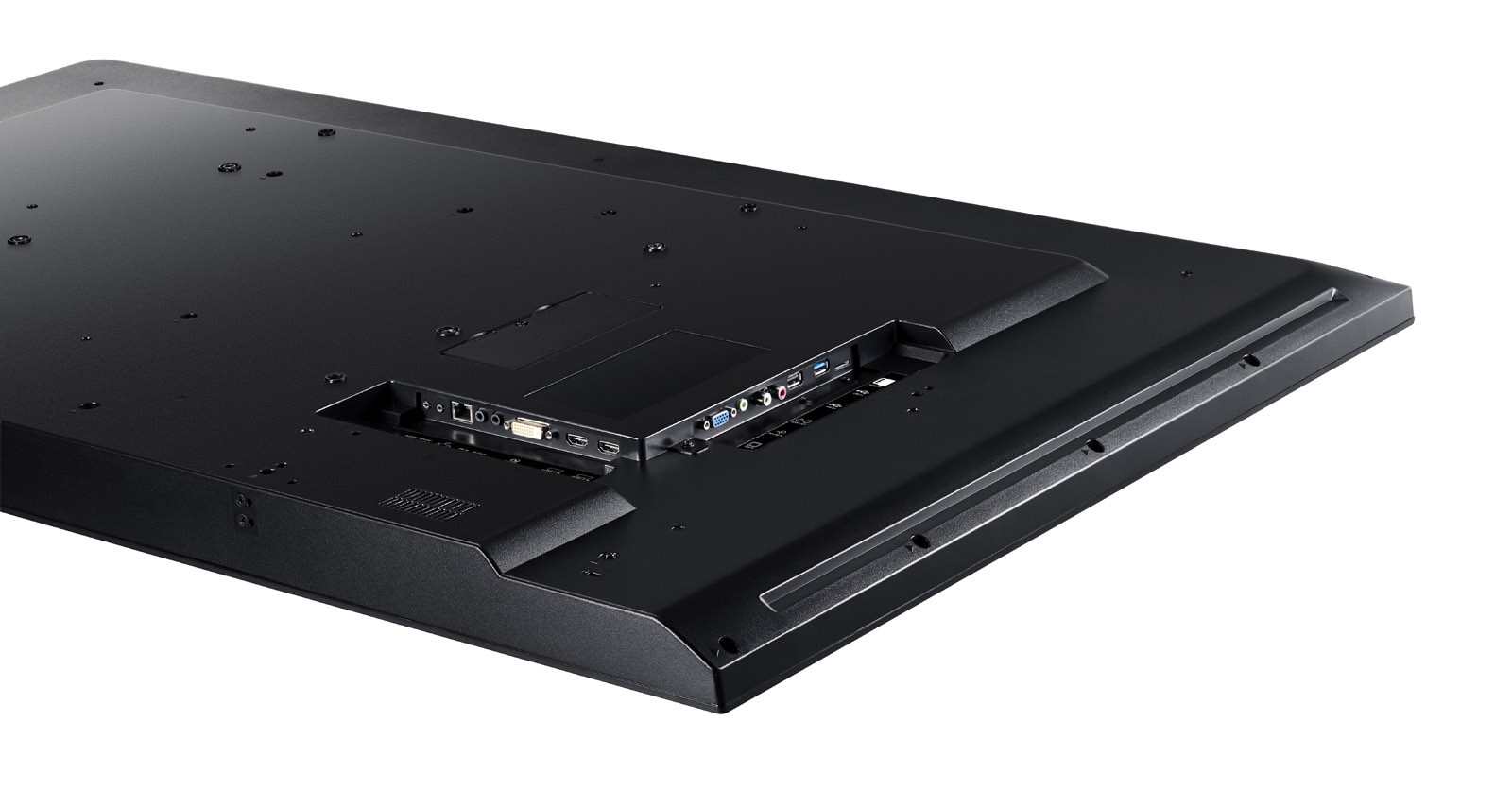

- VGA, DVI, USB, IR, RJ45 input compatibility
스펙
- LCD PANEL패널 크기: 55"
유형/기술: TFT LCD Module with LED Backlight
표시면적(mm): 1209.6(H) x 680.4(V)
가로 세로 비율: 16:9
결의안: 3840x2160 @60Hz
Colors: 1.07B colors
밝기: 350 nits (typ.)
대비 비율: 4000:1 (typ.)
응답 시간: 8 ms
보기 각도: H = 178, V = 178 (typ.)
Backlight: DLED
백라이트 라이프: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 2
RGB / VGA: x 1
DVI: x 1
오디오: x1 PC audio (3.5 mm)
YPbPr: x 1
RS232: x 1
SD/SDHC: x 1
IR: x 1 (over audio port) - OUTPUT오디오: x 1 (RCA L/R)
RS232: x 1
IR: x 1 (over audio port)
- LANRJ45: x 1
- USB2.0 Type A: x 1 (USB Playback)
3.0 Type A: x 1 (USB Playback) - 스피커10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DVI: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWER전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: Normal 145 W, Max 190 W - ERGONOMICS벽면 장착(VESA® ): 400 x 400 mm / 400 x 200 mm; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONS온도(θ C): 5°C to 40°C
습도: 20% ~ 80% non-condensing - DIMENSIONS (W x H x D)Physical (mm / inch): 1239.2 x 751.9 x 329.81 mm / 48.79 x 29.6 x 12.98 in. (with Stand)
Physical w/o Stand (mm / inch): 1239.2 x 711.6 x 61.7 mm / 48.79 x 28.02 x 2.43 in. (w/o Stand)
Packaging (mm / inch): 1365 x 864 x 185 mm / 53.74 x 34.02 x 7.28 in - WEIGHTNet (kg / lb): 17.76 kg / 39.15 lbs (with Stand)
Net w/o Stand (kg / lb): 15.96 kg / 35.19 lbs (w/o stand)
Gross (kg / lb): 22.33 kg / 49.23 lbs - What's in the box?1. CDE5510 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
