Diarsipkan

TD2421

24" 2-point Touch Screen Monitor

SuperClear® technology
Full HD 1080p resolution
Supports Windows® 7/8/10
HDMI, VGA and DVI inputs
Dual integrated speakers

GALERI

ULASAN

Tạp chí PCMag

“ViewSonic là thương hiệu màn hình tốt nhất 2020”

Baca Review

SPESIFIKASI

Tampilan
Display Size (in.): 24
Viewable Area (in.): 23.6
Jenis Panel: VA Technology
Resolusi: 1920 x 1080
Jenis Resolusi: FHD (Full HD)
Rasio Kontras Statis: 3,000:1 (typ)
Rasio Kontras Dinamis: 50M:1
Sumber cahaya: LED
Kecerahan: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Waktu Respon (GTG w / OD): 5ms
Response Time (Typical Tr+Tf): 25ms
Sudut Pandang: 178º horizontal, 178º vertical
Backlight Life (Jam): 40000 Hrs (Min)
Lengkungan: Flat
Refresh Rate (Hz): 60
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Ukuran Piksel: 0.272 mm (H) x 0.272 mm (V)
Layar sentuh: Optical, 2-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm
Kesesuaian
Resolusi PC (max): 1920x1080
Resolusi Mac® (maks): 1920x1080
Sistem Operasi PC: Windows 7 certified; macOS tested
Resolusi Mac® (min): 1920x1080

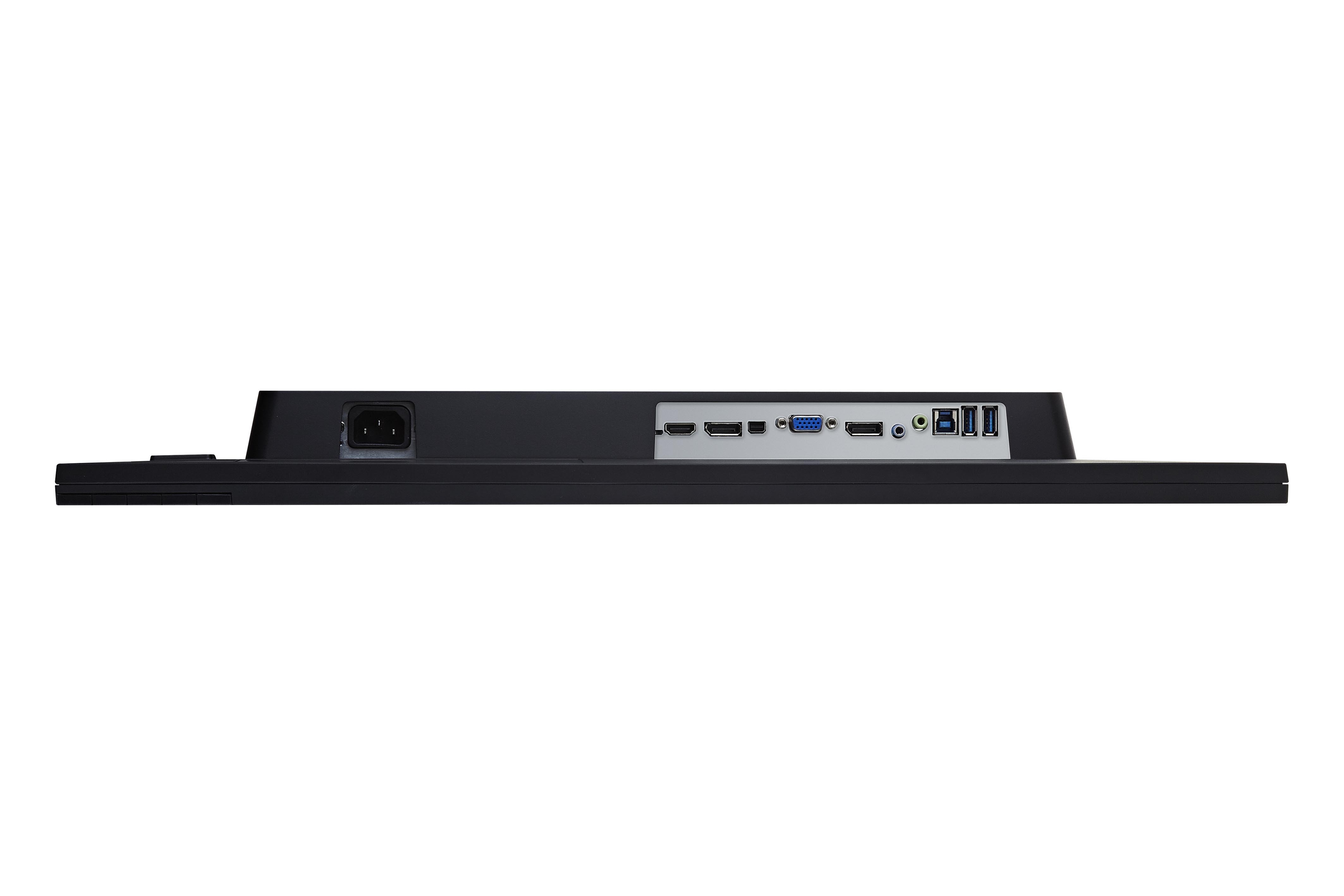

Konektor
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Speaker Internal: 2Watts x2
Power
Mode Eco (Hemat): 11.5W
Eco Mode (optimized): 13.5W
Konsumsi (khas): 16.5W
Konsumsi (maks): 21W
Tegangan: AC 100-240V
Stand-by: 0.5W
Sumber Daya listrik: Internal Power Supply
Perangkat Keras Tambahan
Slot Kunci Kensington: 1
Cable Organization: Yes
Kontrol
Kontrol Fisik: 1, 2, Up, Down, Power
Pada Tampilan Layar: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Suhu: 32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Sinyal Input
Frekuensi Horizontal: 24 ~ 82KHz
Frekuensi Vertikal: 50 ~ 75Hz
Video Input
Sinkronisasi Digital: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomis
Miring (Maju / Mundur): -6º / 22º
Berat (imperial)
Net (lbs): 11.4
Bersih Tanpa Dudukan (lbs): 9.5
Gross (lbs): 16.1
Weight (metric)
Net (kg): 5.2
Jaring Tanpa Dudukan (kg): 4.3
Gross (kg): 7.3
Dimensi (imperial) (wxhxd)
Kemasan (in.): 25.2 x 18.1 x 7.9
Fisik (in.): 22.5 x 15.4 x 9.4
Fisik Tanpa Berdiri (masuk): 22.5 x 13.4 x 2.3
Dimensi (metrik) (wxhxd)
Kemasan (mm): 640 x 460 x 200
Fisik (mm): 571 x 392 x 240
Physical Without Stand (mm): 571 x 340 x 58
Umum
ISI PAKET: TD2421 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
