Layar LCD
TD2421
Fitur Utama
- SuperClear® technology
- Full HD 1080p resolution
- Supports Windows® 7/8/10
- HDMI, VGA and DVI inputs
- Dual integrated speakers
Deskripsi Produk

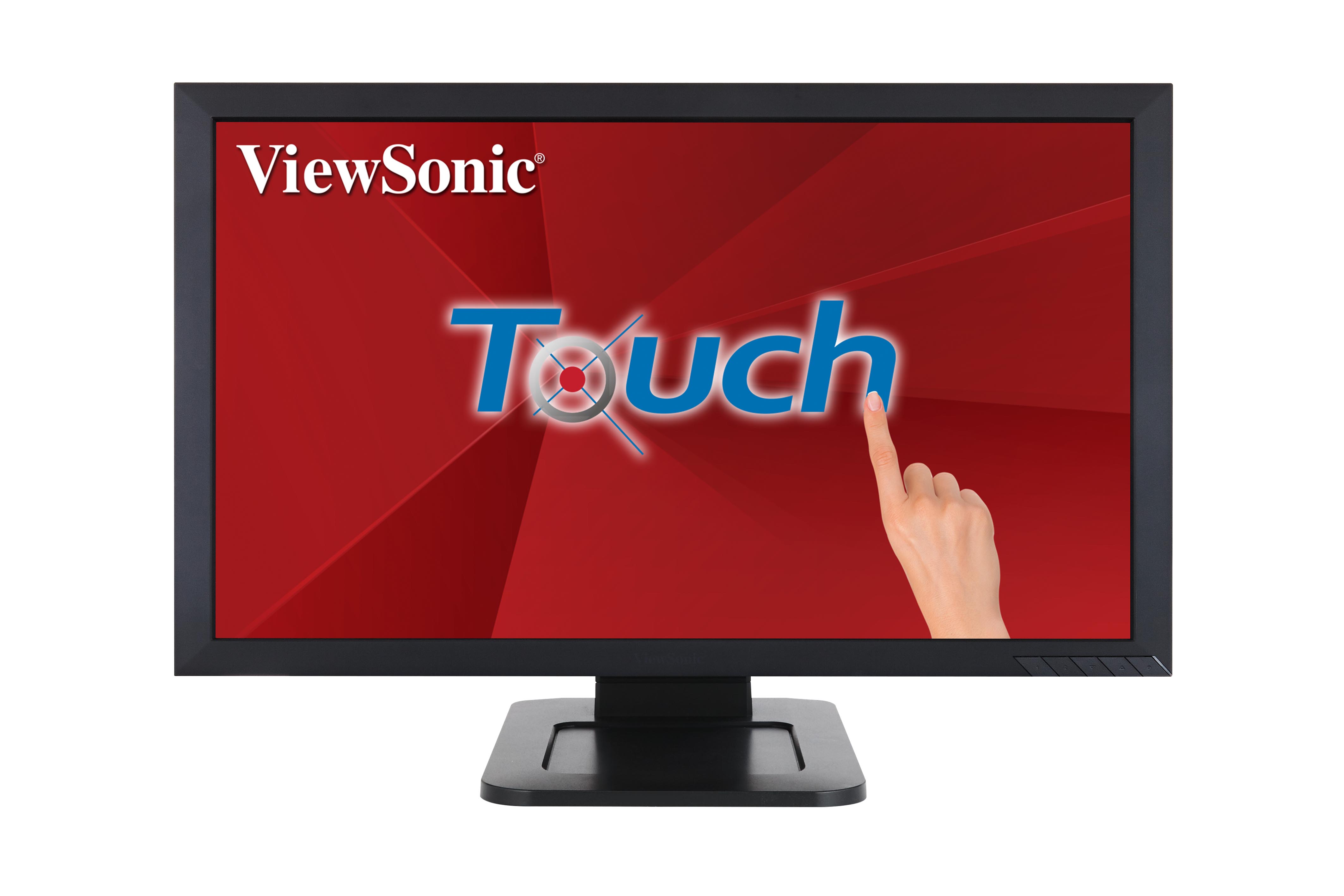

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear® MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.
Kunjungi Kami
- www.viewsonic.com
-
TAMPILAN
Display Size (in.): 24 Viewable Area (in.): 23.6 Jenis Panel: VA Technology Resolusi: 1920 x 1080 Jenis Resolusi: FHD (Full HD) Rasio Kontras Statis: 3,000:1 (typ) Rasio Kontras Dinamis: 50M:1 Sumber cahaya: LED Kecerahan: 200 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Waktu Respon (GTG w / OD): 5ms Response Time (Typical Tr+Tf): 25ms Sudut Pandang: 178º horizontal, 178º vertical Backlight Life (Jam): 40000 Hrs (Min) Lengkungan: Flat Refresh Rate (Hz): 60 Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 104% size (Typ) Ukuran Piksel: 0.272 mm (H) x 0.272 mm (V) Layar sentuh: Optical, 2-point multi-touch Surface Treatment: Glossy, Hard Coating (7H) Cover Glass Thickness: 1.88mm -
KESESUAIAN
Resolusi PC (max): 1920x1080 Resolusi Mac® (maks): 1920x1080 Sistem Operasi PC: Windows 7 certified; macOS tested Resolusi Mac® (min): 1920x1080 -
KONEKTOR
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DVI-D: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Speaker Internal: 2Watts x2 -
POWER
Mode Eco (Hemat): 11.5W Eco Mode (optimized): 13.5W Konsumsi (khas): 16.5W Konsumsi (maks): 21W Tegangan: AC 100-240V Stand-by: 0.5W Sumber Daya listrik: Internal Power Supply -
PERANGKAT KERAS TAMBAHAN
Slot Kunci Kensington: 1 Cable Organization: Yes -
KONTROL
Kontrol Fisik: 1, 2, Up, Down, Power Pada Tampilan Layar: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Suhu: 32°F to 104°F (0°C to 40°C) Kelembaban (tanpa kondensasi): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
SINYAL INPUT
Frekuensi Horizontal: 24 ~ 82KHz Frekuensi Vertikal: 50 ~ 75Hz -
VIDEO INPUT
Sinkronisasi Digital: TMDS - DVI-D, TMDS - HDMI (v1.4) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMIS
Miring (Maju / Mundur): -6º / 22º -
BERAT (IMPERIAL)
Net (lbs): 11.4 Bersih Tanpa Dudukan (lbs): 9.5 Gross (lbs): 16.1 -
WEIGHT (METRIC)
Net (kg): 5.2 Jaring Tanpa Dudukan (kg): 4.3 Gross (kg): 7.3 -
DIMENSI (IMPERIAL) (WXHXD)
Kemasan (in.): 25.2 x 18.1 x 7.9 Fisik (in.): 22.5 x 15.4 x 9.4 Fisik Tanpa Berdiri (masuk): 22.5 x 13.4 x 2.3 -
DIMENSI (METRIK) (WXHXD)
Kemasan (mm): 640 x 460 x 200 Fisik (mm): 571 x 392 x 240 Physical Without Stand (mm): 571 x 340 x 58 -
UMUM
ISI PAKET: TD2421 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Quick Start Guide x1 Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards
