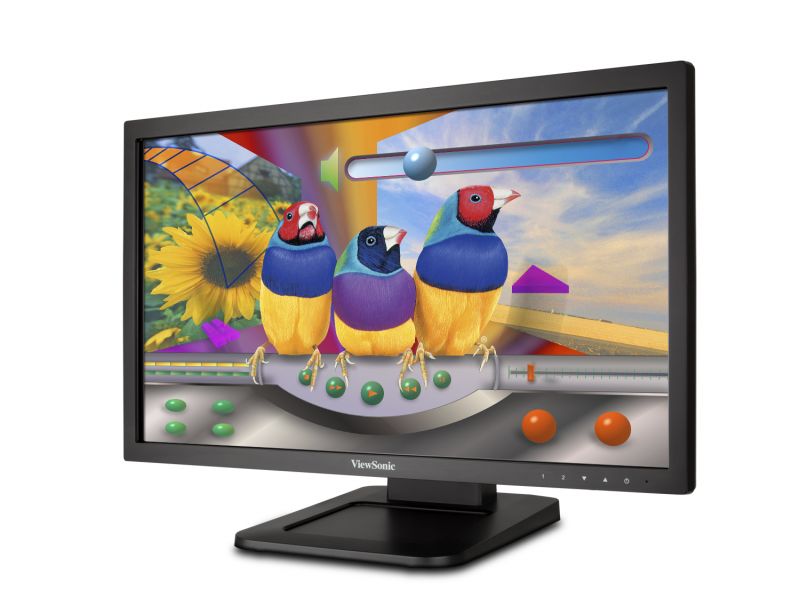

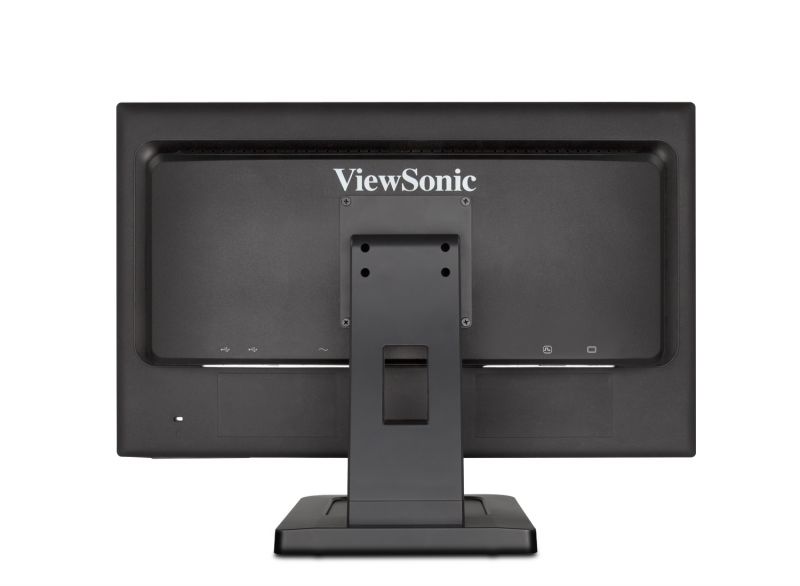

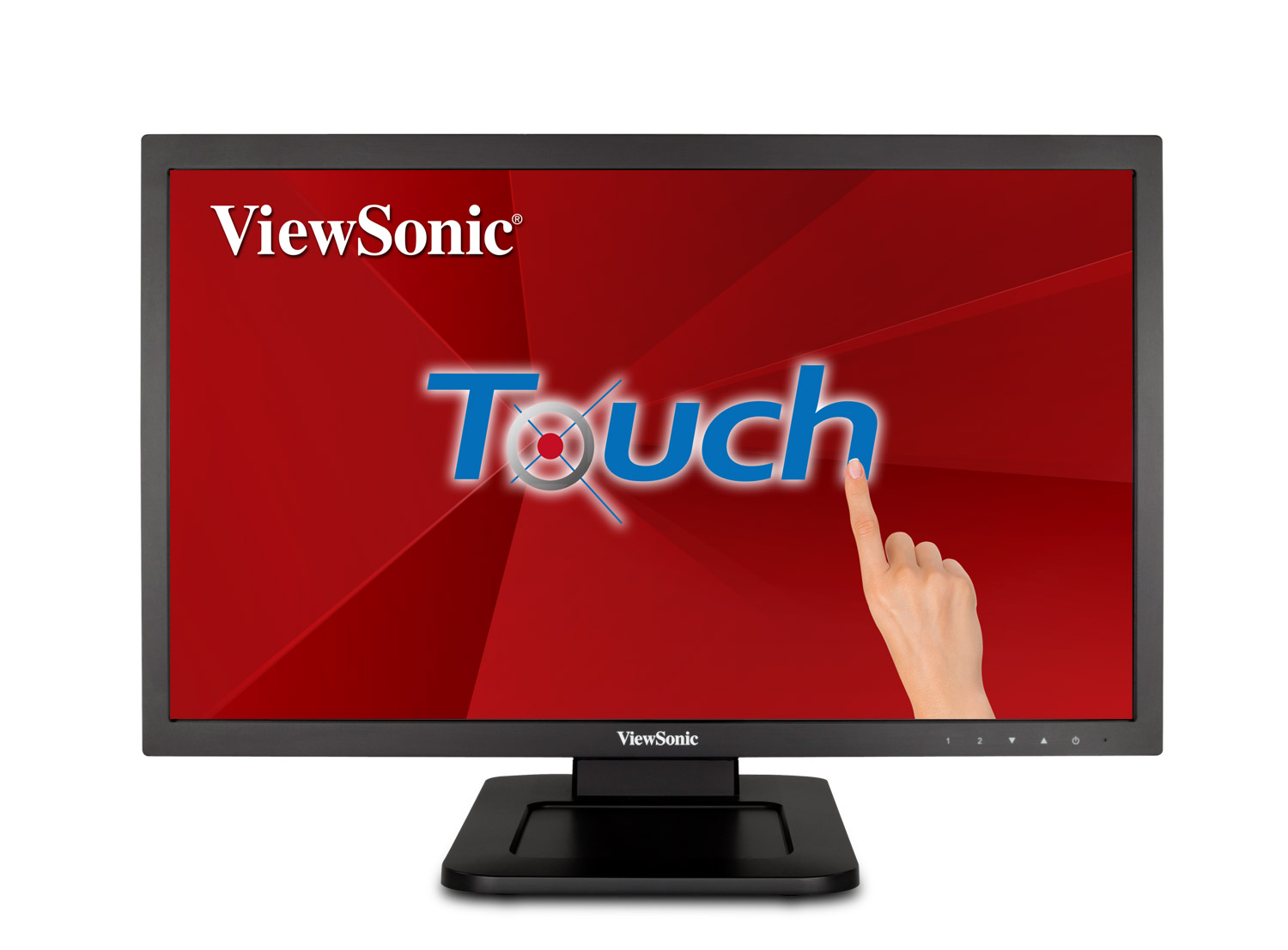

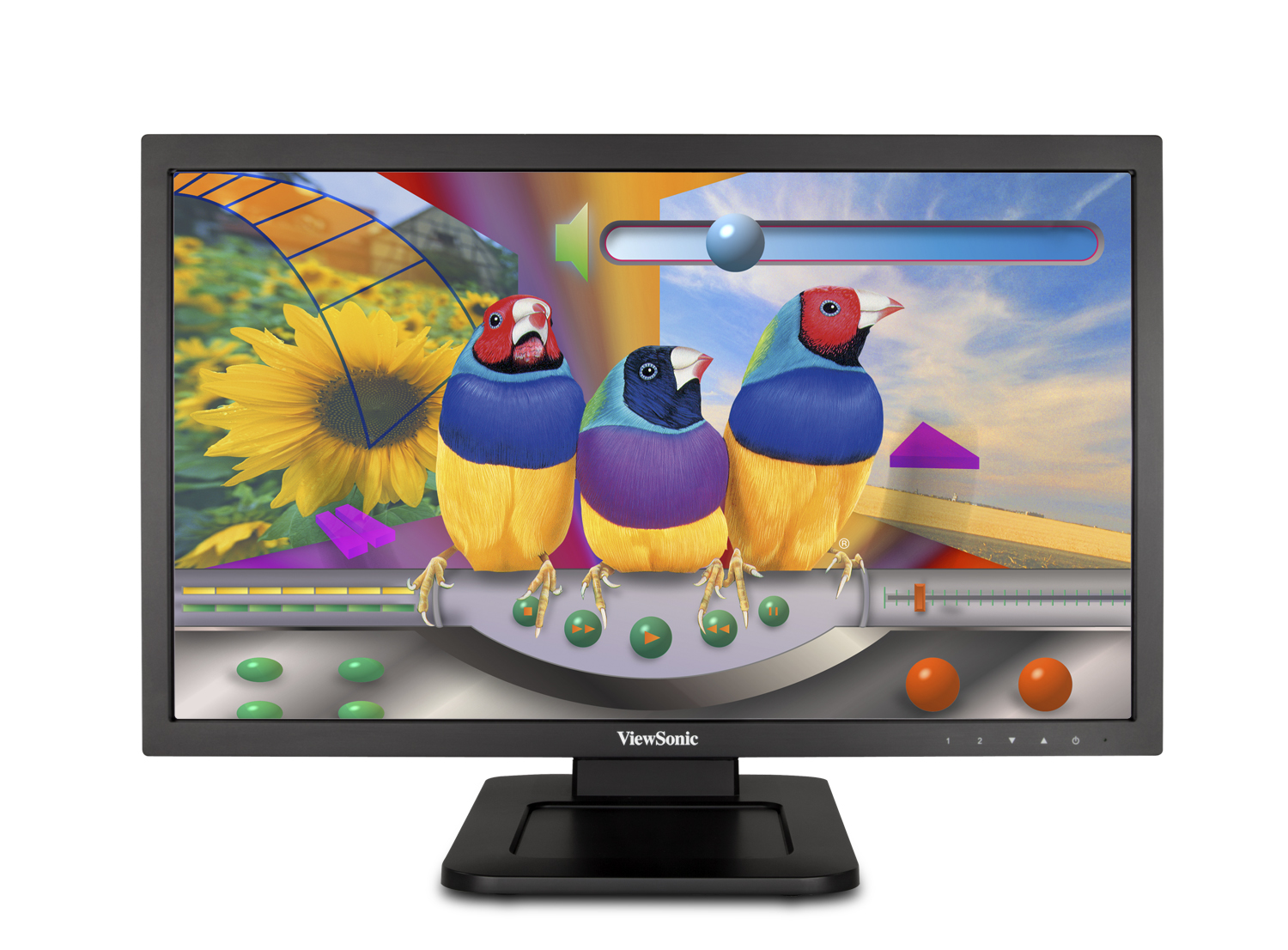

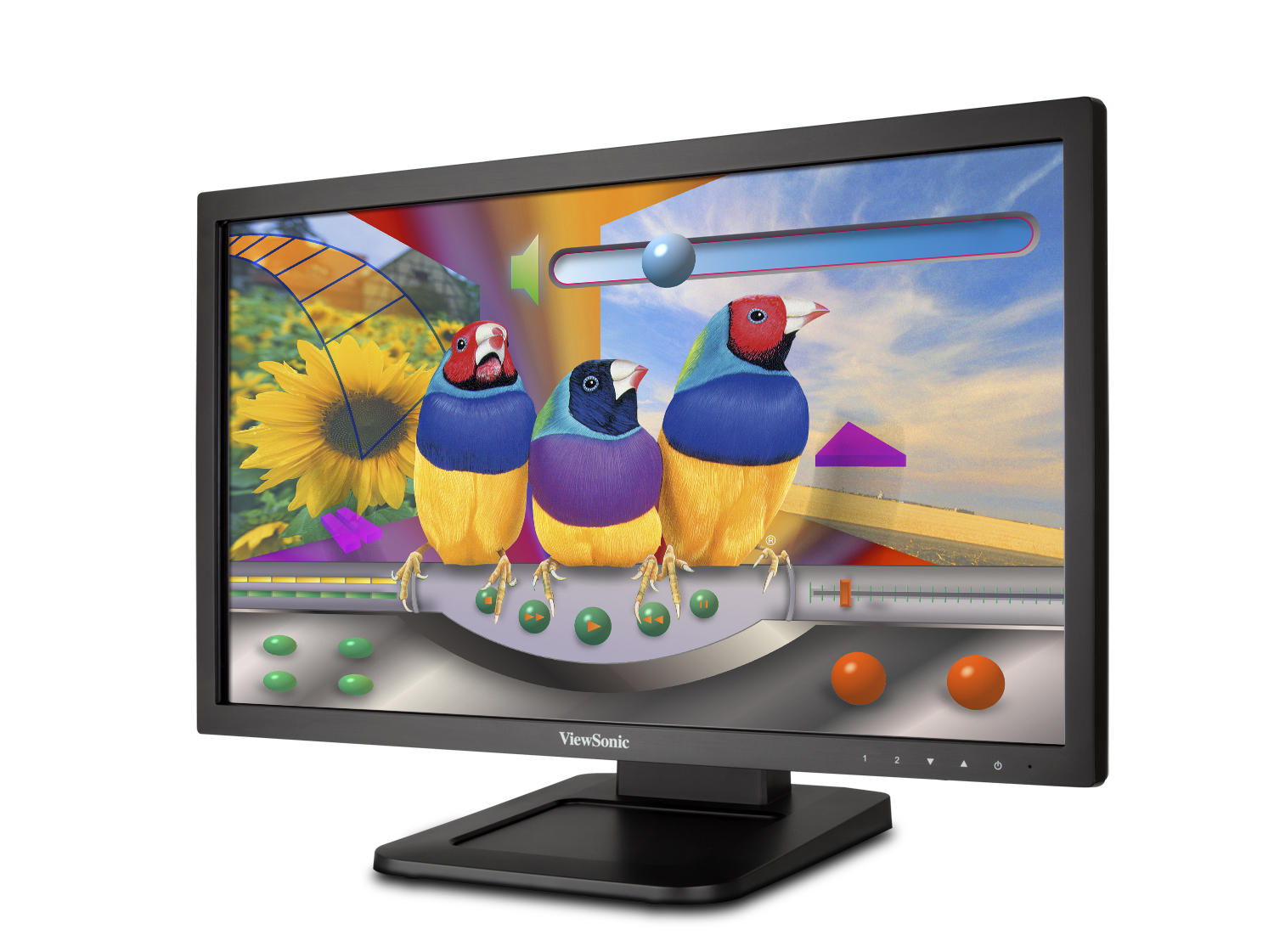

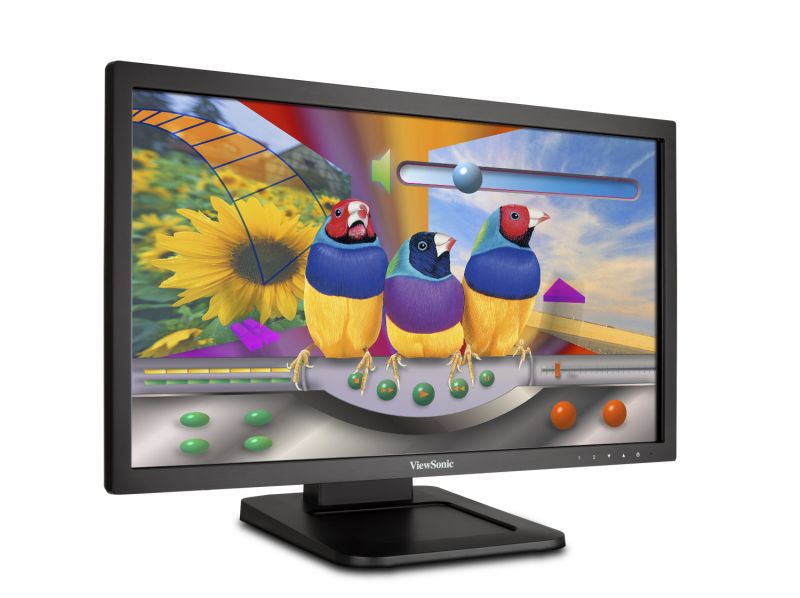

TD2220

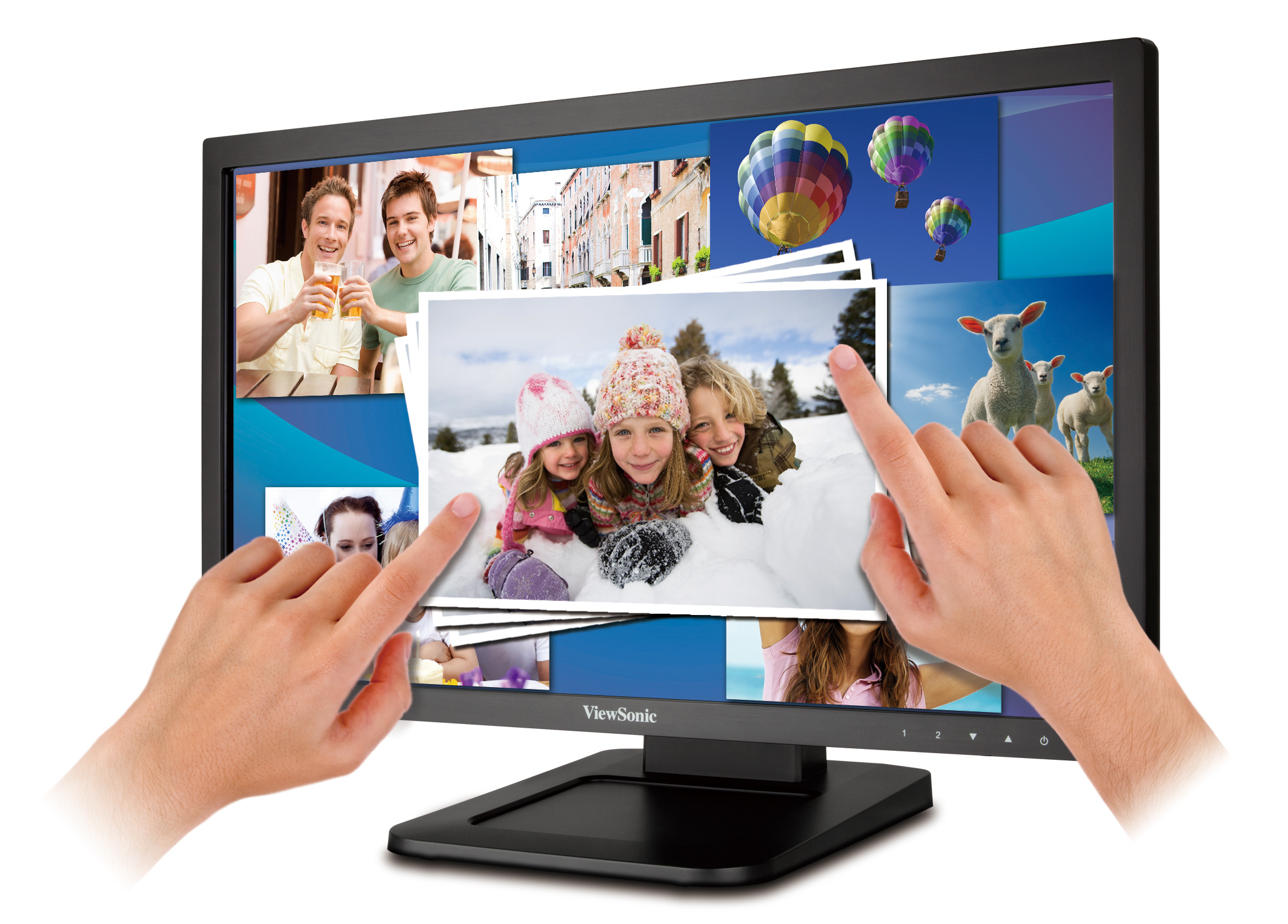

22" 2-point Touch Screen Monitor

7H hardness screen
Full HD 1080p resolution
Supports USB HID
Dual integrated speakers
Eco-mode

VIDEO
GALERI

SPESIFIKASI

Tampilan
Display Size (in.): 22
Viewable Area (in.): 21.5
Jenis Panel: TN Technology
Resolusi: 1920 x 1080
Jenis Resolusi: FHD (Full HD)
Rasio Kontras Statis: 1,000:1 (typ)
Rasio Kontras Dinamis: 20M:1
Sumber cahaya: LED
Kecerahan: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Sudut Pandang: 170º horizontal, 160º vertical
Backlight Life (Jam): 30000 Hrs (Min)
Lengkungan: Flat
Refresh Rate (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Ukuran Piksel: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm
Kesesuaian
Resolusi PC (max): 1920x1080
Resolusi Mac® (maks): 1920x1080
Sistem Operasi PC: Windows XP/Vista/7 certified; macOS tested
Resolusi Mac® (min): 1920x1080

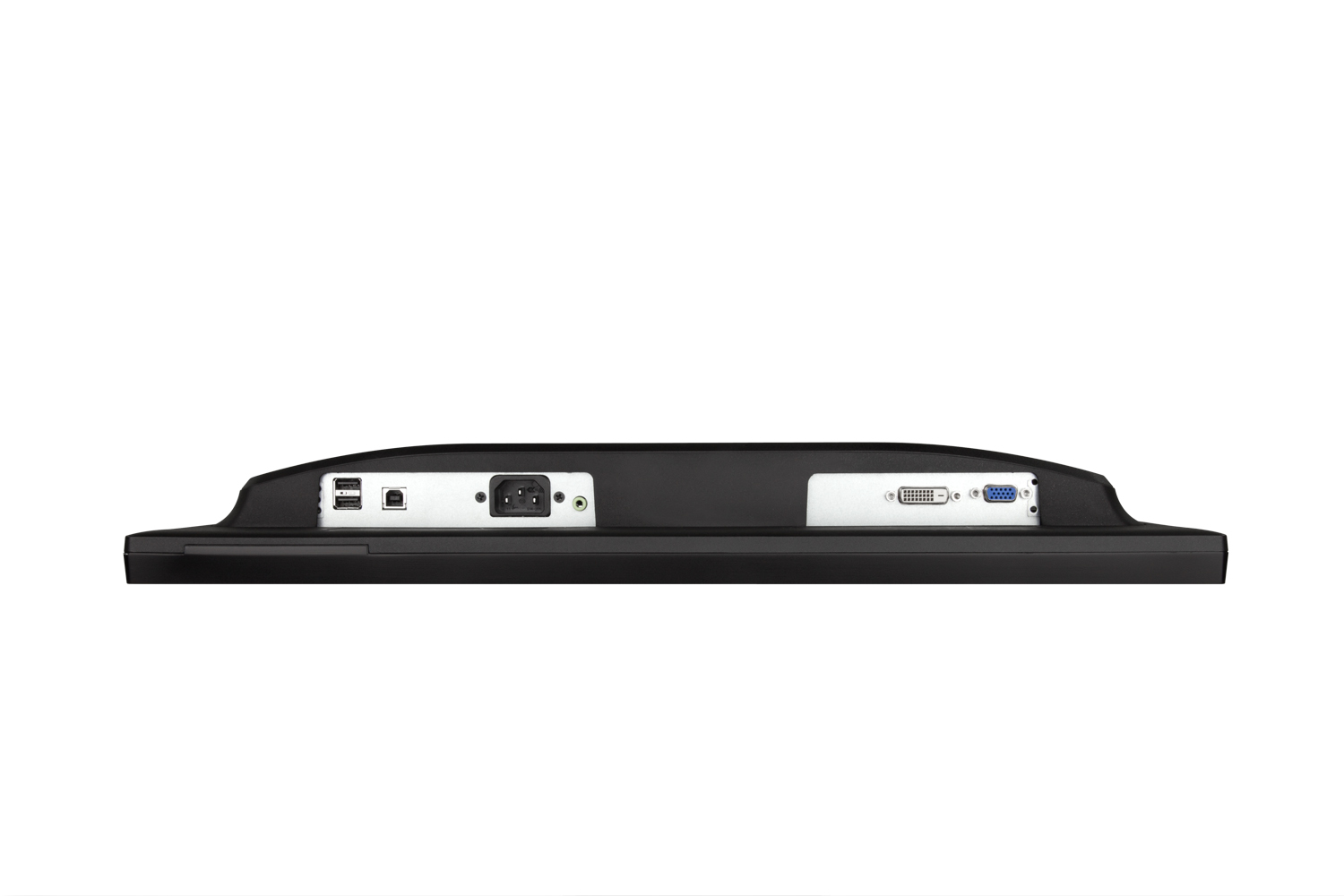

Konektor
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Speaker Internal: 2Watts x2
Power
Mode Eco (Hemat): 16W
Eco Mode (optimized): 18W
Konsumsi (khas): 23.5W
Konsumsi (maks): 26.5W
Tegangan: AC 100-240V
Stand-by: 0.5W
Sumber Daya listrik: Internal Power Supply
Perangkat Keras Tambahan
Slot Kunci Kensington: 1
Cable Organization: Yes
Kontrol
Kontrol Fisik: 1, 2, Up, Down, Power
Pada Tampilan Layar: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Suhu: 32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Sinyal Input
Frekuensi Horizontal: 24 ~ 83KHz
Frekuensi Vertikal: 50 ~ 76Hz
Video Input
Sinkronisasi Digital: TMDS - DVI-D
Analog Sync: Separate/Composite/SOG - RGB Analog

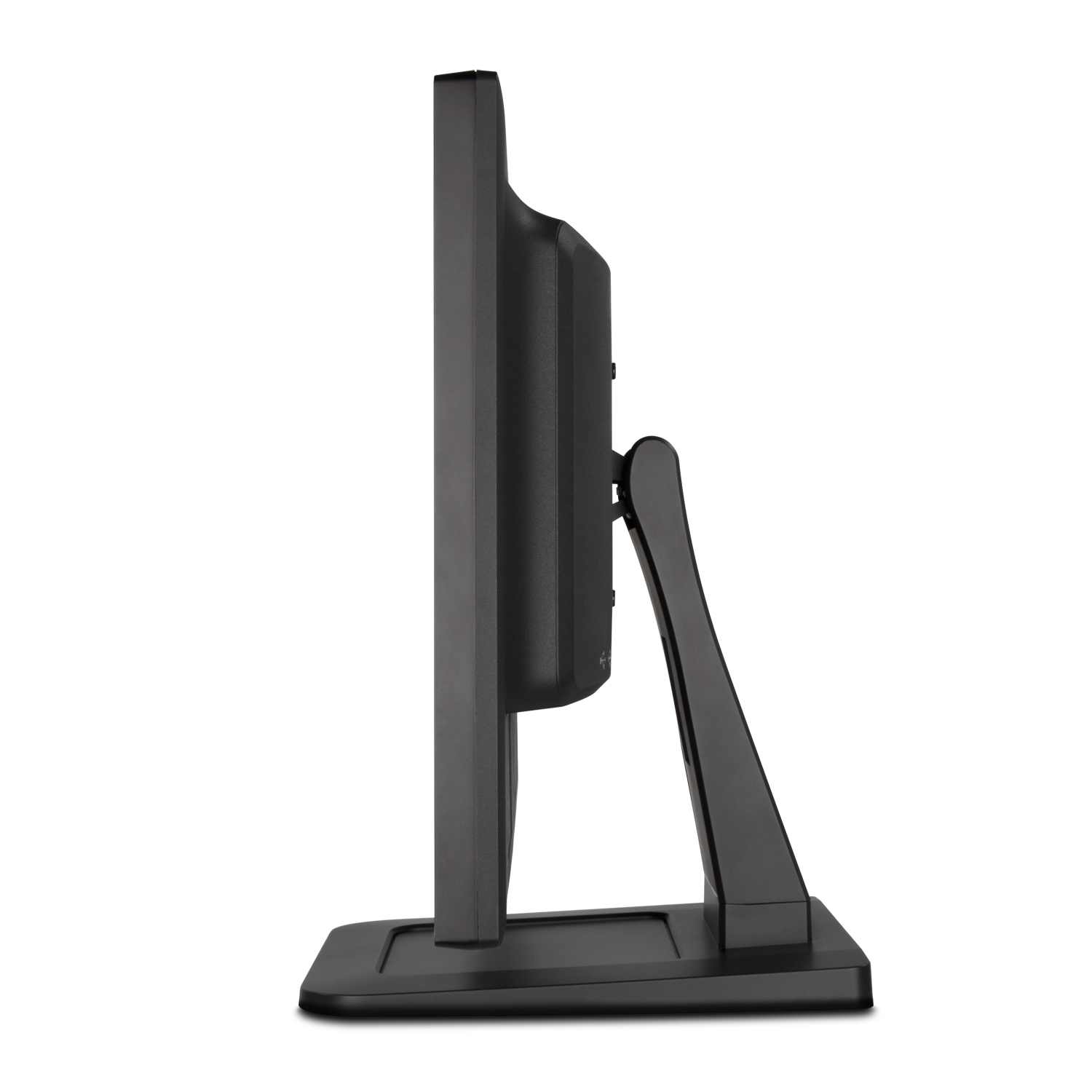

Ergonomis
Miring (Maju / Mundur): -5º / 20º
Berat (imperial)
Net (lbs): 10.8
Bersih Tanpa Dudukan (lbs): 8.7
Gross (lbs): 14.2
Weight (metric)
Net (kg): 4.9
Jaring Tanpa Dudukan (kg): 4
Gross (kg): 6.5
Dimensi (imperial) (wxhxd)
Kemasan (in.): 22.4 x 16.8 x 8.4
Fisik (in.): 20.1 x 14.4 x 9.4
Fisik Tanpa Berdiri (masuk): 20.1 x 12.2 x 2.6
Dimensi (metrik) (wxhxd)
Kemasan (mm): 570 x 427 x 214
Fisik (mm): 511 x 365 x 240
Physical Without Stand (mm): 511 x 310 x 66
Umum
ISI PAKET: TD2220 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
