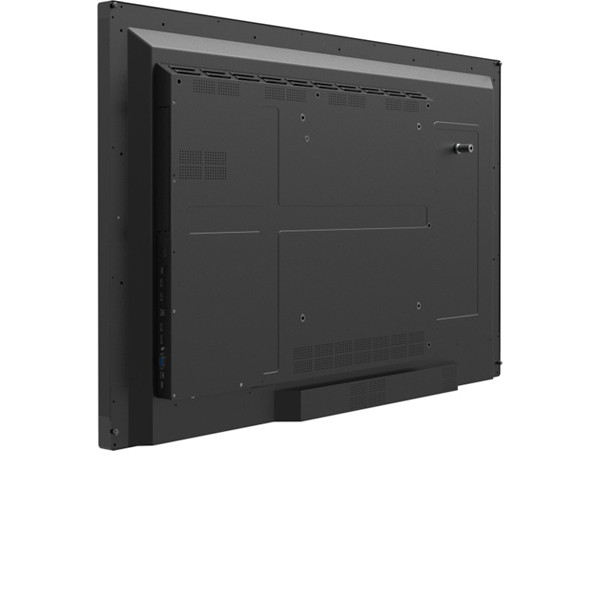

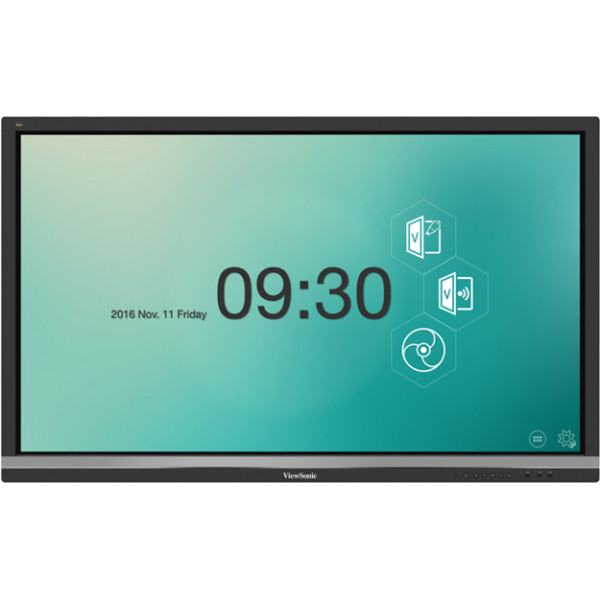

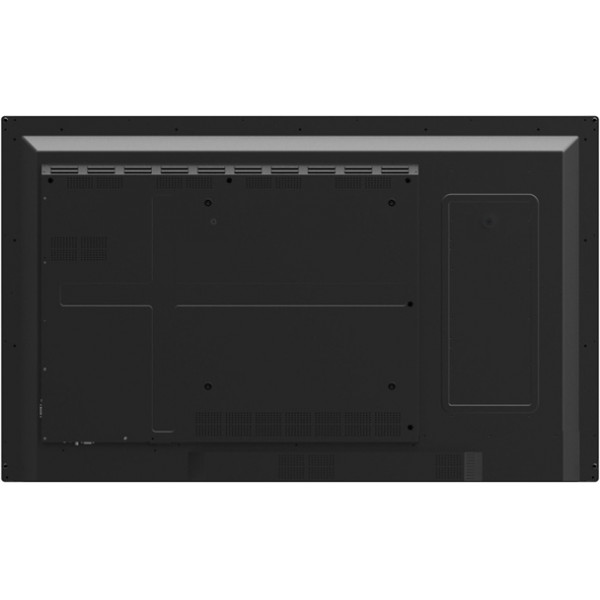

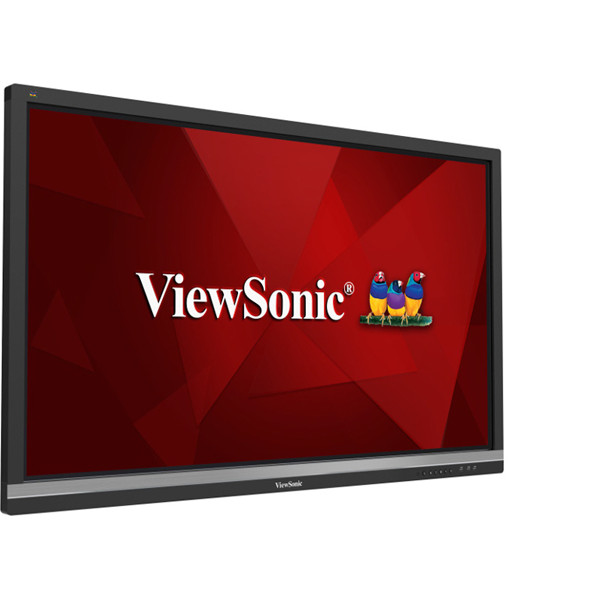

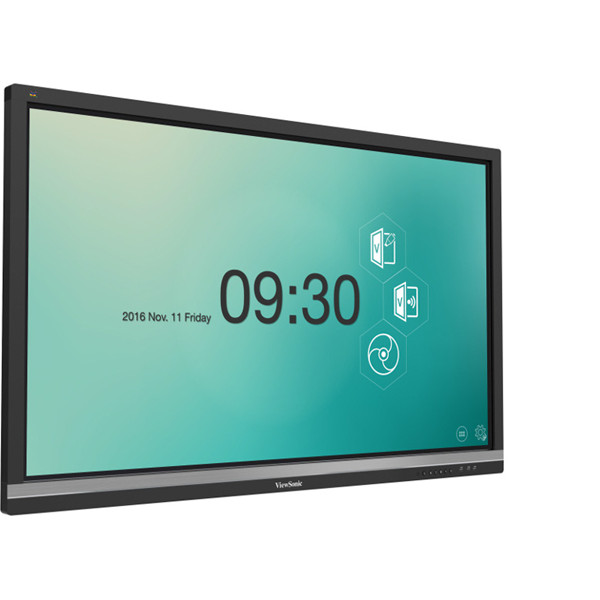

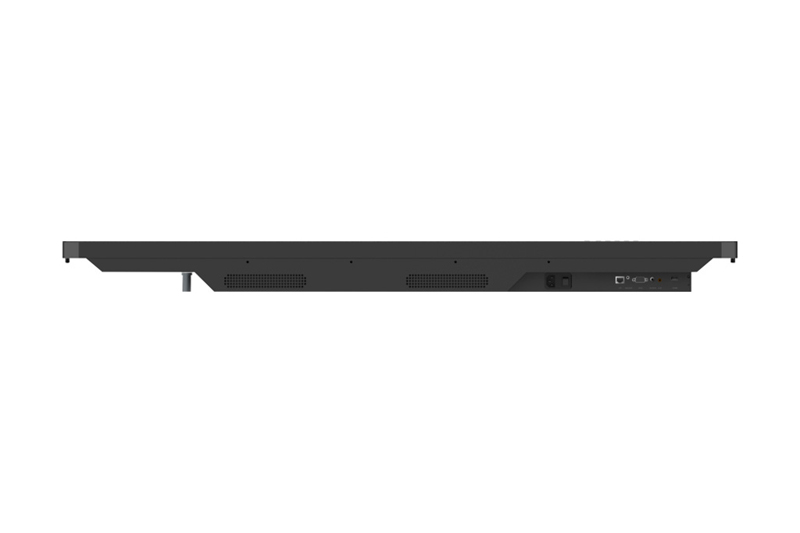

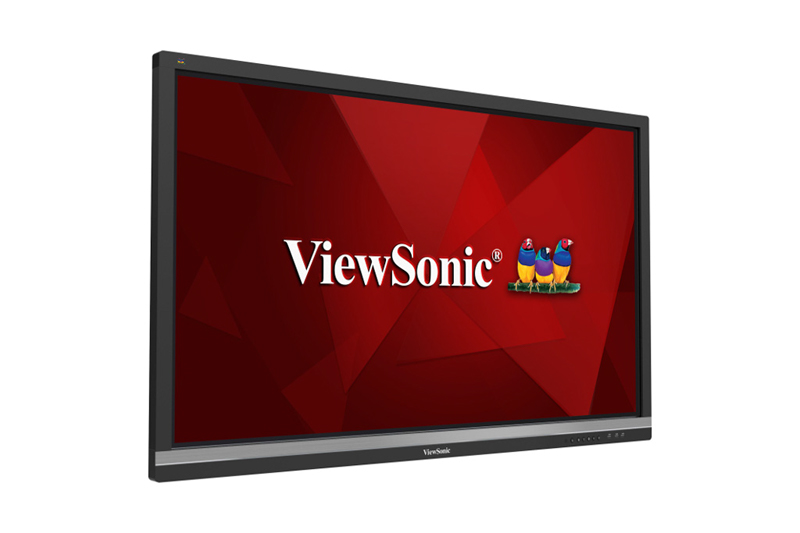

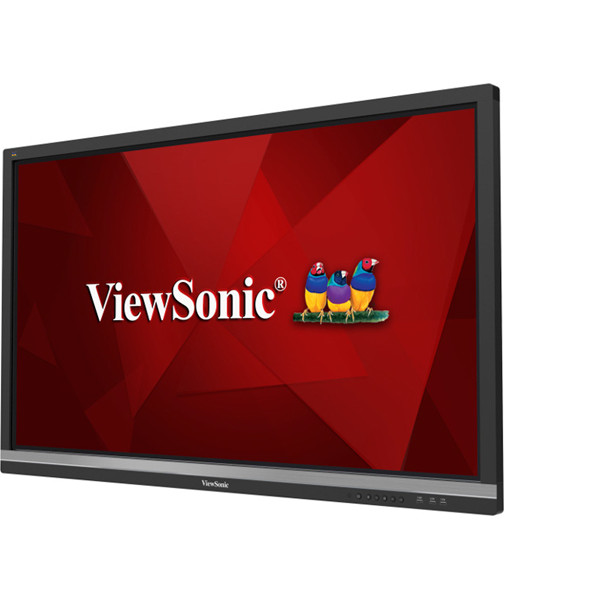

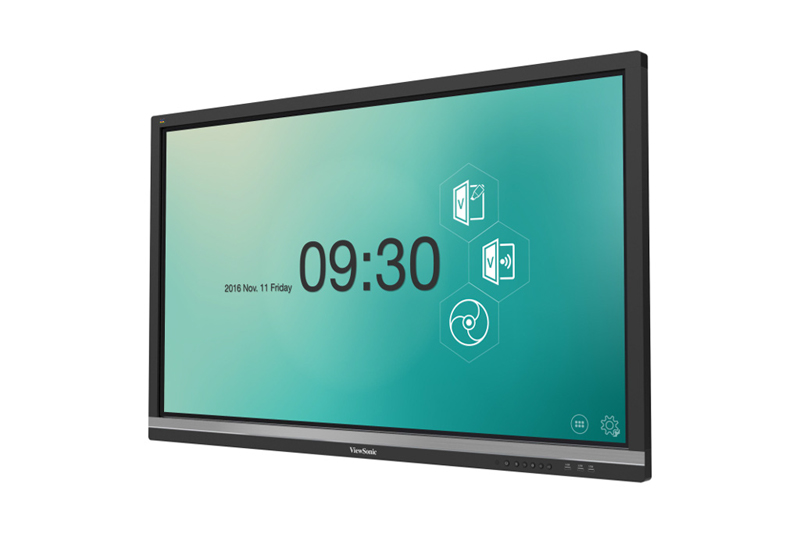

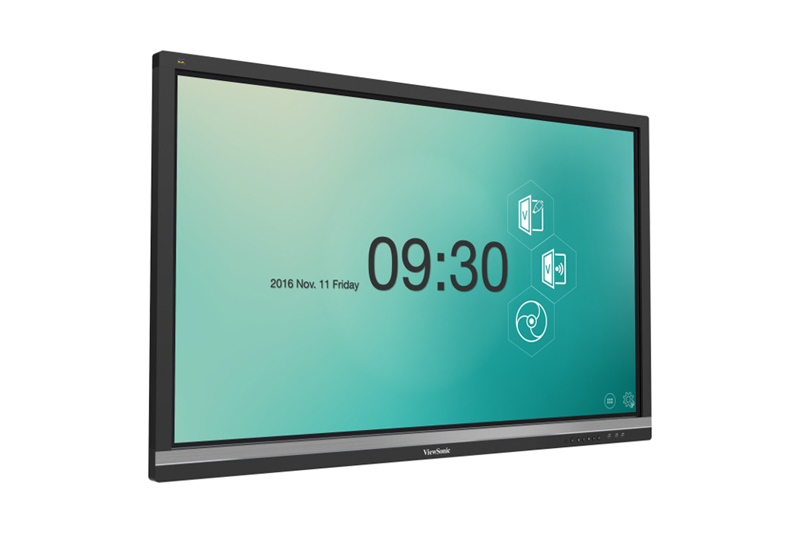

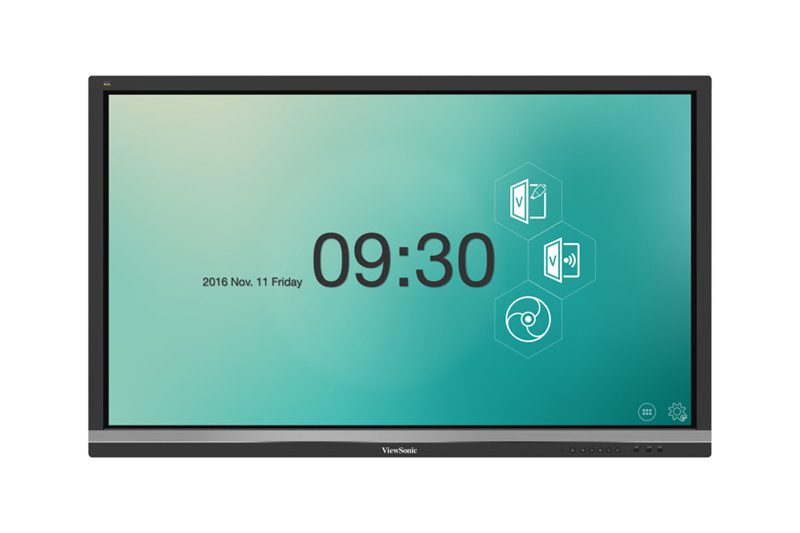

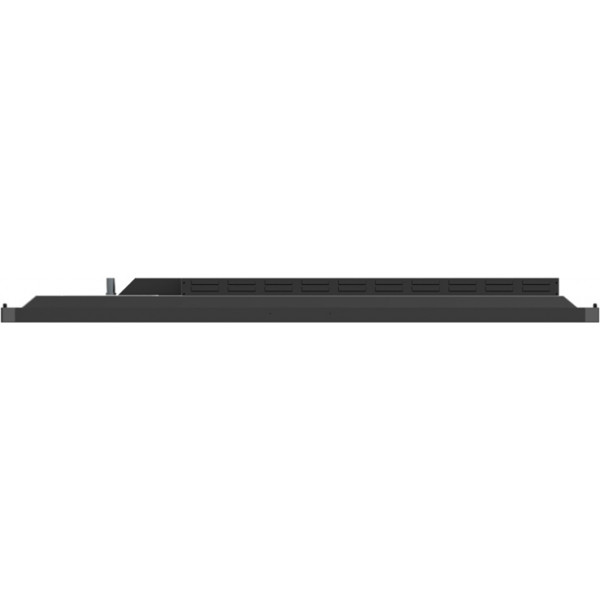

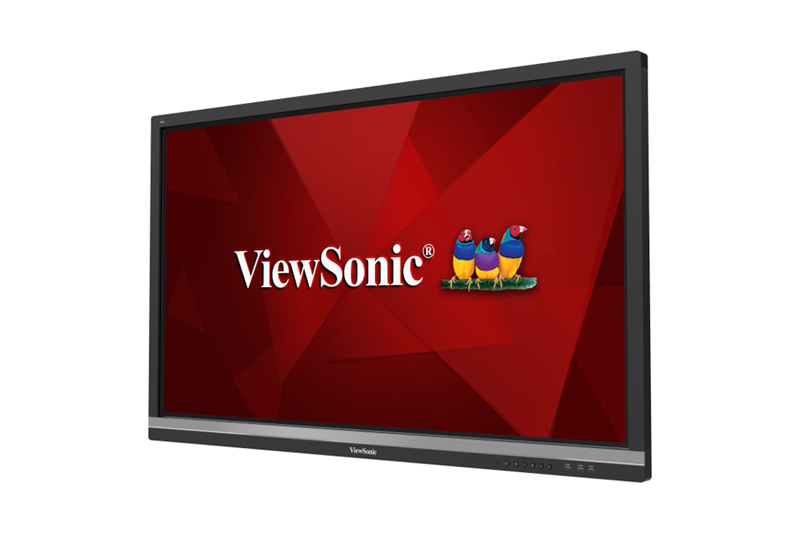

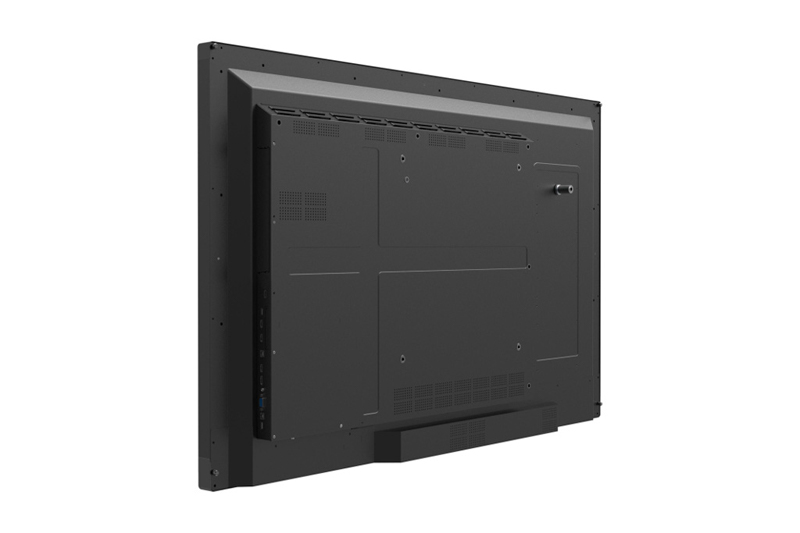

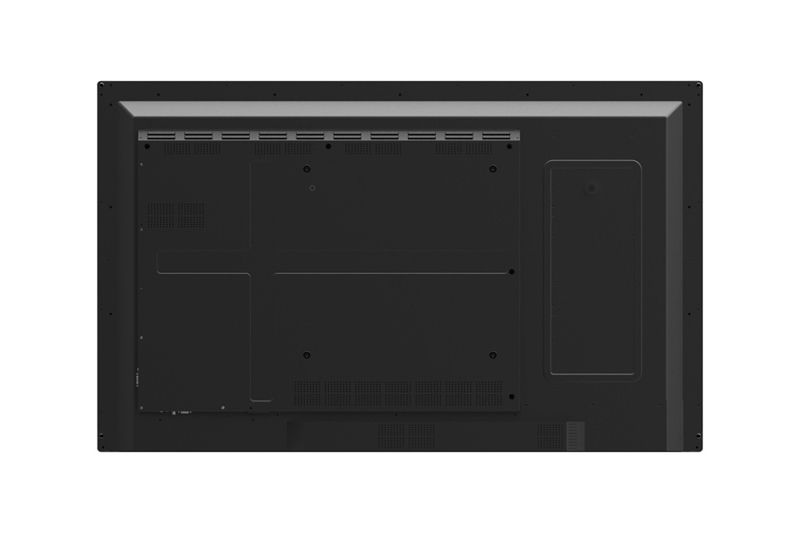

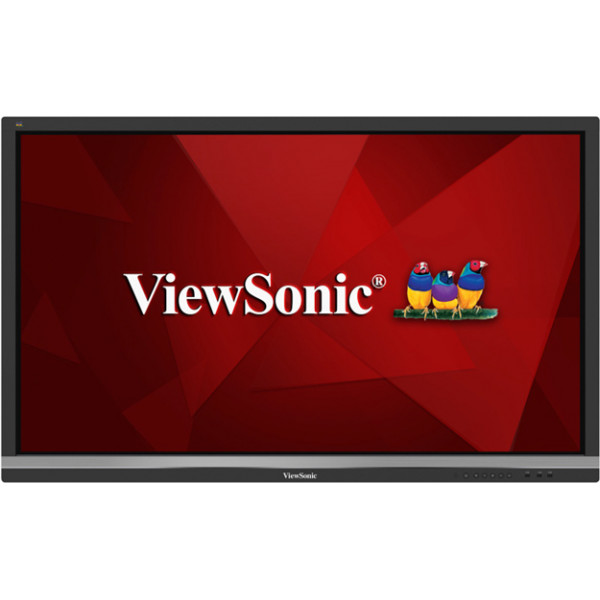

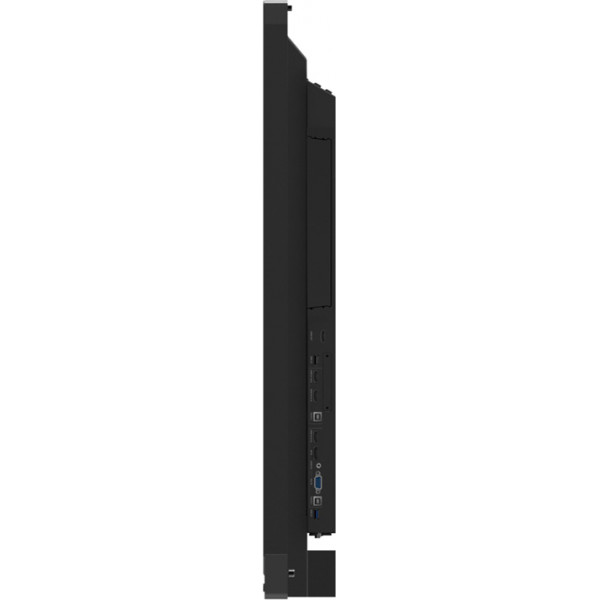

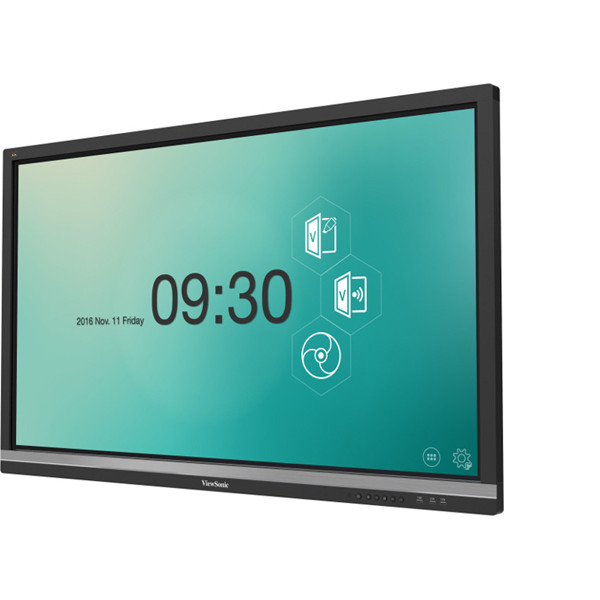

IFP5550
55" 4K Interactive Flat Panel
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
SPECIFIKÁCIÓK
- LCD PANELPanel mérete: 55"
Típus/ Technika: TFT LCD Module with DLED Backlight
Megjelenített terület (mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal)
Képarány: 16:09
Felbontás: 3840 x 2160
Colors: 1.07B colors (10bit)
Fényerő: 350 nits (typ.) 300 nits (min.)
Kontrasztarány: 1200:1 (typ.)
Válaszidő: 8 ms
Betekintési szögek: H = 178, V = 178 (typ.)
Backlight: DLED
Háttérvilágítás élettartama: 30,000 Hours Min.
Hardness: 7H
Típus/ Technika: IR Recognition - TOUCHÉrintés felbontás: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
Válaszidő: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs - INPUTHDMI: 1.4a x 2 (3840 x 2160@30Hz)
2.0 x 1 (3840 x 2160@60Hz)
RGB / VGA: x 1
DisplayPort: x 1 (3840 x 2160@60Hz)
Audió: x 1 PC audio (3.5mm)
CVBS (AV): x 1
RS232: x 1
PC Slot: x 1 (proprietary)
- OUTPUTHDMI: x 1 (1080P@60Hz)
Audio (Earphone out): x 1
SPDIF: x 1 - LANRJ45: x 1
- USB2.0 Type A: x 4 (front x 2, for both embedded player and slot-in PC)
3.0 Type A: x 2 (front x 1, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2 - HANGSZÓRÓK16W x 2
- BUILT-IN PCProcesszor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Memória: 2GB DDR3
Tárolás: 16GB eMMC
Networking: 10/100M auto-identification and DHCP - COMPATIBILITYVGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i - POWERFeszültség: 100-240VAC +/- 10% Wide Range
Fogyasztás: 129W(Typ, without Slot-In PC); 224W(Typ, Including Slot-In PC) - Falra szerelhetőVESA®: 400 x 400mm; Screw: M8 x 25mm
- OPERATING CONDITIONSHőmérséklet (ºC): 32°F to 104°F (0°C to 40°C)
Páratartalom: 10% ~ 90% non-condensing - DIMENSIONS (W x H x D)Fizikai (inch / mm): 51.3x31.5x3.9 in/ 1302x799x98 mm
Csomagolás (inch / mm): 58.3x8.66x37.8 in / 1480×220×960 mm - WEIGHTNet (kg / lb): 34kg / 74.96lbs
Gross (kg / lb): 46kg / 101.41lbs - What's in the box?1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
