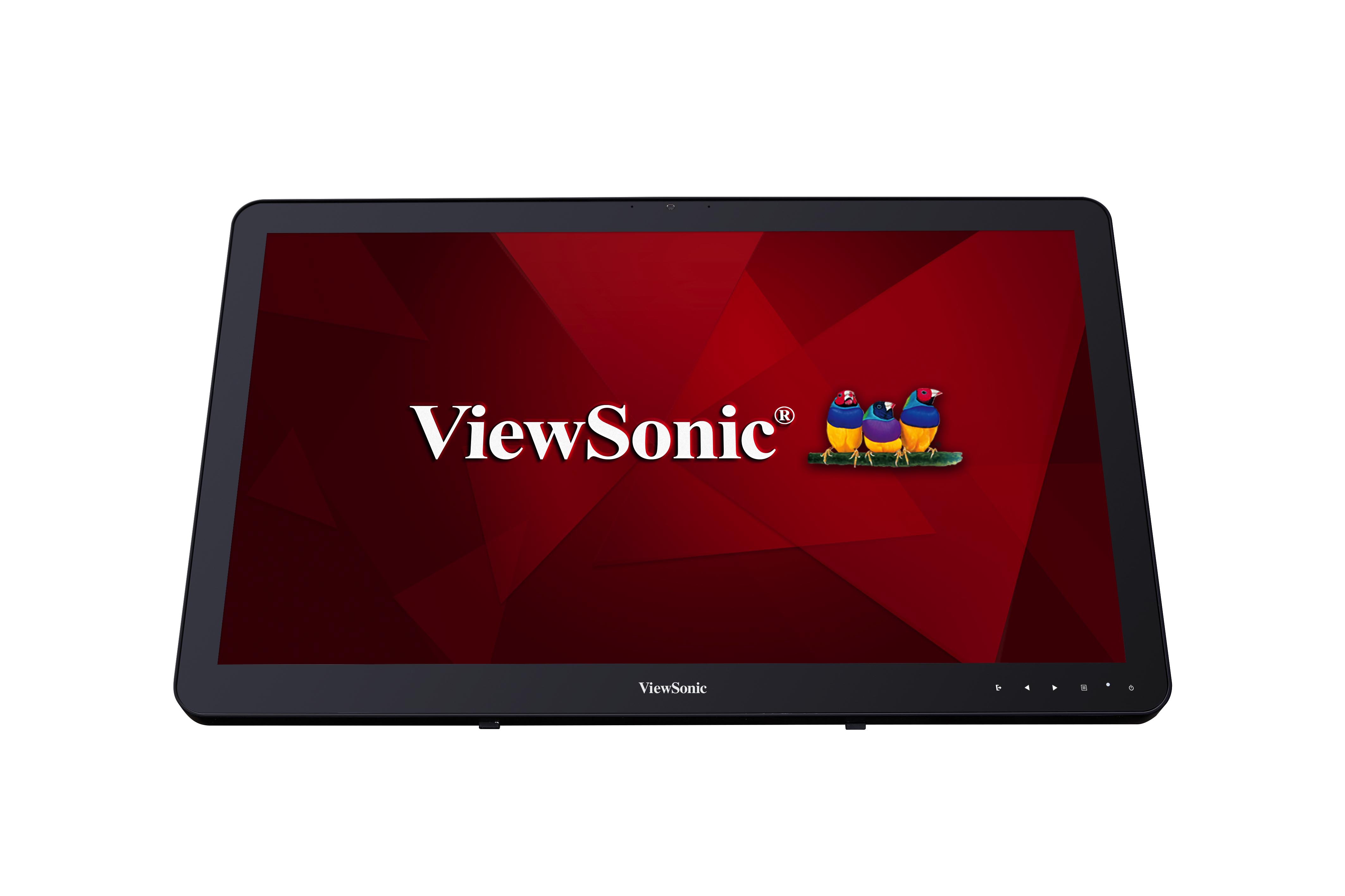

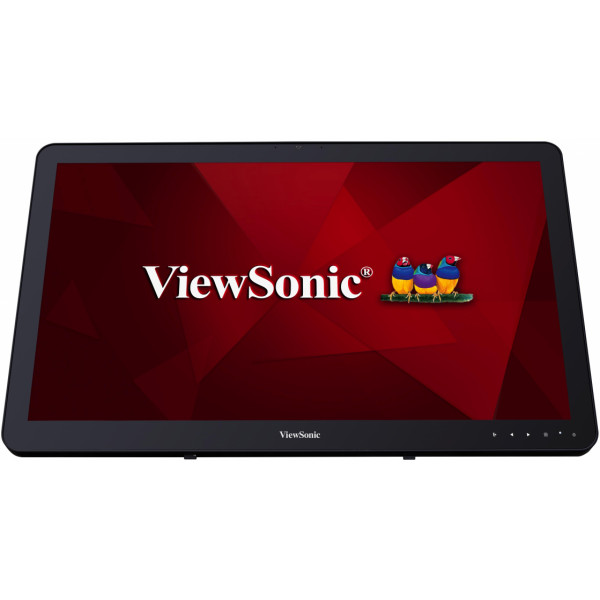

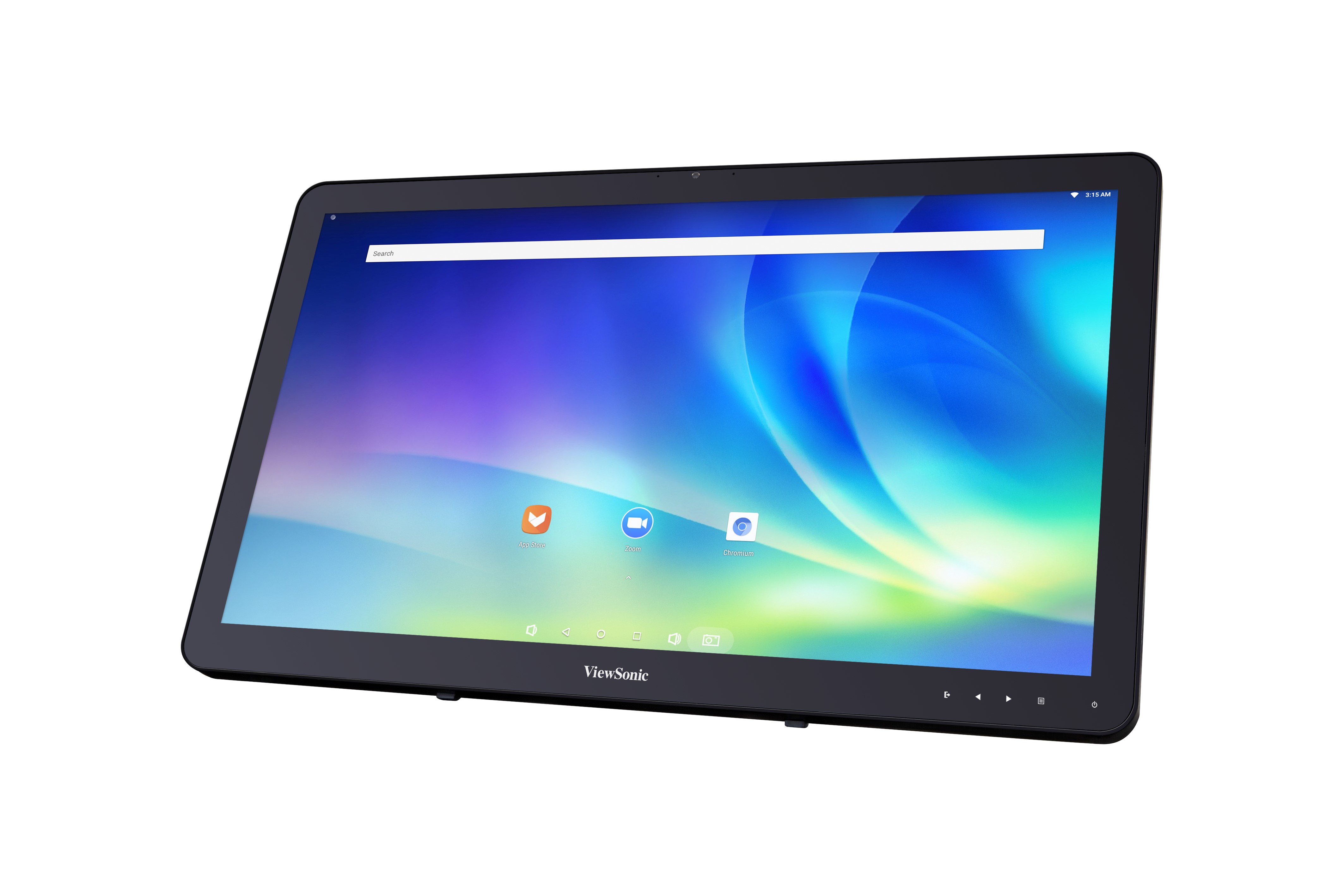

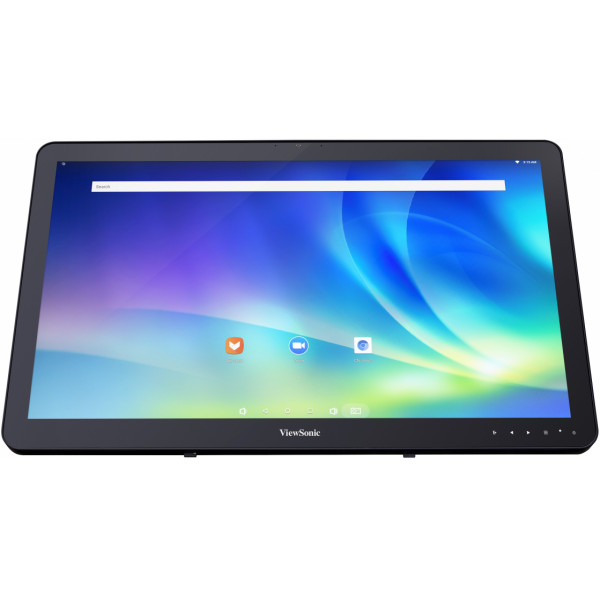

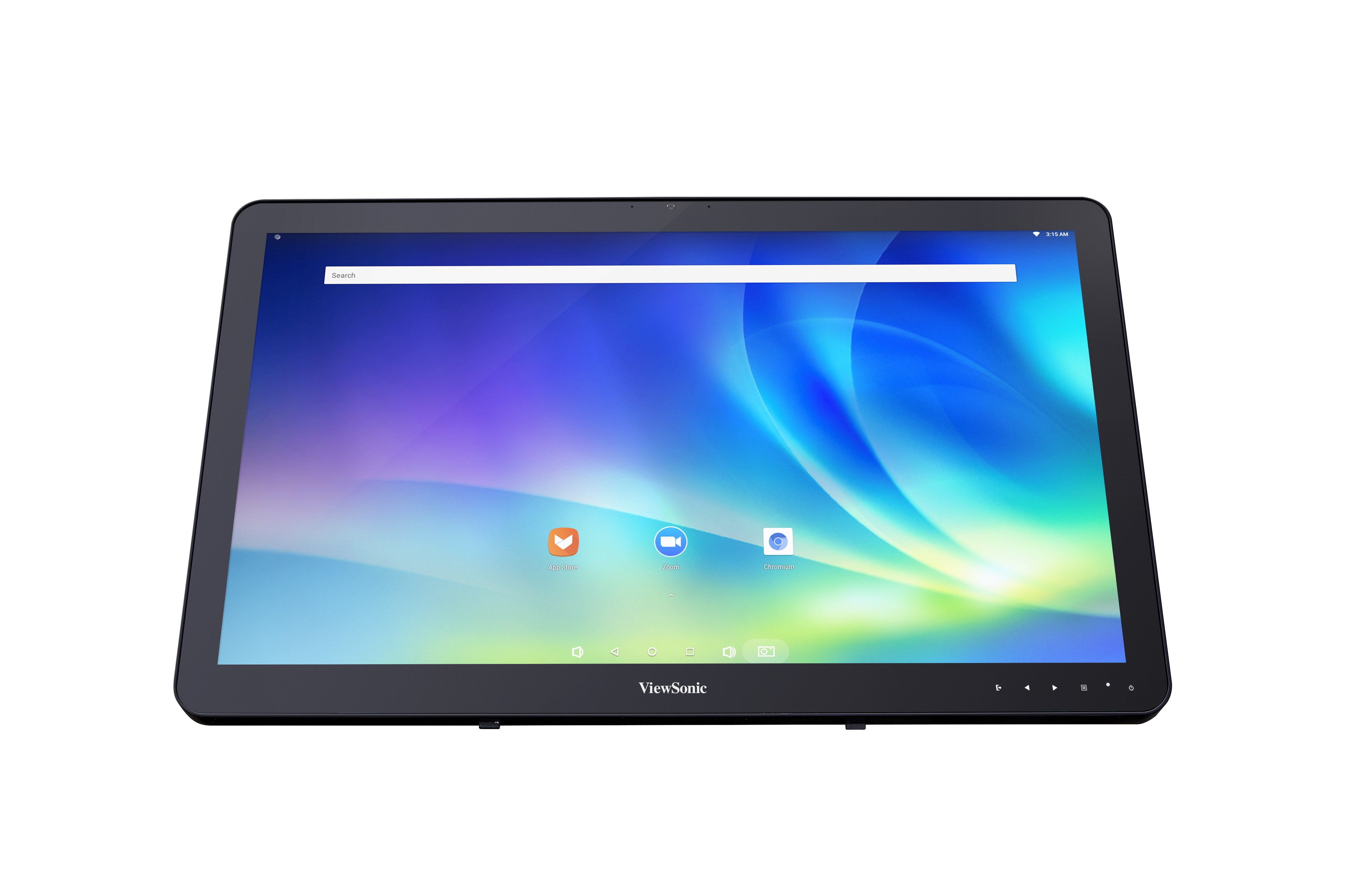

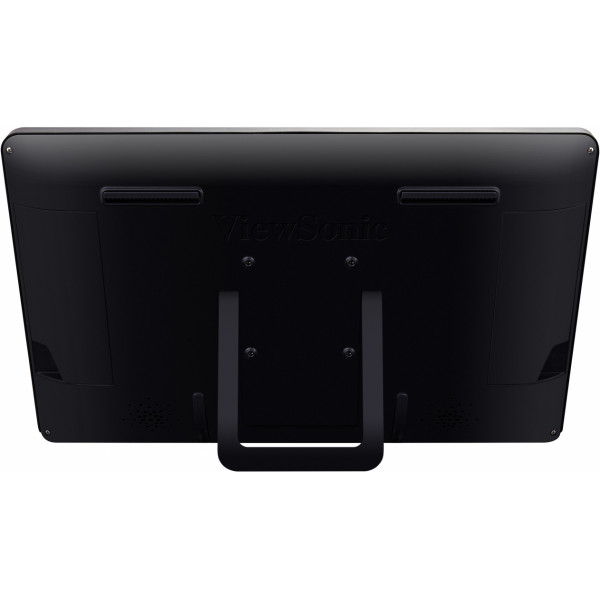

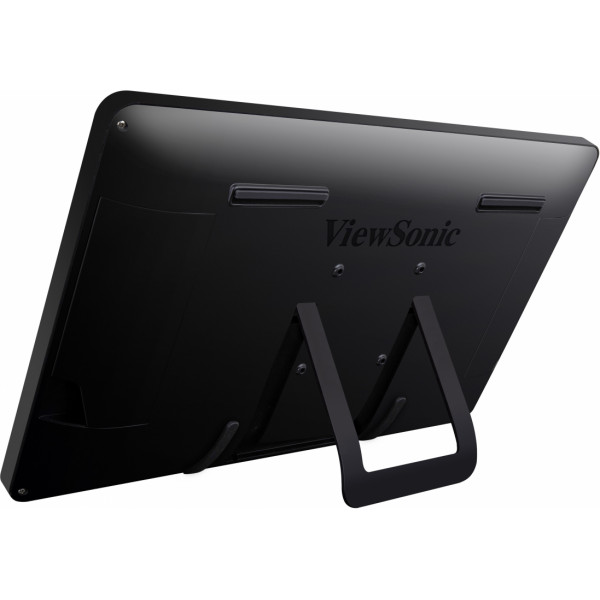

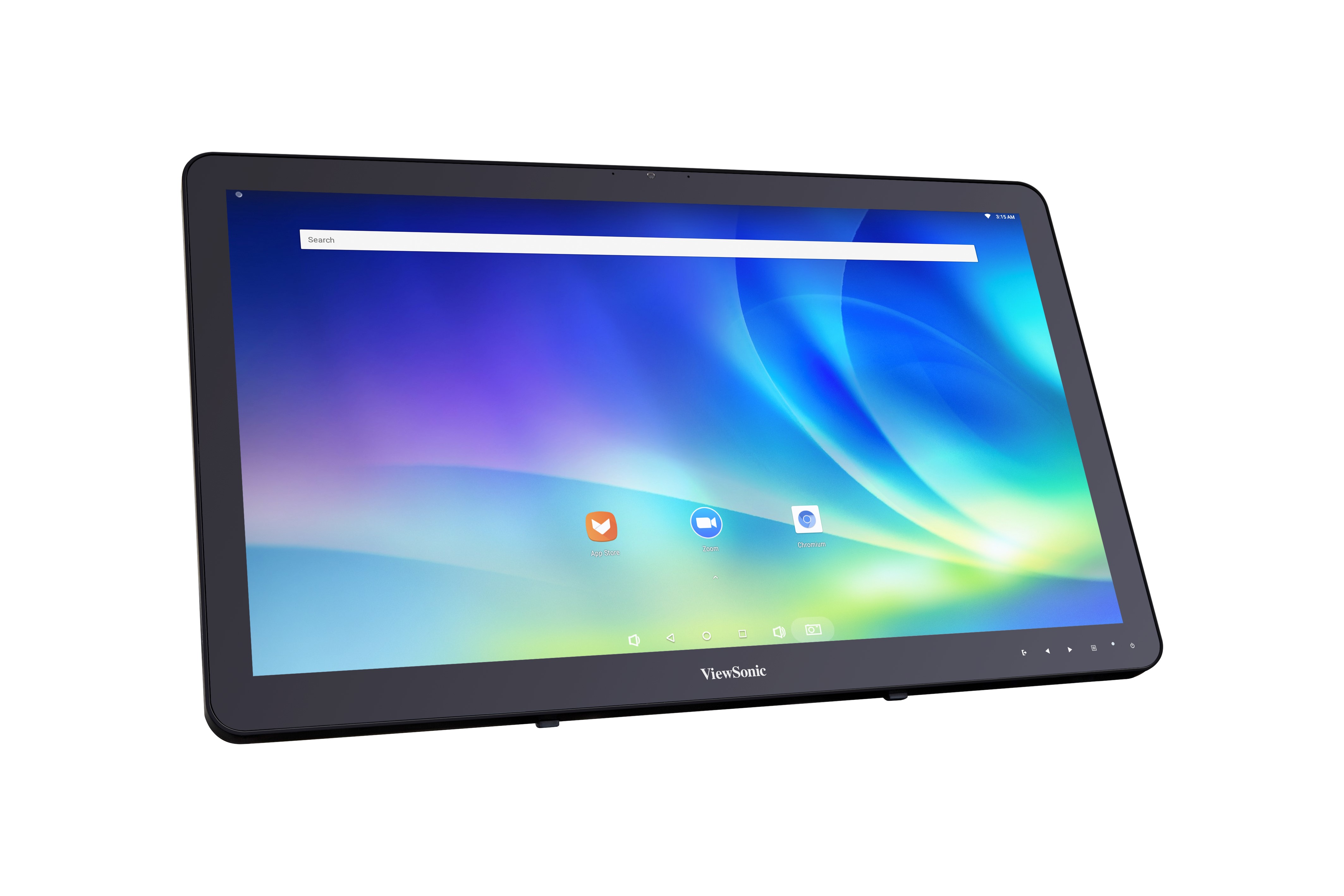

VSD243
24” (23.6” viewable) Smart Display for Android™
- Full HD 1080p resolution
- 10-point Multi-touch
- Equipped with Wi-Fi, Bluetooth, and RJ45
- Built-in webcam, integrated microphone and speakers
- Powerful Quad Core Processor
ÁTTEKINTÉS
The ViewSonic VSD243 is a 24” smart display that delivers flexibility and power needed for heavy usage in public spaces. With its sleek ID, thin bezel, fan-less design, 7H hardness screen coating, and VESA mounting capabilities, the VSD243 is a flexible solution for information kiosks, public displays, or POS stations in business centers, libraries, or retail environments. Combining the power of a Rockchip quad-core processor, a professional-grade VA panel, and a 10-point interactive touchscreen, this smart display delivers a responsive, tablet-like browsing experience. What’s more, a built-in webcam, integrated microphone, and speakers make the VSD243 the perfect interactive, self-contained, kiosk-in-a-box.
Powerful Quad Core Processor
Equipped with the powerful Rockchip RK3288 1.8GHz Quad-Core Cortex A17 processor, this smart display provides smooth, lightning-fast computing no matter what applications are running.
10-point Multi-touch
With 10-point multi-touch technology and a durable, scratch-resistant surface, this smart display provides outstanding interactive capabilities in public environments. Users can also utilize the smart display as a Full HD touch display to connect to existing PCs, notebooks, or tablets.
Equipped with Wi-Fi, Bluetooth, and RJ45
This smart display includes Wi-Fi 802.11 a/b/g/n, Bluetooth 4.0, and RJ45 Ethernet, providing flexible access options for website browsing, cloud access, and data exchange.
4 USB Ports
4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.
Complete Multimedia Package
With a built-in webcam, integrated microphone and speakers, and Full HD resolution, this smart display offers a complete multimedia package for professional-grade video conferencing. Users can also utilize the webcam when the smart display is connected as an external display to a PC, notebook, or tablet.
Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to minimize eyestrain from extended viewing periods.
SPECIFIKÁCIÓK
- OPERATING SYSTEMPlatform: Support Android 8.0
Típus: 23.6” TFT liquid crystal display, VA panel - PANELTípus: 23.6” TFT liquid crystal display, VA panel
Felbontás: 1920 x1080
Color Depth: 8-bit + Hi FRC
Fényerő: 250 cd/m2 (typ.) & 200 cd/m2 ( Min.)
Contrast: 3000:1 (typ.) / 2000:1 ( Min.)
Touch Panel: PCT10 points touch supported
Felületkezelés: Touch CS Soda-Lime glasses (≧7H)
Viewing Angle: View Angle Free (R/L 178 – Typ.)
Válaszidő: 16 ms GTG ( typ.) - PROCESSORCPU Processor Type: Rockchip® RK3288 Cortex-A17 ( Quad- Core 1.8 GHz)
Scalar: Realtek RTD2483AD-CG
- MEMORYSystem: 16GB eMMC iNand
Tárolás: 2GB DDR3 - AUDIOMicrophone: Yes
Hangszóró: 2.5W *2 stereo
Headset: 3.5mm audio jack for stereo headset - SOFTWAREProtocols: Support Android 8.0
- CONNECTIVITYWiFi: WiFi :802.11 b/g/n
Bluetooth: BT4.0
USB: USB2.0 -typeA*4 ; USB type B*1 ; Mini-USB for OTG
HDMI-IN: Yes
HDMI-OUT: Yes
RJ45 LAN: 10M/100M/1000M
Screen Mirroring: Yes ( depends on receiver compatibility) - CAMERASecondary Camera (Front): View Angle Free (R/L 178 – Typ.)
Válaszidő: 5.0MP Autofocus - SUPPORTED FILEText: TXTJPEG/BMP/ GIF (non-animated)
Picture: AVI，RM，RMVB，MOV，FLV，3GP，MP4，MKV
Video: Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps - POWERFeszültség: AC Input voltage 100~240VAC, 50/60Hz (universal)
Fogyasztás: - On mode: 40 W (Max)
-Standby Mode: < 2 W

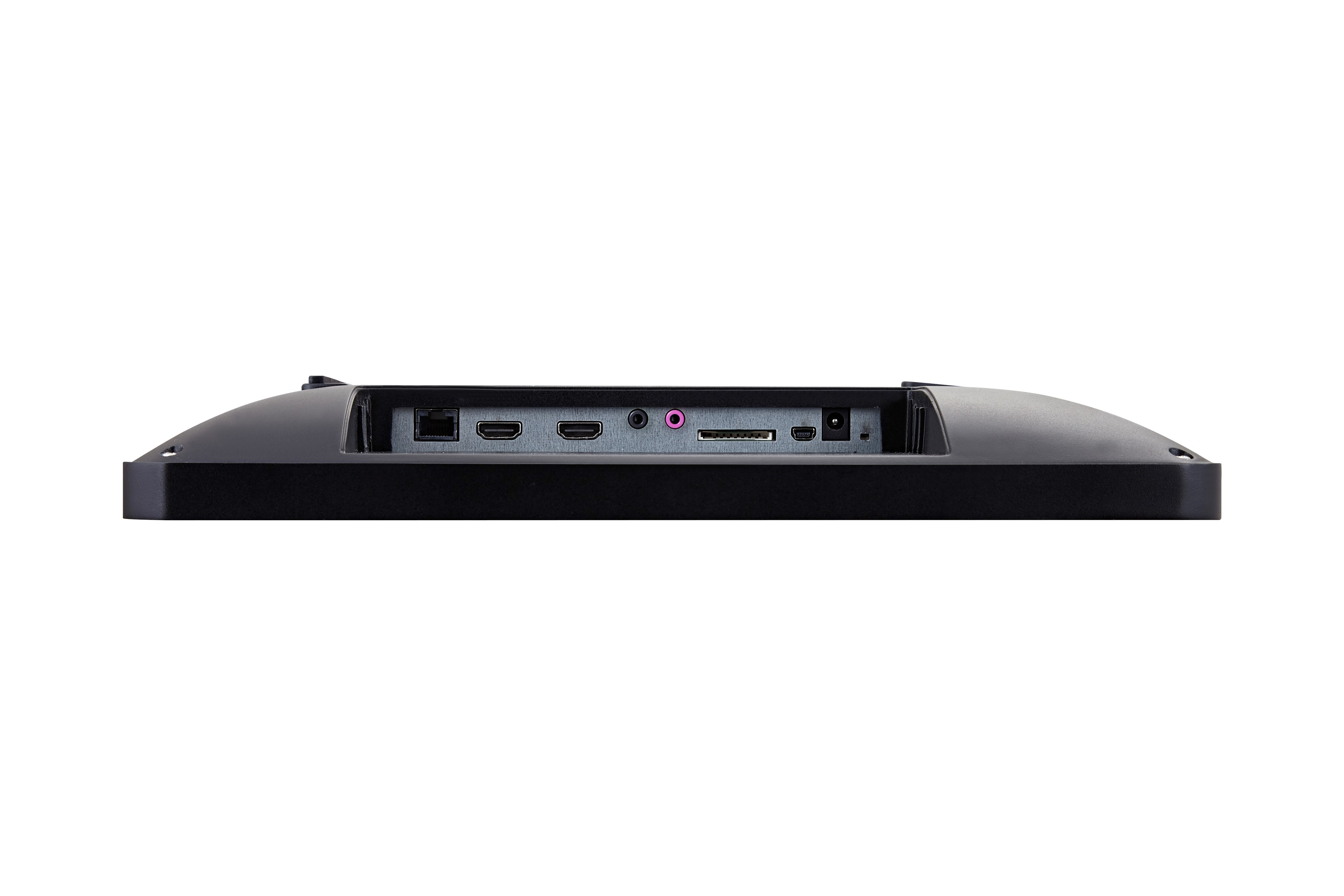

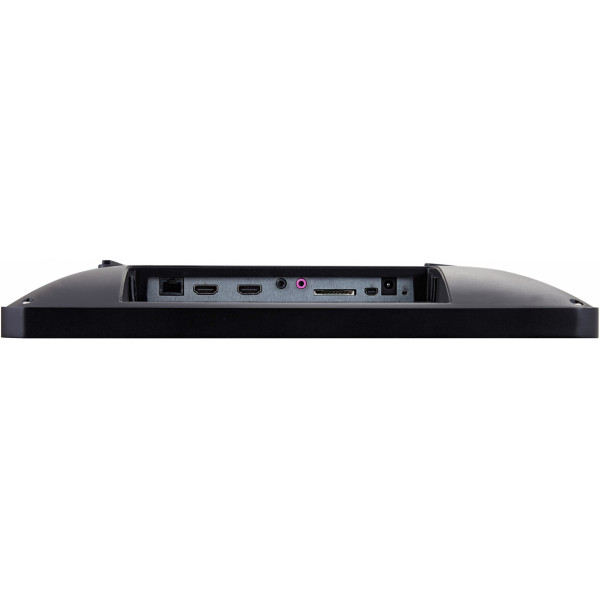

-Off mode : 0.5 W - INTERFACEI/O ports: 3.5mm headset jack
3.5mm Microphone-IN jack
DC jack
SD card slot
HDMI-IN
HDMI-OUT
RJ45 LAN
MiniUSB*1-OTG
USB 2.0*4 – type A
USB 2.0*1 –type B*
*( Extermal HDMI display mode for USB upstream, and Touch-screen
control functionality.) - OPERATING CONDITIONSTemperature (º F / º C): 0°C to 35°C
Páratartalom: 20%~90% non-condensing - DIMENSIONS (W x H x D) (inch / mm)Physical with stand (inch/mm): 572.9 x 351.8 x 47mm ( 22.6 x 13.9x 1.9 inches)
Packaging (inch/mm): 643 x 435 x 140 mm
( 25.32 x 17.13 x4.93 inches) - WEIGHTNet with stand (lb / kg): 5.64 kg
(12.43 lb)
Bruttó (font / kg): 7.56 Kg

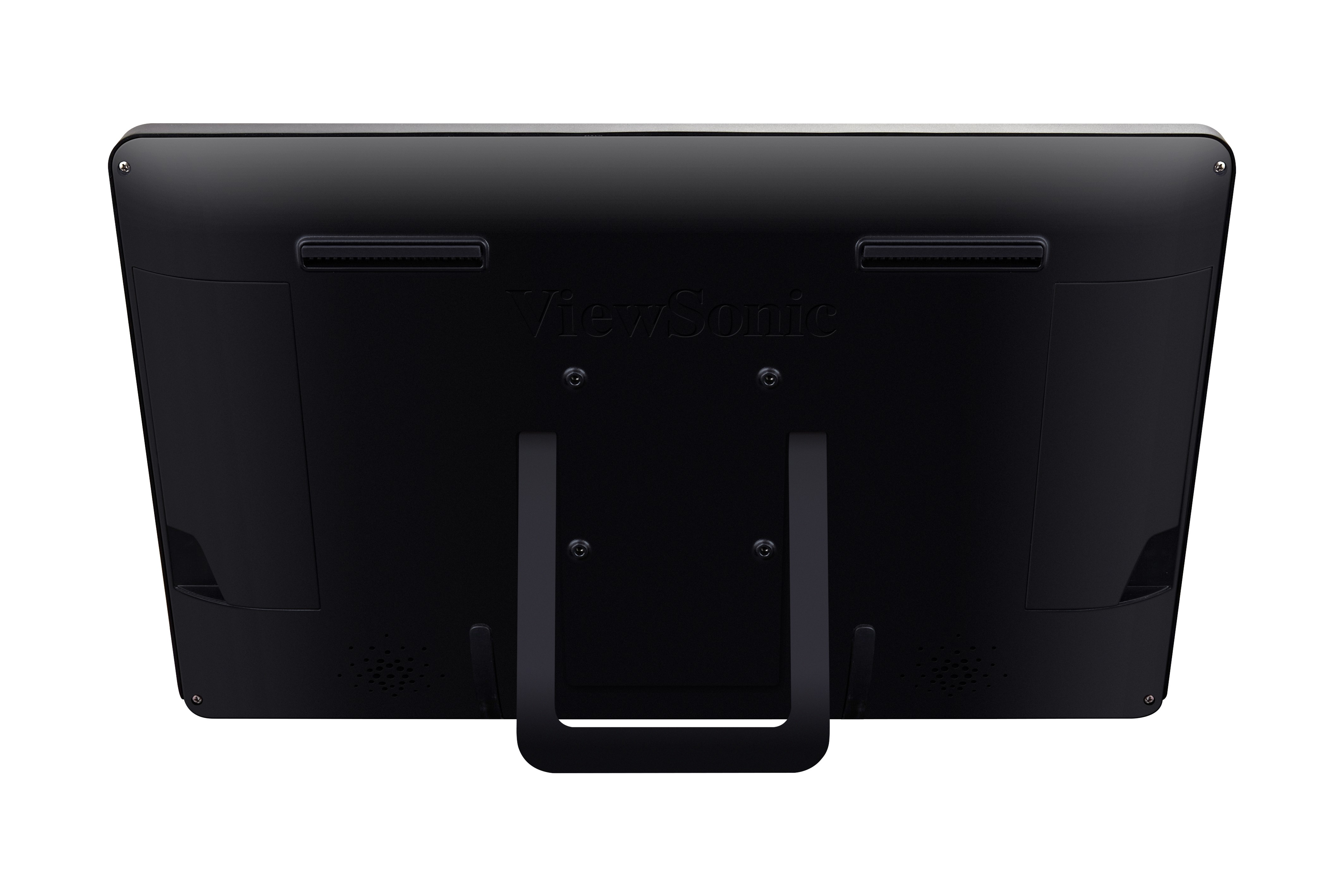

(16.65 lb) - WALL MOUNTVESA®: 100x100mm
- REGULATIONSFCC, cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP, WEEE, ,
- RECYCLE / DISPOSALPlease dispose of in accordance with local, state or federal laws
- WARRANTY*Warranty offered may differ from market to market
- WHAT'S IN THE BOX1. VSD243
2. Power adapter with
3. Power cord (depend on regions.)*
4. Quick Start Guide
* Applicable power cord is shipped with the product to the point of
destination.
*Actual content may differ from market to market
