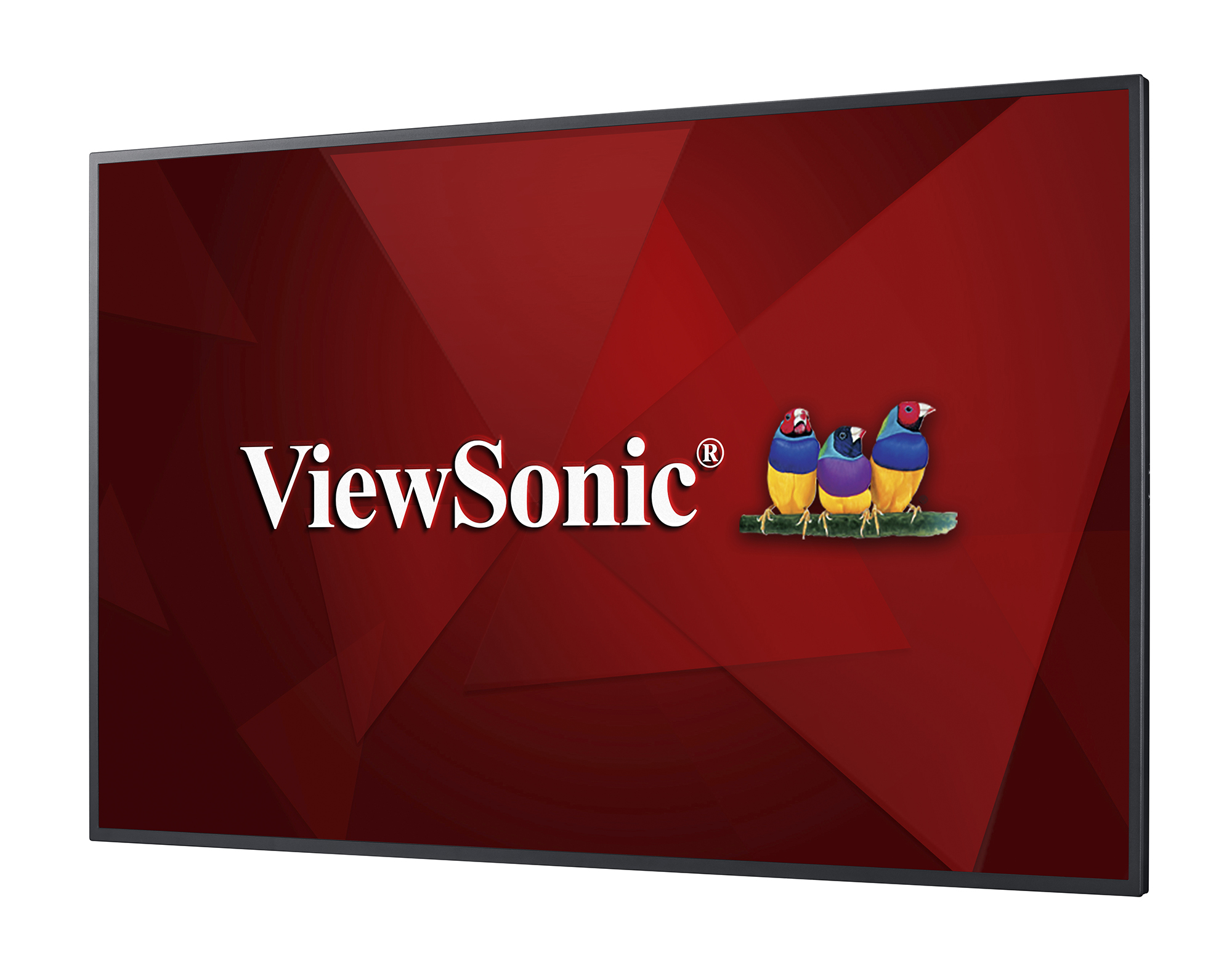

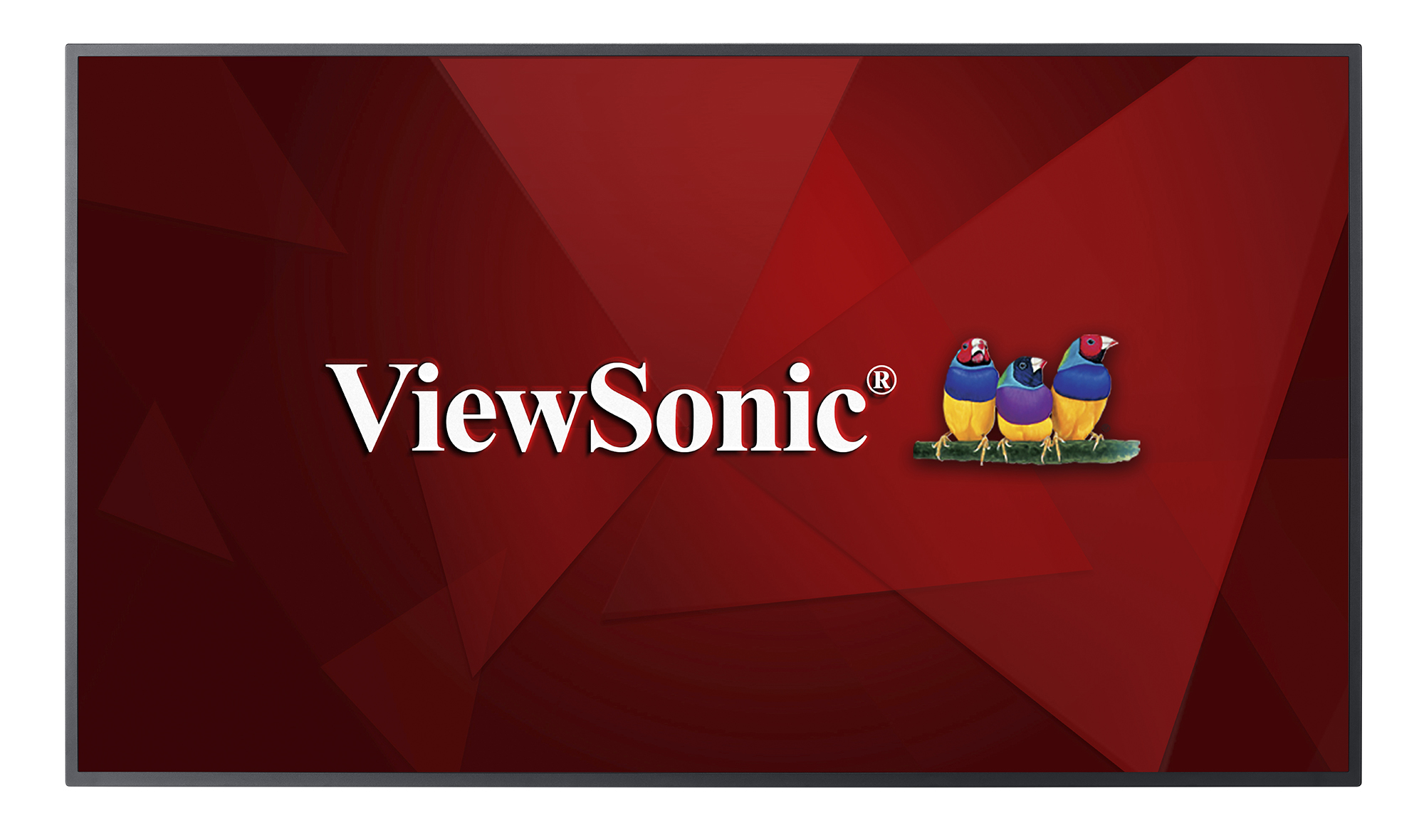

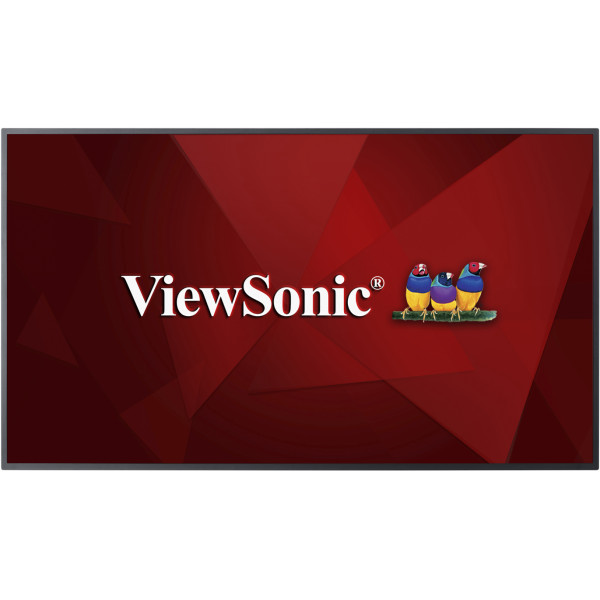

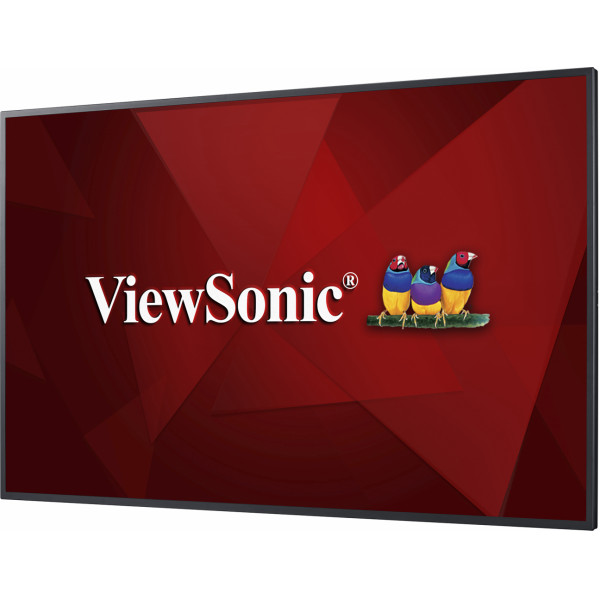

CDE5510
55" 4K Ultra HD Presenation Display
- Embedded Android SOC supports Android apps
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through

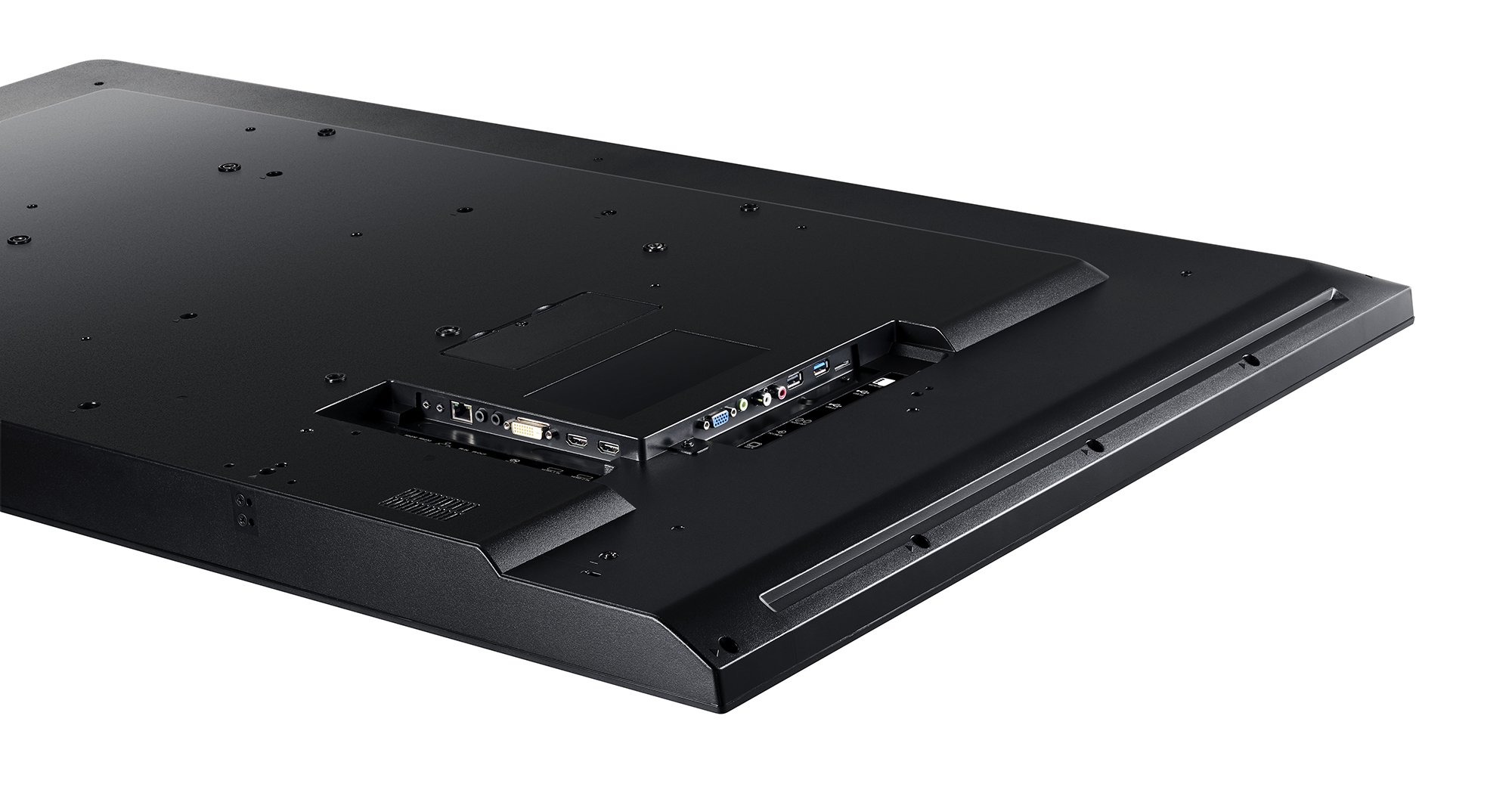

- VGA, DVI, USB, IR, RJ45 input compatibility
SPECIFIKÁCIÓK
- LCD PANELPanel mérete: 55"
Típus/ Technika: TFT LCD Module with LED Backlight
Megjelenített terület (mm): 1209.6(H) x 680.4(V)
Képarány: 16:09
Felbontás: 3840x2160 @60Hz
Colors: 1.07B colors
Fényerő: 350 nits (typ.)
Kontrasztarány: 4000:1 (typ.)
Válaszidő: 8 ms
Betekintési szögek: H = 178, V = 178 (typ.)
Backlight: DLED
Háttérvilágítás élettartama: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 2
RGB / VGA: x 1
DVI: x 1
Audió: x1 PC audio (3.5 mm)
YPbPr: x 1
RS232: x 1
SD/SDHC: x 1
IR: x 1 (over audio port) - OUTPUTAudió: x 1 (RCA L/R)
RS232: x 1
IR: x 1 (over audio port)
- LANRJ45: x 1
- USB2.0 Type A: x 1 (USB Playback)
3.0 Type A: x 1 (USB Playback) - HANGSZÓRÓK10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DVI: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERFeszültség: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Fogyasztás: Normal 145 W, Max 190 W
Falra szerelhető (VESA® ): 400 x 400 mm / 400 x 200 mm; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
EEI Rating: A - OPERATING CONDITIONSHőmérséklet (ºC): 5°C to 40°C
Páratartalom: 20% ~ 80% non-condensing - "DIMENSIONS (W x H x D)"Physical (mm / inch): 1239.2 x 751.9 x 329.81 mm / 48.79 x 29.6 x 12.98 in. (with Stand)
Physical w/o Stand (mm / inch): 1239.2 x 711.6 x 61.7 mm / 48.79 x 28.02 x 2.43 in. (w/o Stand)
Packaging (mm / inch): 1365 x 864 x 185 mm / 53.74 x 34.02 x 7.28 in - WEIGHTNet (kg / lb): 17.76 kg / 39.15 lbs (with Stand)
Net w/o Stand (kg / lb): 15.96 kg / 35.19 lbs (w/o stand)
Gross (kg / lb): 22.33 kg / 49.23 lbs - What's in the box?1. CDE5510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
