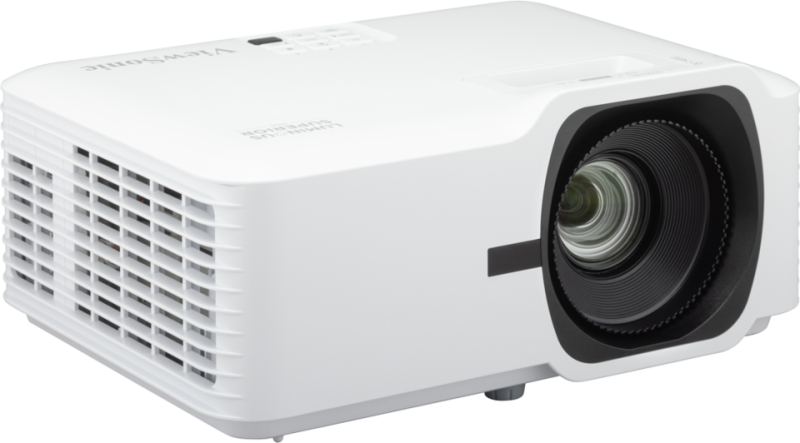

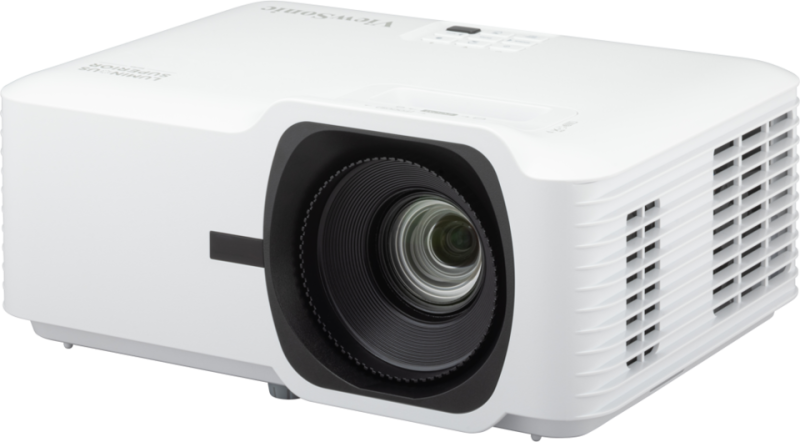

LSD600W

6,000 ANSI Lumens WXGA Laser Installation Projector

  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
  • 6,000 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen with lower cost-per-inch
  • High native contrast ratio powered by a 0.65” DMD chip based on DLP technology
  • Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
Demande de renseignements sur les ventes  Partager

INTRODUCTION

The LSD600W belongs to ViewSonic’s Luminous Superior series, a lamp-free high-brightness projector line up designed for corporate and commercial environments. With its adoption of the 3rd generation laser phosphor technology, it delivers 6,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector‘s light weight and compact design reduces transportation costs. With up to 300“ projection and high native contrast, it is well-suited for boardrooms, public, and sports simulation spaces. This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.

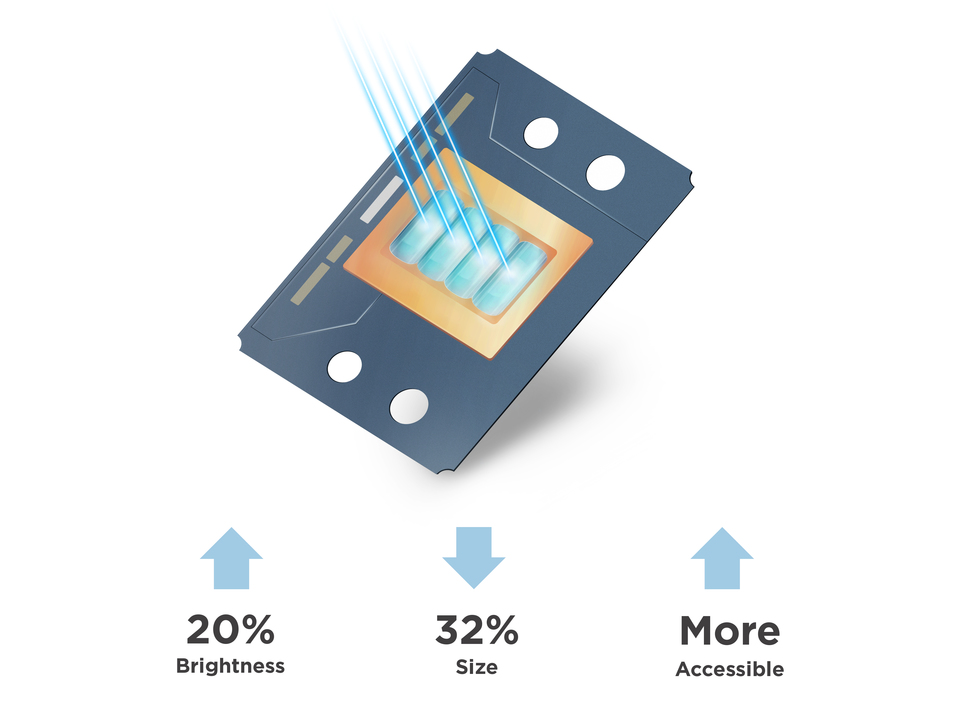

Bright, Compact, Durable

The LSD600W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright, Compact, Durable 1

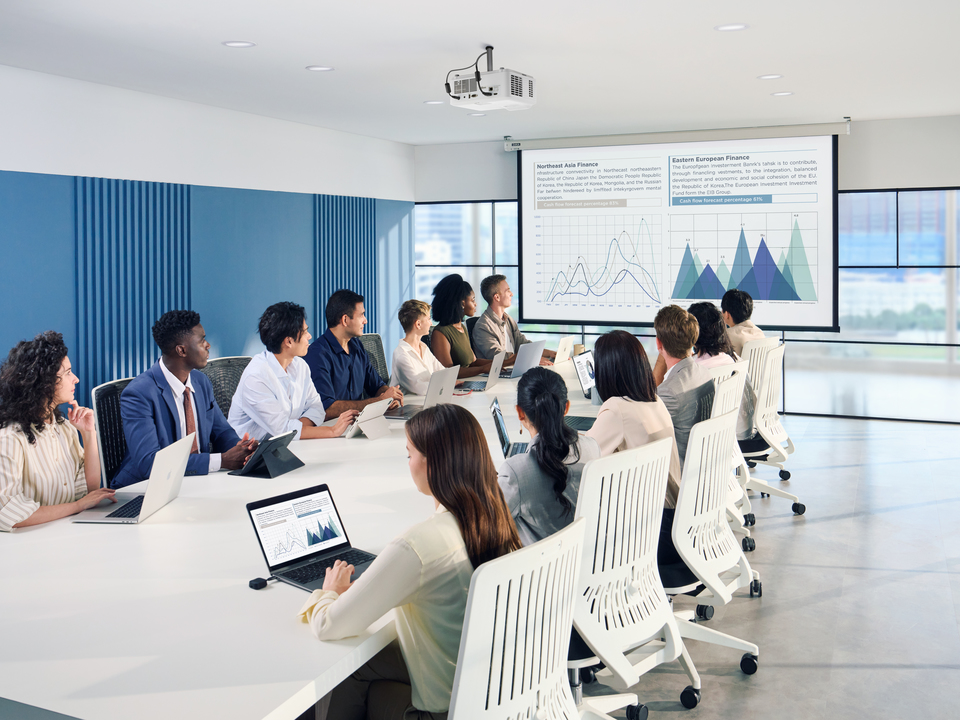

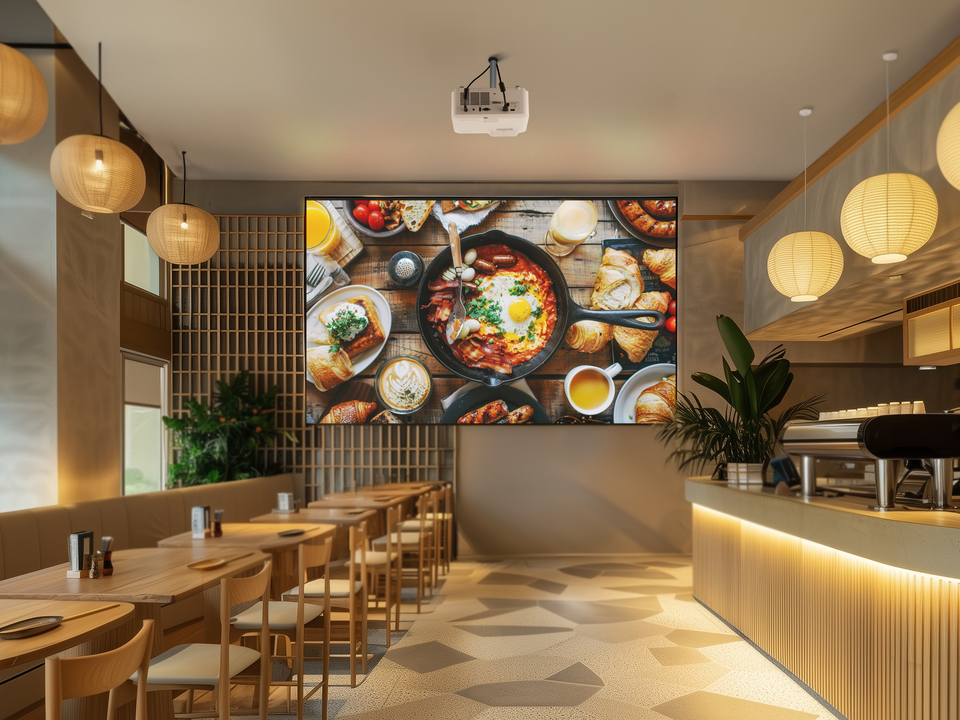

Bright Images for Large Venues

Delivering 6,000 ANSI Lumens, the LSD600W provides vibrant and sharp projection in WXGA in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.
6,000 ANSI Lumens, WXGA
Bright Images for Large Venues 1
Bright Images for Large Venues 2

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
0.65” DMD Chip | High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to a 300" Image
Ultra-Large Screen with Lower Cost-per-Inch 1

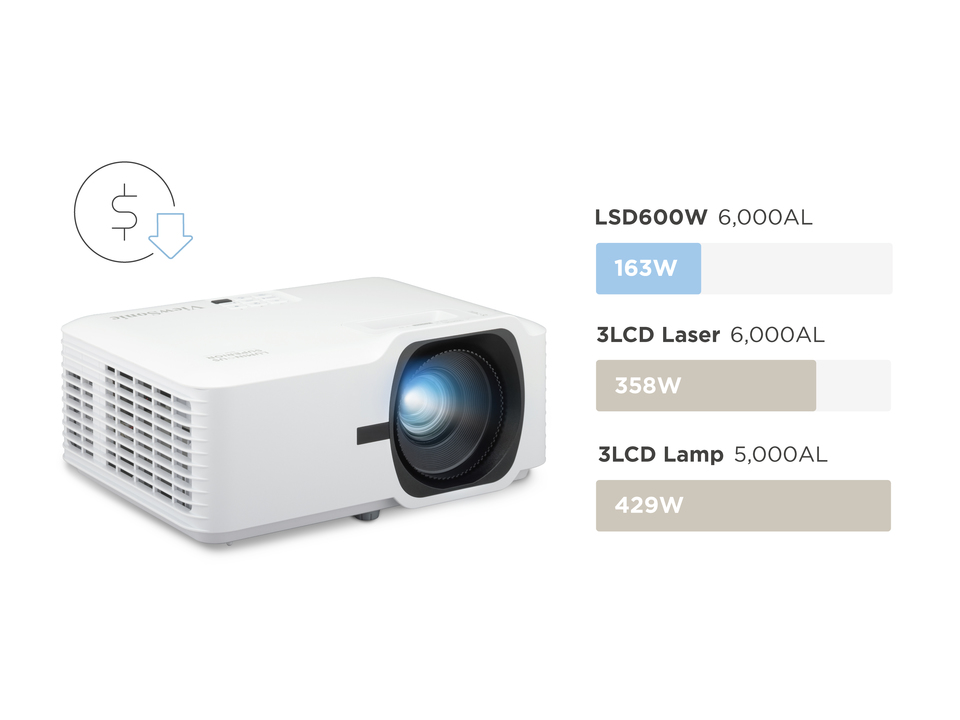

Save on Costs and Energy

With its advanced lamp-free light source, the LSD600W offers a highly energy-efficient and cost-saving display solution by consuming up to 62% less power than competing projectors
Lower Power Consumption
Save on Costs and Energy 1

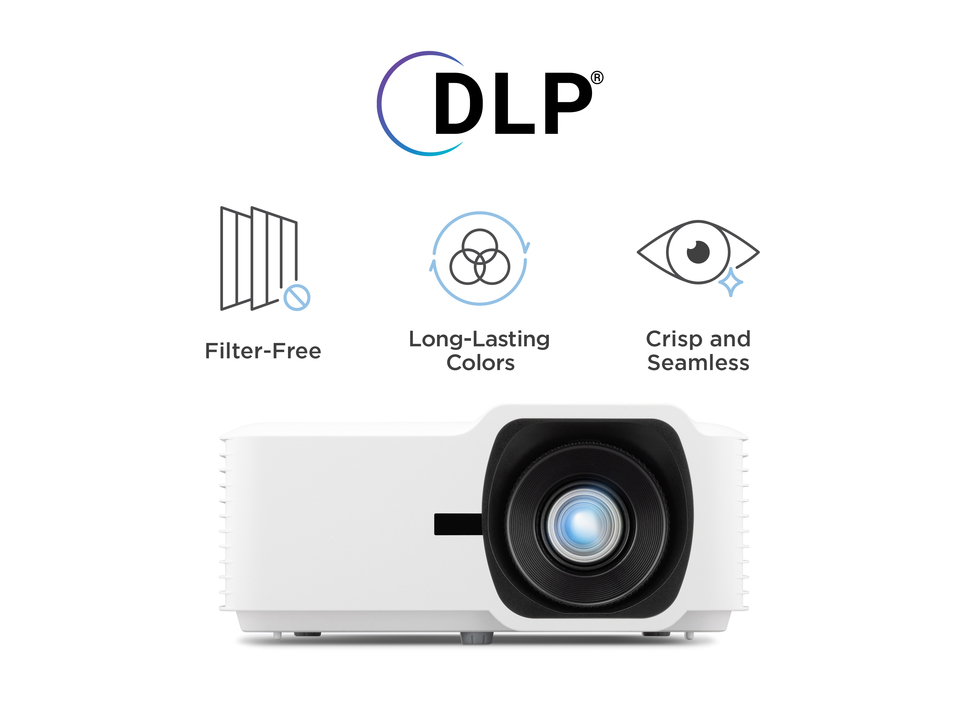

Reliable Long-Term Performance with DLP Projection Technology​

With DLP technology, the LSD600W maintains consistent color performance over time, free from any yellowing issues. An IP6X-rated sealed optical engine keeps the unit filter-free, preventing dust from reaching internal components and requiring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Filter-Free | IP6X-rated Sealed Optical Engine
Reliable Long-Term Performance with DLP Projection Technology​ 1

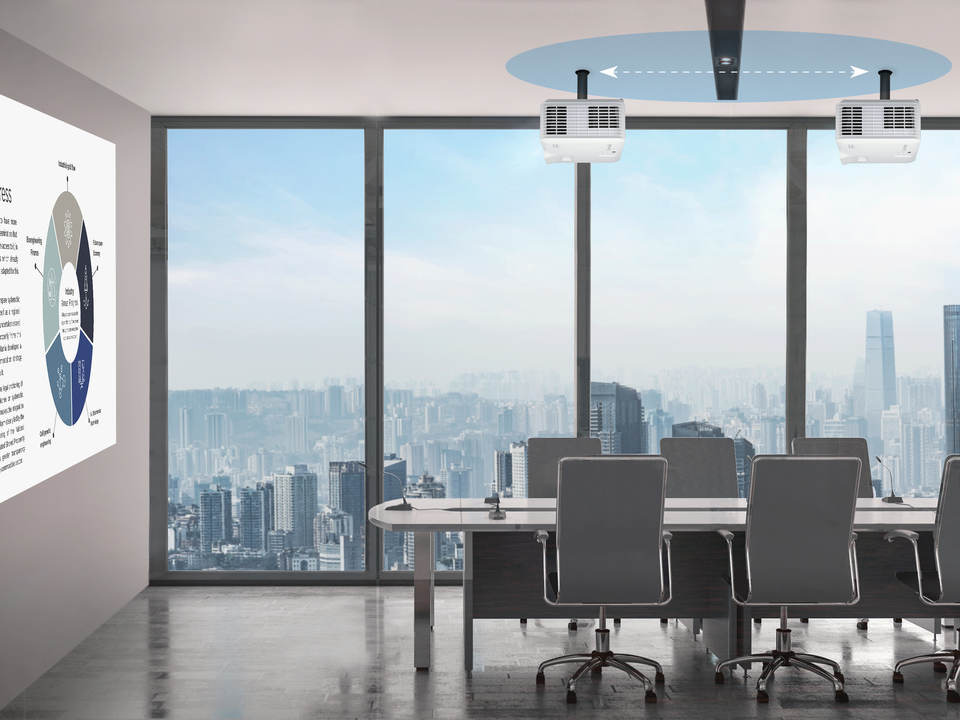

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
1.3x Optical Zoom
Enhanced Installation Flexibility 1

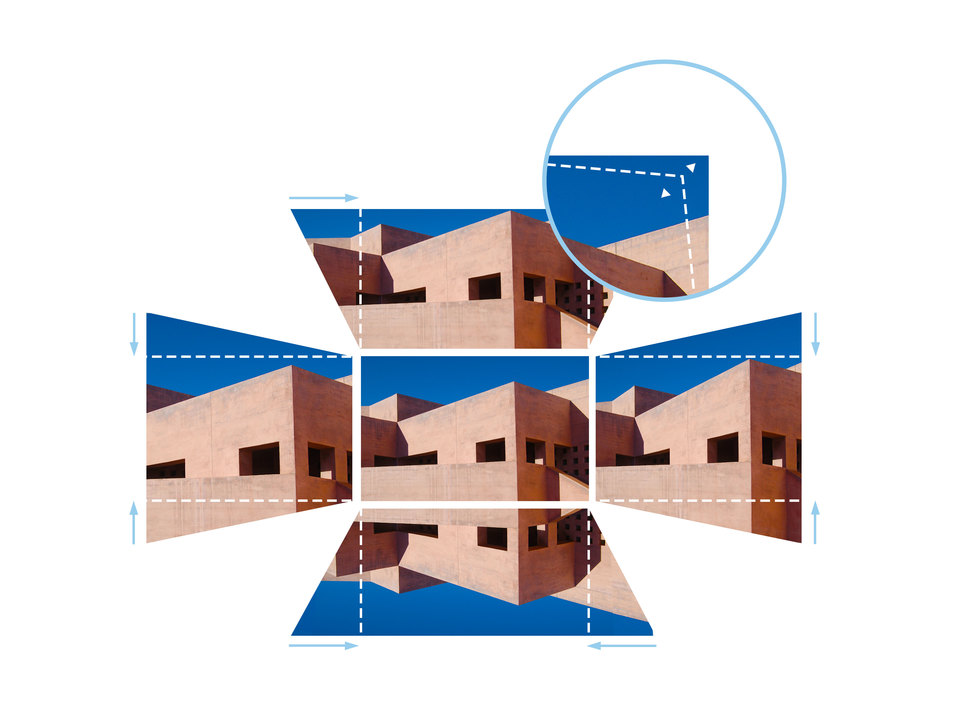

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction | 4-corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

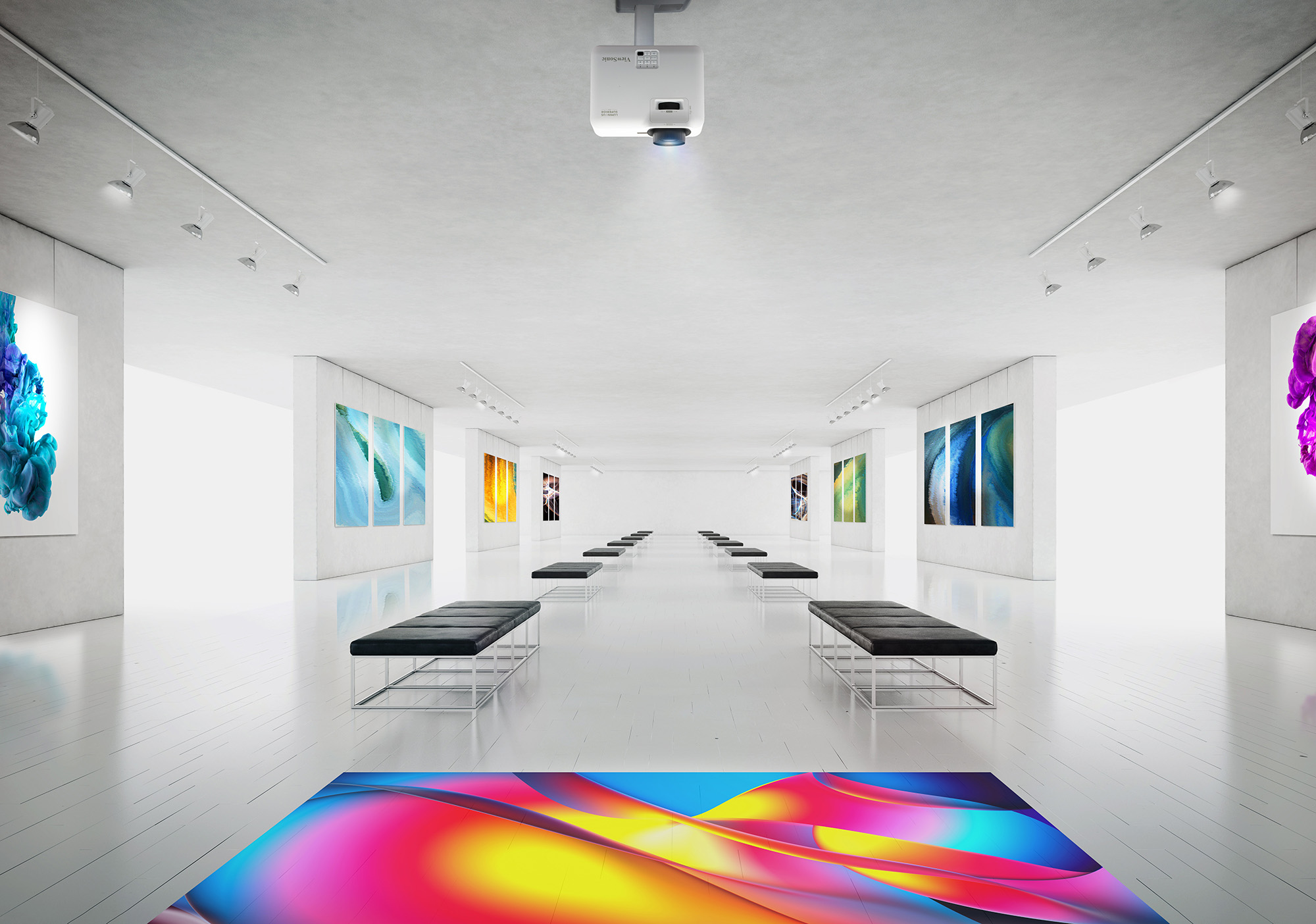

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection | 90° Portrait Mode
Versatile Creative Application​s 1

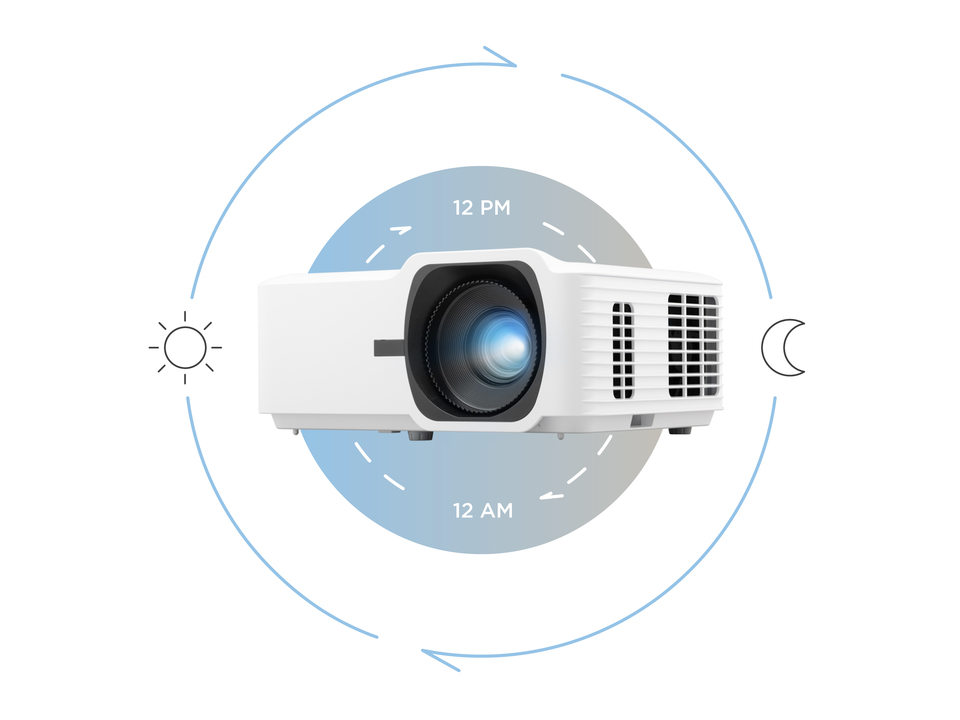

Non-stop 24/7 Operation​​

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.
Non-stop 24/7 Operation​​ 1

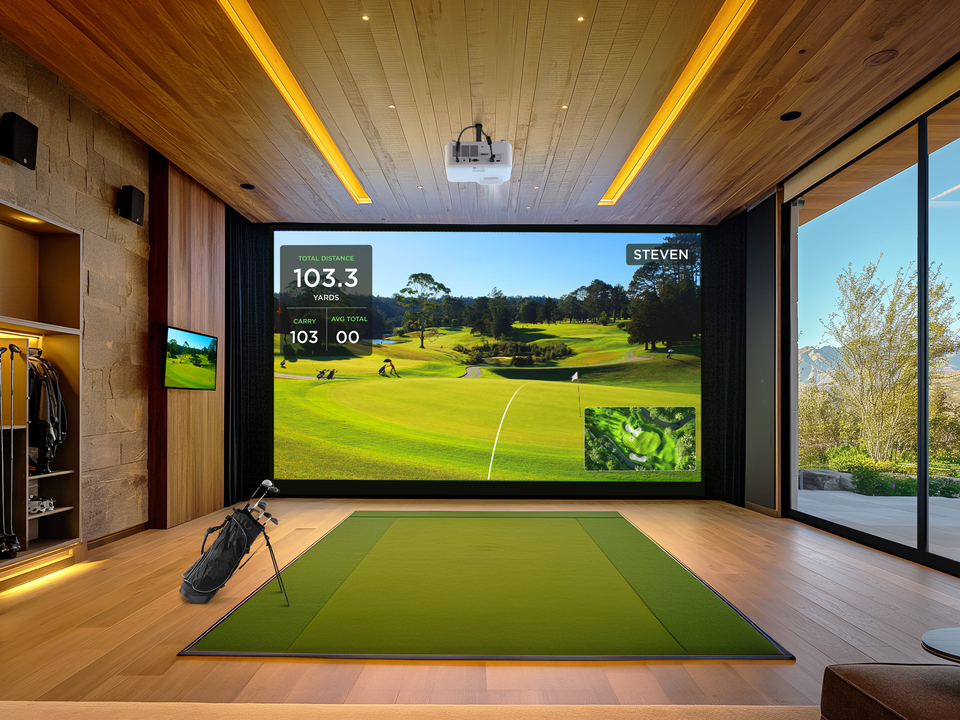

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible
Golf Color Mode
Brilliant Colors for an Authentic Golf Experience 1

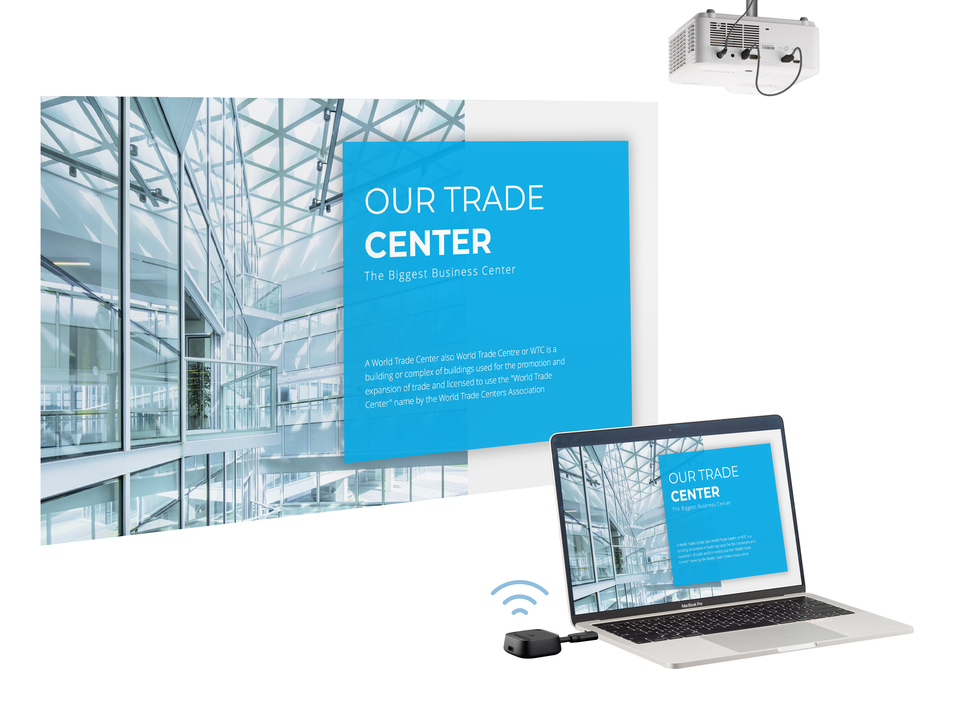

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately
ViewShare​ | USB-A Power Supply
Upgrade Your Projector with Wireless Content Casting 1

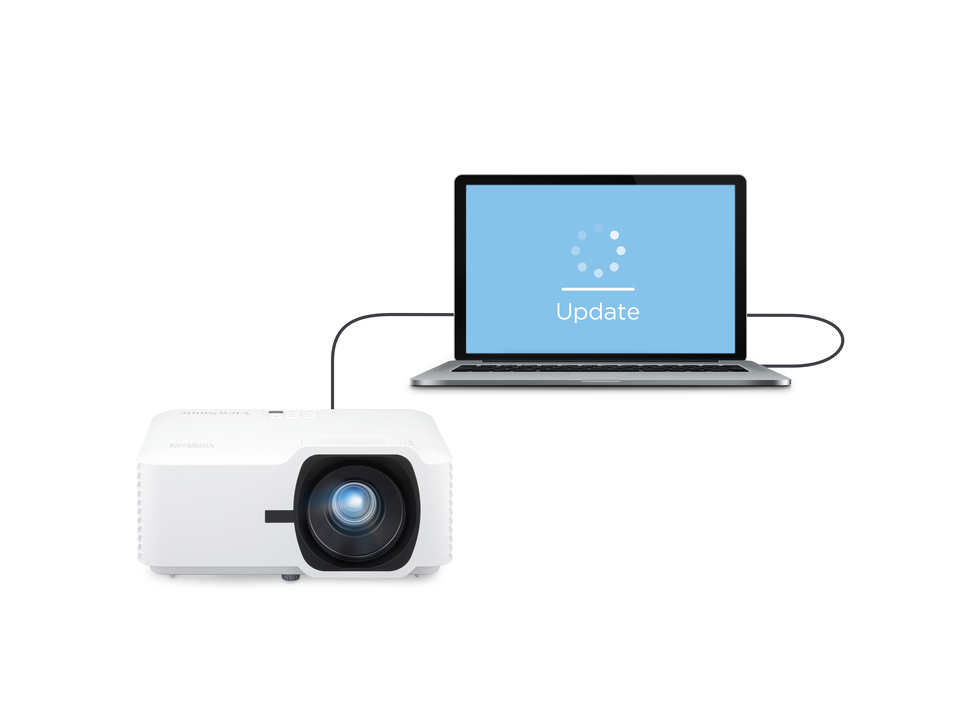

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.
Projector Software Update
A Simpler Way to Update Projector Software 1

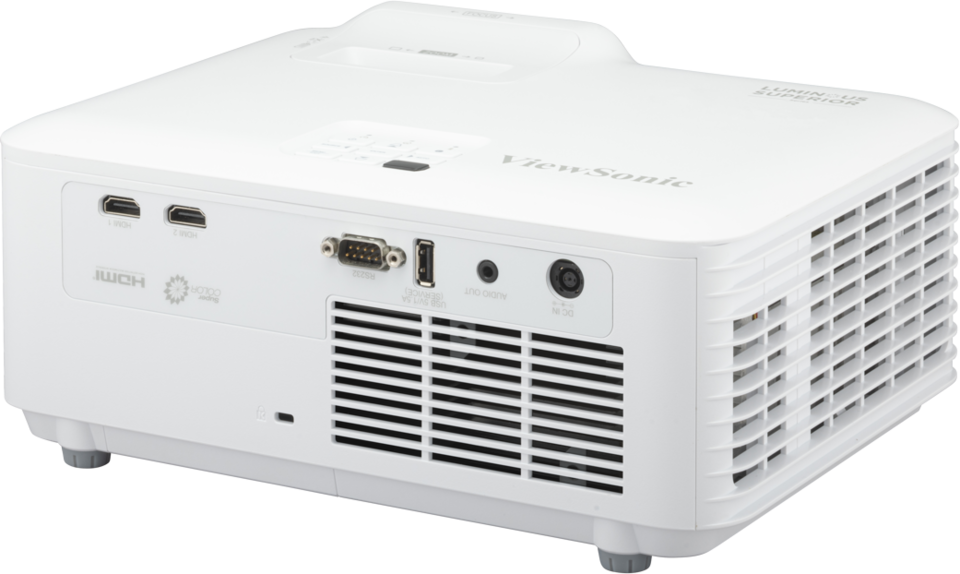

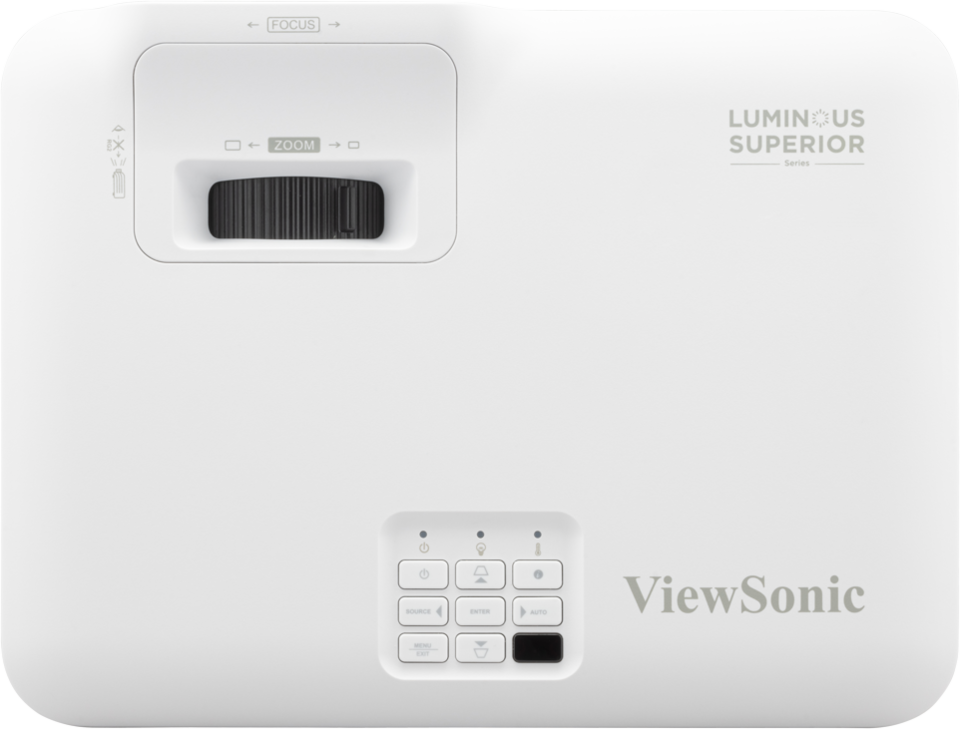

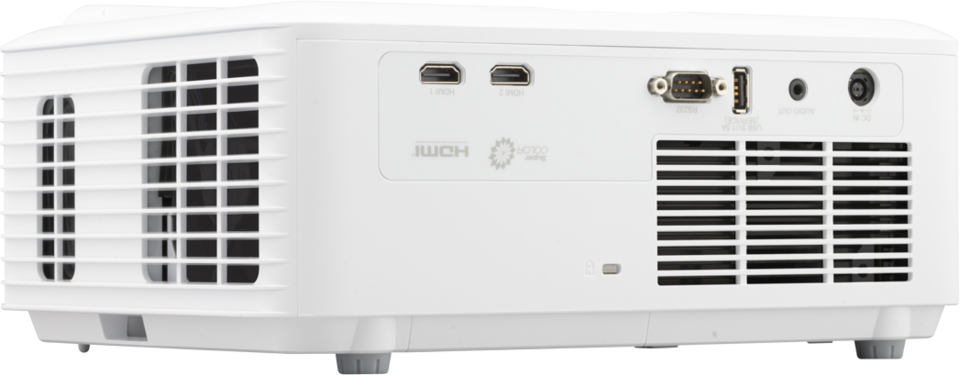

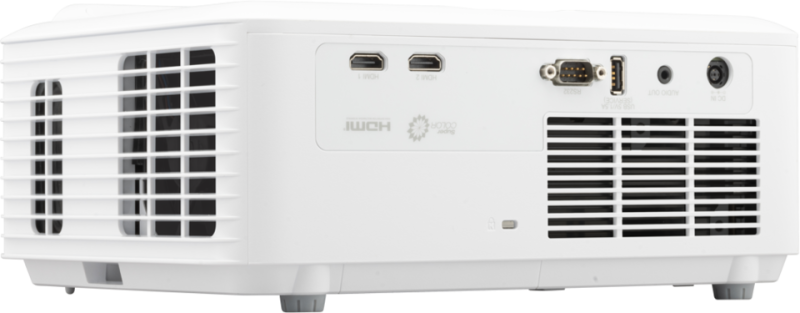

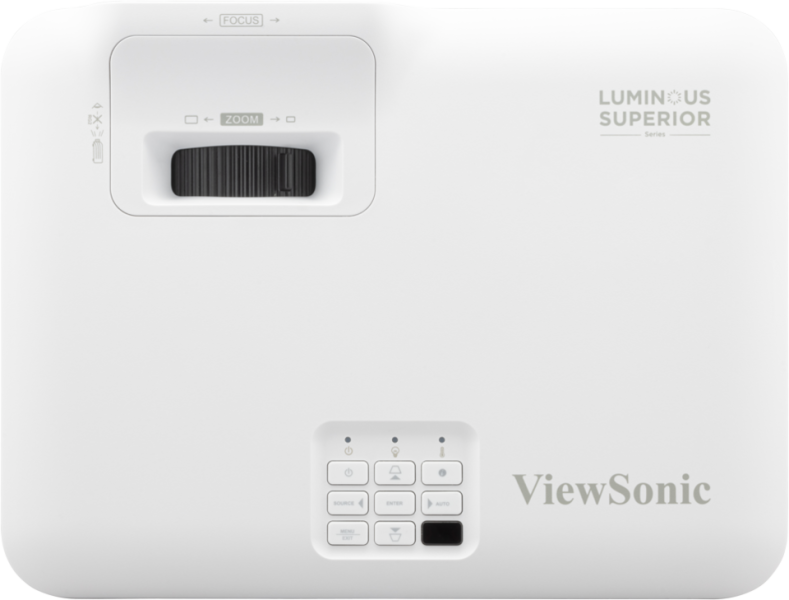

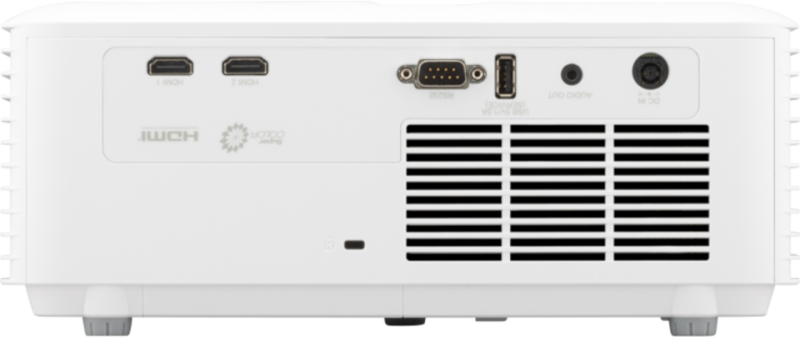

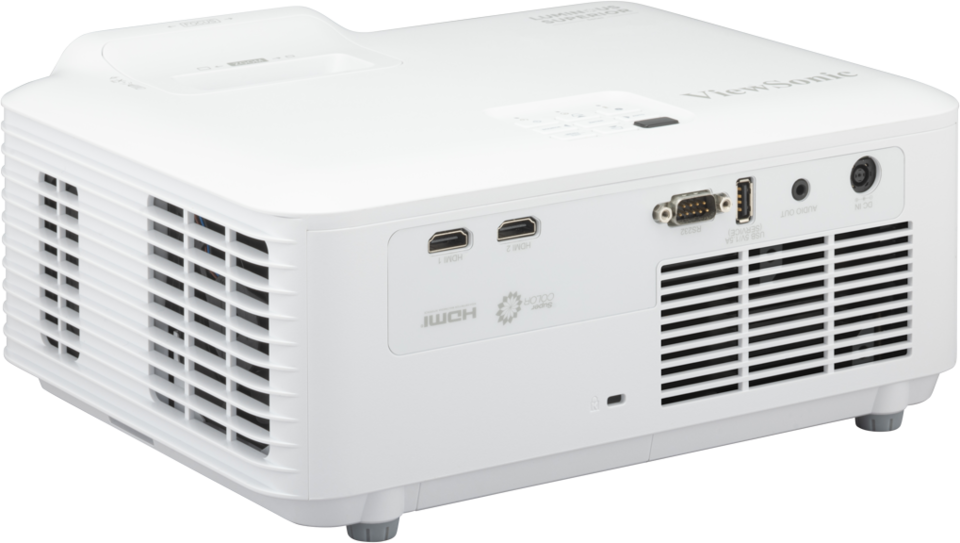

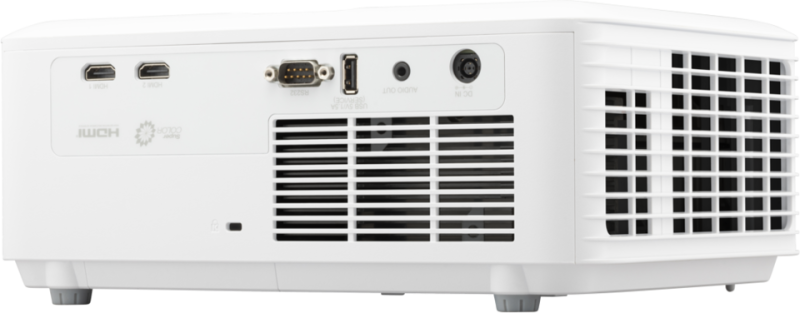

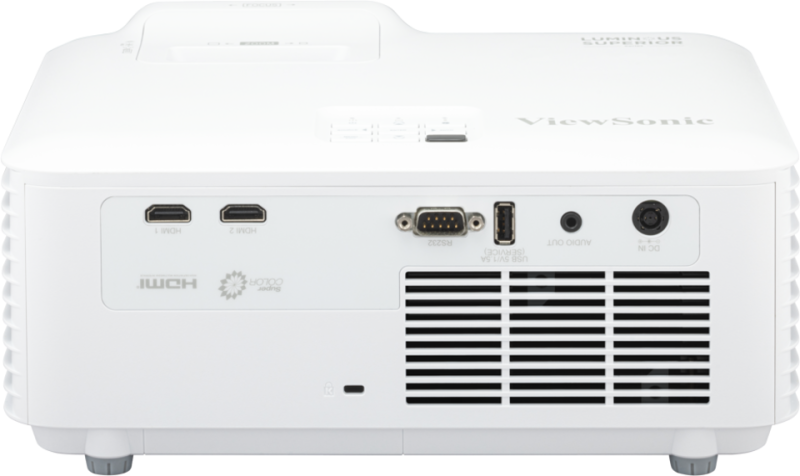

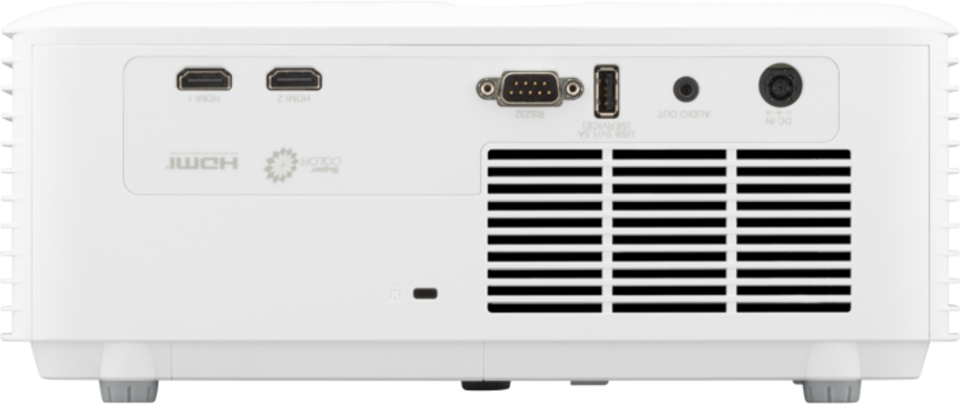

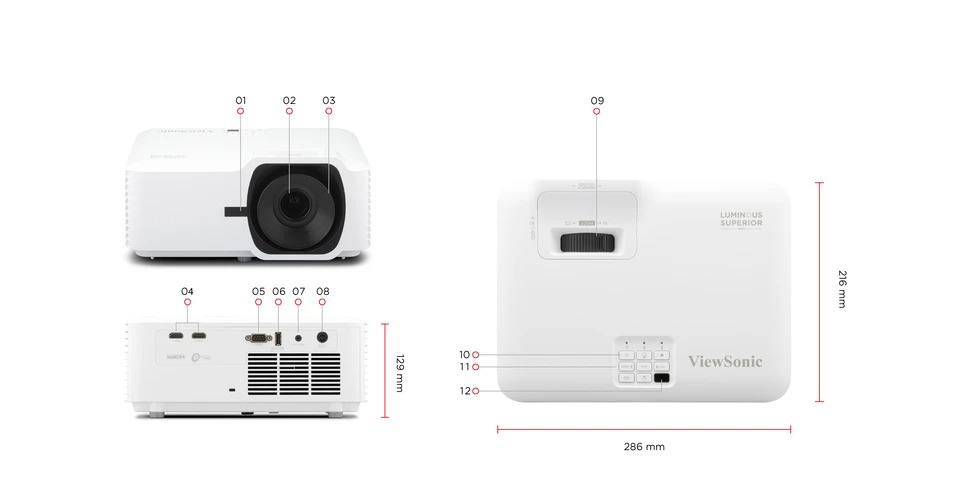

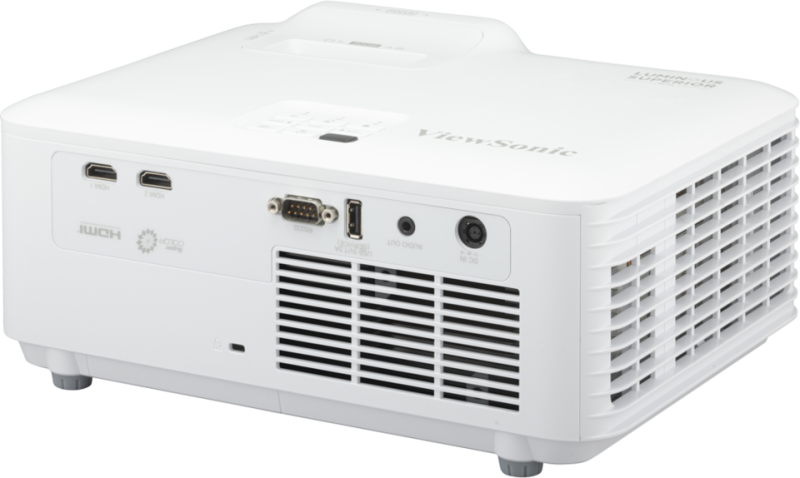

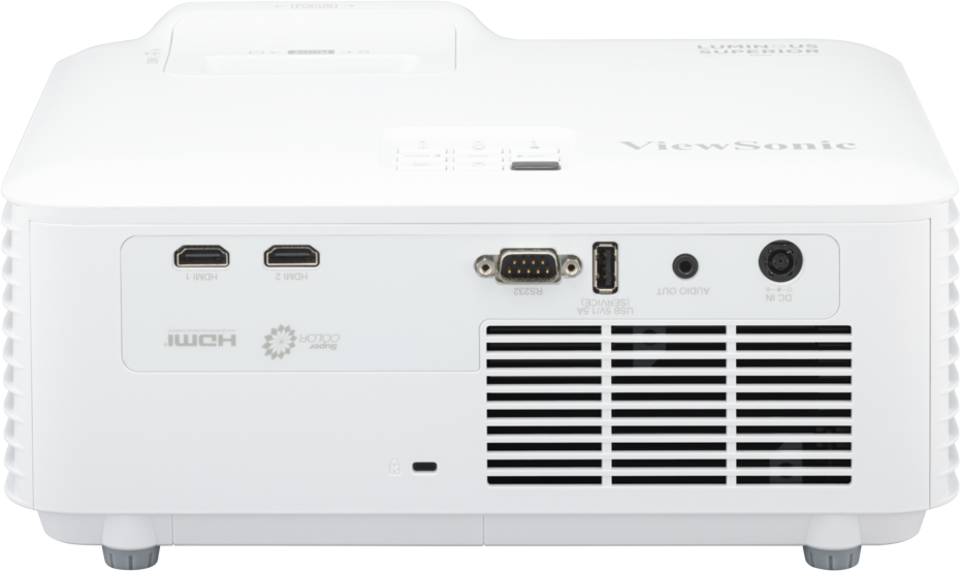

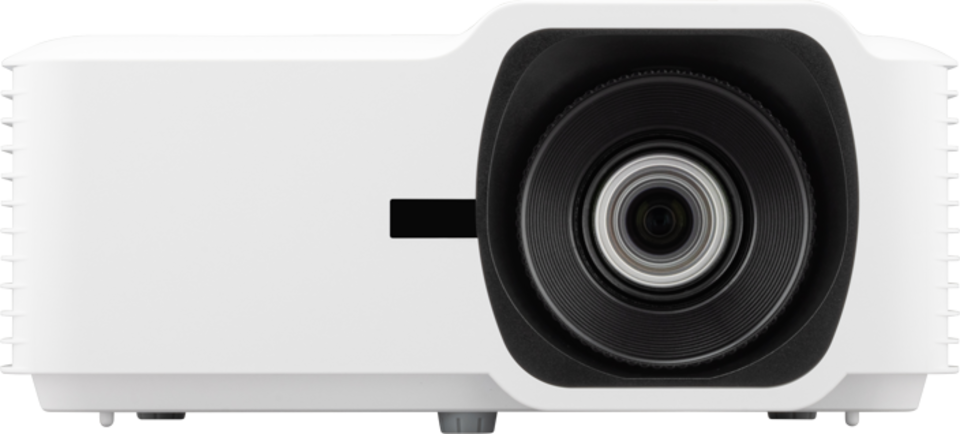

Dimensions & I/O Ports

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 1.4/HDCP 1.4
  5. RS232
  6. USB-A (5V/1.5A, Service)
  7. Audio Out
  8. DC in
  9. Zoom Ring
  10. Power Button
  11. Keypad
  12. Top IR

SPÉCIFICATIONS


  • Spécifications
    Système de projection: 0.65" WXGA
    Résolution native: 1280x800
    Luminosité: 6000 (ANSI Lumens)
    Brightness (Center Lumens): 6600
    Rapport de contraste: 3000000:1
    Display Color: 1.07 Billion Colors
    Type de source lumineuse: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Objectif: F=2.43-2.78, f=16.90-21.61mm
    Décalage de projection: 124%+/-10%
    Rapport de projection: 1.18-1.54
    Zoom optique: 1.3X
    Zoom numérique: 0.8x-2.0x
    Taille de l'image: 30"-300"
    Distance de projection: 0.76-9.95m
    (100"@2.54m)
    Keystone: H:+/-30° , V:+/-30°
    Bruit audible (Normal): 32dB
    Audible Noise (Eco): 27dB
    Décalage d'entrée: 25ms
    Prise en charge de la résolution: VGA(640 x 480) to WUXGA RB(1920 x 1200)
    *RB-Reduced Blanking
    Compatibilité HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Fréquence horizontale: 15K-102KHz
    Fréquence de balayage vertical: 24-120Hz
  • Entrée
    HDMI: 2
    (HDMI 1.4, HDCP 1.4)
  • Sortie
    Audio-out (3.5mm): 1
    Haut-parleur: 15W
    USB Type A (Alimentation): 1 (5V/1.5A)
