IFP7500

75" 4K Interactive Flat Panel

  • 20-Point Multi-Touch
  • Floating Pen - Annotation on Demand
  • ViewBoard® Cast Content Sharing Software
  • Built-in ARM Quad-core CPU with 16GB Storage
  • Out-of-Box Collaboration
Sales Enquiry

OVERVIEW

Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP7500 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic myViewBoard™ whiteboarding software, this 75” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC capability, as well as future-proof Intel® SDM capability, for more computing-intensive interactive applications. The IFP7500 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.

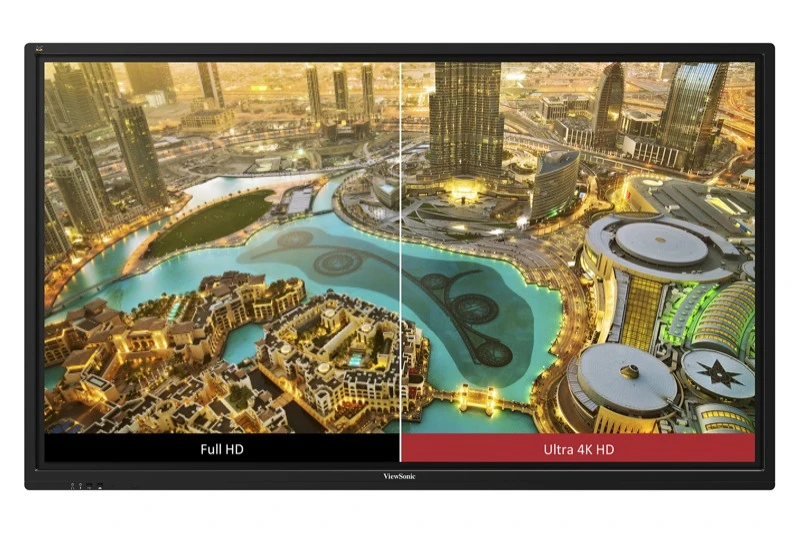

4K Resolution with Eye-Care Technology 4K, Flicker-Free, Blue Light Filter

With four-times the resolution of Full HD, ViewBoard®’s Ultra HD 3840 x 2160 display delivers breathtaking visuals. 4K DisplayPort input is also supported for external sources. Flicker-Free technology and a Blue Light Filter come standard to help to eliminate eye strain from extended viewing periods.

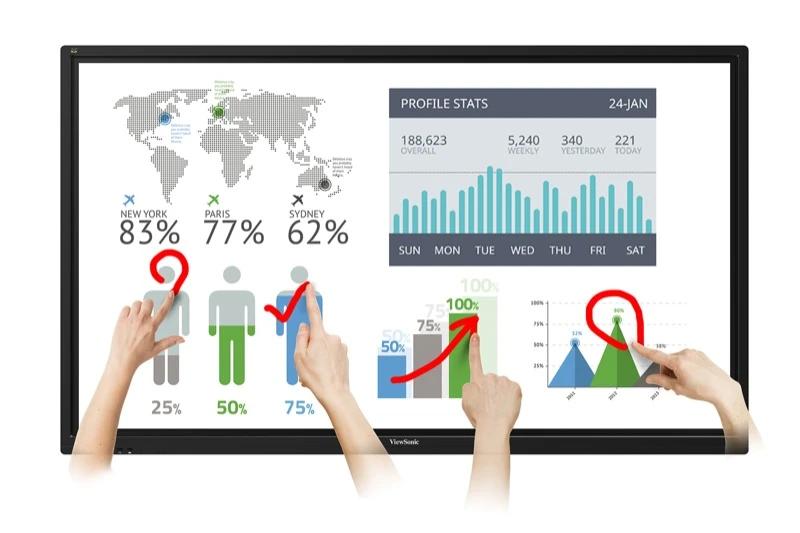

20-Point Touch Multi-user annotation

ViewBoard® allows multiple users to annotate on the slim display simultaneously, increasing engagement and encouraging group collaboration.

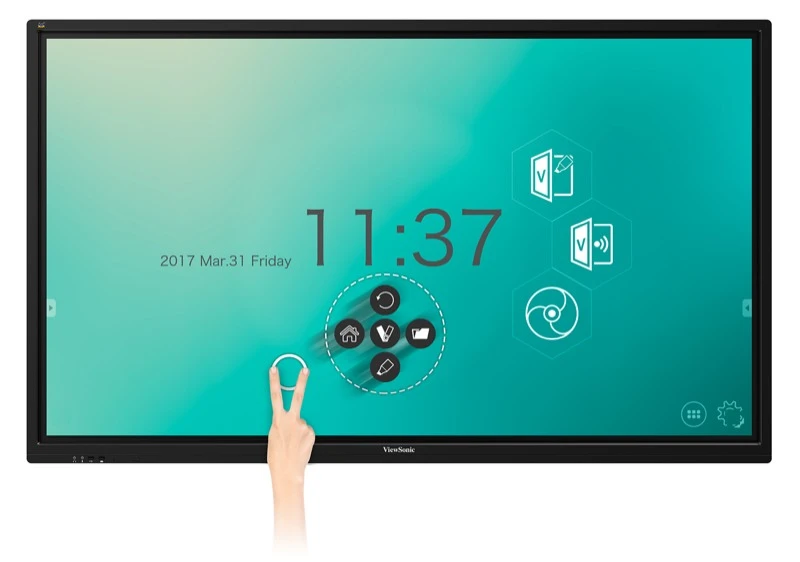

Floating Pen Annotation on demand

Two-finger touch activates ViewBoard’s Floating Pen that allows for easy annotation on everything from powerpoint files, to text docs, USB files, internal memory, or even on images from a connected input source.

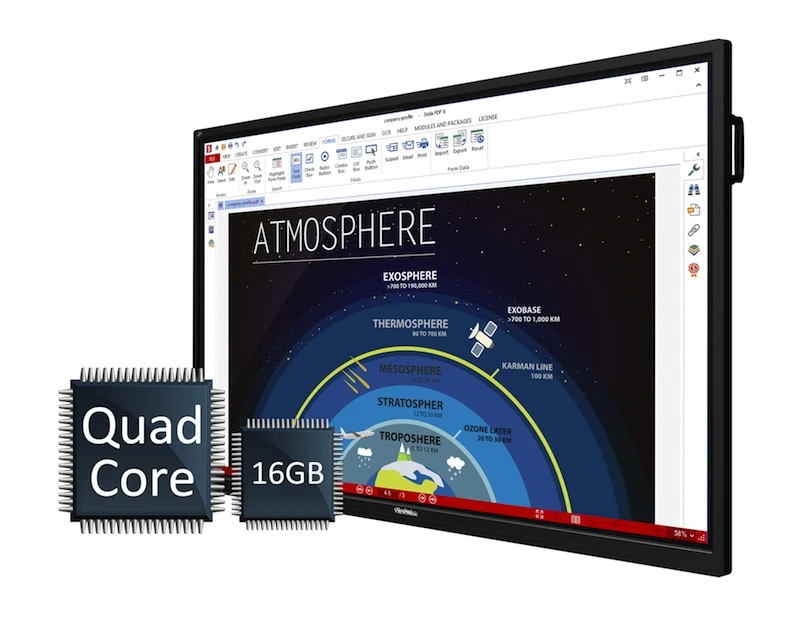

Built-in ARM Quad-core CPU with 16GB Storage

Equipped with a powerful quad-core processor and Android OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 16GB of onboard memory provides ample storage for files and multimedia content.

Out-of-Box Collaboration

Integrated with ViewSonic vBoard and Cast software, as well as Zoom® software, this display delivers out-of-the-box annotation and content sharing capabilities.

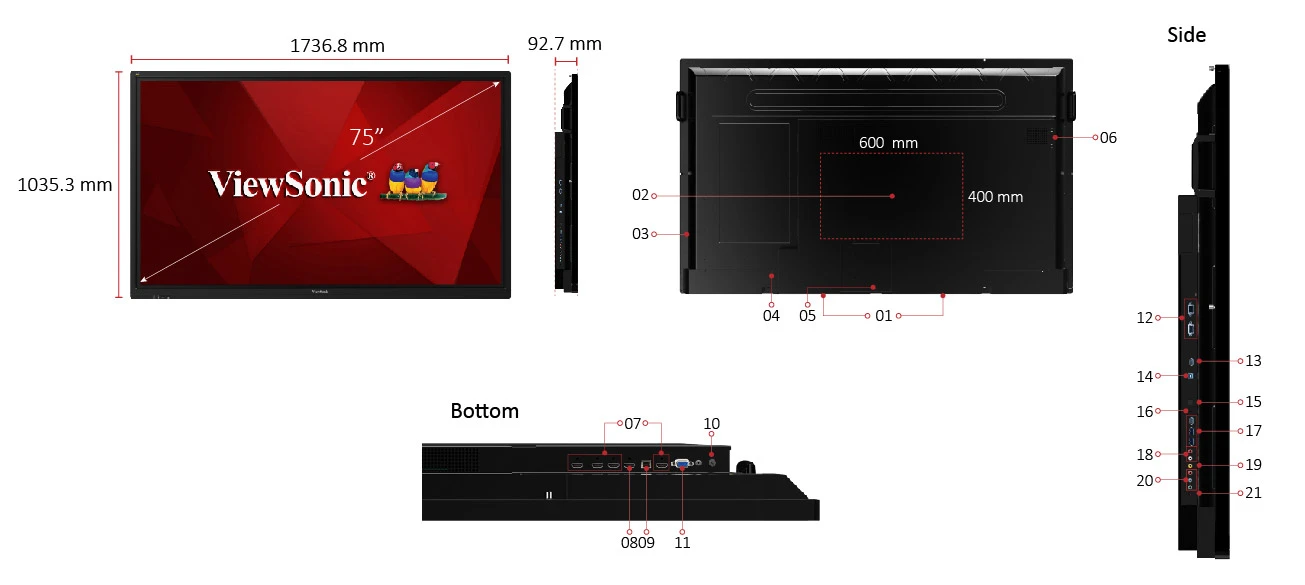

  1. SPEAKERS
  2. VESA® WALL MOUNT 600x400 mm
  3. MENU CONTROLS
  4. AC IN

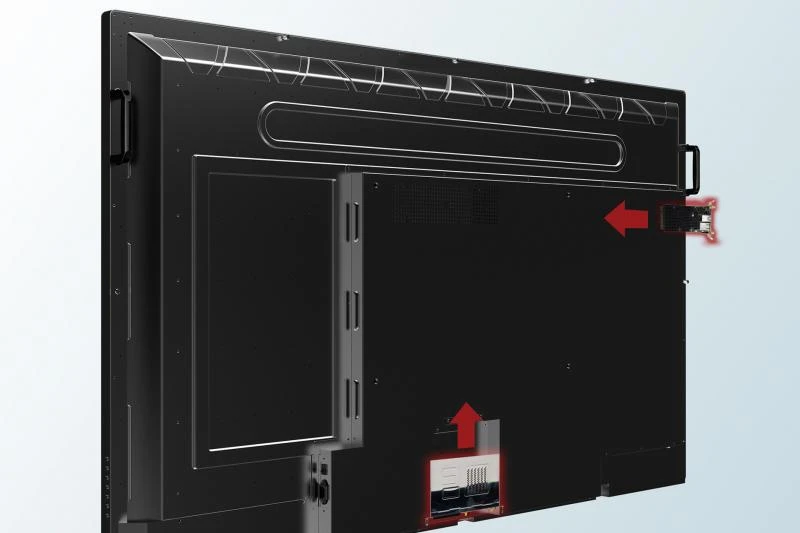

  5. OPS PC SLOT
  6. INTEL SDM SLOT
  7. HDMI
  8. HDMI OUT
  9. RJ45 (LAN)
  10. VGA-AUDIO
  11. VGA IN
  12. RS232 IN & OUT
  13. USB 2.0 (for OPS PC)
  14. USB 2.0 (Touch)
  15. SPDIF
  16. AUDIO OUT
  17. USB 2.0 & 3.0
  18. AUDIO IN
  19. CVBS IN (AV IN)
  20. YPbPr
  21. CVBS OUT (AV OUT)

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 75"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1649.66(H) x 927.94(V) (74.5” viewable)
    Aspect Ratio: 16:9
    Resolution: 3840 x 2160
    Colors: 1.07B colors (10bit)
    Brightness: 400 nits (typ.) 350 nits (min.)
    Contrast Ratio: 4000:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 60,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
    Response Time: <10ms
    System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
    Life Time: 60,000hrs
  • INPUT
    HDMI: x 4
    RGB / VGA: x 1
    Audio: x 1
    CVBS (AV): x 1
    YPbPr: x 1
    RS232: x 1
    PC Slot: x1 PC Slot (Intel OPS Standard)
    x1 SDM
