TD2421

24" 2-point Touch Screen Monitor

SuperClear® technology
Full HD 1080p resolution
Supports Windows® 7/8/10
HDMI, VGA and DVI inputs
Dual integrated speakers

Sales Enquiry

GALLERY

OVERVIEW

Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic^® TD2421 dual-point optical touch monitor lets users execute two-finger pinches, taps, and swipes for fast and intuitive navigation. With Full HD 1920x1080 resolution, 3000:1 static contrast ratio, and SuperClear^® MVA technology, the TD2421 delivers stunning brightness and contrast with amazing screen performance at nearly any viewing angle. Flexible connectivity options include HDMI, VGA, DVI, and USB ports, and a VESA-mountable design offers additional convenience for use as a wall-mounted display. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience.

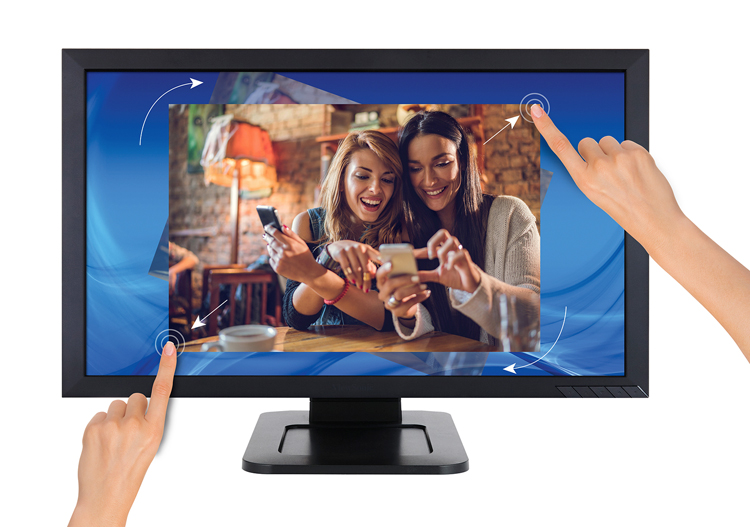

Dual-Point Optical Touch

Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.

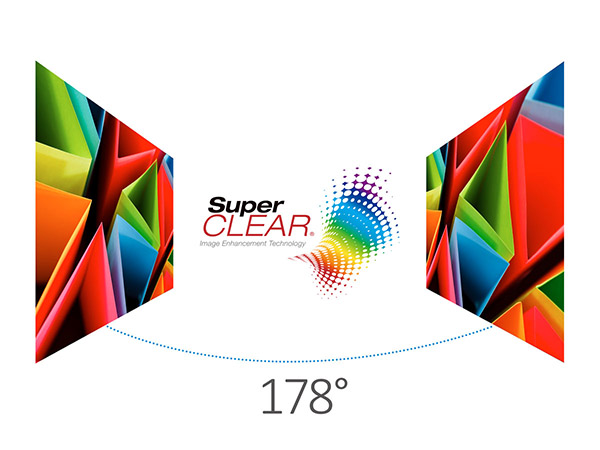

SuperClear^® MVA Panel Technology

Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear® MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

Full HD 1080p Resolution

This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

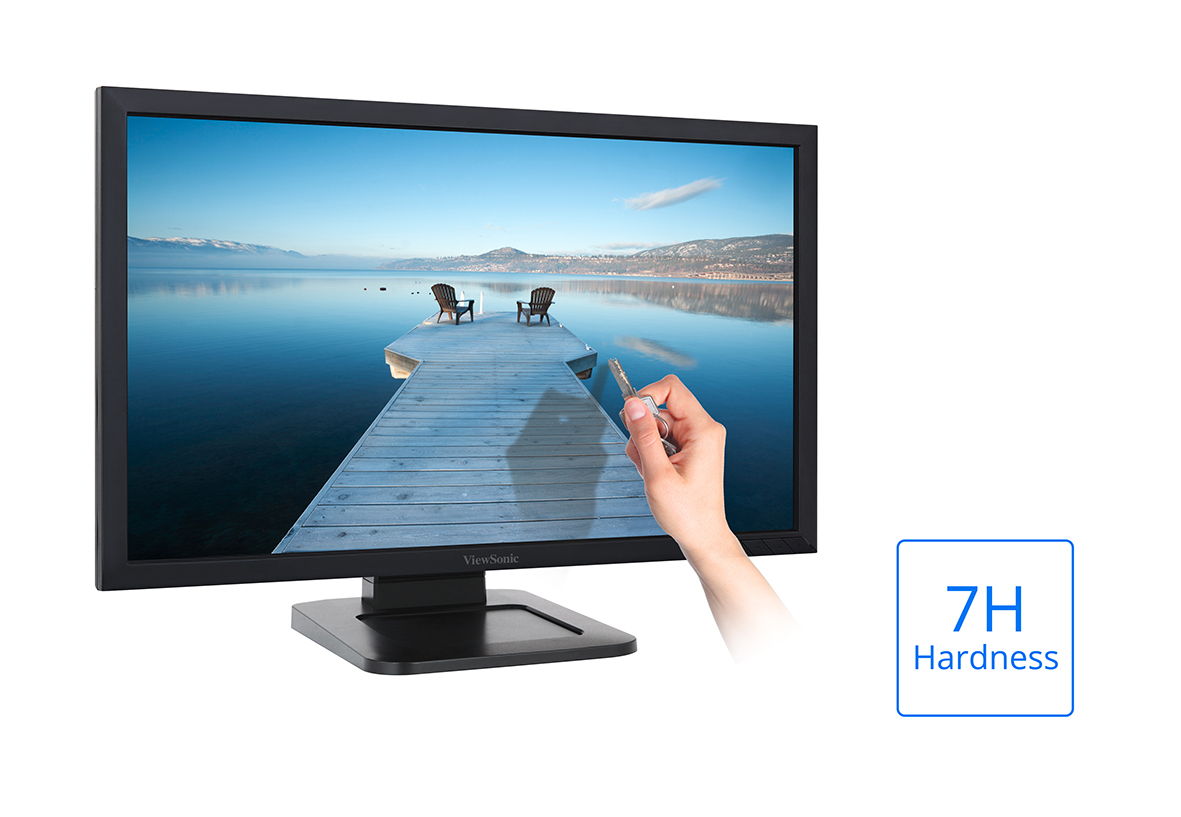

Durable, Scratch-resistant Screen

This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as commercial setting, or other public environments where the touch display can be used as a kiosk.
*Optical touch technology uses infrared cameras and light to detect touches on the panel. Any form of touch, whether finger, stylus, gloved touch, etc. can be used to input commands on the screen with great accuracy. In addition, optical touch displays tend to be more durable. However, direct sun light, halogen lamp or IR transmitters may cause light interference and touch malfunction.

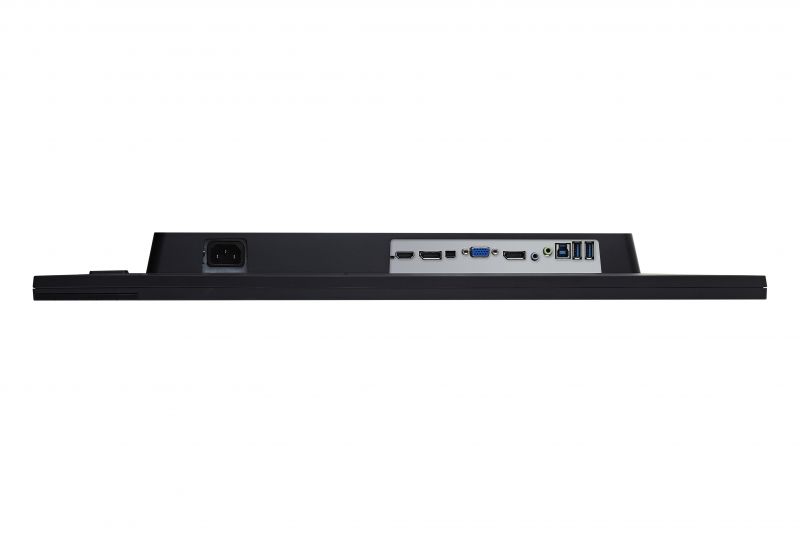

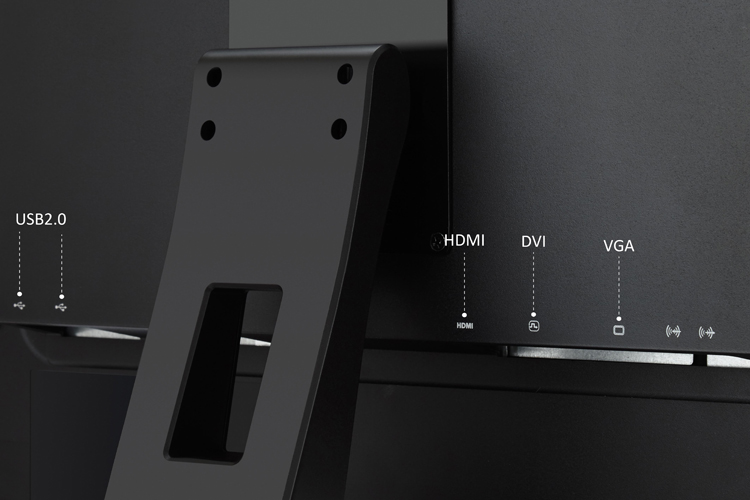

Versatile Connectivity

HDMI, USB2.0, DVI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Dual Integrated Stereo Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

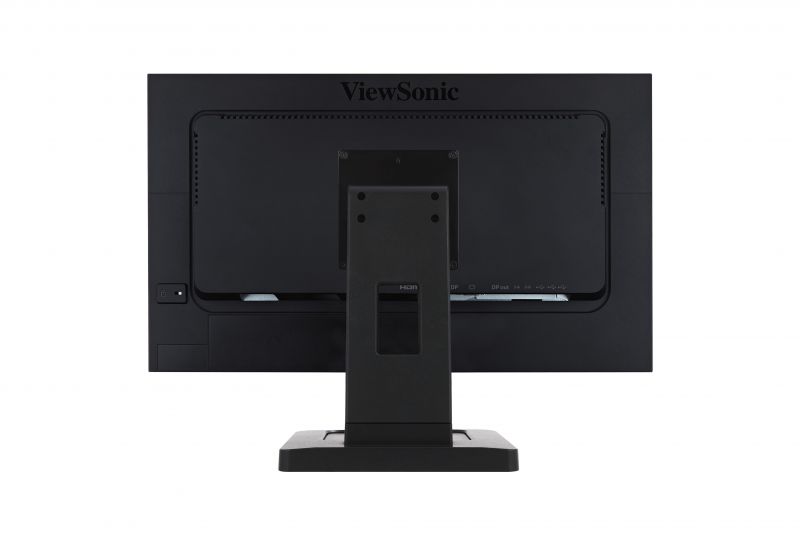

VESA-Compatible Mount

Mount the monitor as you see fit using its convenient VESA-compatible mount design.

REVIEWS

Tạp chí PCMag

“ViewSonic là thương hiệu màn hình tốt nhất 2020”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.6
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Response Time (Typical Tr+Tf): 25ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Touch Screen: Optical, 2-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 11.5W
Eco Mode (optimized): 13.5W
Consumption (typical): 16.5W
Consumption (max): 21W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): -6º / 22º
Weight (imperial)
Net (lbs): 11.4
Net Without Stand (lbs): 9.5
Gross (lbs): 16.1
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 4.3
Gross (kg): 7.3

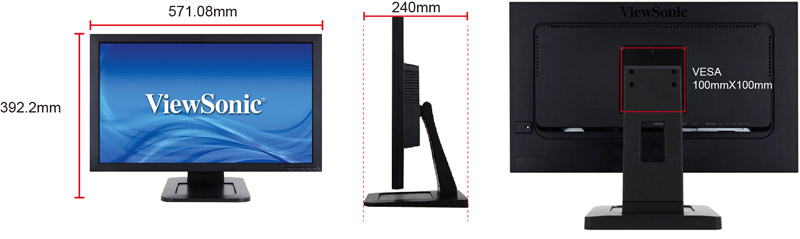

Dimensions (imperial) (wxhxd)
Packaging (in.): 25.2 x 18.1 x 7.9
Physical (in.): 22.5 x 15.4 x 9.4
Physical Without Stand (in.): 22.5 x 13.4 x 2.3
Dimensions (metric) (wxhxd)
Packaging (mm): 640 x 460 x 200
Physical (mm): 571 x 392 x 240
Physical Without Stand (mm): 571 x 340 x 58
General
Regulations: cULus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, PSE, BIS
PACKAGE CONTENTS: TD2421 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, Audio Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
