ViewSonic Slot-in PC VPC27-W55-P2

VPC27-W55-P2

Slot-in PC for ViewBoard®

Windows 11 Pro (Downgrade preinstallato da Windows 10 Pro)
Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays
Powerful Intel® 10th Core Processors
Improved System Stability, Security, & Thermal Control

GALLERIA

SPECIFICHE

Software
Sistema Operativo: Windows 11 Pro (Downgrade preinstallato da Windows 10 Pro)
Core
CPU: Intel Core i7-10700T (vPro) 2.0GHz Turbo boost 4.5GHz
Graphics: Integrated Intel® UHD Graphics 630 Intel Q470 chipset
Memoria
Capacità: 16GB DDR4

Archiviazione
Dimensioni: M.2 2280 (22 x 80 mm)
Capacità: 512GB SSD
Interfaccia: PCIE and SATA 3

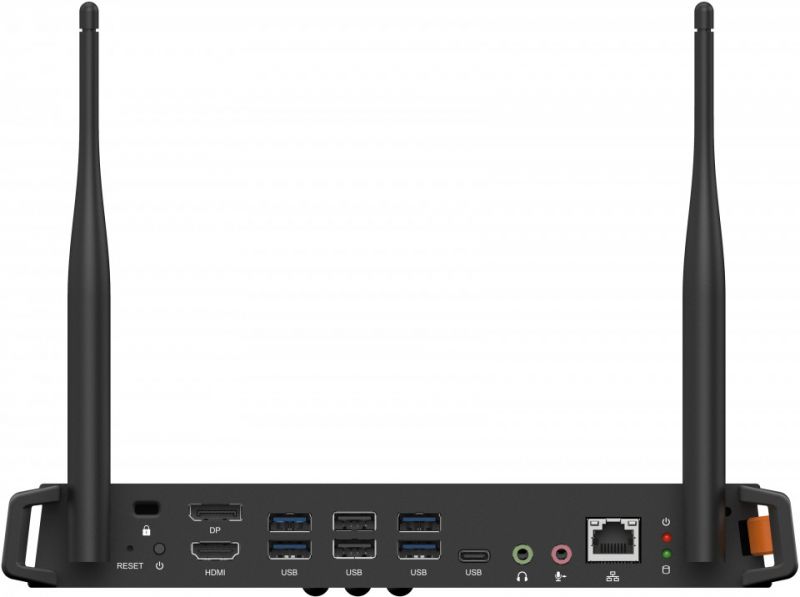

INPUT
MIC(Microfono): x1
OUTPUT
DisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
HDMI: x 1 (2.0, resolution 3840x2160@60Hz)
Audio: x 1 Line out
LAN
RJ45 (controllo LAN): GbE LAN Port
Wireless / Bluetooth
Intel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
USB
Tipo A: USB x 6 (USB 3.0 x 4, USB 2.0 x 2)
Tipo C: USB 3.2 x 1 (data only)
Pacchetto Software
Adobe Reader / myViewBoard WhiteBoard for Windows / BIOS Winflash tool / FinchGuard (Watch Dog) / Intel Unite
Alimentazione
Voltaggio: AC 110-240V 50/60Hz
Consumo: 110 W
OPERATING CONDITIONS
Temperatura (º C): -5°C to 40°C
Umiditá: 10% ~ 90% @ 40°C Non-condensing.
Dimensioni (LxPxH)
Prodotto (inch / mm): 9.69 x 10.45 x 1.27 inch / 246.2 x 265.4 x 32.2 mm
Imballaggio (inch / mm): 13.78 x 12.2 x 3.54 inch / 350 x 310 x 90 mm
WEIGHT
Prodotto (lb / kg): 4.3 lb / 1.95 kg
Imballaggio (lb / kg): 4.63 lb / 2.1 kg
Contenuto della confezione
1. VPC OPS
2. QSG
