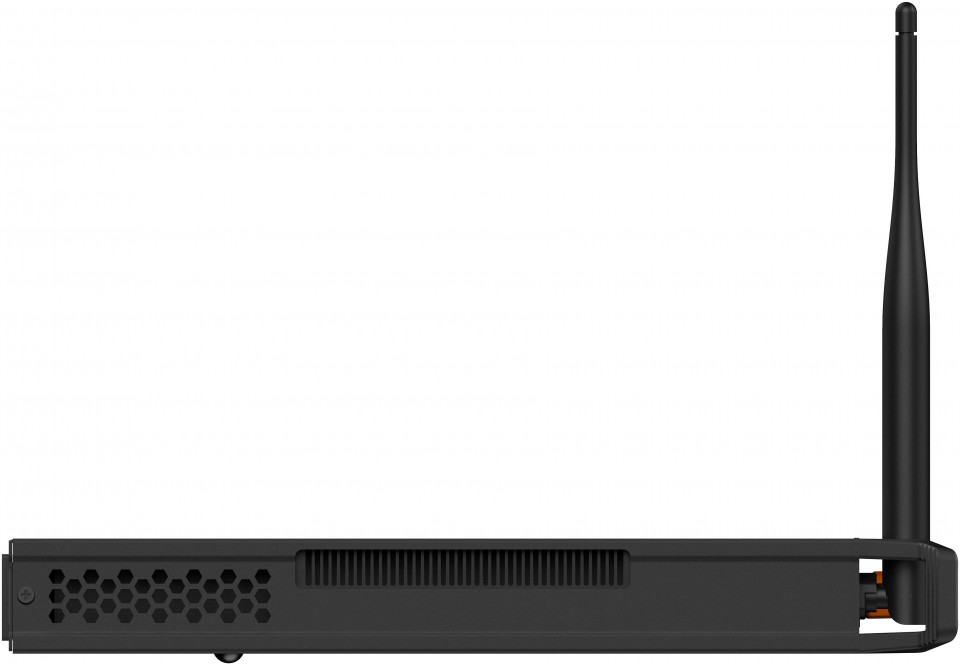

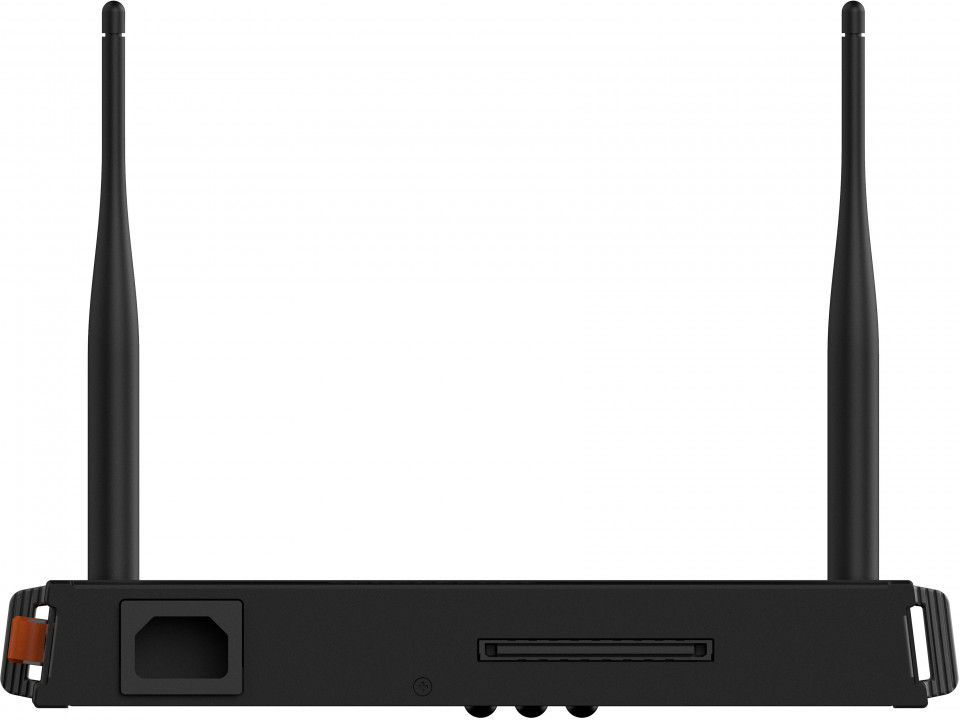

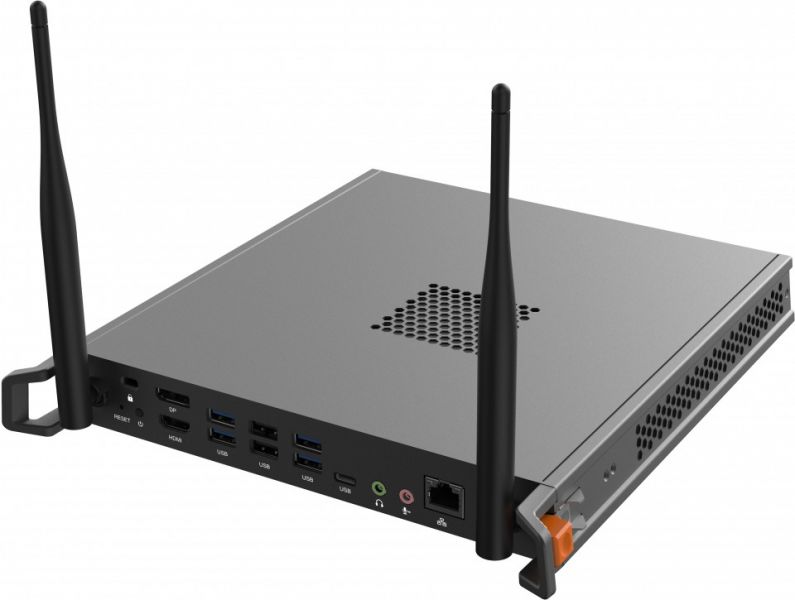

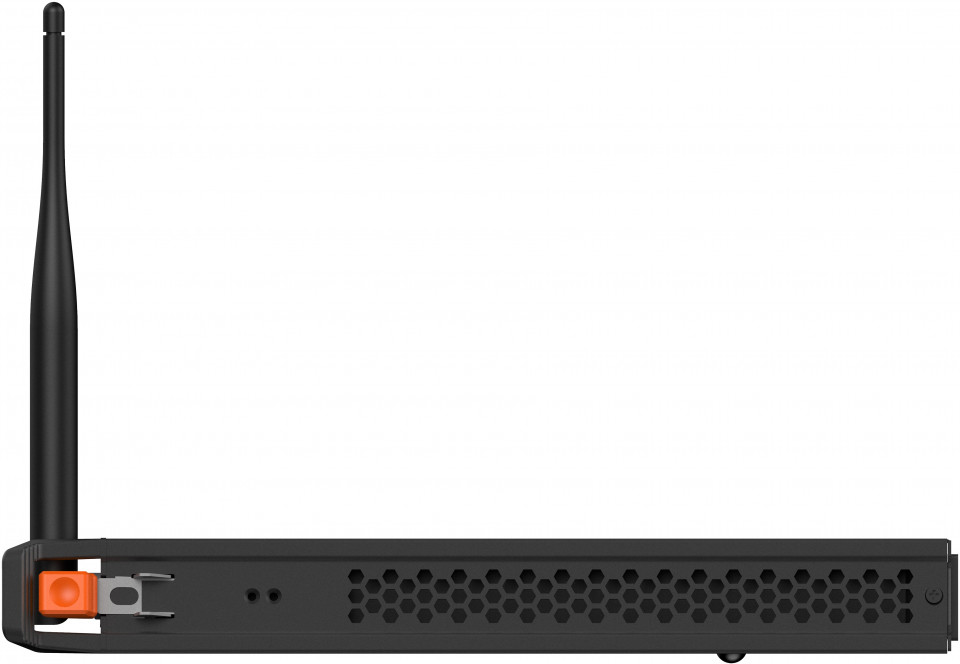

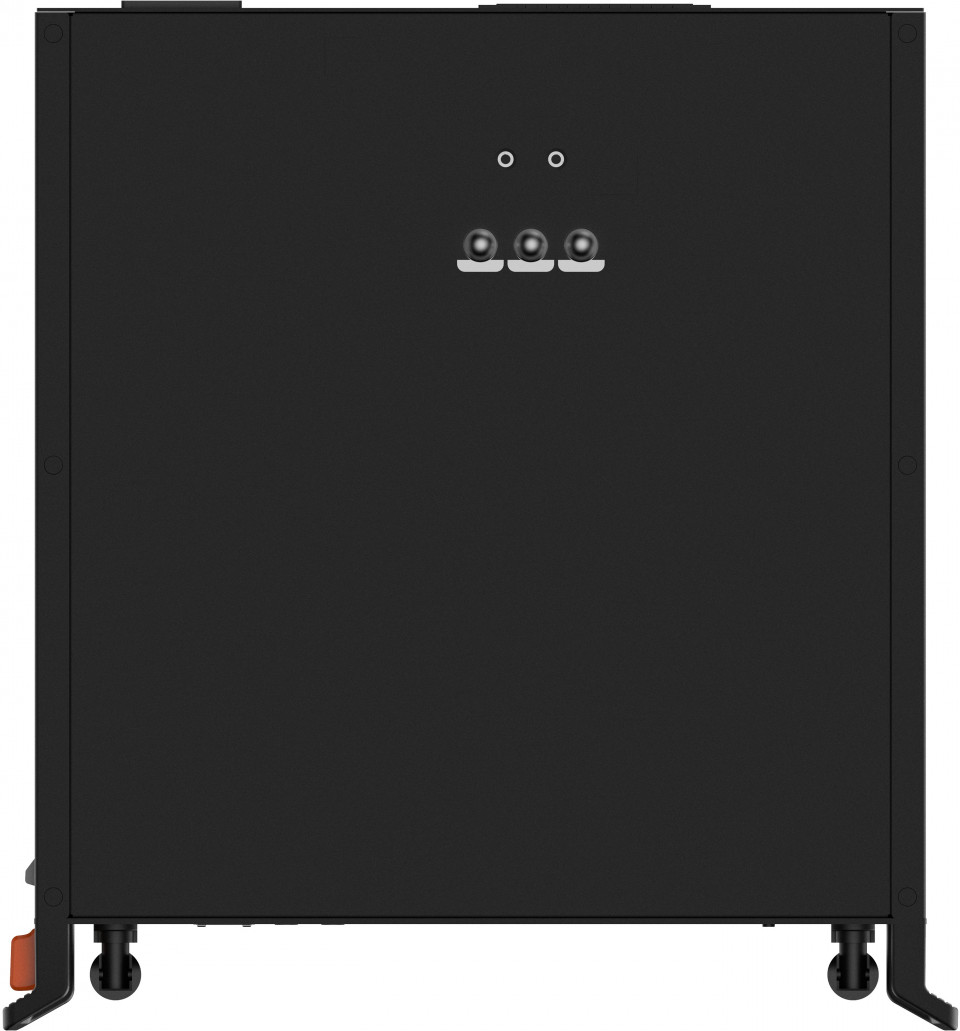

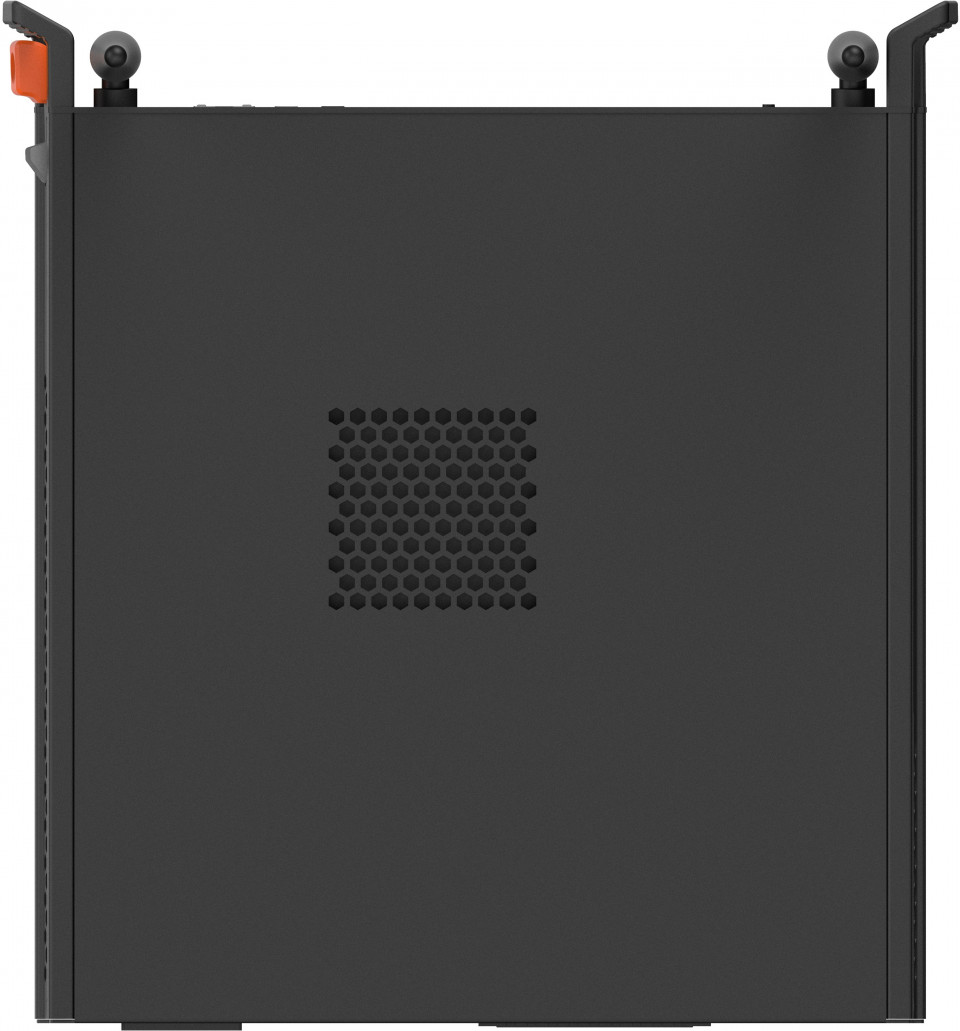

VPC25-W53-P1
Slot-in PC for ViewBoard®
- Windows 10 Pro (ViewSonic recomienda Windows 11 Pro para empresas)*
- Solución integrada ideal para pantallas interactivas ViewBoard® y pantallas comerciales
- Potentes procesadores Intel® 10th Core
- Estabilidad del sistema, seguridad y control térmico mejorados
SPECIFICHE
- SoftwareSistema Operativo: Windows 10 Pro 64 bit (ViewSonic recommends Windows 11 Pro for business)*
- CoreCPU: Intel Core i5-10400T (non vPro) 2.0GHz Turbo boost 3.6GHz
Graphics: Integrated Intel® UHD Graphics 630 Intel H410 chipset - MemoriaCapacità: 16GB DDR4
- ArchiviazioneDimensioni: M.2 2280 (22 x 80 mm)
Capacità: 256GB SSD
Interfaccia: PCIE and SATA 3 - INPUTMIC(Microfono): x1
- OUTPUTDisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
HDMI: x 1 (2.0, resolution 3840x2160@60Hz)
Audio: x 1 Line out - LANRJ45 (controllo LAN): GbE LAN Port
- Wireless / BluetoothIntel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
- USBTipo A: USB 2.0 x 2, USB 3.0 x 4
Tipo C: USB 3.2 x 1 (data only) - Pacchetto SoftwareAdobe Reader / myViewBoard WhiteBoard for Windows / BIOS Winflash tool / FinchGuard (Watch Dog) / Intel Unite
- AlimentazioneVoltaggio: AC 110-240V 50/60Hz
Consumo: 110 W - OPERATING CONDITIONSTemperatura (º C): -5°C to 40°C
Umiditá: 10% ~ 90% @ 40°C Non-condensing. - Dimensioni (LxPxH)Prodotto (inch / mm): 9.69 x 10.45 x 1.27 inch / 246.2 x 265.4 x 32.2 mm
Imballaggio (inch / mm): 13.78 x 12.2 x 3.54 inch / 350 x 310 x 90 mm - WEIGHTProdotto (lb / kg): 4.3 lb / 1.95 kg
Imballaggio (lb / kg): 4.63 lb / 2.1 kg - Contenuto della confezione1. VPC OPS
2. QSG - Disclaimer*Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware(see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1).
COMPATIBILE CON: SKU
Display interattivo 4K da 65" certificato EDLA (Enterprise Device Licensing Agreement)
Display interattivo 4K da 75" certificato EDLA (Enterprise Device Licensing Agreement)
Display interattivo 4K da 86" certificato EDLA (Enterprise Device Licensing Agreement)
