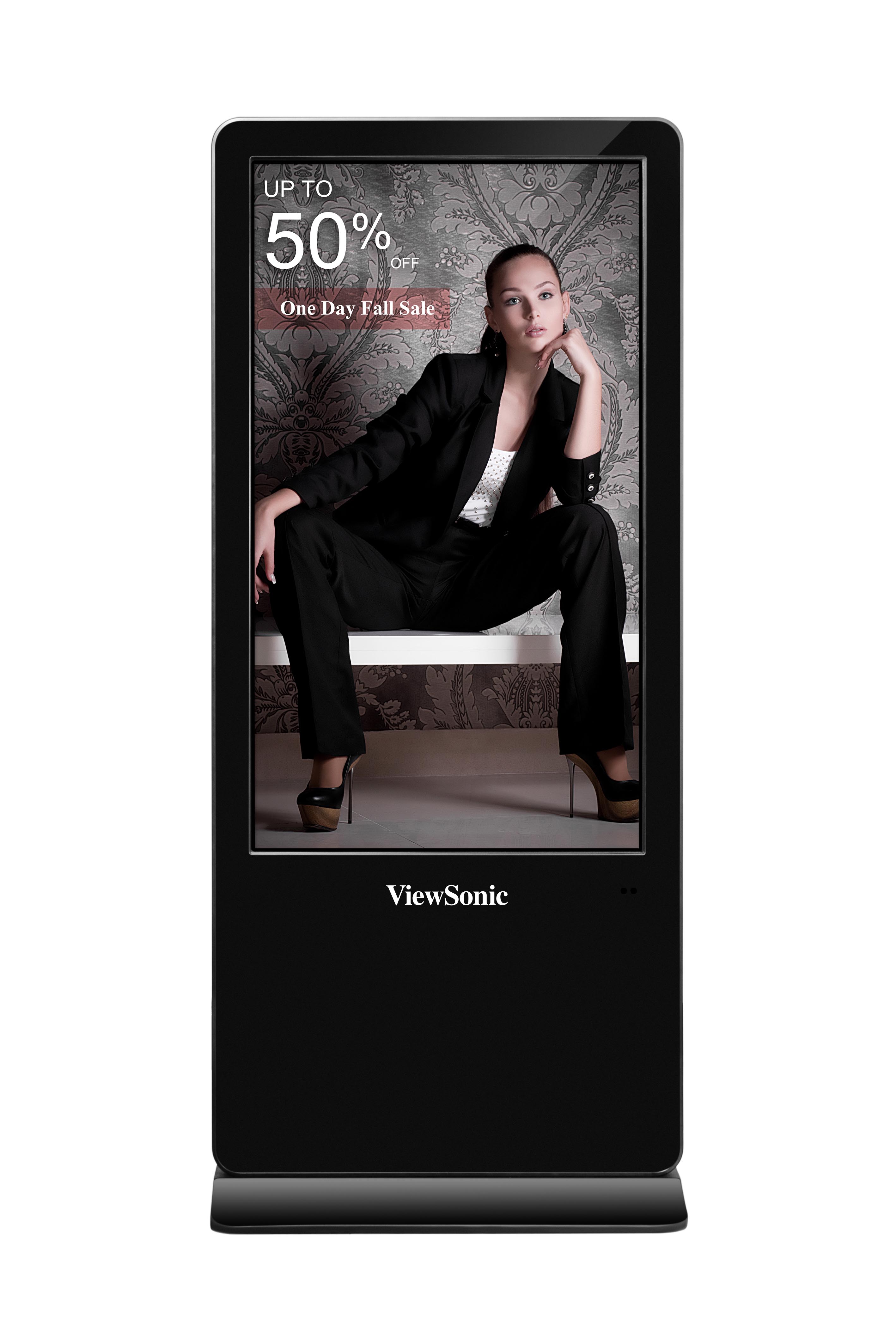

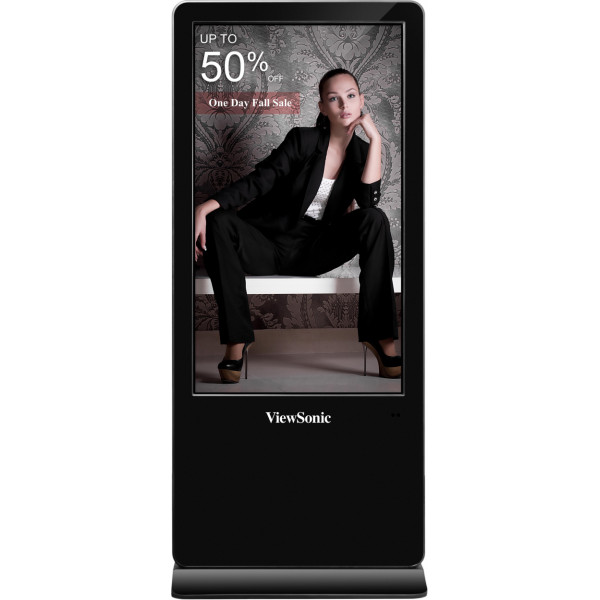

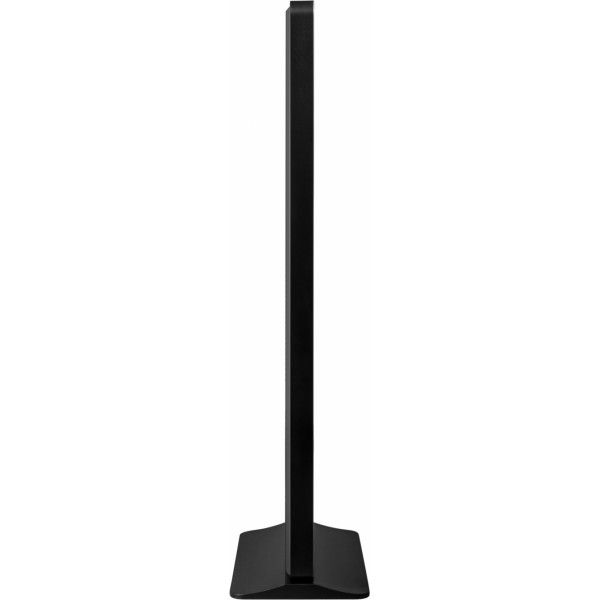

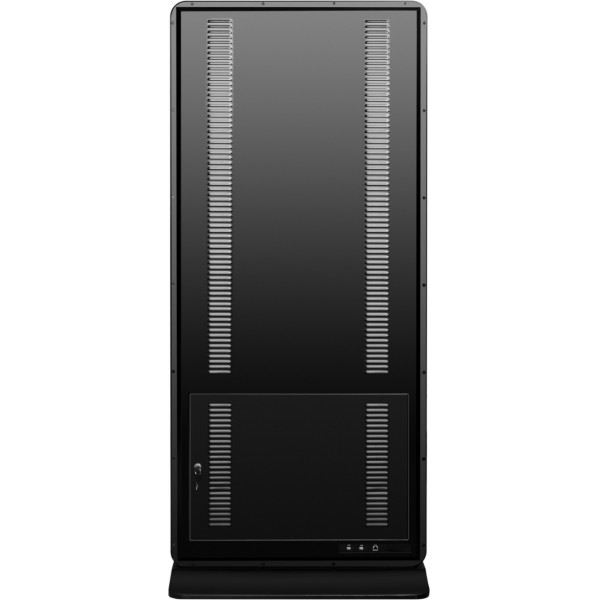

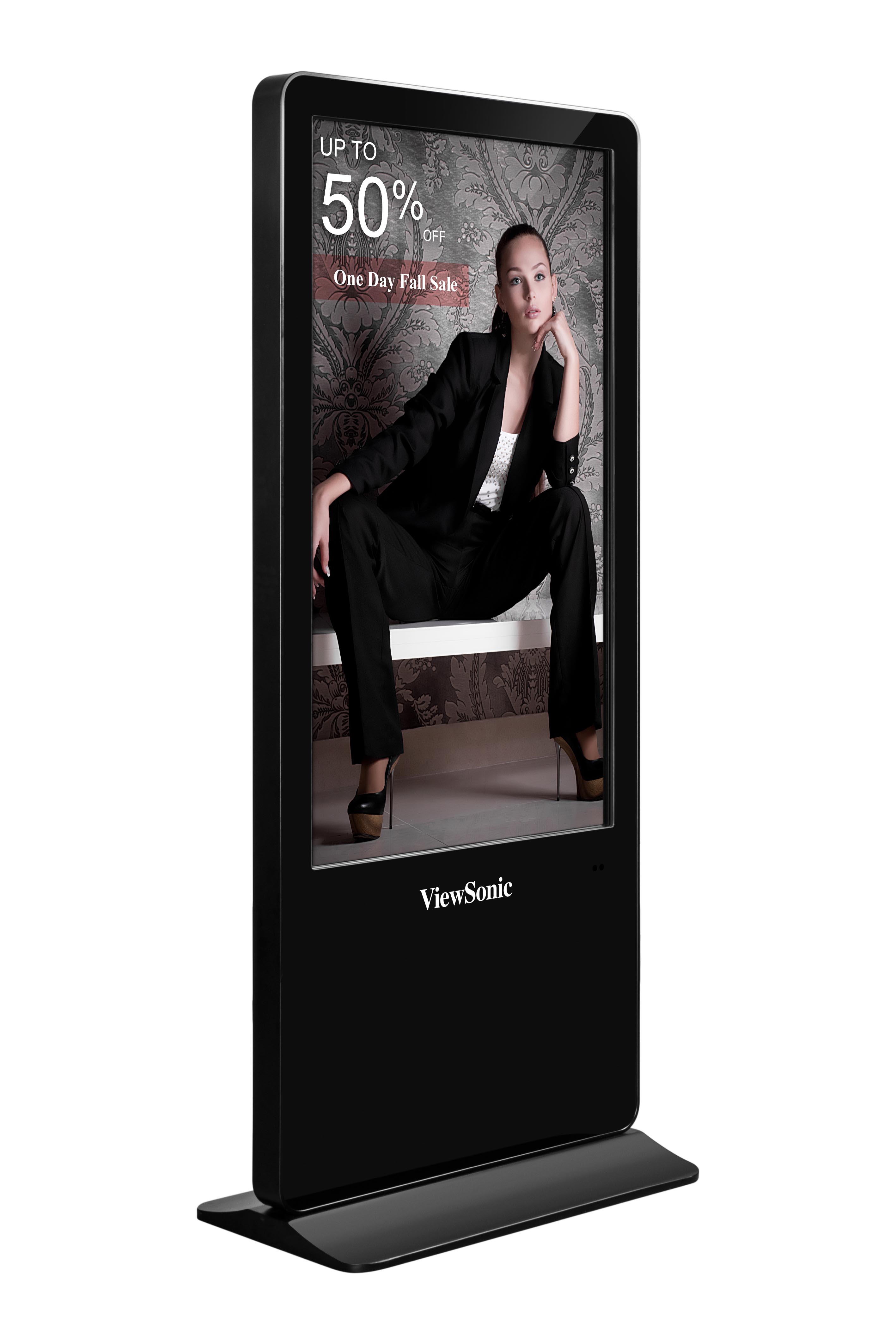

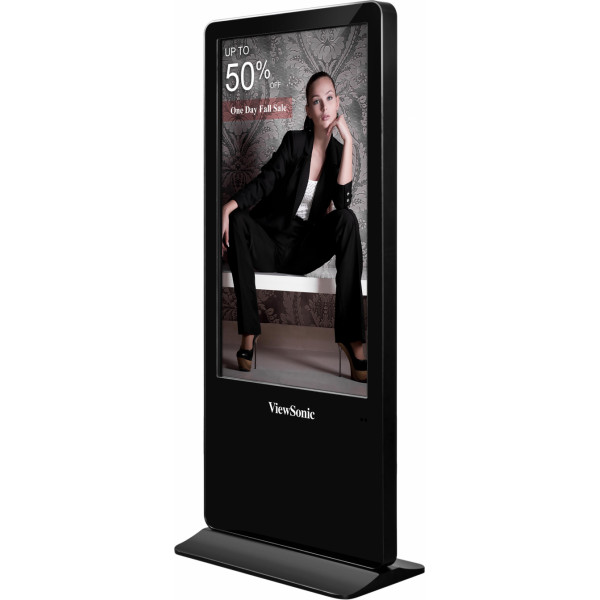

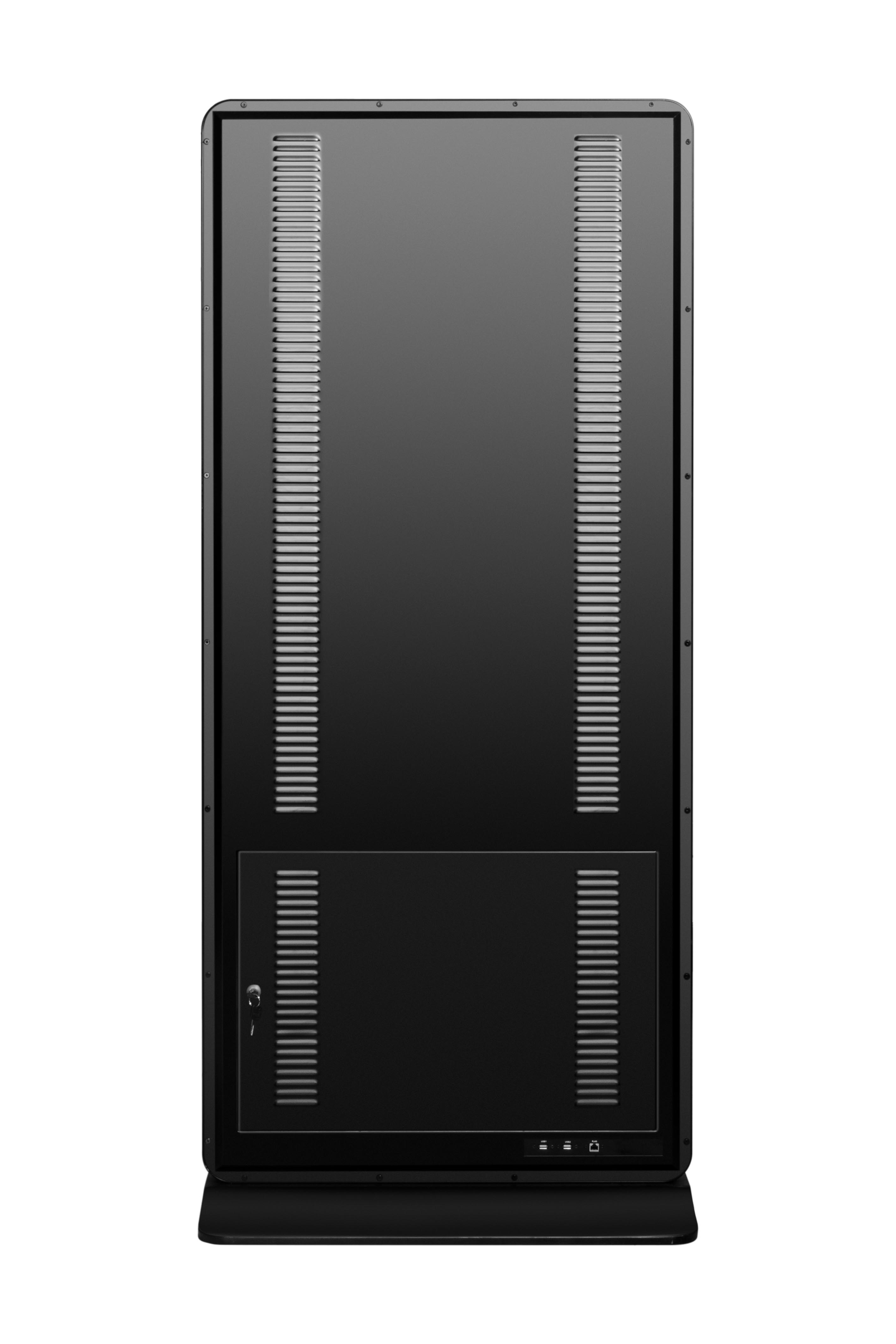

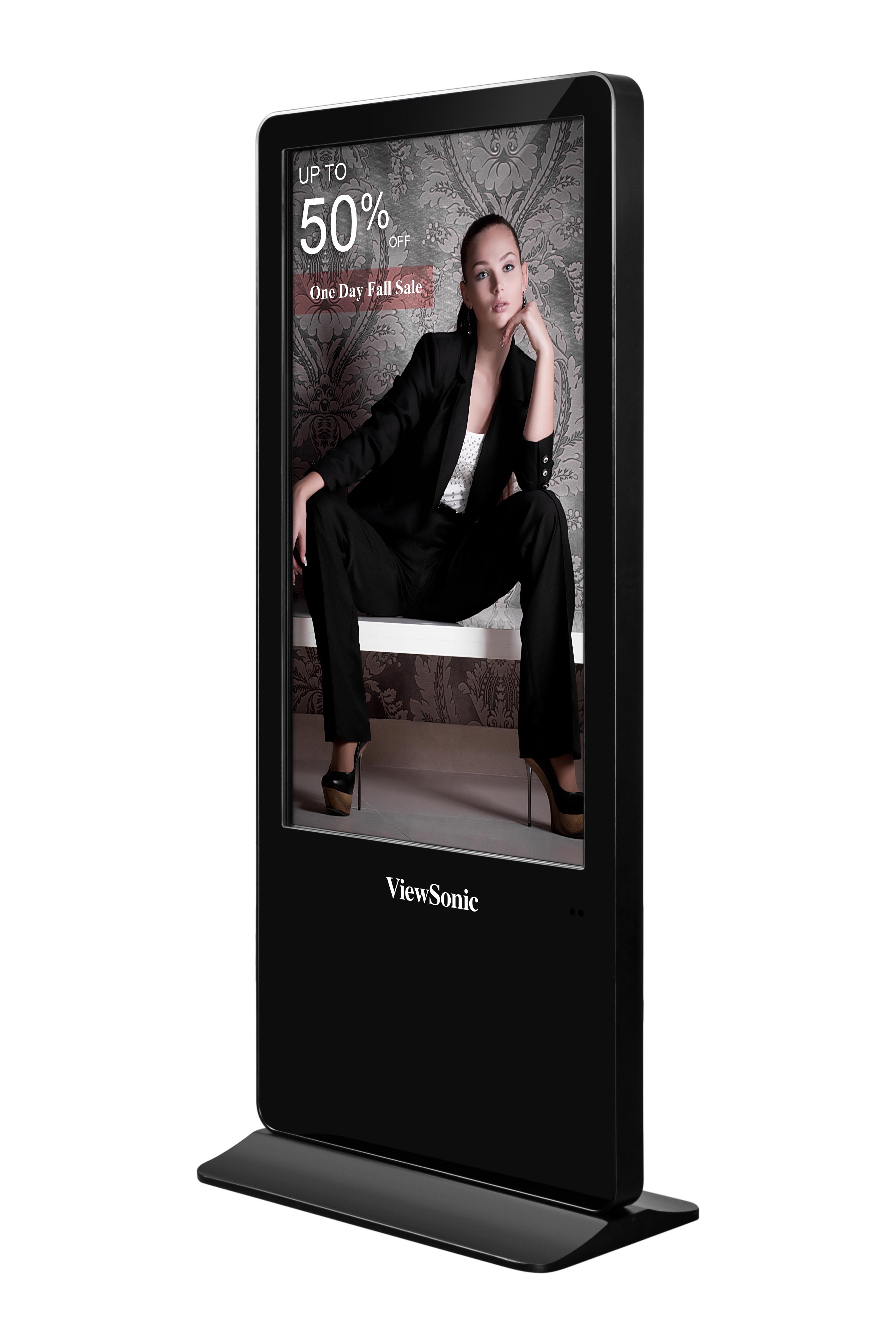

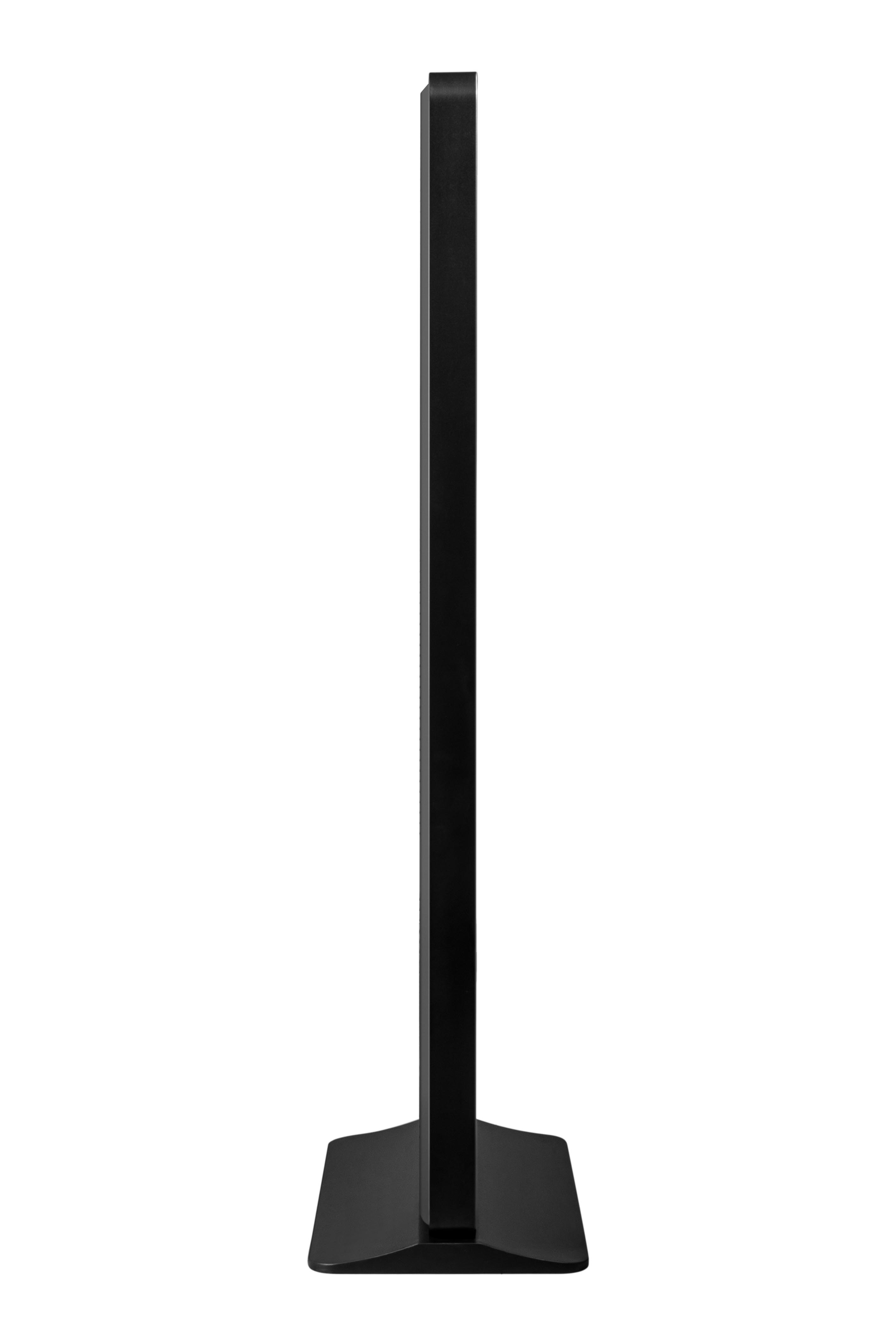

EP5540T

55 inch Multi-touch Digital ePoster

3840 x 2160 4K resolution
Infrared 10-point touch
Embedded media player and 16GB storage
Expandable external media player holder
USB multimedia playback
LAN function to access to web
Scheduling on/off
Dual 10W speakers
Signage content and display management software
Compatible with professional ProAV control systems such as Crestron, AMX, Extron, and Control4

Display
Dimensione display: 55"
Type/Tech: TFT LCD (IPS type,DLED Backlight)
Area visualizzabile (mm): 1209.6 (H) * 680.4 (V)
Rapporto d'aspetto: 9:16
Risoluzione: 3840 x 2160
Colors: 1.07B
Luminosità: 350 nits (typ.)
Contrasto: 1200:1 (typ.)
Tempo di risposta: 9 ms (typ. G to G)
Angolo visuale: H = 178, V = 178 typ.
Durata (ore): 30,000 Hours Typ.
Trattamento della Superficie: Anti-glare
Orientamento: Portrait
Touch
Tipo/Tecnologia: IR Recognition
Touch Resolution: 32768 x 32768
Punti di Tocco: 10 Points
Archiviazione
eMMC 16GB

INPUT
HDMI: (1.4) x2
RGB / VGA: x1
Audio: x1 PC audio(3.5 mm)
RS232: x1
OUTPUT
Audio: x1 (Earphone out)
LAN
RJ45 (controllo LAN): x1
USB
Tipo A: x3 (2.0 x 1, 3.0 x 2 )
Tipo B: x1 (for touch module)
SPEAKERS
10W x 2
COMPATIBILITY
RGB PC/HDMI PC: 1920x1080 @60Hz
HDMI: 2160 x 3840 @60Hz
Versione Android
5.0.1
Multimedia
Image: JPG, BMP, PNG
Video: AVI, MPG, MPEG, DAT, MP4, TS, RM, RMVB, MKV, MOV
Audio: MP3, AAC
Pacchetto Software
vSignage
Alimentazione
Voltaggio: 100-240VAC +/- 10% Wide Range
Consumo: Normal 117 W, Max 150 W (max.)
< 0.5W (Off)
OPERATING CONDITIONS
Temperatura (º C): 0°C to 40°C
Umiditá: 20% ~ 80% non-condensing
Dimensioni (LxPxH)
Prodotto (inch / mm): 32.28 x 74.8 x 17.71 in/820 x 1900 x 450 mm
Imballaggio (inch / mm): 38.7 x 79.37 x 24.33 in/983 x 2016 x 618 mm
WEIGHT
Prodotto (lb / kg): 154.32 lbs/70 kg
Imballaggio (lb / kg): 187.39 lbs/85 kg
Contenuto della confezione
1. Power Cord
2. Remote control with battery
3. Quick Start Guide
4. User Guide CD
5. Key

*Actual content may differ from market to market
