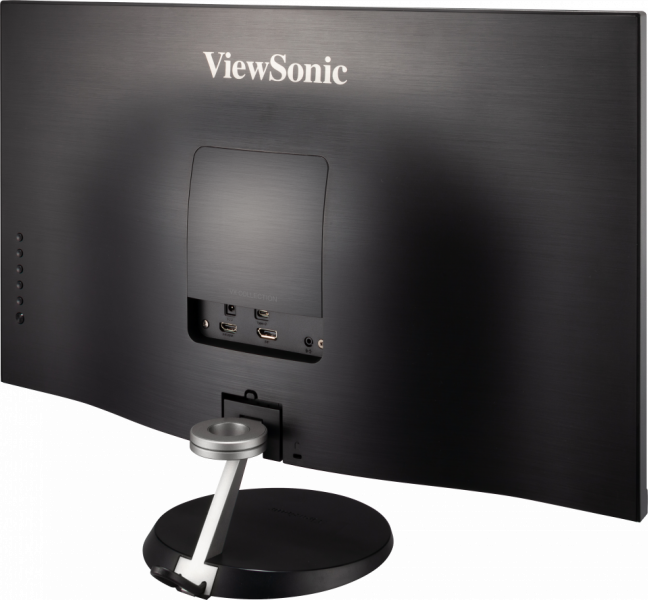

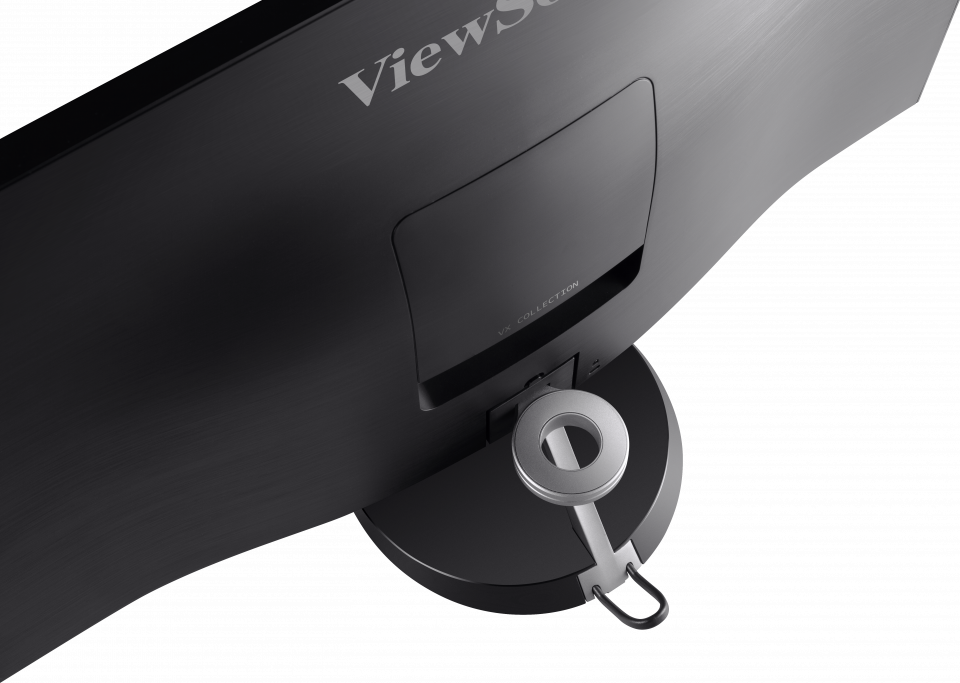

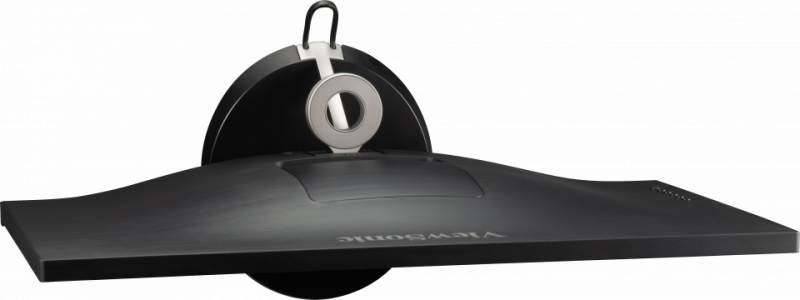

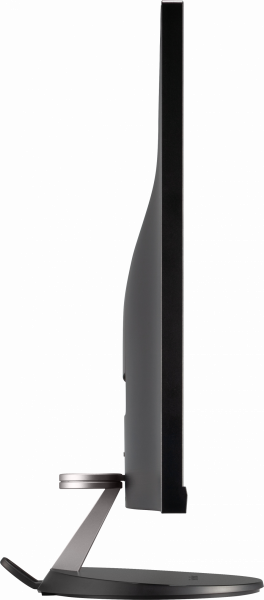

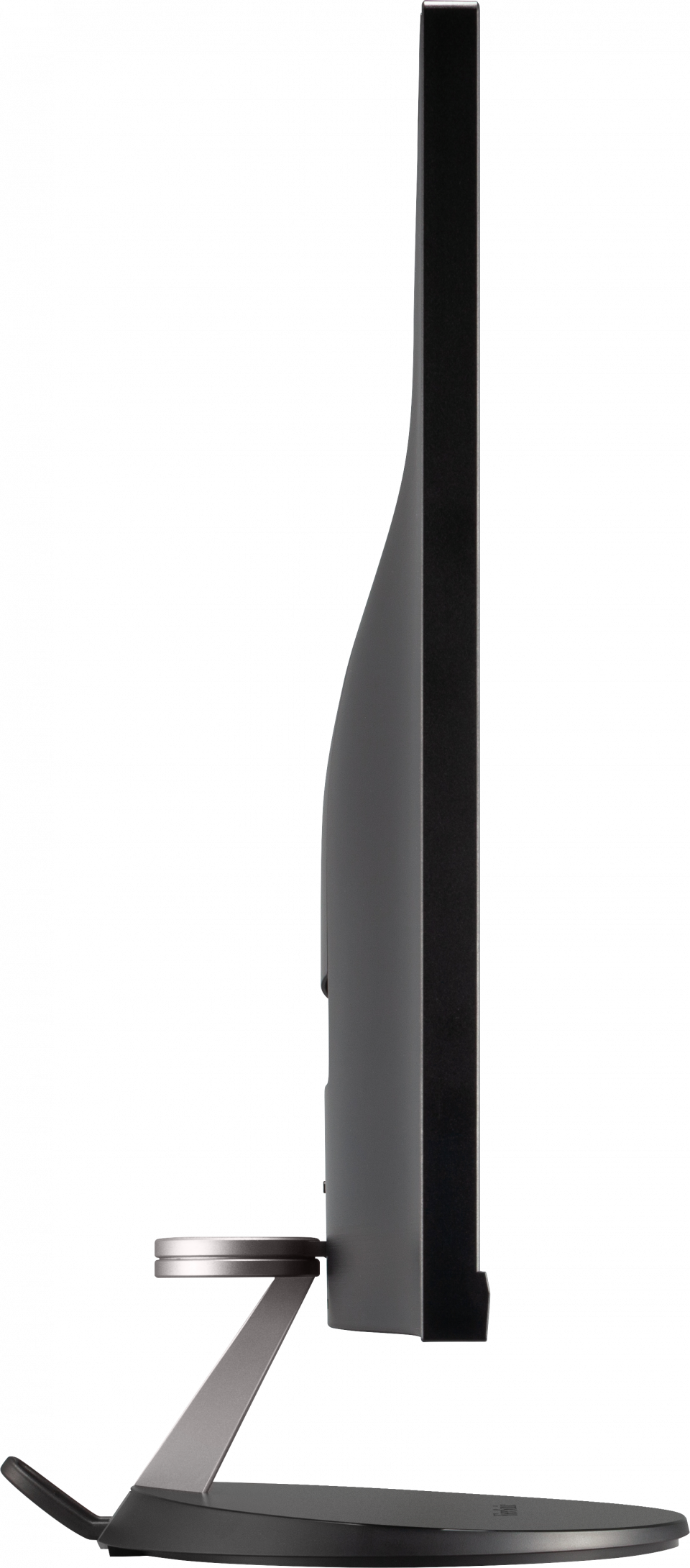

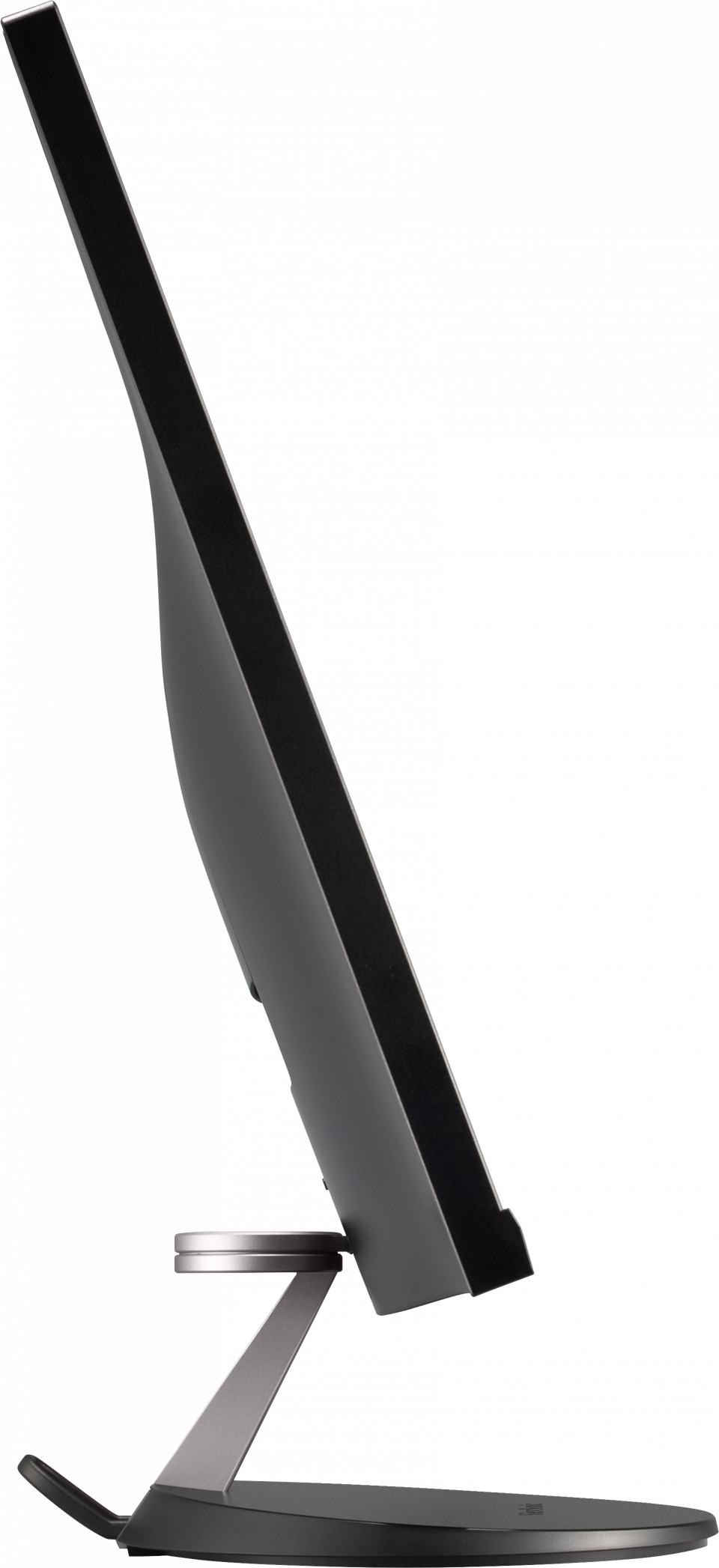

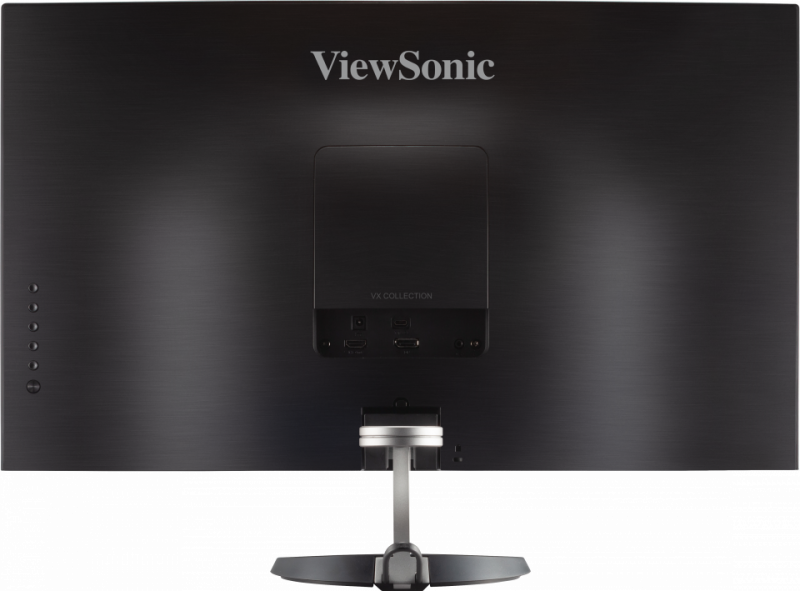

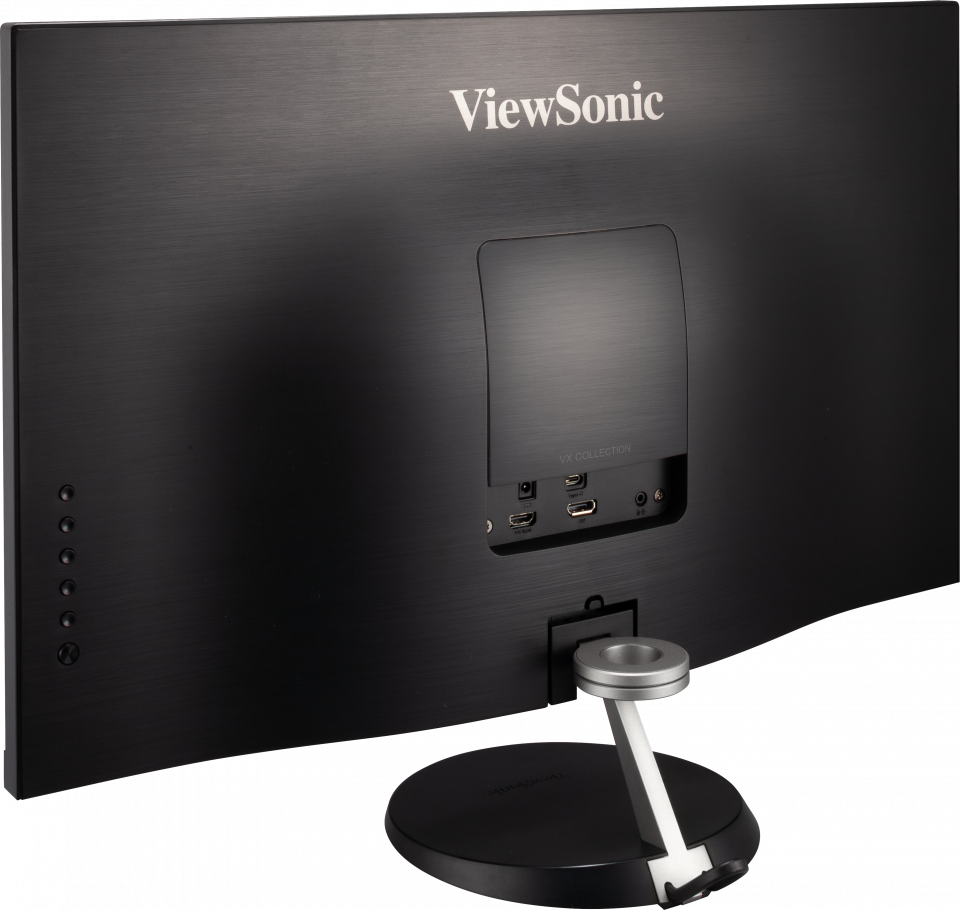

VX2785-2K-mhdu

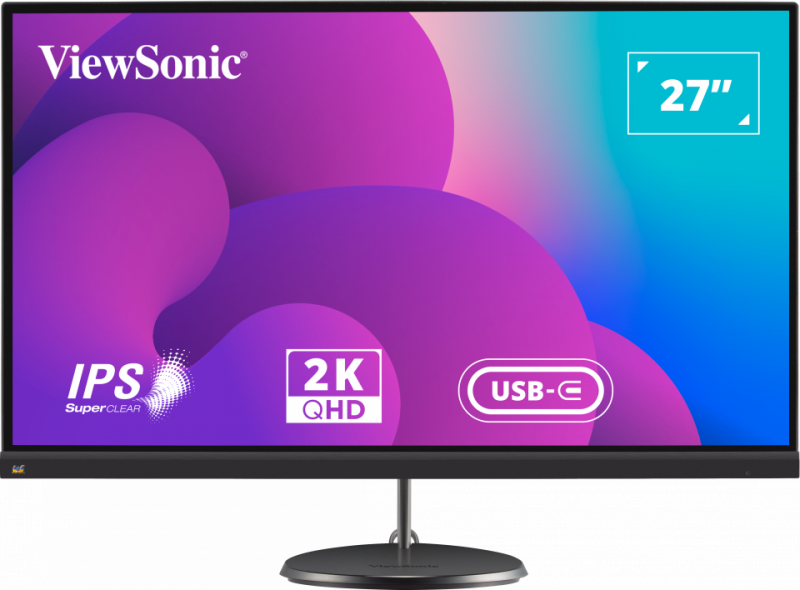

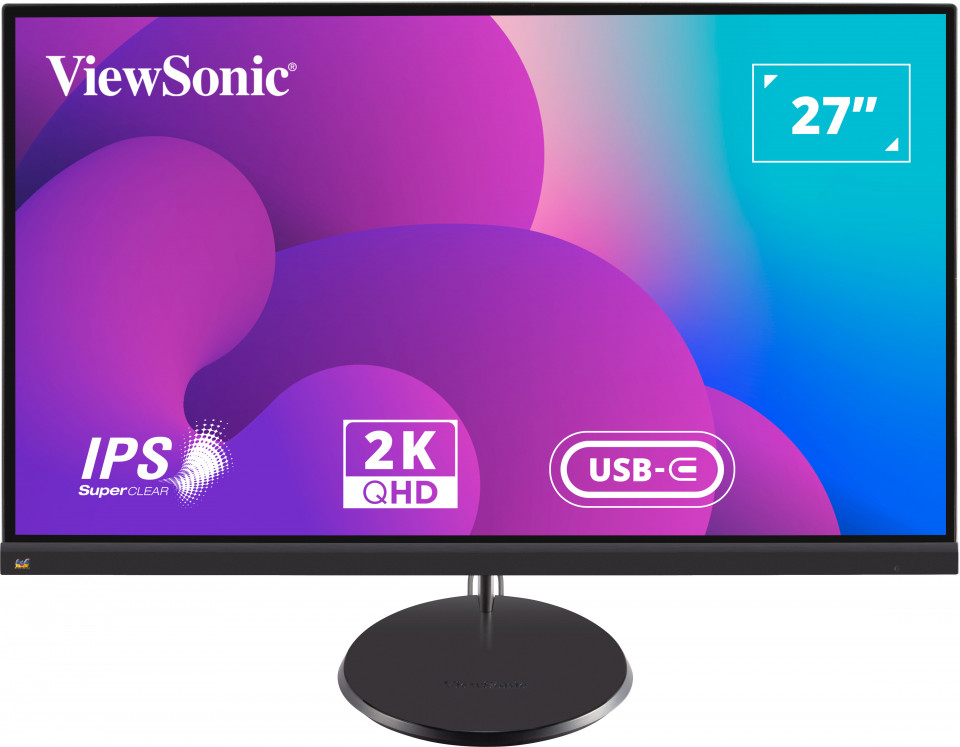

27" 2K Frameless Entertainment Monitor

iF award winning design
Connection flexibility with USB Type-C, HDMI, and DisplayPort
SuperClear® IPS technology
AMD FreeSync technology
TUV certificated Flicker-Free and Blue Light Filter

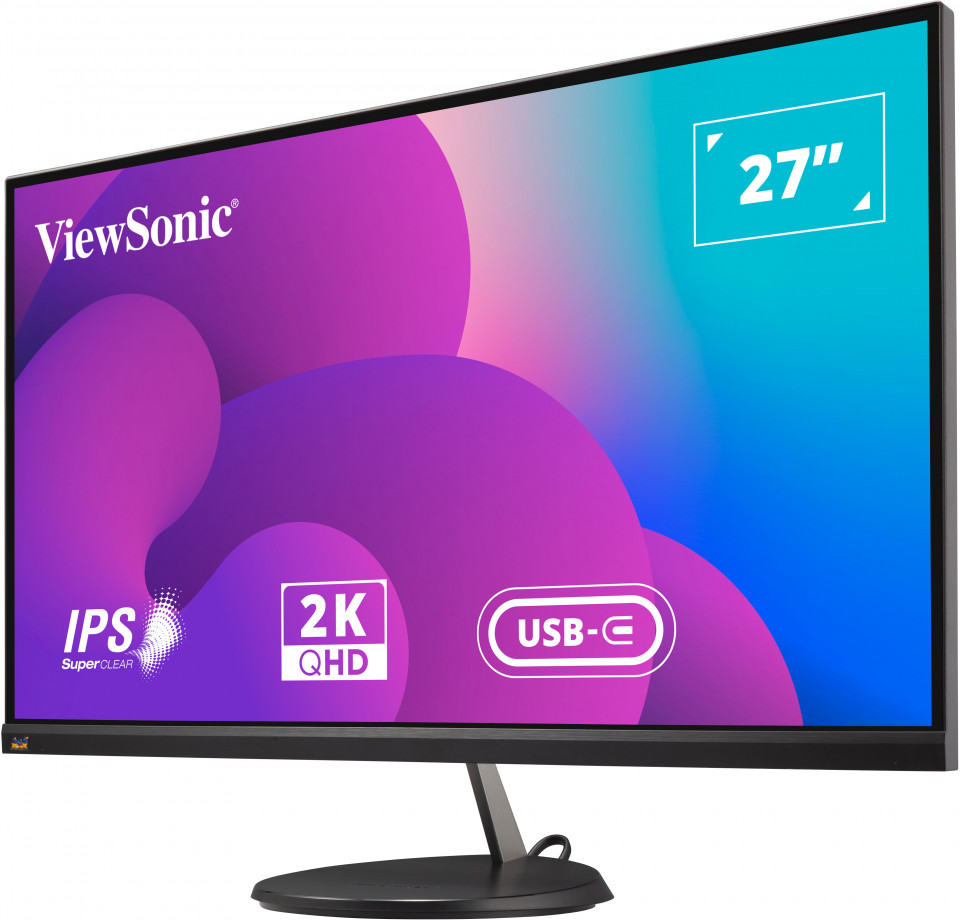

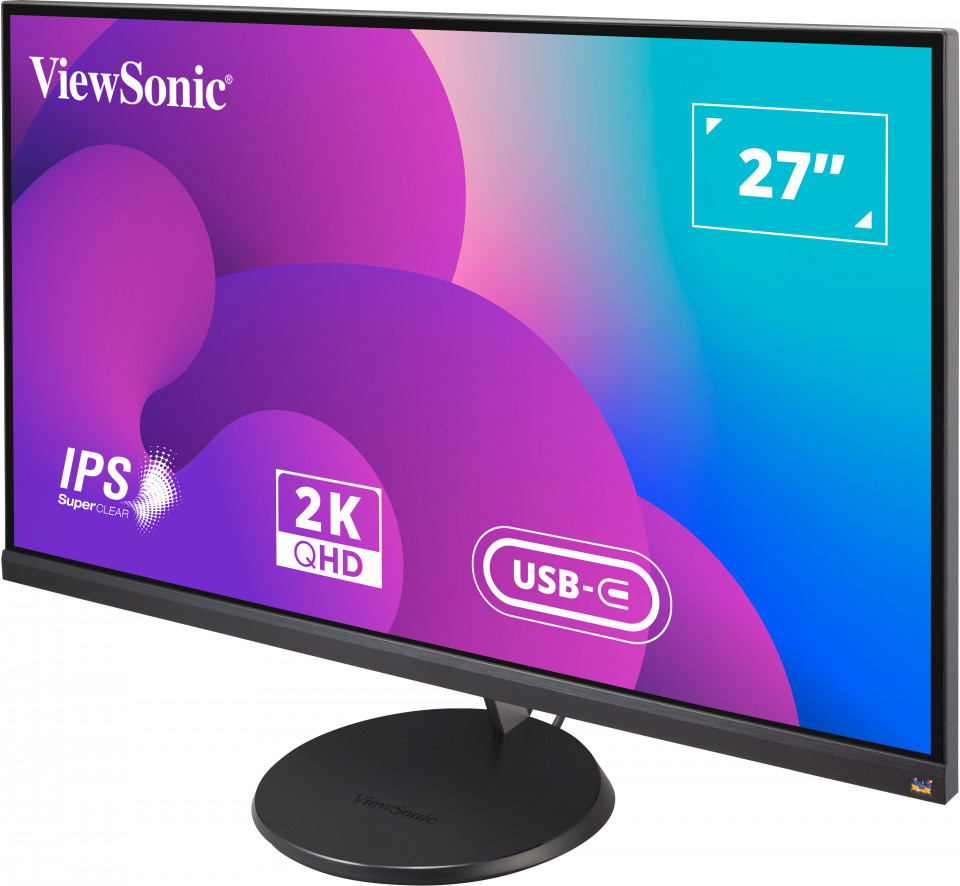

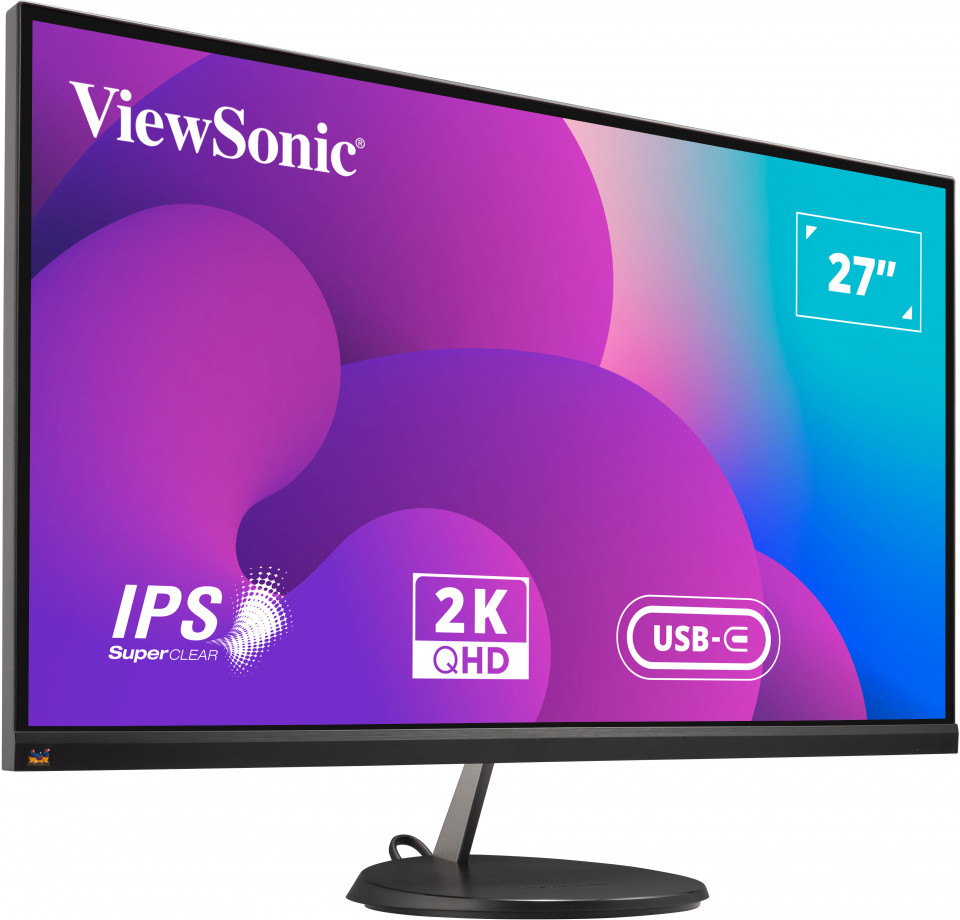

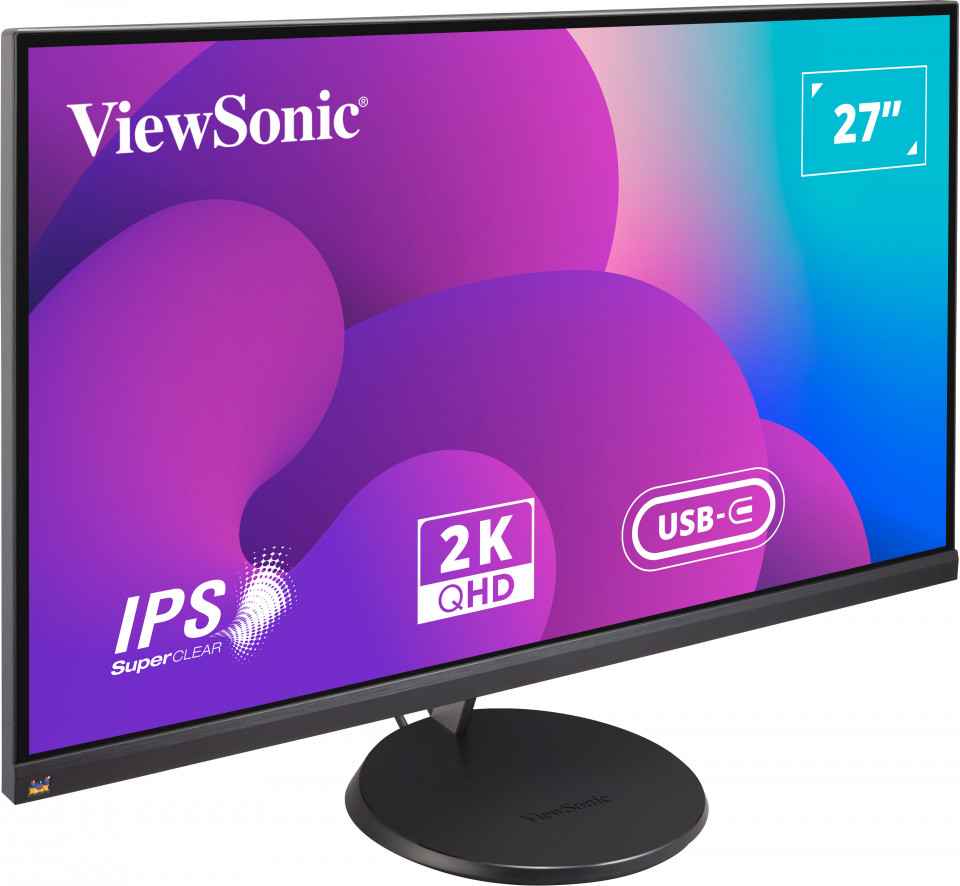

GALLERY

REVIEWS

Insidegram Review

“VX2785-2K-MHDU là mẫu màn hình khá độc lạ của ViewSonic. Với thiết kế đạt giải thưởng iF DESIGN AWARD 2019 thì đây có lẽ là một trong những sản phẩm đặc biệt nhất của họ.”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 300 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: FreeSync
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 8.1/10/11 certified; macOS tested
Mac® Resolution (min): 2560x1440

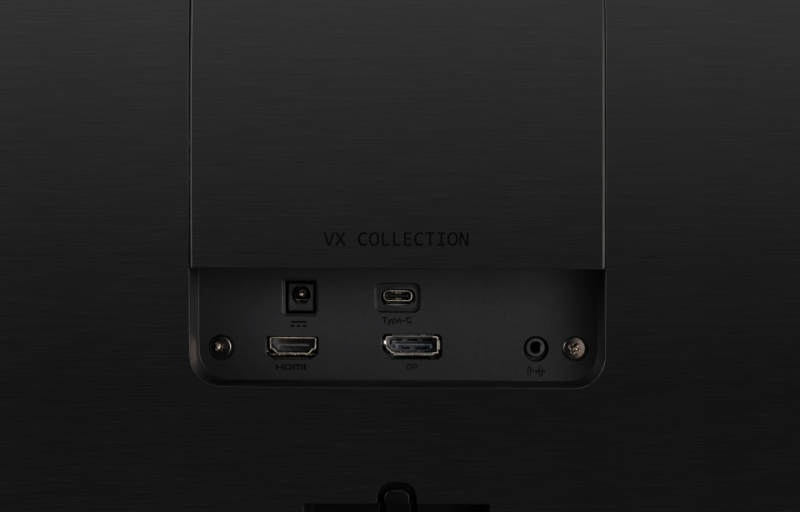

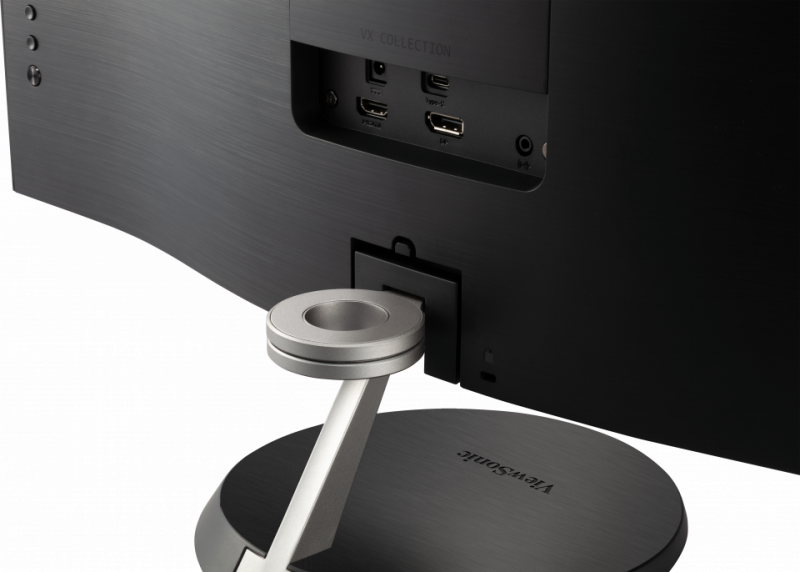

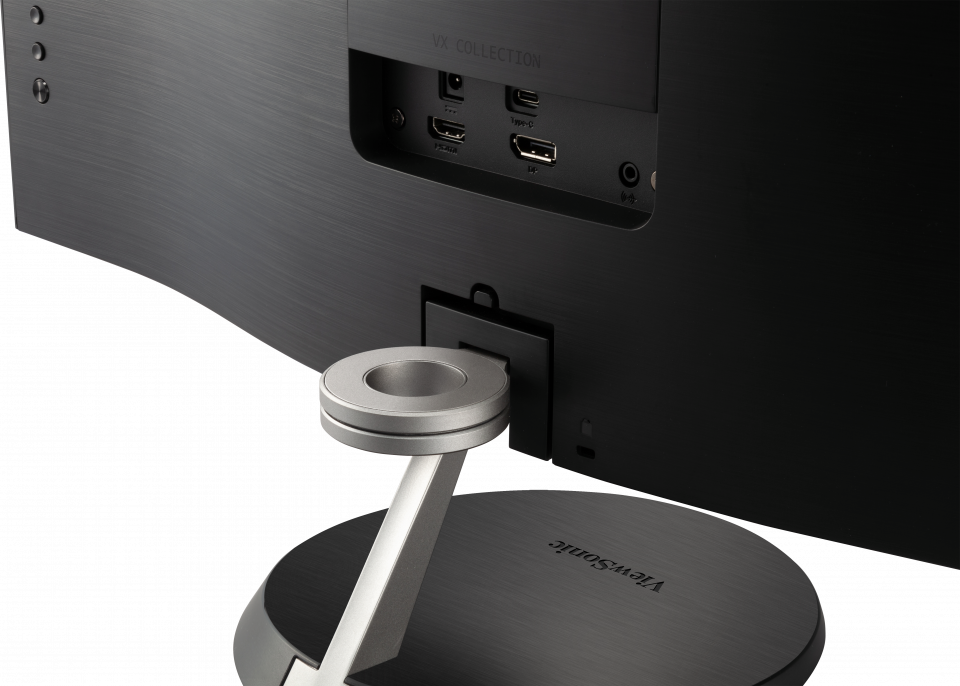

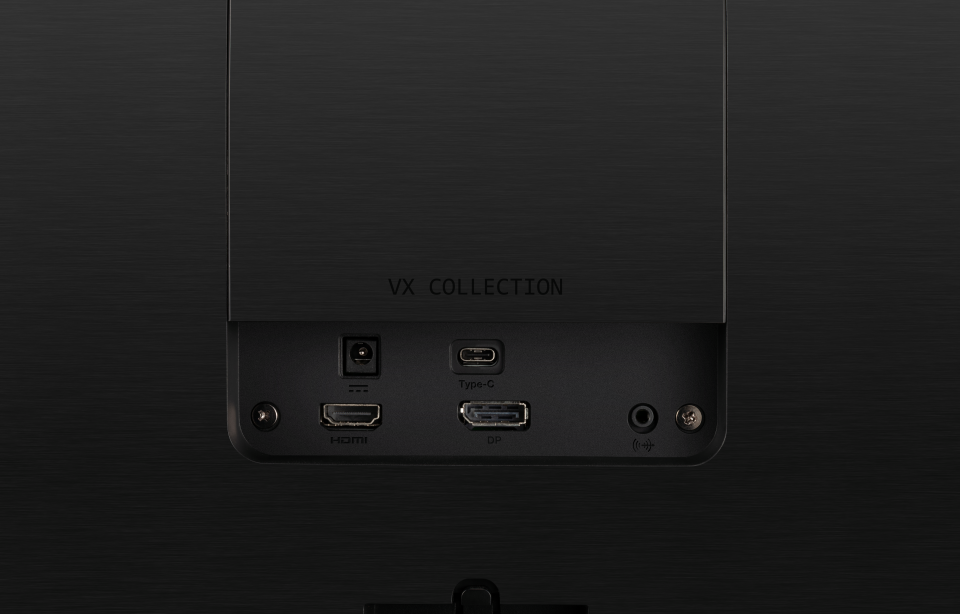

Connector
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 19W
Eco Mode (optimized): 22W
Consumption (typical): 24.5W
Consumption (max): 25W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 16 ~ 112KHz, DisplayPort (v1.2): 89 ~ 89KHz, Type C: 89 ~ 89KHz
Frequency Vertical: HDMI (v1.4): 40 ~ 75Hz, DisplayPort (v1.2): 40 ~ 60Hz, Type C: 40 ~ 60Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

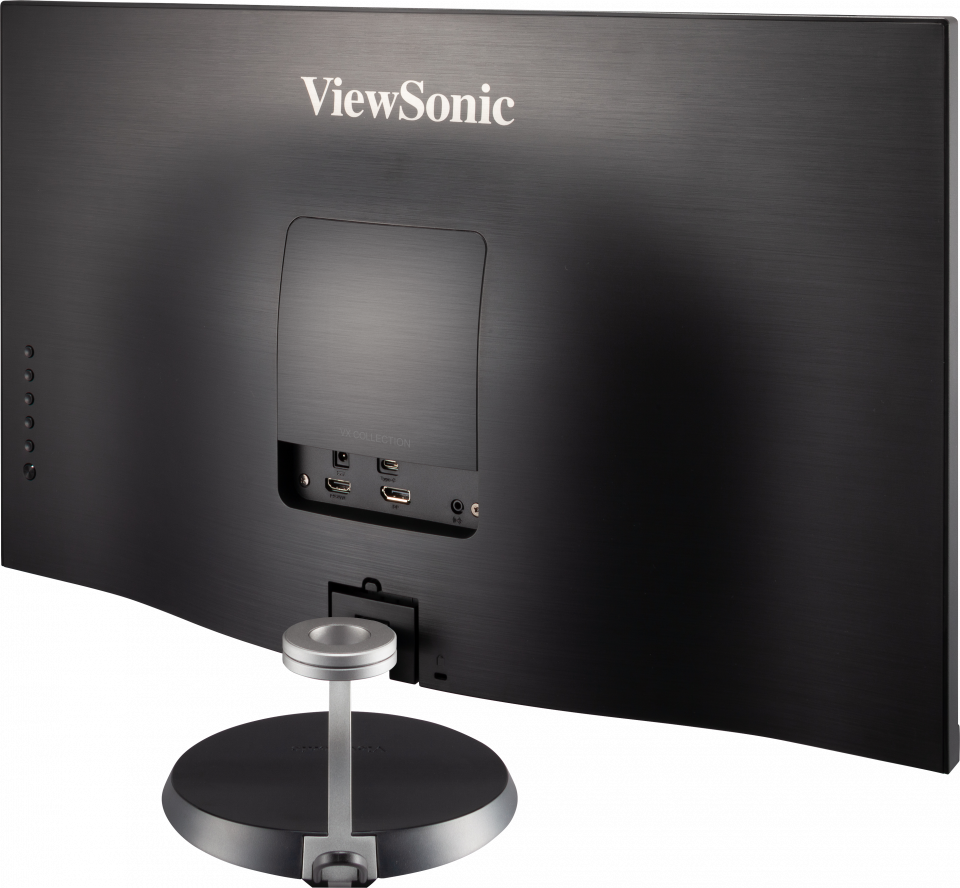

Ergonomics

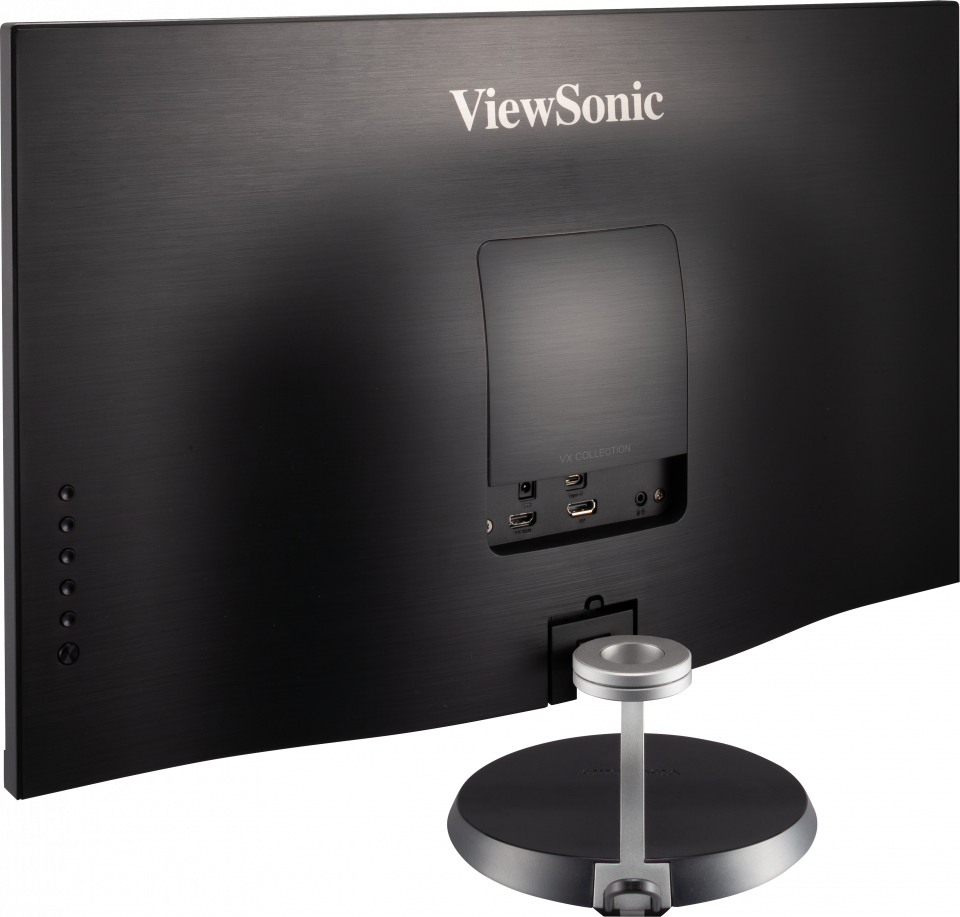

Swivel: 60º

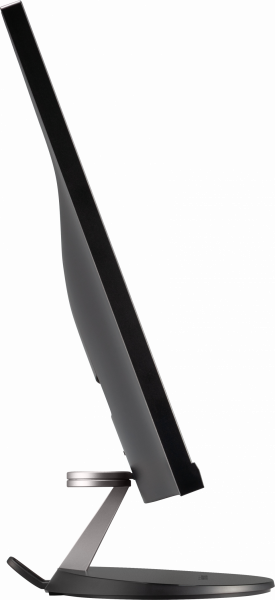

Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 11.1
Net Without Stand (lbs): 7.9
Gross (lbs): 15.2
Weight (metric)
Net (kg): 5
Net Without Stand (kg): 3.6
Gross (kg): 6.9
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.6 x 17.2 x 4.9
Physical (in.): 24.1 x 17.6 x 9.8
Physical Without Stand (in.): 24.1 x 14.3 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 700 x 438 x 125
Physical (mm): 613 x 446 x 250
Physical Without Stand (mm): 613 x 364 x 50
General
PACKAGE CONTENTS: B081QQTQ5Z xVX2785-2K-MHDU x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1 for VSA/VSE/VSI, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
