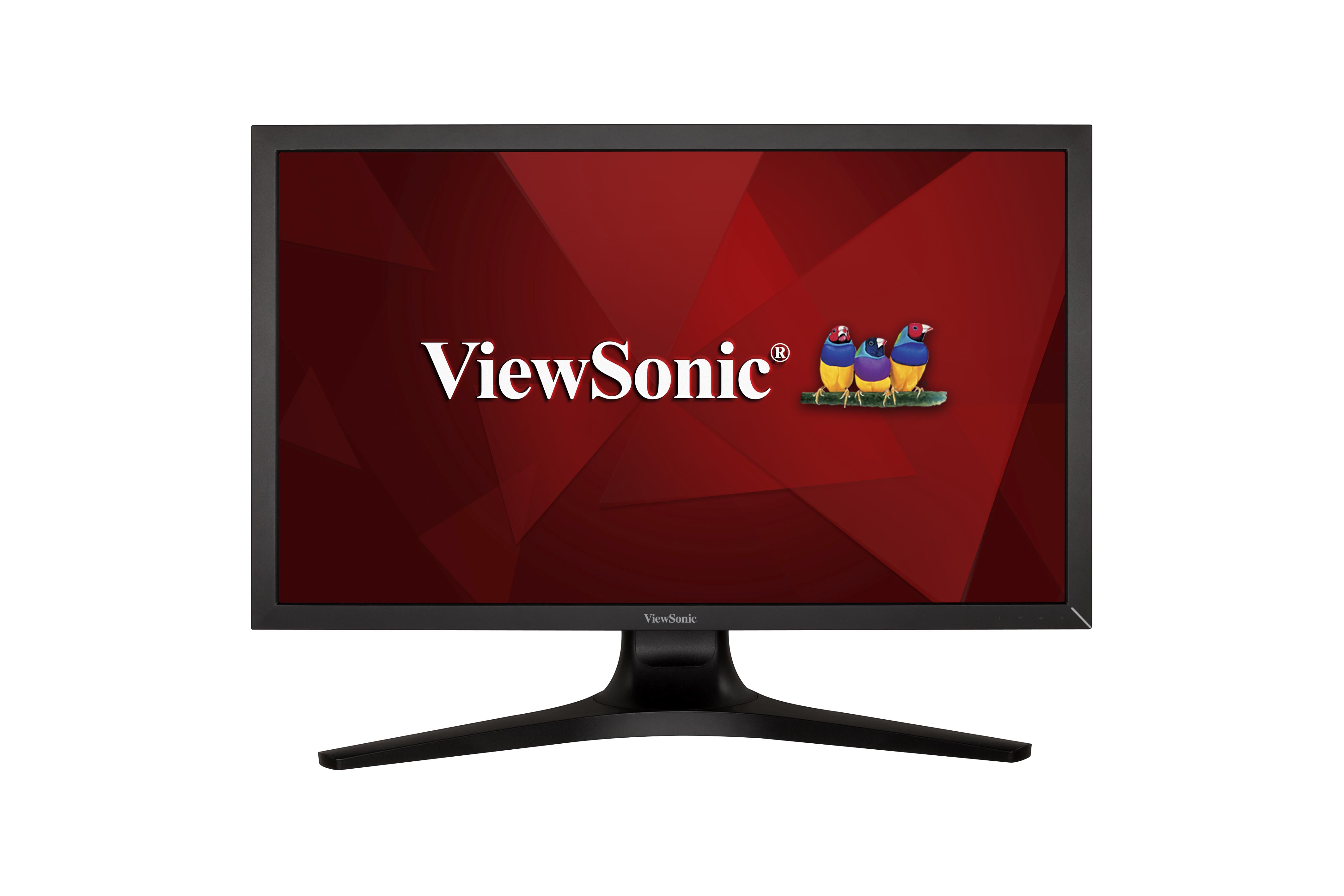

ViewSonic VP2770-LED 27" QHD Flicker Free PLS LED Monitor with 10 bit colour, Delta E < 3, VGA, DVI, HDMI, DisplayPort, 4 USB and Full Ergonomic Stand

Key Features

Product Description

The 27” display VP2770-LED has a slim, uniform bezel design. It boasts an ultra-high 2560 x 1440 WQHD resolution for the ultimate quality in image. The VP2770-LED reduces time on editing with the embedded Delta E≤3 colour accuracy which renders the image colour, reproduced on display and print-out, as accurately as it is on camera. The innovative SuperClear™ IPS wide-viewing angle technology provides a consistent and true-to-life image effect from any angle. In addition, the latest DisplayPort interface supports high definition image input and the built-in four USB hubs enable users to easily connect the display with peripherals. With an ergonomic design to offer users a comfortable work environment, the VP2770-LED creates bigger images and better impact.

Visit Us

www.viewsonic.com

LCD

Optimum Resolution:	2560 x 1440
Contrast Ratio:	1,000:1 (typ.)
Viewing Angles:	178° / 178°
Response Time:	GtG 12ms, OD 8ms
Panel Surface:	Anti-glare Type, 3H Hardness
Display Area:	68.5cm (27”) wide
Pixel Clock:	0.233 mm x 0.233 mm
Brightness:	300 cd / m²
Dynamic Contrast Ratio:	20,000,000:1
Backlight:	White-light LED
Backlight Life:	30,000 hours (min.)

COMPATIBILITY

PC:	VGA Support up to 2048 x 1152 HDMI Support up to 1920 x 1080 DVI-D/DP support up to 2560 x 1440 (non-interlaced)
Mac®:	VGA Support up to 2048 x 1152 DVI-D / HDMI / DP Support up to 2560 x 1440

CONNECTOR

Analog:	D-sub x 1
Digital:	Dual Link DVI / DisplayPort 1.2 /HDMI 1.4
USB:	Up Stream: Type B x 1 Down Stream: Type A x 4 (USB 3.0 x 2; USB 2.0 x 2)
Power:	Internal Power Board, 3-pin Plug (CEE22) x 1

DIMENSIONS

Physical Without Stand: 642.7 x 381.7 x 56mm (25.30” x 15.02” x 2.20”)(W x H x D)

Physical With Stand: 642.7 x 469.7 x 347.8mm (25.30” x 18.49” x 13.69”)(W x H x D)
INPUT

Frequency: Fh = 24 ~ 92 kHz ; Fv = 50 ~ 75 Hz

Sync: Separate Sync / Composite Sync / SOG

Analogue: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
POWER

Eco Mode: Optimise: 26.9W / Conserve: 17.98W

Voltage: AC 100 - 240V (Universal); 50 / 60 Hz

Consumption: Standard: 35.54W
VESA® MOUNT

100mm x 100mm
ERGONOMICS

Pivot: 0° ~ 90°

Tilt: 23° ~ -5°

Swivel: Right 60° and Left 60°

Height Adjustment: Adjust 0~150mm
WEIGHT

Net Without Stand: 5.8 Kg (12.78 lbs)

Net With Stand: 8.45 Kg (18.62 lbs)
OPERATING CONDITIONS

Temperature: 32° F to 104° F (0° C to 40° C)

Humidity: 20% to 90% (No condensation)

Physical Without Stand:	642.7 x 381.7 x 56mm (25.30” x 15.02” x 2.20”)(W x H x D)
Physical With Stand:	642.7 x 469.7 x 347.8mm (25.30” x 18.49” x 13.69”)(W x H x D)

Frequency:	Fh = 24 ~ 92 kHz ; Fv = 50 ~ 75 Hz
Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)

Eco Mode:	Optimise: 26.9W / Conserve: 17.98W
Voltage:	AC 100 - 240V (Universal); 50 / 60 Hz
Consumption:	Standard: 35.54W

Pivot:	0° ~ 90°
Tilt:	23° ~ -5°
Swivel:	Right 60° and Left 60°
Height Adjustment:	Adjust 0~150mm

Net Without Stand:	5.8 Kg (12.78 lbs)
Net With Stand:	8.45 Kg (18.62 lbs)

Temperature:	32° F to 104° F (0° C to 40° C)
Humidity:	20% to 90% (No condensation)
