Key Features

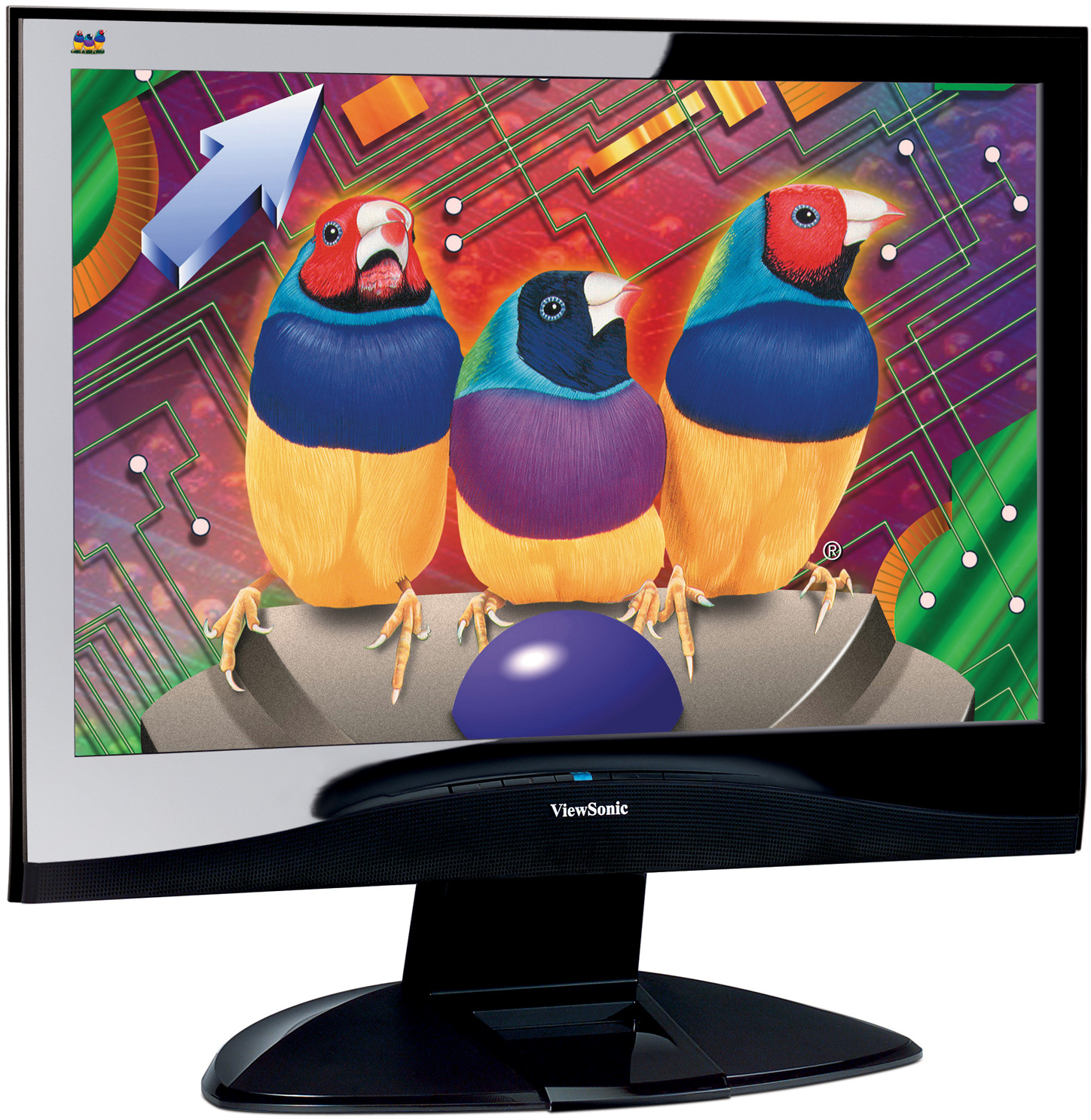

VLED221wm
Product Description
ViewSonic’s 56 cm / 22" VLED221wm widescreen LCD features a mercury-free LED backlight that requires less power than a standard 56 cm / 22"LCD yet produces exceptionally brilliant colour and crystal-clear images. OptiColor 118% NTSC and Super-HD 1680 x 1050 resolution deliver the deepest colour rendition, while the 16:10 widescreen panel allows users to work in two documents or applications side-by-side. Unmatched 12000:1 Dynamic Contrast Ratio (typ.) further supports the VLED221wm’s excellent front-of-screen performance with the blackest blacks and whitest whites. OptiSync digital and analogue inputs and integrated speakers expand this display’s multimedia versatility. Gamers, movie fans, graphic designers and home offi ce users will love the performance and style of the VLED221wm.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 56 cm / 22"Wide TN colour TFT active matrix WSXGA+ LCD
    Contrast Ratio: 1000:1 (typ.), 12000:1 DCR (typ.)
    Viewing Angles: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Brightness: 250cd/m² (typ.)
    Display Area: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
    Optimum Resolution: 1680 x 1050@60Hz
    Response Time: 5ms (off-on-off) (typ.)
    Light Source: LED backlight array
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.282mm
    Colour Support: 16.7M colours supported (6-bit+2-bit FRC)
    Pixel Clock: 170MHz
    Colour Gamut: Wide colour gamut: 118% NTSC
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • DIMENSIONS
    Physical With Stand: 524 x 482 x 244
    Physical Without Stand: 524 x 355 x 64
    W x H x D mm: 575 x 522 x 150
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (multi-language User Guides/drivers and SRS WOW HD software)
  • AUDIO
    Speaker: 2 x 2.5 watt integrated stereo speakers with SRS WOW HD
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Power: 3-pin AC plug (CEE22)
    Audio: 3.5mm stereo audio line-in
  • POWER
    Voltage: AC 100–240 V, 50–60 Hz (auto switch), internal power supply
    Consumption: 36 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], select [2], up, down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [11 options], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 5°C – 35°C
    Humidity: 20% – 80% (non-condensation)
  • WEIGHT
    Net With Stand: 6.0kg
    Net Without Stand: 4.8kg
    Packaging: 7.5kg
  • VIDEO INPUT
    Frequency: Fh: 30–82kHz, Fv: 50–75Hz
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm, DDC/CI)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • POWER MANAGEMENT
    Meets ENERGY STAR standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, Up 17°
