Key Features
  • USB Type-C
  • Full HD 1080p resolution
  • Frameless bezel
  • SuperClear® IPS technology
  • VGA, HDMI and DisplayPort inputs

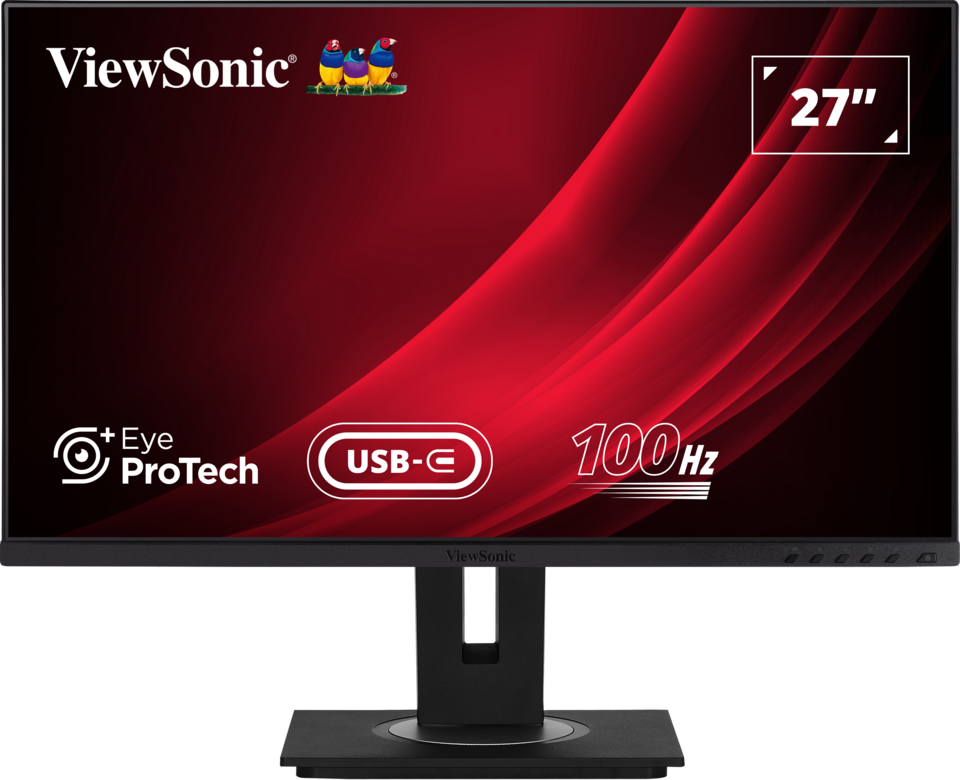

VG2755
Product Description
The ViewSonic VG2755 is a 27’’ (27’’ viewable) 1080P IPS monitor designed to fit the modern office space. The monitor comes with a built-in USB Type-C port and a complimentary USB Type-C cable. Charge and display content simply via a single cable from your device, enabling connection to your laptop through a single USB cable and keeping your workstation neat while also functioning as a docking monitor. In addition, the monitor is equipped with DisplayPort, HDMI, VGA, and three USB Type-A ports to expand your efficiency. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or have strategic group discussions around the screen. The packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making VG2755 series monitors perfect for business environments.

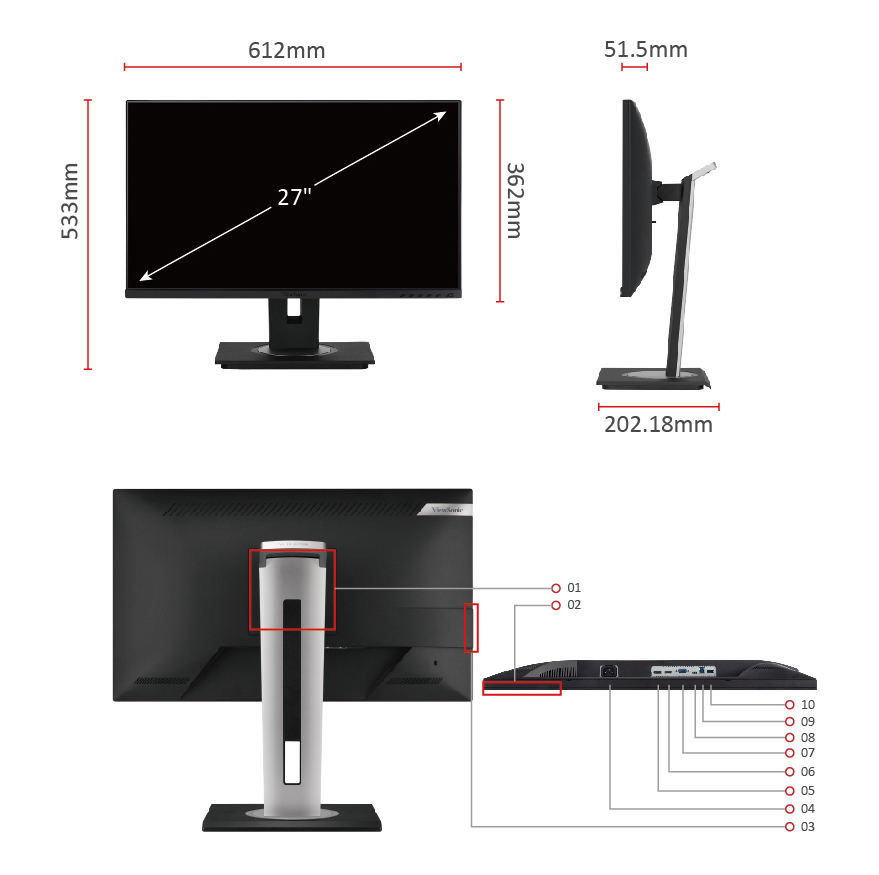

  1. VESA Compatible (Wall Mount 100 x 100 mm)
  2. Menu Control Panel
  3. USB 3.1 down stram x 2
  4. AC In
  5. DisplayPort
  6. HDMI
  7. VGA
  8. USB Type C
  9. USB 3.1 up stream
  10. USB 3.1 down stream
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 27
    Viewable Area (in.): 27
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    __Brightness (PCS): 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Response Time (Typical Tr+Tf): 15ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Blue Light Filter: Yes
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 102% size / 94% coverage (Typ)
    Pixel Size: 0.311 mm (H) x 0.311 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 3
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
    HDMI 1.4: 1
    DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 13W
    Eco Mode (optimized): 15.6W
    Consumption (typical): 19.1W
    Consumption (max): 22.54W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz, Type C: 15 ~ 82KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz, Type C: 24 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Height Adjust (mm): 130
    Swivel: 120º
    Tilt (Forward/Back): -5º / 40º
    Pivot (Right/Left): 90º / 90º
  • WEIGHT (IMPERIAL)
    Net (lbs): 16.5
    Net Without Stand (lbs): 11.2
    Gross (lbs): 23.6
  • WEIGHT (METRIC)
    Net (kg): 7.5
    Net Without Stand (kg): 5.1
    Gross (kg): 10.7
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 27.2 x 16.9 x 8.6
    Physical (in.): 24.1 x 15.99~20.99 x 8
    Physical Without Stand (in.): 24.1 x 14.2 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 692 x 430 x 218
    Physical (mm): 612 x 406.19~533.24 x 202
    Physical Without Stand (mm): 612 x 362 x 52
  • GENERAL
    PACKAGE CONTENTS: VG2755 x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
