LCD Display
VG2439smh-2
Key Features
- Full HD 1080p resolution
- SuperClear® MVA technology
- HDMI, DisplayPort, and VGA inputs and USB ports
- Dual integrated speakers
- Flicker-Free & Blue Light Filter eyecare technologies
Product Description

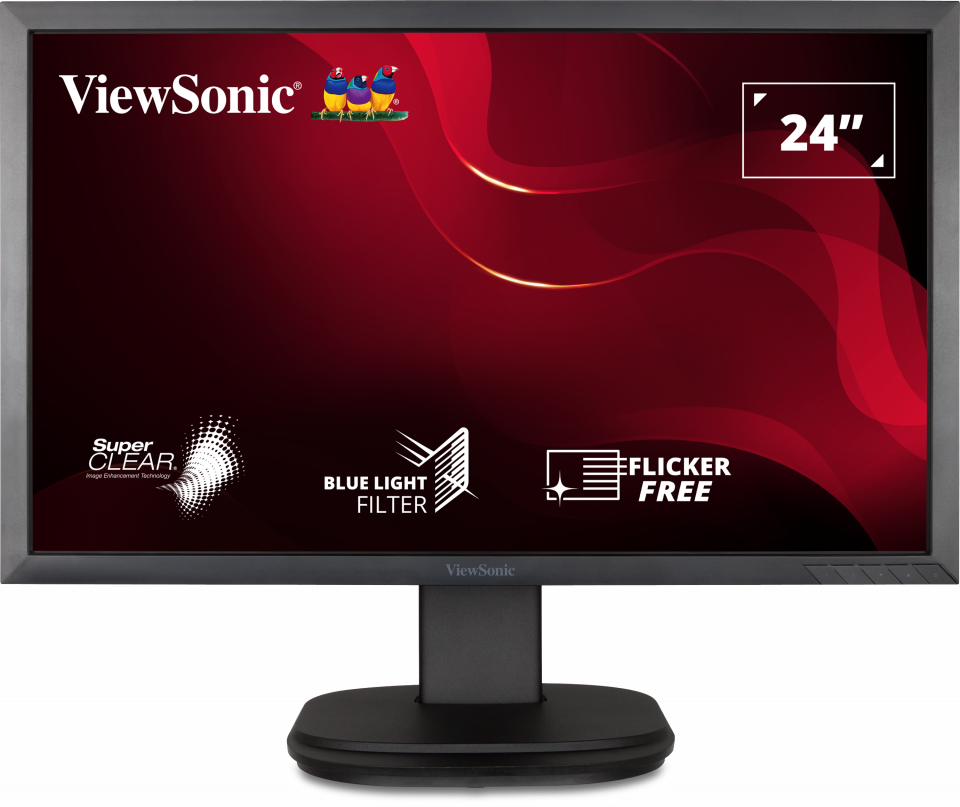

The ViewSonic VG2439Smh-2 is a 24" Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for use in the company or at home. With SuperClear® Technology for wide-angle viewing, and dynamic contrast ratio, this monitor delivers incredibly sharp images and video playback. Integrated with HDMI, DisplayPort, VGA and 2 USB ports, the VG2439Smh allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic's exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods.
- VESA Compatible (Wall mount 100 x 100 mm)
- Menu Control Panel
- USB Downstream
- USB Upnstream
- AC In
- DP In
- HDMI
- VGA
- Earphone
Visit Us
- www.viewsonic.com
-
DISPLAY
Monitor Size: 24”W (23.6” Viewable) Panel Technology: VA Technology TFT LCD Resolution: Full HD 1920 x 1080 Display Area: 521.28mm (H) x 293.22mm (V) Aspect Ratio: 16:9 Brightness: 250 cd/m² (Typ) Contrast Ratio: 3000:1 (Typ) Dynamic Contrast Ratio: 20,000,000:1 Viewing Angles: 178 degrees / 178 degrees (Typ) Response Time: 5ms (GtG) -
INPUT SIGNAL
Frequency: Analog: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz, Digital: Fh = 15 ~ 82KHz ; Fv = 50 ~ 75Hz Sync: Separate Sync / Composite Sync / Sync on Green, TMDS, PCI-E -
COMPATIBILITY
PC: Windows 7 / 8 / 10 certified Mac®: Power Mac tested -
CONNECTOR
Input: VGA x 1, HDMI x 1 (v1.4 compatible), DisplayPort x 1 (v1.2a compatible)
Audio in x 1 (3.5mm plug)Output: Earphone out x 1 (3.5mm plug) -
AUDIO
Speaker: 2W x 2 -
USB
Upstream: Type B x 1 Downstream: Type A x 2 -
POWER
Power: 3-pin plug (CEE22) x 1 Voltage: AC 100-240V (Universal); 50/60Hz Consumption: 18.7W Optimize: 15.3W Conserve: 12.1W -
ERGONOMICS
Tilt: 20 ~ -5 degrees Swivel: 360 degrees Pivot: 90 degrees Height Adjustment: 0 ~ 135mm -
SPECIAL FEATURES
Eye Care: Blue light filter, Flicker Free -
WALL MOUNT
VESA®: 100 mm x 100 mm -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% to 90% (no condensation) -

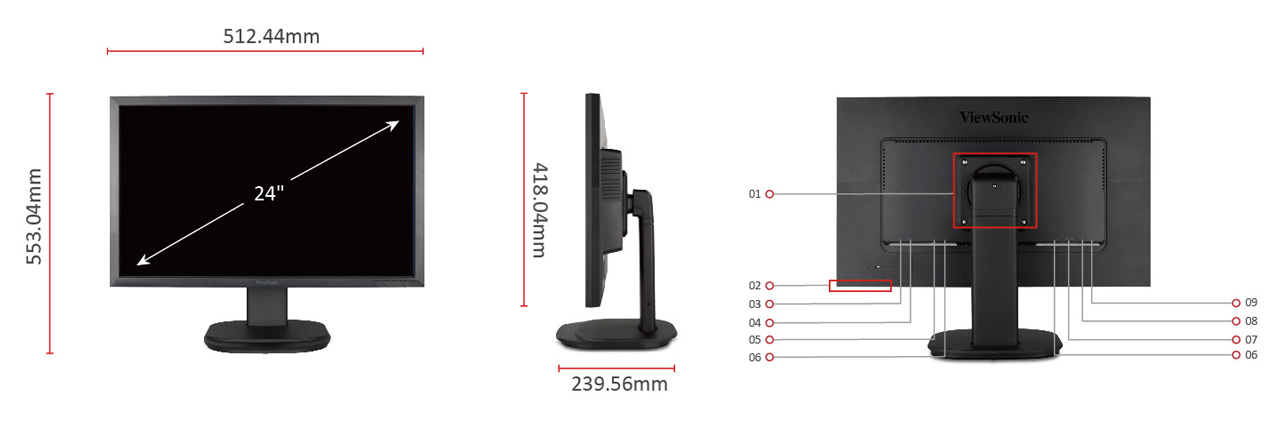

DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 560.3mm (W) x 435.2mm~570.2mm (H) x 239.6mm (D) Physical without stand (mm): 560.3mm (W) x 332.7mm (H) x 58.2mm (D) Packaging (mm): 652mm (W) x 420mm (H) x 195mm (D) -
WEIGHT
Net with stand: 4.99kg (11lbs) Net without stand: 3.53kg (7.79lbs) Gross: 6.5kg (14.33lbs) -
PACKAGE CONTENTS
LCD Display
Power Cable (1.8m)
DisplayPort Cable (1.8m)
Audio Cable (1.8m)
USB2.0 Cable (1.8m)
Quick Start Guide
