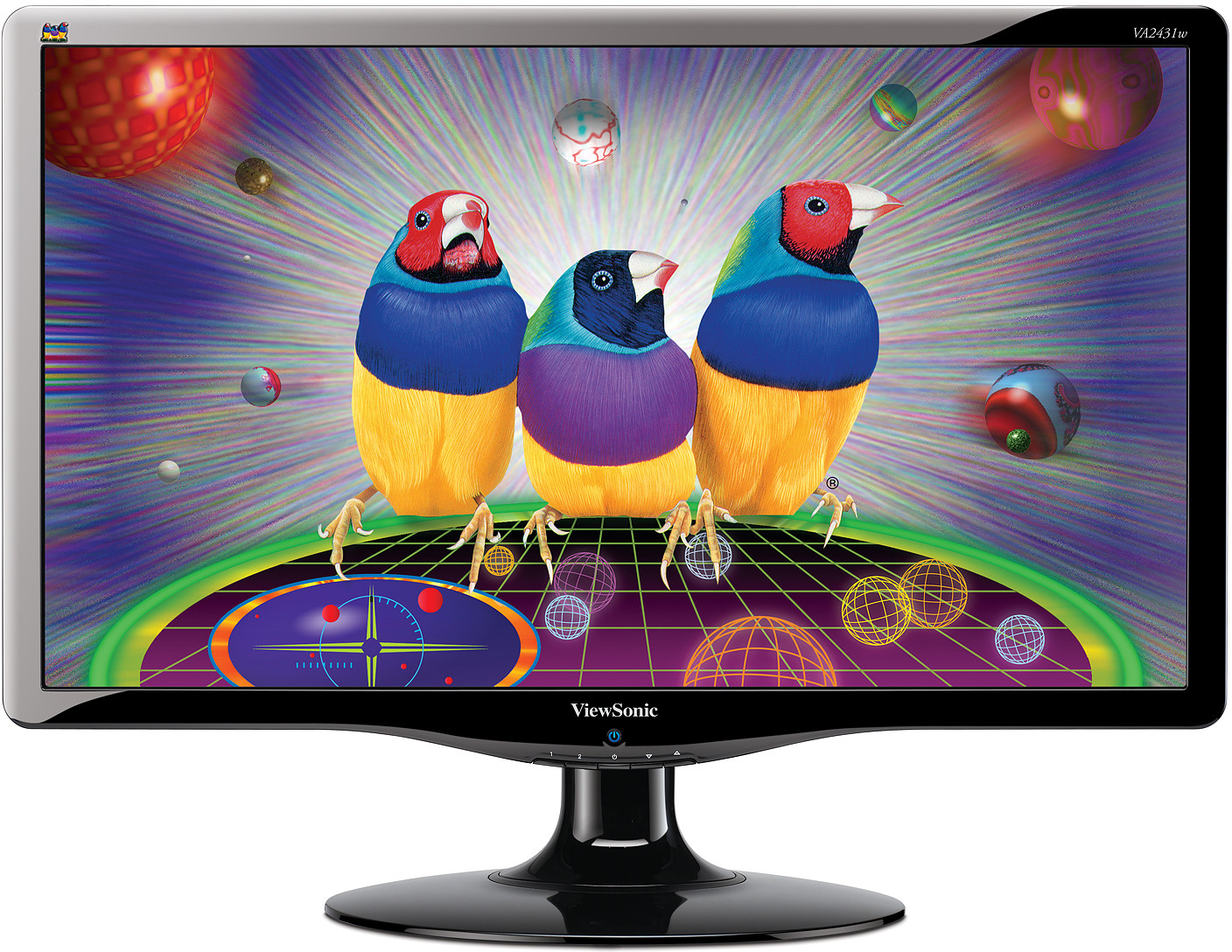

ViewSonic VA2431w 60cm/ 23.6" Viewable Widescreen LCD

LCD

Contrast Ratio:	1000:1
Viewing Angles:	170° (H), 160° (V)
Optimum Resolution:	1920×1080
Response Time:	5ms (typical)
Light Source:	50,000 hrs (minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.2715 × 0.2715 (mm)
Colour Support:	16.7 M (Millions of colours)
Size:	60cm/ 23.6" wide Colour TFT Active Matrix LCD 16:9 aspect ratio
Brightness:	300 (typical)
Dynamic Contrast Ratio:	100,000:1

COMPATIBILITY

PC: VGA up to 1920×1080 Non Interlaced

Mac®: 1920×1080 Non Interlaced
DIMENSIONS

Physical (WxHxD): 562.3 × 426.2 × 213.4 (mm), 22.1 × 16.8 × 8.4 (in)
INPUT

Sync: Separate Sync

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–82kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: 1×DVD-D

Power: Built-in power Adapter, 3-Pin plug
POWER

Voltage: AC 100-240V (Universal); 50/60Hz(Switch)

Consumption: 45 (typical) / 50 (maximum)

Save Mode (W): ≦0.5w

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
On View (PC mode):	Auto Image Adjust,Contrast/Brightness, D-SUB, Color Adjust sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B] Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Memory Recall

OPERATING CONDITIONS

Temperature: 0 - 40 (°C) / 32 - 140 (°F)

Humidity: 5 - 90 (%)
WEIGHT

Net: 5.1 kg / 11.2 lb
VESA MOUNT COMPLIANT

100mm×100mm
ERGONOMICS

Tilt: 20~-5 degrees

PC:	VGA up to 1920×1080 Non Interlaced
Mac®:	1920×1080 Non Interlaced

Analogue:	1×15 pin mini D-sub
Digital:	1×DVD-D
Power:	Built-in power Adapter, 3-Pin plug

Temperature:	0 - 40 (°C) / 32 - 140 (°F)
Humidity:	5 - 90 (%)
