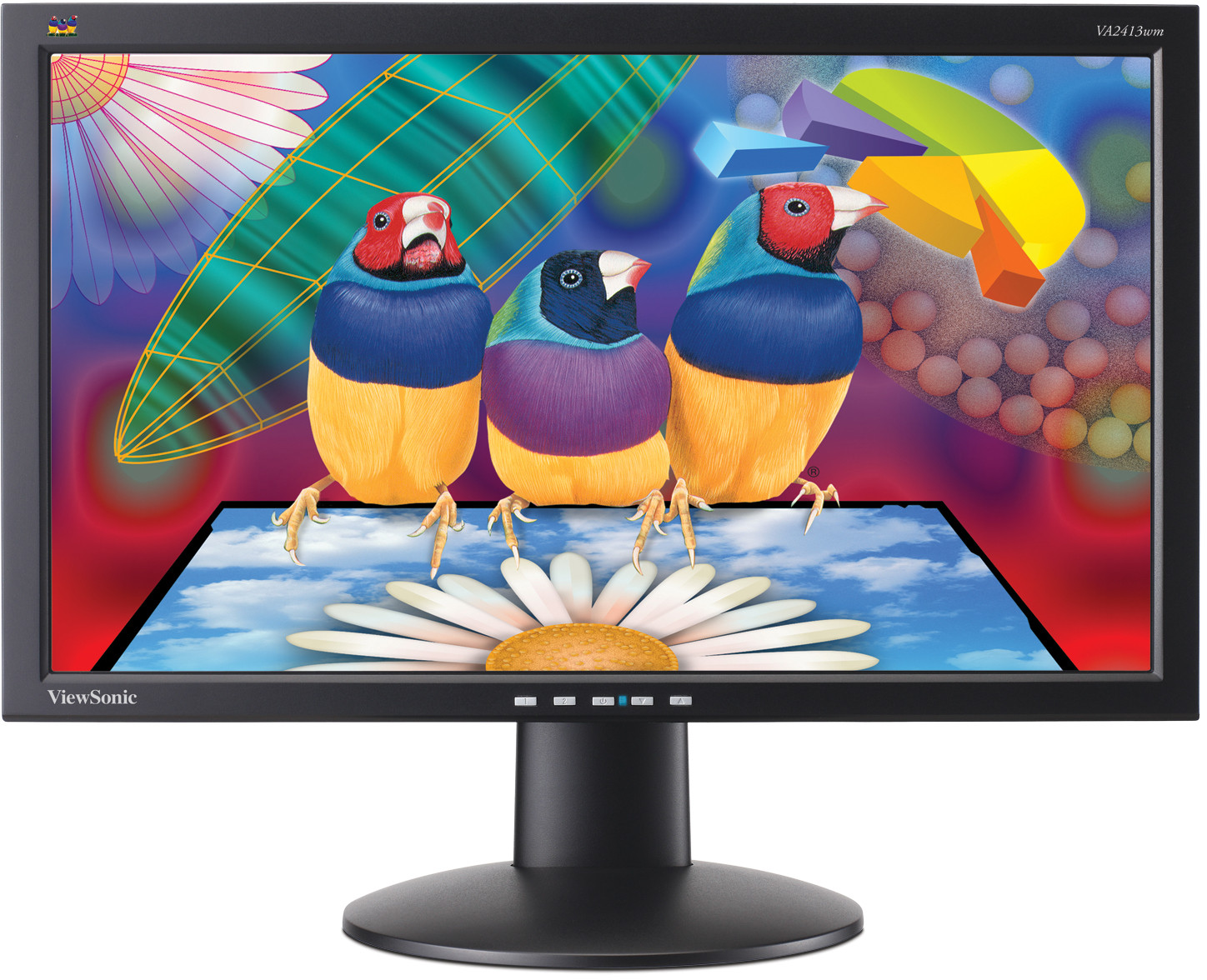

LCD Display
VA2413wm
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Contrast Ratio: 1000:1 (typ.) ; 16000:1 dynamic Viewing Angles:
170° (H), 160° (V) at CR≧10 / 170° (H), 170° (V) at CR≧5Brightness: 300 cd/m² (typ.) Display Area:
521 (mm) × 293 (mm) / 20.5 (in) × 11.5 (in)Optimum Resolution: 1920 x 1080 WUXGA (HD resolution) Response Time: 5ms (on/off) Light Source: 50,000 hrs (typ.) Panel Surface: Anti-Glare, Hard coating (3H) Pixel Pitch: 0.2715mm (H) × 0.2715mm (V) Colour Support: 16.7 M (6-bits + 2-bits Hi FRC) Size: 60 cm (23.6") wide Color TFT Active Matrix LCD 16:9 aspect ratio -
COMPATIBILITY
PC: VGA up to 1920×1080 Non Interlaced Mac®: Power Mac, up to 1920×1080 -
DIMENSIONS
Physical With Stand: 564mm × 417mm × 261mm Physical Without Stand: 564mm × 335mm × 67mm -
AUDIO
Speaker: 2 × 2 watt -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. -
INPUT
Sync: Separate Sync Analogue:
RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)Frequency: Fh: 22-82kHz, Fv: 50-75Hz -
CONNECTOR
Analogue/Digital: 15 pin mini D-sub×1 Audio: 3.5 mm Audio line-in Power: 3-pin AC plug (CEE22) -
POWER
Voltage: AC 100-240V (Universal); 50/60Hz (Switch) Consumption: 47 (Max) Eco Mode: Standard 45W / Optimize 31W / Conserve 26W Save mode: ≦1W -
CONTROLS
Basic: [1], [2], Power, Down, Up On View (PC mode): Auto Image Adjust, Contrast/Brightness, Audio Adjust (Volume, mute),Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]),
Information, Manual Image Adjust (H/V Position, Horizontal Size, FineTune, Sharpness, Dynamic Contrast, Aspect Ratio, ECO Mode), Setup
Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Sleep), Memory Recall -
OPERATING CONDITIONS
Temperature: 5°C - 35°C (41°F - 95°F) Humidity: 20 - 80% (Non condensed) -
WEIGHT
Net: 5.3 kg Gross: 6.8 kg -
POWER MANAGEMENT
TCO'03, ENERGY STAR -
ERGONOMICS
Tilt: 20° ~ -5° -
VESA MOUNT COMPLIANT
VESA 100mm x 100mm
