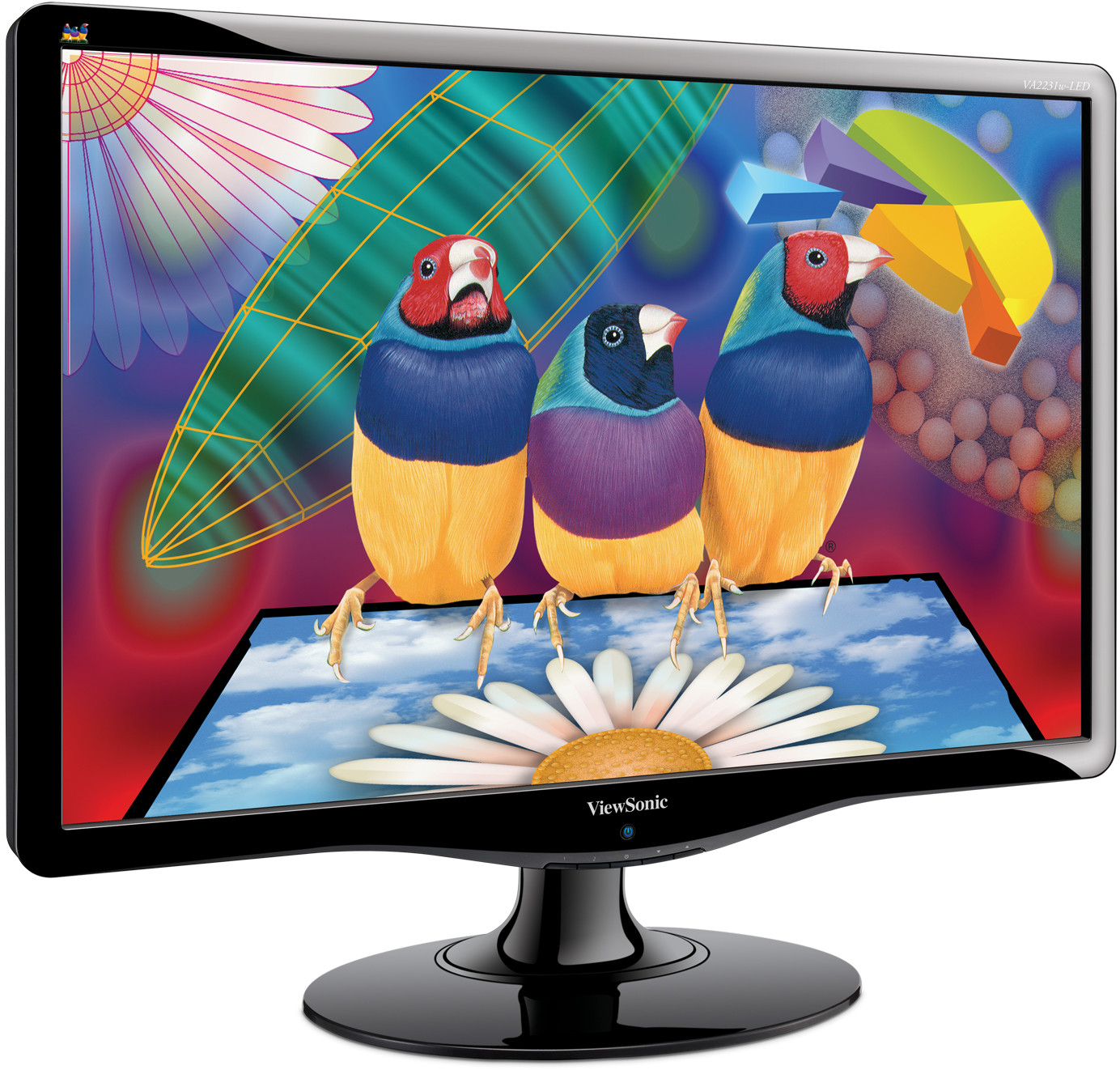

ViewSonic VA2231w-LED 56cm/22" LED DISPLAY

LCD

Contrast Ratio:	1000:1
Viewing Angles:	170° (H), 160° (V)
Optimum Resolution:	1920×1080
Response Time:	5 (typical)
Light Source:	30,000 (Minimum)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.24825 mm x 0.24825 mm
Colour Support:	16.7 Millions
Size:	56cm/22”wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Brightness:	250 (typical)
Dynamic Contrast Ratio:	10,000,000:1

COMPATIBILITY

PC: VGA up to 1920x1080 Non Interlaced

Mac®: 1920x1080 Non Interlaced
DIMENSIONS

Physical With Stand: 513mm (W) x 389.1 mm (H) x 195.6mm (D)
INPUT

Sync: Separate Sync

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: 24–82kHz / 50–75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Digital: 1xDVI-D

Power: Internal Power Adapter, 3-pin plug (CEE22)
POWER

Voltage: AC 100-240V (Universal); 50/60Hz

Consumption: 22 W (typical) / 24W (maximum)

Save mode: ≦0.2W

CONTROLS

Basic:	[1], [2], power button, Down[▼], Up[▲]
OSD:	Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B], Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, OSD Pivot, Auto power off, Memory Recall

VESA MOUNT COMPLIANT

100 × 100
WEIGHT

Net: 3.91 Kg (8.62lbs)
OPERATING CONDITIONS

Humidity: 10 - 90 (%)

Temperature: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920x1080 Non Interlaced
Mac®:	1920x1080 Non Interlaced

Analogue:	1×15 pin mini D-sub
Digital:	1xDVI-D
Power:	Internal Power Adapter, 3-pin plug (CEE22)

Humidity:	10 - 90 (%)
Temperature:	0 - 40 (°C) / 32 - 104 (°F)
