LCD Display

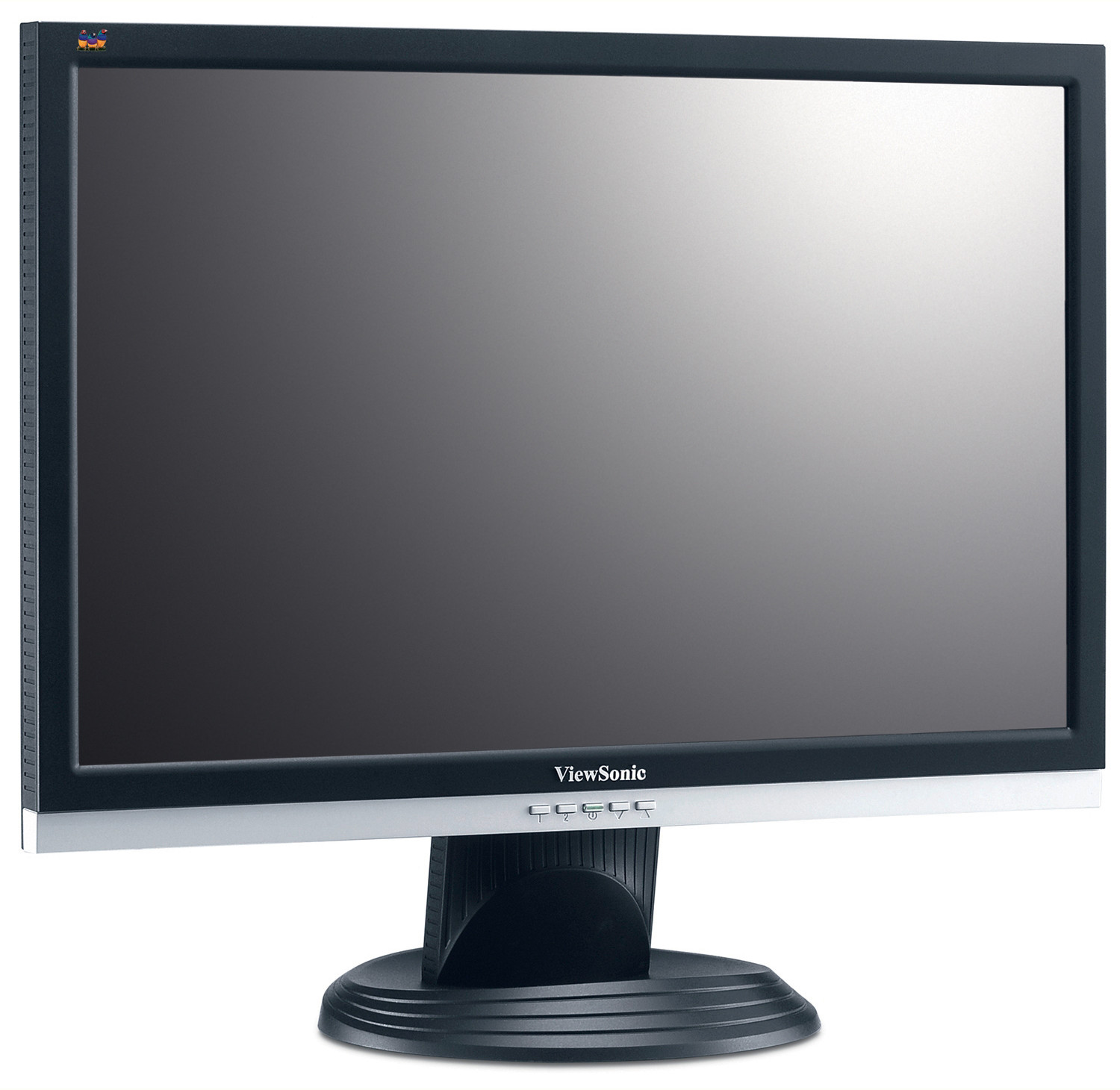

VA1616w
Key Features
Product Description
ViewSonic’s 15." VA1616w LCD brings widescreen performance to budget-conscious users. Experience EXTREME CLARITY, AMAZING COLOUR and STUNNING BRIGHTNESS with high 1366 x 768 resolution, and fast ClearMotiv™ 8ms video response. WORK IN MULTIPLE APPLICATIONS SIMULTANEOUSLY on the widescreen display. The VA1616w continues ViewSonic’s tradition of brilliant image quality and reliable performance all at an appealing price point. It’s the easy choice for home/small office users, students and Internet surfing.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 39.6cm / 15.6" Wide TN colour TFT active matrix LCD Contrast Ratio: 500:1 static (typ.) Viewing Angles: 90˚ horizontal, 65˚ vertical (at 10:1)
100˚ horizontal, 90˚ vertical (at 5:1)Brightness: 250 cd/m² (typ.) Optimum Resolution: 1366 x 768 Response Time: 8ms (off-on-off) (typ.) Light Source: Long life, 50000 hrs. (typ.) Panel Surface: Anti-glare Pixel Pitch: 0.252mm (h) x 0.252mm (v) -
COMPATIBILITY
PC: PC compatibles (from VGA up to 1440 x 900 non-interlaced) Mac®: Power Mac™ (up to 1440 x 900) -
DIMENSIONS
Physical With Stand: 376 x 328 x 165 -
CONNECTOR
Analogue: 15-pin mini D-Sub x 1 Power: 3-pin AC plug (CEE22) -
POWER
Voltage: AC 100–240V, 50/60Hz (switch) Consumption: 15W (typ.) / 20W (max.) -
CONTROLS
Basic: [1], [2], Power, Down, Up OnView®: Auto Image Adjust, Contrast/Brightness, Colour Adjust (sRGB, 9300K, 6500K, 5400K, User Colour [R, G, B]), Information, Manual Image Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness), Setup Menu (Language Select, Resolution Notice, OSD Position, OSD Time Out, OSD Background), Memory Recall -
OPERATING CONDITIONS
Temperature: 0°C – 40°C Humidity: 20%–90% (non-condensation) -
WEIGHT
Net: 2.6kg -
VIDEO INPUT
Frequency: Fh: 24–82kHz, Fv: 50–75Hz Analogue: RGB analogue (0.7 Vp-p, 75 ohm) Digital: H/V Separate (TTL) -
VESA MOUNT COMPLIANT
Meets VESA 100mm x 100mm standards -
ERGONOMICS
Tilt: 20° – -5°
