Key Features
  • HDR and Rec. 2020 compatibility
  • SuperColor™ technology
  • Dual HDMI inputs and USB power supply
  • Backlit remote control design
  • 15000 hours lamp life

PX747-4K
Product Description
The PX747-4K is a high brightness 3500 ANSI Lumens 4K UHD projector for living room entertainment. Packed with 3500 ANSI Lumens of brightness, this projector is guaranteed to project high quality images in any lighting. PX747-4K leverages the latest XPR technology to project 8.3 megapixels of true 4K UHD resolution for maximum big screen detail. The projector supports HDR enhanced content to produce highly detailed images with more information in the darker and brighter part of a scene for an unmatchable viewing experience. Dual HDMI inputs offer quick connection to an array of devices, while the integrated USB power supply can be used as a power source for connected dongles and devices.

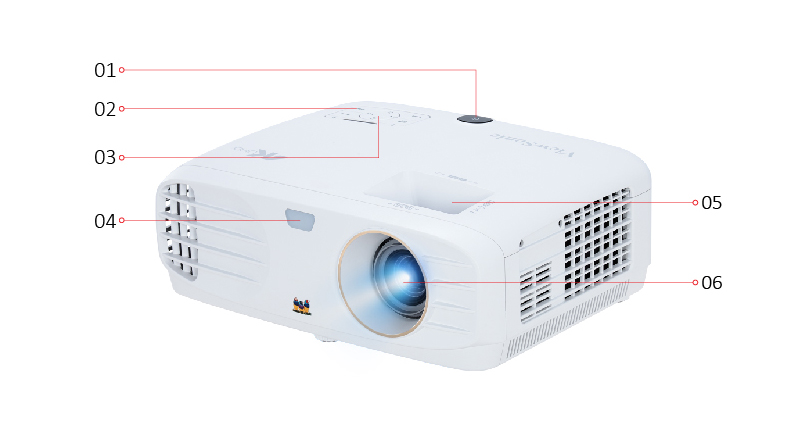

  1. Power key & Top IR
  2. Keypad
  3. LED indicator
  4. Front IR
  5. Zoom/Focus
  6. Projection lens

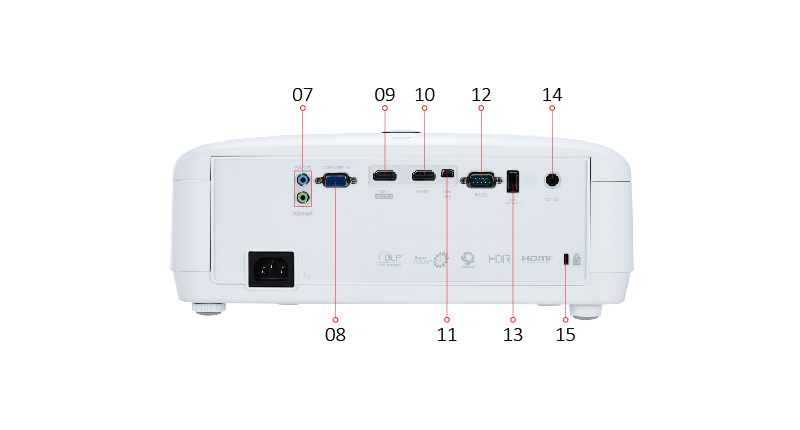

  7. Audio in/out
  8. Computer in
  9. HDMI 1 (HDCP 2.2)
  10. HDMI 2
  11. Mini USB for service
  12. RS232
  13. USB 5V/1.5A out
  14. 12V Trigger
  15. Kensington lock
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 3840x2160
    DC type: DC3
    Brightness: 3500 ANSI Lumens
    Contrast Ratio with SuperEco mode: 12000:1
    Display Colour: 1.07 Billion Colours
    Light Source: Lamp
    Light source life (Nor/SuperEco): 4000/15000
    Lamp Watt: 240W
    Lens: F=1.94-2.06, f=15.57-18.67mm
    Projection Offset: 120%+/-6%
    Throw Ratio: 1.47-1.76
    Image size: 30" - 300"
    Throw Distance: 0.97m-11.69m (100"@3.26m)
    Keystone: ±40° (Vertical)
    Optical Zoom: 1.2x
    Audible Noise (Eco): 27dB (Silence mode)
    Resolution Support: VGA (640 x 480) to 4K (3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p,2160p
    Horizontal Frequency: 15K~135KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (D-SUB 15 pin): 1
    Audio-in (3.5mm): 1
    HDMI (HDCP): 2
    (HDMI 2.0/HDCP2.2 x1, HDMI1.4/HDCP 1.4 x1)
  • OUTPUT
    Audio out (3.5mm): 1
    Speaker: 10W
    USB type A (Power): 1 (5V/1.5A)
    12V Trigger: 1
  • CONTROL
    RS232: 1
    USB type mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 330WStandby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Color
    Net Weight: 4.2kg
    Dimensions (WxDxH) w/adjustment foot: 332x261x135mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Remote Control: 1 (with backlit)
    QSG: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-117
