Key Features
  • 1.3X optical zoom
  • SuperColor™ technology
  • Energy-efficient SmartEco+ Mode
  • Vertical Lens Shift
  • vColorTuner

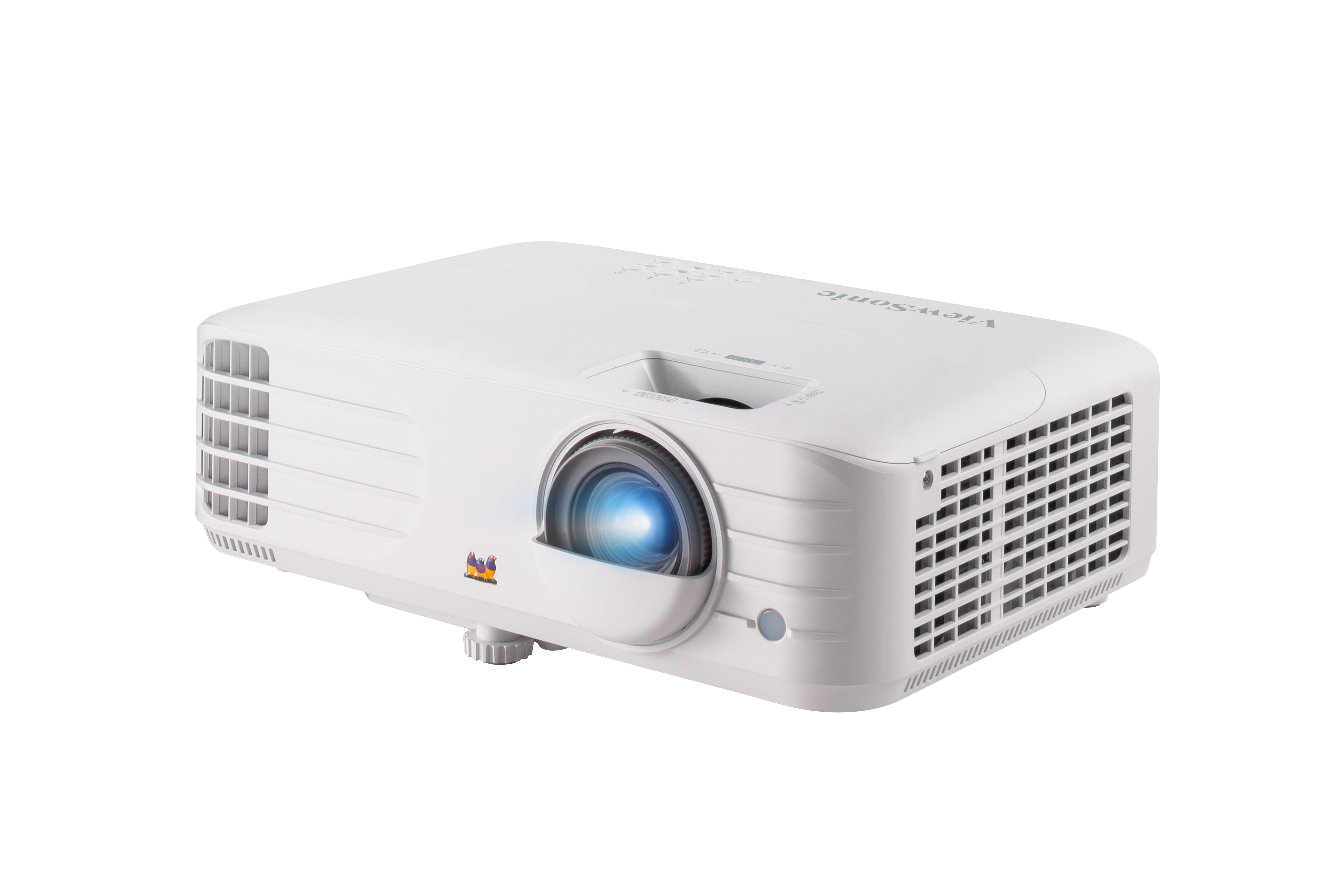

PX703HD
Product Description
The ViewSonic PX703HD is a practical Home Cinema Projector, featuring 3500 ANSI lumens, 1080p Full HD resolution, and ViewSonic’s exclusive SuperColor™ technology, which together produce the finest of details and stunning colour in any medium sized space. The projector comes with an energy-saving SuperEco+ mode that reduces power consumption and extends lamp life to up to 20,000 hours, reducing the frequency of lamp replacement and lowering maintenance costs. Digital lens shift and H/V keystone help users easily set up the projector at any angle. Dual HDMI input and USB power supply further increase the flexibility of the user’s entertainment experience.

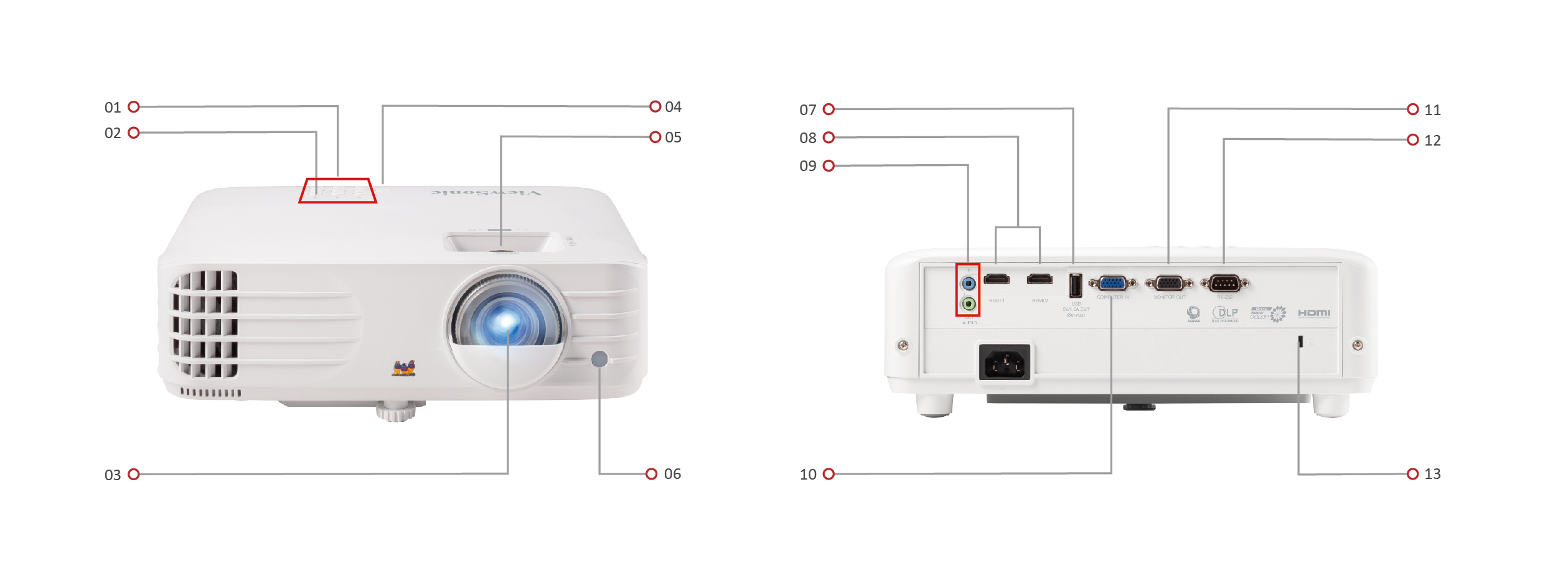

  1. Keypad
  2. LED Indicator
  3. Lens
  4. Power Key
  5. Zoom/Focus
  6. Front IR
  7. USB Type A
  8. HDMI Port
  9. Audio In/Out
  10. Computer In
  11. Computer Out
  12. RS-232
  13. Kensington Lock
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.47" 1080p
    Native Resolution: 1920x1080
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=1.9-2.47, f=12-15.6mm
    Projection Offset: 110%+/-6%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.75m-9.76m
    (100"@2.5m)
    Keystone: +/- 40° (V)
    Lens Shift V. Range: +/- 5% (Digital)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 300W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.62kg
    Gross Weight: 3.78kg

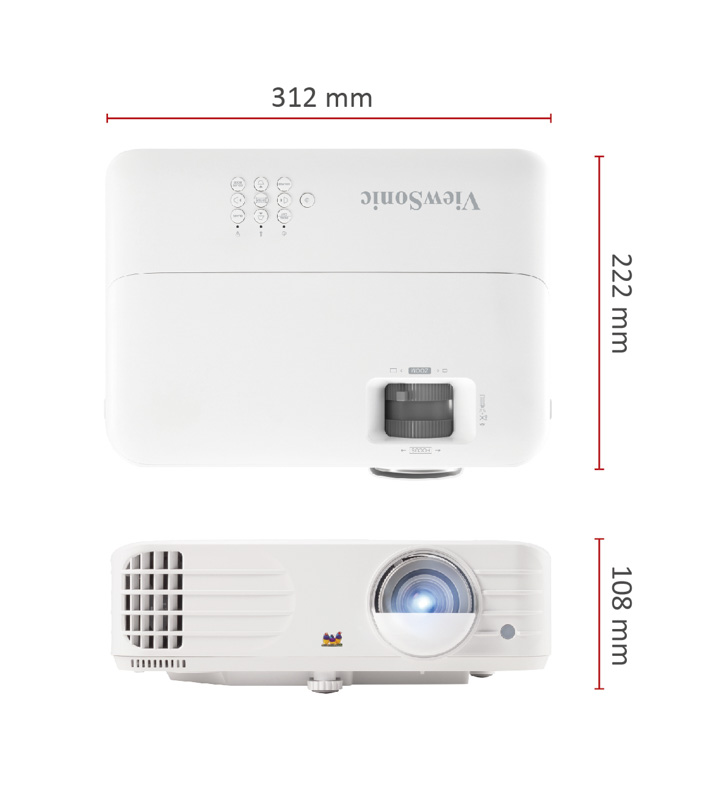

    Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
    Packing Dimensions: 415x168x297mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-123
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
