Key Features
  • Larger screen size with lower cost-per-inch
  • Throw ratio match & 1.3x zoom for hassle-free equipment upgrade
  • Energy-efficient 20,000 hours lamp life
  • Comprehensive LAN control for efficient management
  • H/V Keystone adjustment enabling side projection

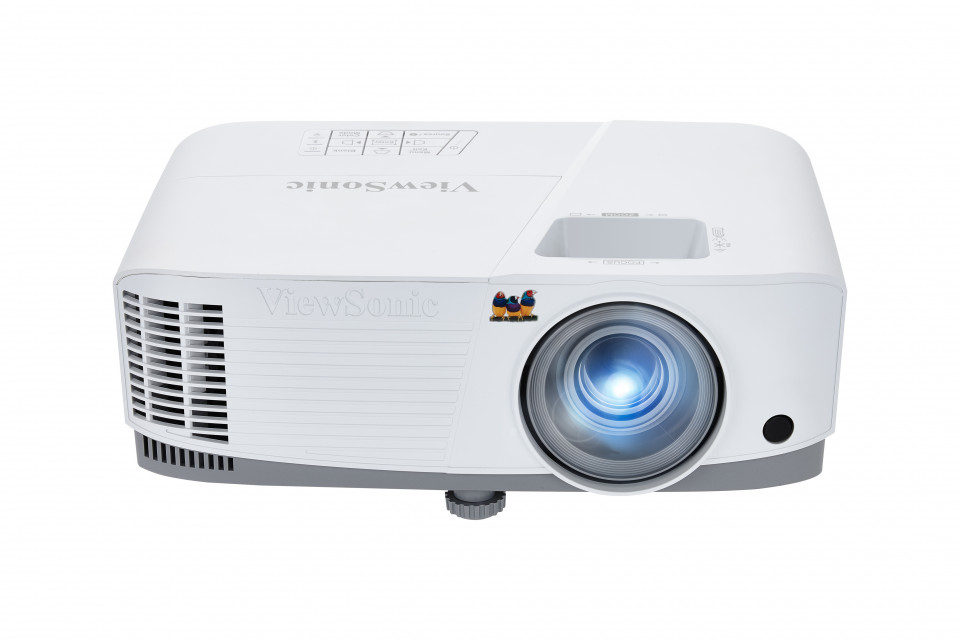

PG707X
Product Description
ViewSonic PG707X is a practical 4,000 ANSI Lumens XGA business/education projector. With a throw ratio match for mainstream installation conditions and 1.3x optical zoom, it serves as a hassle-free upgrade choice for users to easily get bright and large images with low cost-per-inch in small-to-medium meeting/training rooms. Adding on to that are the energy-efficient 20,000 hours long lamp life and comprehensive LAN control compatibility, making it even more favorable to cost-effective and efficient management.
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projection Offset: 115%+/-5%
    Throw Ratio: 1.51-1.97
    Optical Zoom: 1.3x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.9m-12m, (100"@3.1m)
    Keystone: H:+/-40° , V:+/-40°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 28dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz

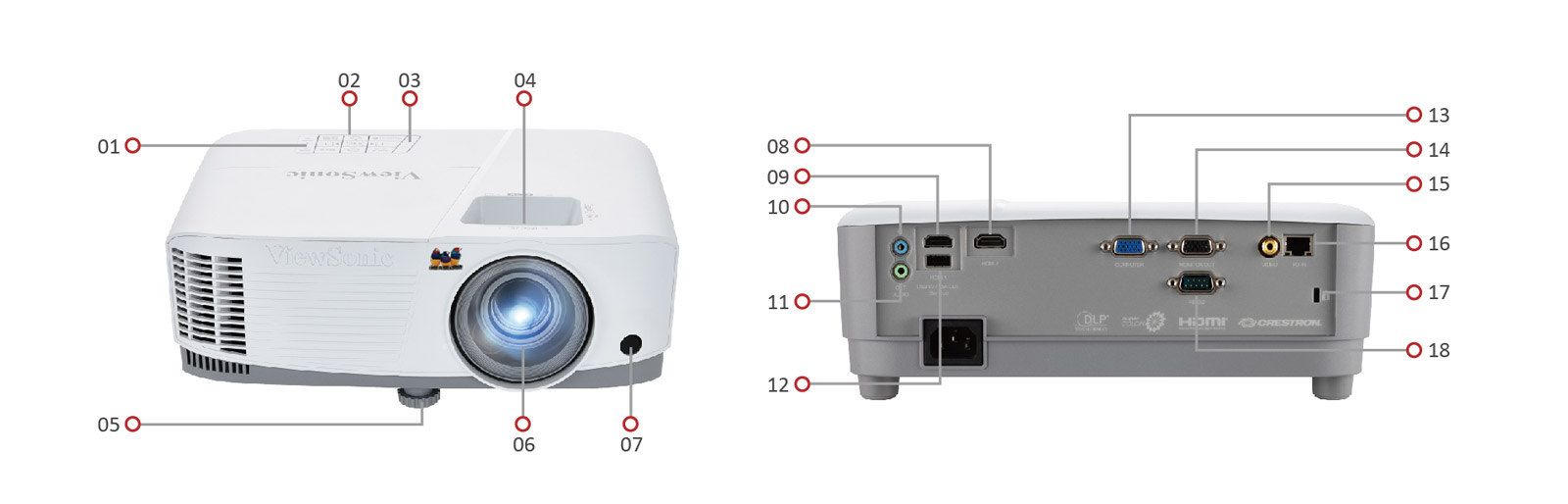

  • INPUT
    Computer in (share with component): 1
    Composite: 1
    HDMI: 2 (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz, (AC in)
    Power Consumption: Normal: 280W, Standby: <0.5W
    Operating Temperature: 0~40℃
    Net Weight: 2.35kg
    Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1 , (w/ laser pointer)
    QSG: 1
