Projector
LSD600W
Key Features
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
- 6,000 ANSI Lumens offering bright images in any environment
- Up to 300" ultra large screen with lower cost-per-inch
- High native contrast ratio powered by a 0.65” DMD chip based on DLP technology
- Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
Product Description
The LSD600W is a lamp-free high-brightness projector line up designed for corporate and commercial environments. With its adoption of the 3rd generation laser phosphor technology, it delivers 6,000 ANSI Lumens for up to 30,000 hours, ensuring bright and vivid images without lamp replacement. The lamp-free design offers an eco-friendly and cost-effective solution, while the projector‘s light weight and compact design reduces transportation costs. With up to 300“ projection and high native contrast, it is well-suited for boardrooms, public, and sports simulation spaces. This projector features a 1.3x optical zoom, H/V keystone, 4 corner adjustment, 360° projection, and a portrait mode for easy setup and versatile applications.

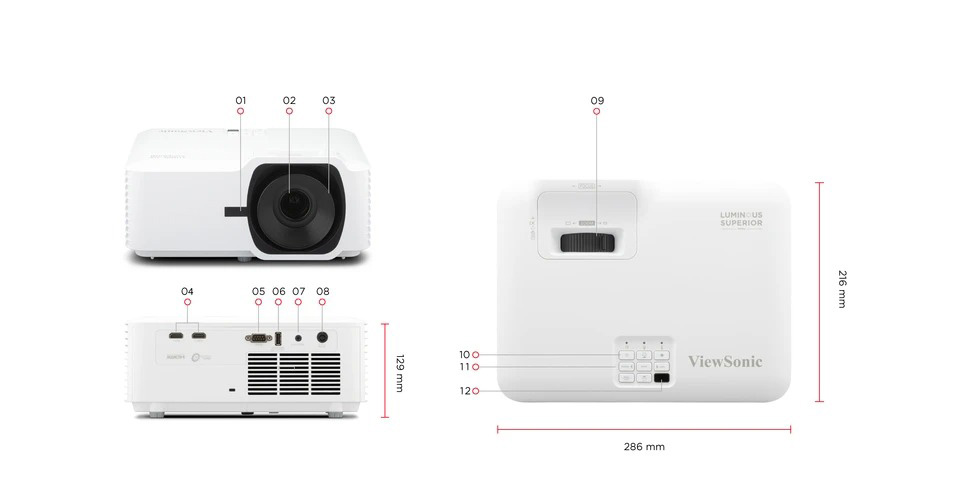

- Front IR
- Lens
- Focus Ring
- HDMI 1.4/HDCP 1.4
- RS232
- USB-A (5V/1.5A, Service)
- Audio Out
- DC in
- Zoom Ring
- Power Button
- Keypad
- Top IR
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Projection System: 0.65" WXGA Native Resolution: 1280x800 Brightness: 6000 (ANSI Lumens) Brightness (Center Lumens): 6600 Contrast Ratio: 3000000:1 Display Colour: 1.07 Billion Colours Light Source Type: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lens: F=2.43-2.78, f=16.90-21.61mm Projection Offset: 124%+/-10% Throw Ratio: 1.18-1.54 Optical Zoom: 1.3X Digital Zoom: 0.8x-2.0x Image Size: 30"-300" Throw Distance: 0.76-9.95m
(100"@2.54m)Keystone: H:+/-30° , V:+/-30° Audible Noise (Normal): 32dB Audible Noise (Eco): 27dB Input Lag: 25ms Resolution Support: VGA(640 x 480) to WUXGA RB(1920 x 1200)
*RB-Reduced BlankingHDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Horizontal Frequency: 15K-102KHz Vertical Scan Rate: 24-120Hz Warranty: 3 Year Swap [Light source 3 Years or 20,000 hours] -
INPUT
HDMI: 2
(HDMI 1.4, HDCP 1.4) -
OUTPUT
Audio-out (3.5mm): 1 Speaker: 15W USB Type A (Power): 1 (5V/1.5A) -
CONTROL
RS232 (DB 9-pin male): 1 USB Type A (Services): 1
(share with USB A Output) -
OTHERS
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 11.79APower Consumption: Normal: 163W
Standby: <0.5WOperating Temperature: 0~40℃ Carton: Brown Net Weight: 2.90kg Gross Weight: 4.60kg Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm Packing Dimensions: 400x280x155mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 Remote Control: 1 QSG: Yes -
OPTIONAL ACCESSORY
Wall/Ceiling Mount: PJ-WMK-007 Carry Bag: PJ-CASE-008
