Projector
LSD500HD
Key Features
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
- 5,500 ANSI Lumens offering bright images in any environment
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Centralised LAN control for efficient management
- Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
Product Description

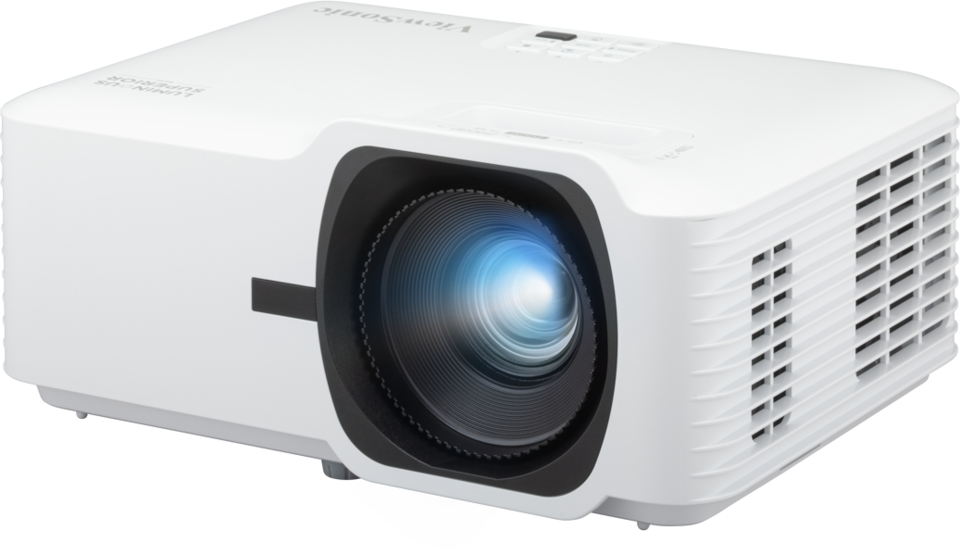

The LSD500HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its comprehensive LAN control enables centralised management, making it ideal for boardrooms, public, and sports simulation spaces. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. This projector offers flexible setup, equipped with features like a 1.3x optical zoom, H/V keystone, and 360° projection capabilities, possibilities.

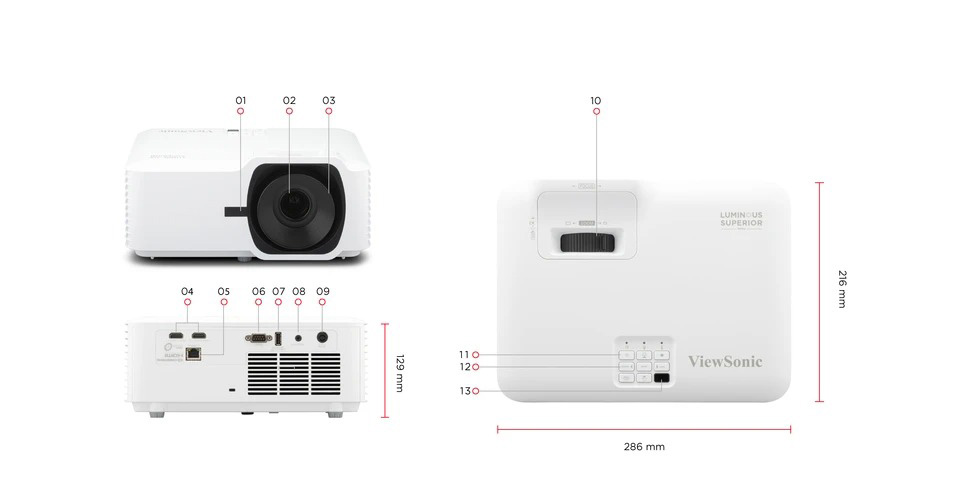

- Front IR
- Lens
- Focus Ring
- HDMI 2.0b/HDCP 2.2
- RJ45
- RS232
- USB-A (5V/1.5A, Service)
- Audio Out
- DC in
- Zoom Ring
- Power Button
- Keypad
- Top IR
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Projection System: 0.65" 1080P Native Resolution: 1920x1080 Brightness: 5500 (ANSI Lumens) Brightness (Center Lumens): 6000 Contrast Ratio: 3000000:1 Display Color: 1.07 Billion Colors Light Source Type: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lens: F=2.43-2.78, f=16.90-21.61mm Projection Offset: 132%+/-10% Throw Ratio: 1.13-1.47 Optical Zoom: 1.3X Digital Zoom: 0.8x-2.0x Image Size: 30"-300" Throw Distance: 0.75-9.76m
(100"@2.50m)Keystone: H:+/-30° , V:+/-30° Audible Noise (Normal): 32dB Audible Noise (Eco): 27dB Input Lag: 16.8ms Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Horizontal Frequency: 15K-135KHz Vertical Scan Rate: 24-120Hz -
INPUT
HDMI: 2
(HDMI 2.0, HDCP 2.2) -
OUTPUT
Audio-out (3.5mm): 1 Speaker: 15W USB Type A (Power): 1 (5V/1.5A) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
OTHERS
Power Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 11.79APower Consumption: Normal: 165W
Standby: <0.5WOperating Temperature: 0~40℃ Carton: Brown Net Weight: 2.90kg Gross Weight: 4.60kg Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm Packing Dimensions: 400x280x155mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 Remote Control: 1 QSG: Yes Warranty Card: Yes (CN Only) -
OPTIONAL ACCESSORY
Wall/Ceiling Mount: PJ-WMK-007 Carry Bag: PJ-CASE-008
