Key Features
  • 5,000 ANSI Lumens offering bright images in any environment
  • 2nd generation Laser Phosphor technology with 20,000 hours lifespan
  • 360° projection and 1.3x optical zoom for flexible installation
  • Cost-effective compact size
  • Throw ratio match for a hassle-free equipment upgrade

LS750WU
Product Description
The ViewSonic LS750WU is a 5,000 ANSI Lumens WUXGA laser projector for installation. Adopting the 2nd generation laser phosphor technology, it offers high and consistent brightness for a reliable light source life of 20,000 hours. 1.3x optical zoom and 360° projection make for satisfying flexibility. In addition, the compact size and throw ratio match for a hassle-free equipment upgrade, ensuring the desired cost-effectiveness. The LS750WU serves as a reliable projector to ensure your installations are smooth and sound, especially ideal for medium-to-large meeting/training rooms and public displays.

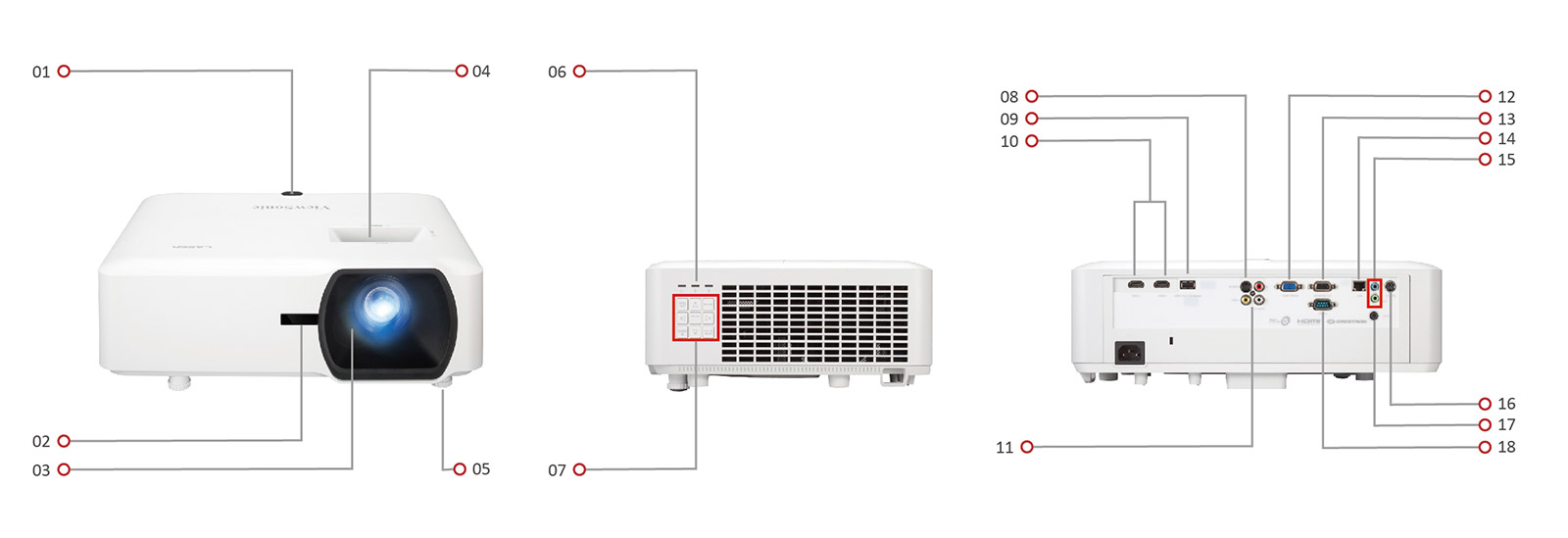

  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Zoom/Focus Ring
  5. Adjustment Foot
  6. LED Indicator
  7. Keypad
  8. S-Video
  9. USB Type A(5V/1.5A)
  10. HDMI X 2
  11. Composite
  12. Computer In
  13. Monitor Out
  14. LAN
  15. Audio In & Out
  16. 3D VESA
  17. 12V OUT
  18. RS-232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 5000 ANSI Lumens
    Contrast Ratio: 3000000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lamp Watt: Nichia 67W x2
    Lens: F=1.94-2.06, f=12-15.6mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.73-9.50m
    (100"@2.43m)
    Keystone: H:+/-40° , V:+/-40°
    Audible Noise (Normal): 35dB
    Audible Noise (Eco): 28dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2
    (HDMI 1.4a/HDCP1.4 x2)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
    RJ45 Input: 1
    (LAN control)
  • OUTPUT
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/ 1.5A)
    (share with service)
    12V Trigger (3.5mm): 1 (3.5mm)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45: 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 430W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Net Weight: 5.9kg
    Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    (w/ laser pointer)
    QSG: 1
