Key Features
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.

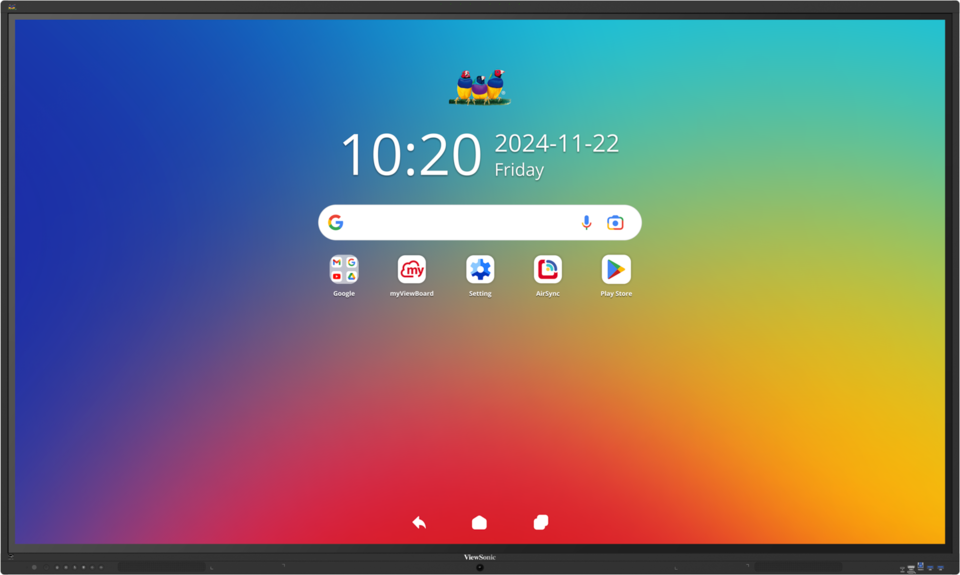

ViewBoard IFP8641-1-1C
Product Description
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.
  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 800 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 86"
    Panel Type: TFT LCD Module with DLED Backlight
    Display Area (mm): 1895.04mm(H) x 1065.96mm (V)(85.6" diagonal)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160
    Colors: 1.07B colors
    Brightness: 450 nits
    Contrast Ratio: 5000:1 (max. with DCR enabled)
    Response Time: 6.5ms
    Viewing Angles: H = 178°, V = 178° typ.
    Backlight Life: 50,000 hours
    Surface Treatment: Hardness:9H, Anti-glare coating
    Orientation: Landscape
  • PLATFORM
    Processor: Octa-Core CPU
    RAM: 8GB
    Storage: 128GB
  • TOUCH
    Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
    Touch Resolution: 32767×32767
    Touch Point: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI 2.1 4K@60Hz with CEC, ARC)x1+(HDMI 2.1 4K@60Hz with CEC)x1]
    RGB / VGA: x1
    DisplayPort: x1
    Audio: x1
    RS232: x1
    SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    Audio: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    Type A: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    Type B: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    Type C: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • SPEAKERS
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • EMBEDDED OS
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    Basic Annotation Software: myViewBoard for Android
    Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
    Wireless Presentation: AirSync
    Device Management: Manager
    ViewSonic Launcher: Yes
  • SPECIAL FEATURES
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • POWER
    Voltage: 100-240V AC +/- 10% Wide Range
    Consumption: On:93.99 W ; Off:< 0.5 W
  • ERGONOMICS
    Wall Mount (VESA® ): 800x600
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 77.04 x 46.08 x 3.44 in / 1956.7 x 1170.5 x 87.4mm
    Packaging (inch / mm): 82.68 x 50.91 x 6.93 in / 2100 x 1293 x 176 mm
  • WEIGHT
    Net (lb / kg): 128.31 lb / 58.2 kg
    Gross (lb / kg): 160.72 lb / 72.9 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • ENERGY STAR VERSION
    8.0
  • EEI RATING
    D
  • PACKAGE CONTENTS
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
  • COMPATIBLE SLOT-IN PC
    VPCF5-S55-G1-2A /VPCF5-W55-G1-2A / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1
