Key Features

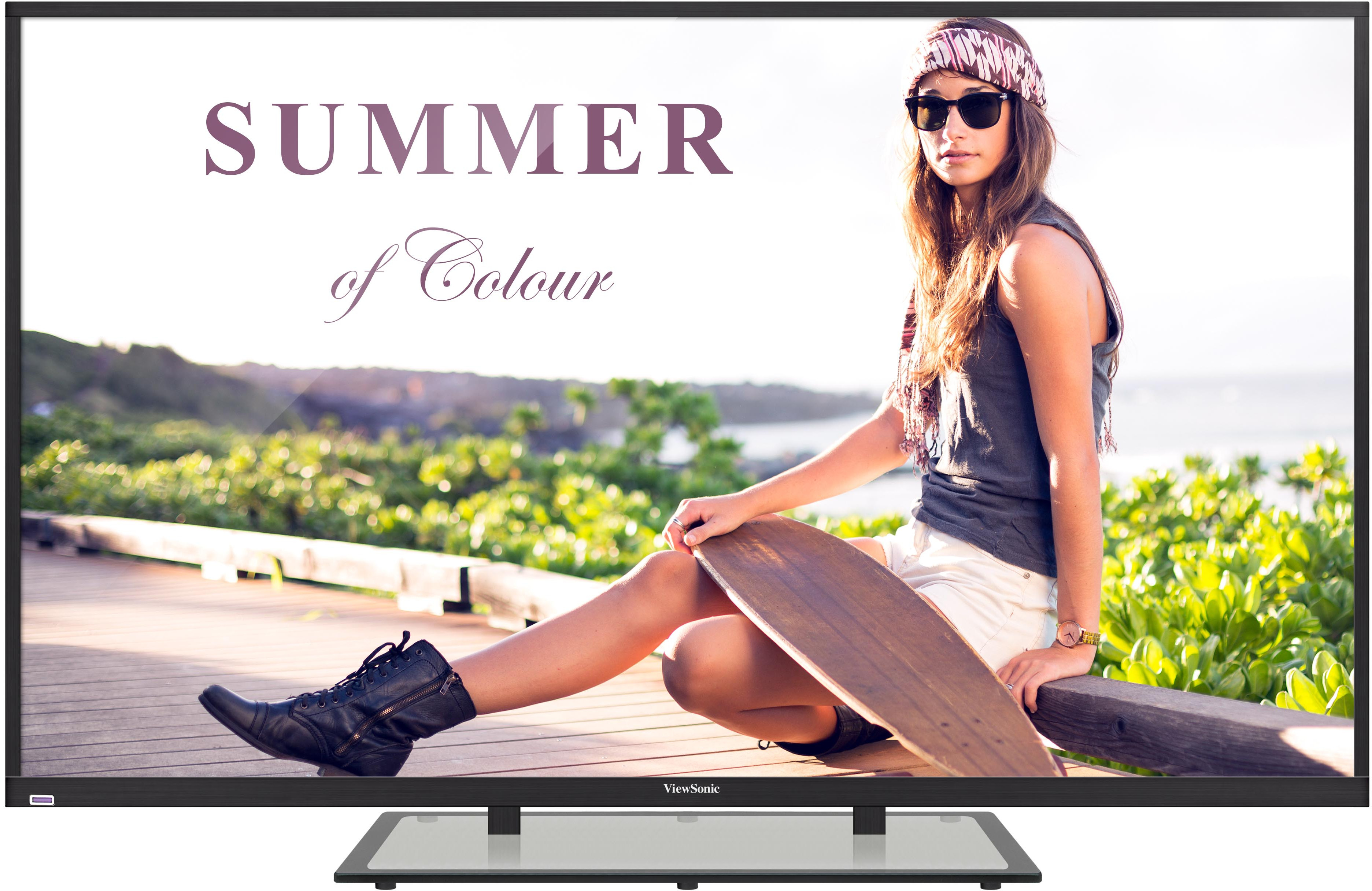

CDE6500-L
Product Description
The ViewSonic CDE6500-L is a 65’’ (64.5’’ viewable) commercial-grade LED display that provides high-impact messaging in hotels, restaurants, and other businesses. The built-in media player supports USB playback of photos and music, as well as direct content cloning with hospitality mode—this provides an easy and efficient way for loading content onto multiple displays. This display features Full HD resolution, SuperClear® wide-angle viewing technology, 350-nit brightness, 5000:1 native contrast ratio, and dual integrated 10W speakers to deliver crystal-clear multimedia content to targeted audiences. Versatile connectivity options include HDMI (x3), VGA, Composite, YPbPr, RS232, and SPDIF interface for easy installation and control of a variety of high-definition devices. It also supports RS232 with IR pass-through and HDMI CEC pass-through, providing easy management and control of multiple-display installations with connected HD set-top boxes, media players, and Blu-ray™ players.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: TFT LCD Module with WLED Backlight
    Contrast Ratio: 5000:1 Typ.
    Viewing Angles: 176° horizontal /176° vertical
    Display Area: 1428.5(H) x 803.5 (V) (64.5” diagonal)
    Optimum Resolution: 1920 x 1080
    Response Time: 6.5ms
    Aspect Ratio: 16:9
    Panel Surface: Anti-Glare coating (Haze 1%)
    Colour Support: 1.07M
    Size: 65” (64.5” viewable)
    Brightness: 350 cd/m2
    Backlight: LED
    Backlight Life: 30,000 Hours Typ
  • COMPATIBILITY
    HDMI: 480i, 480p, 720p, up to 1080p
    YPbPr: 480i, 480p, 720p, up to 1080p
    RGB PC / HDMI PC: Refer to timing table
  • CONNECTOR
    HDMI (input): x 3 (Version 1.3)
    RS-232: x 1
    Remote: Remote Control Out x 1
    USB: x 1
    PC-VGA-Out: x 1
    Audio In: 3.5 mm x 1
    CVBS: x 1
  • DIMENSIONS
    Physical With Stand: 57.6 x 37.1x 11.0 / 1462.8 x 942.4 x 280 (inch/mm)
    Physical Without Stand: 57.6 x33.8 x2.9/ 1462.8 x 857.1 x 74.3 (inch/mm)
    Packaging: 60.7x39.4x 8.9 / 1540 x 1000x 225 (inch/mm)
  • PACKAGE CONTENTS
    1. CDE6500-L display with glass stand

    2. Remote control with batteries

    3. Power cord (EU, UK)

    4. User Guide (CD, 5 languages, English/ French/Spanish/German/ Russian)

    5. Quick Start Guide (Hard Copy, 1 languages, English for VSA ; 4 languages, English, French, German, Russian for VSE)

    6. Screw driver (to mount the stand)

    *Actual content may differ from market to market
  • AUDIO
    Speaker: 10W x 2
    RCA: x 1
    Earphone output: x 1
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: 130 W (Power Saving), 160 W (typ), 180 W (max)
  • CONTROLS
    Picture: Picture Settings Picture Mode(Power Saving/Dynamic/Stander/Movie/User),
    Screen Size ( Wide/Cinema/Zoom/Normal)
    PC Settings
    Colour Temparature ( Normal/Warm/Cool)
    Backlight (Medium/High/Low)
    Advanced Picture Settings(Dynamic Contrast-Low/Medium/high/off; Film Mode-on/off; HDMI Mode ( Video/PC) ; Noise Reduction-Low/Medium/high/off; MPEG Noise Reduction- low/Medium/high/off.
    Set Up: Closed Caption, Menu Language (English/French/Spanish/German/Portuguese), Clock, OSD Transparency, OSD Timer.
    Configuration 1: Lock Parent Control, V-CHIP,Change Password, Keypad Lock, Source Lock, System Lock.
    Configuration 2: No Signal Power Off, No Operation Power Off, User Monitor, Audio Only, TV ID, All Reset.
    Sound: Sound Setting (Standard/Soft/User/Dynamic), Analog Sound, Digital Sound, Digital Audio Output, Equalizer Setting.
  • VESA® MOUNT
    400 x 400mm
  • WEIGHT
    Gross: 125.6/ 57 (lb / kg)
    Net With Stand: 92.3/ 42 (lb / kg)
    Net Without Stand: 82.0/ 37.2 (lb / kg)
  • OPERATING CONDITIONS
    Humidity: 20% ~ 80% non-condensing
    Temperature: 32°F to 104°F (0°C to 40°C)
  • WARRANTY
    **Warranty offered may differ from market to market. Please check local ViewSonic website for details.
  • VIDEO I/O
    YPbPr in: x 1
  • AUDIO I/O
    SPDIF out: x 1 (optical)
