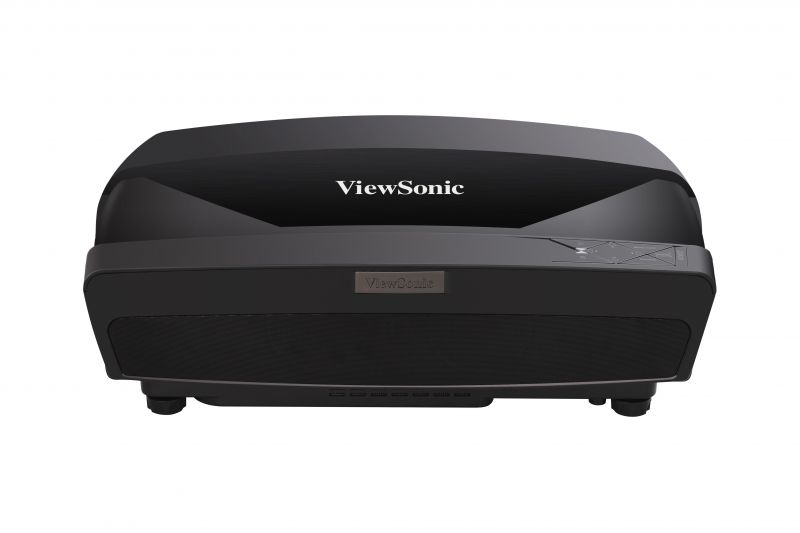

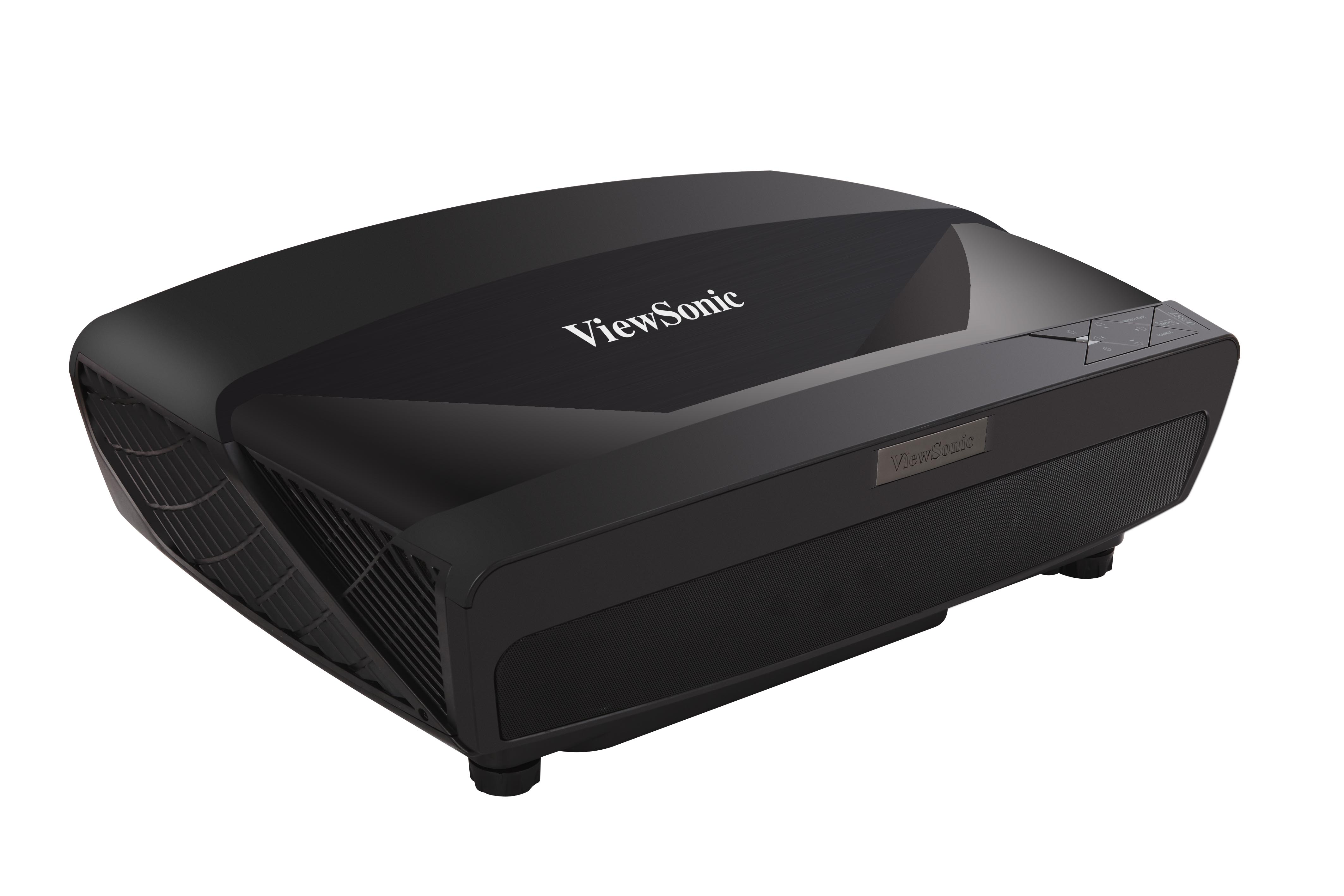

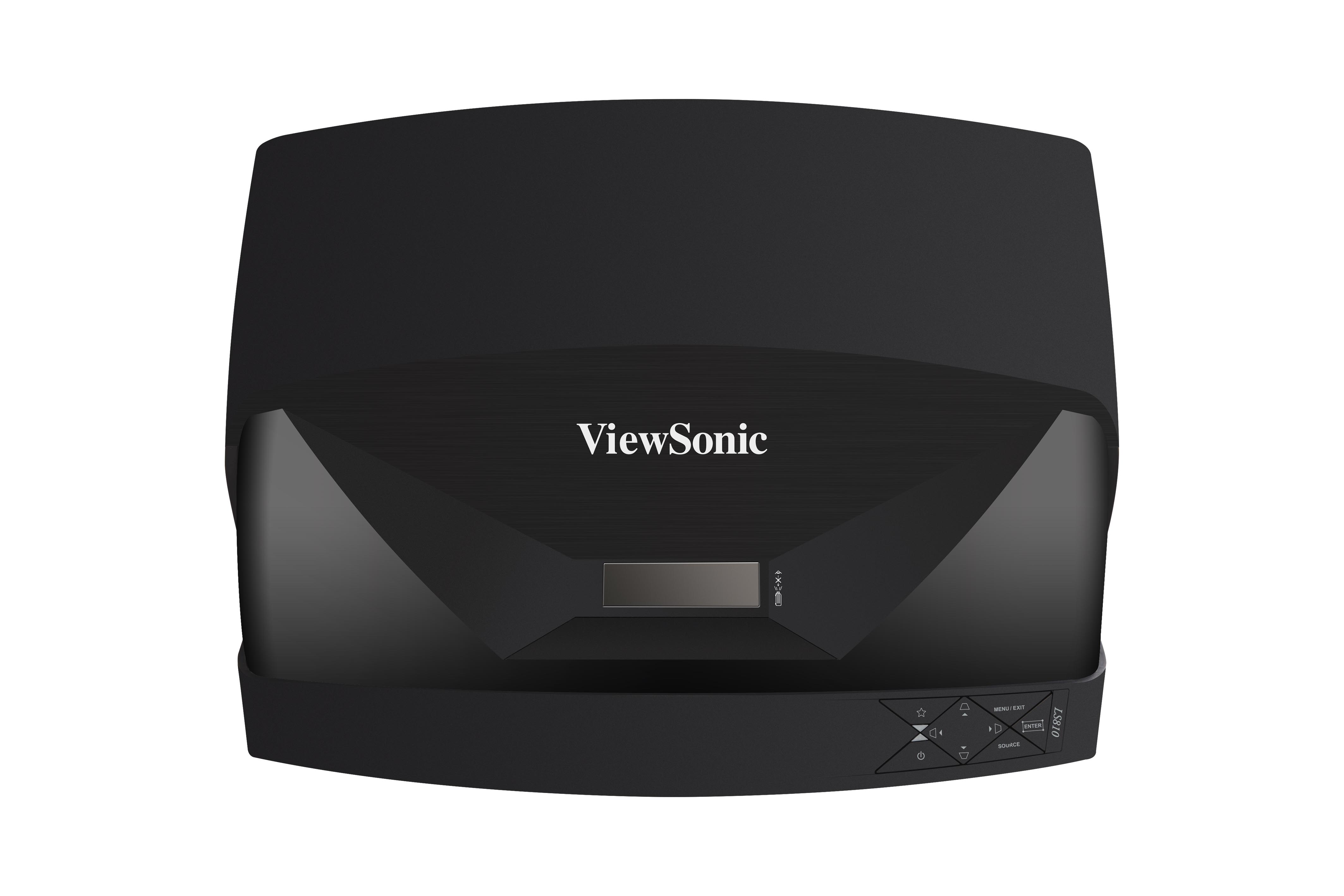

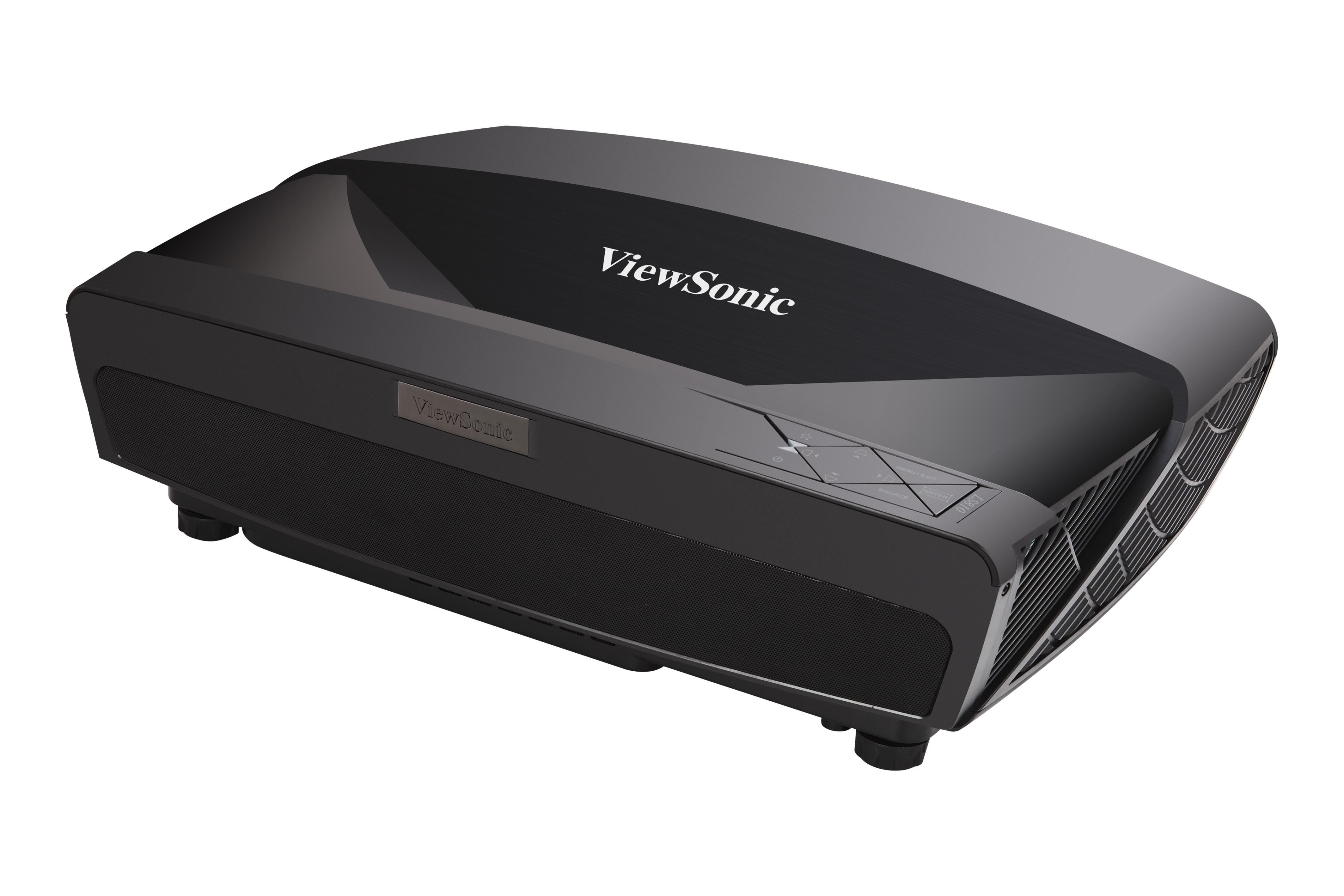

LS810
5,200 Lumens Installation Projector
- Laser phosphor technology
- 20,000 hours lifespan
- 0.24 ultra-short throw ratio
- Wide colour gamut coverage
- Ultra-high contrast ratio 100,000:1
SPECIFICATIONS
- DISPLAYType: TI DMD 0.65
Resolution: 1280x800 (WXGA)
F Stop / Focal Length mm: 2.4
Focus / Zoom: Adjustable by OSD menu / N/A
Keystone: +/- 30° (Horizontal / Vertical)
Auto keystone: Yes (Vertical)
Display Size: 80" ~ 150"
Throw Distance: 0.43 m ~ 0.8 m
Throw Ratio: 0.241
Lamp Power: 390 W
Lamp Life (Normal / SuperEco Mode): 15,000 / 20,000 (Ecco mode) (hours)
Brightness: 5,200 ANSI Lumens
Contrast Ratio: 100,000:1
Color Depth: 1.07 Billion Colors (30 bits per color)
Color Wheel: Dual Wheel System (RYGW) / 7200rpm
Optical Offset : 137.6 +-5% - AUDIOSpeaker: 8W Cube x2
- INPUT SIGNALVideo: 480i and 576i, 480p and 576p, 720p, 1080i, 1080p
Frequency (H/V): 15 ~ 100 KHz / 24 ~ 120 Hz
- COMPATABILITYPC: Support up to 1920x1080@60Hz

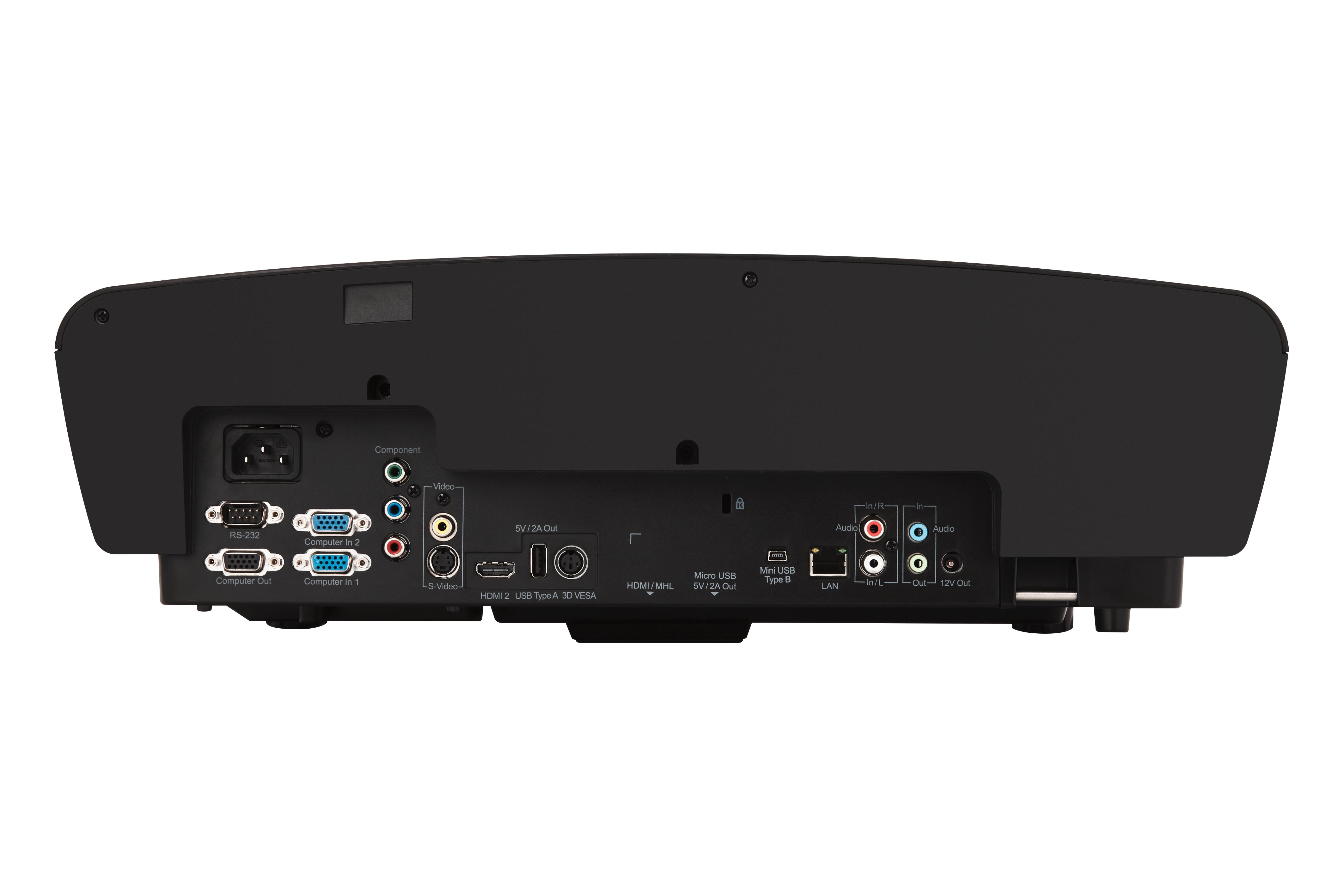

Mac: Support up to 1920x1080@60Hz - CONNECTORVGA Input: x2
VGA Output: x1

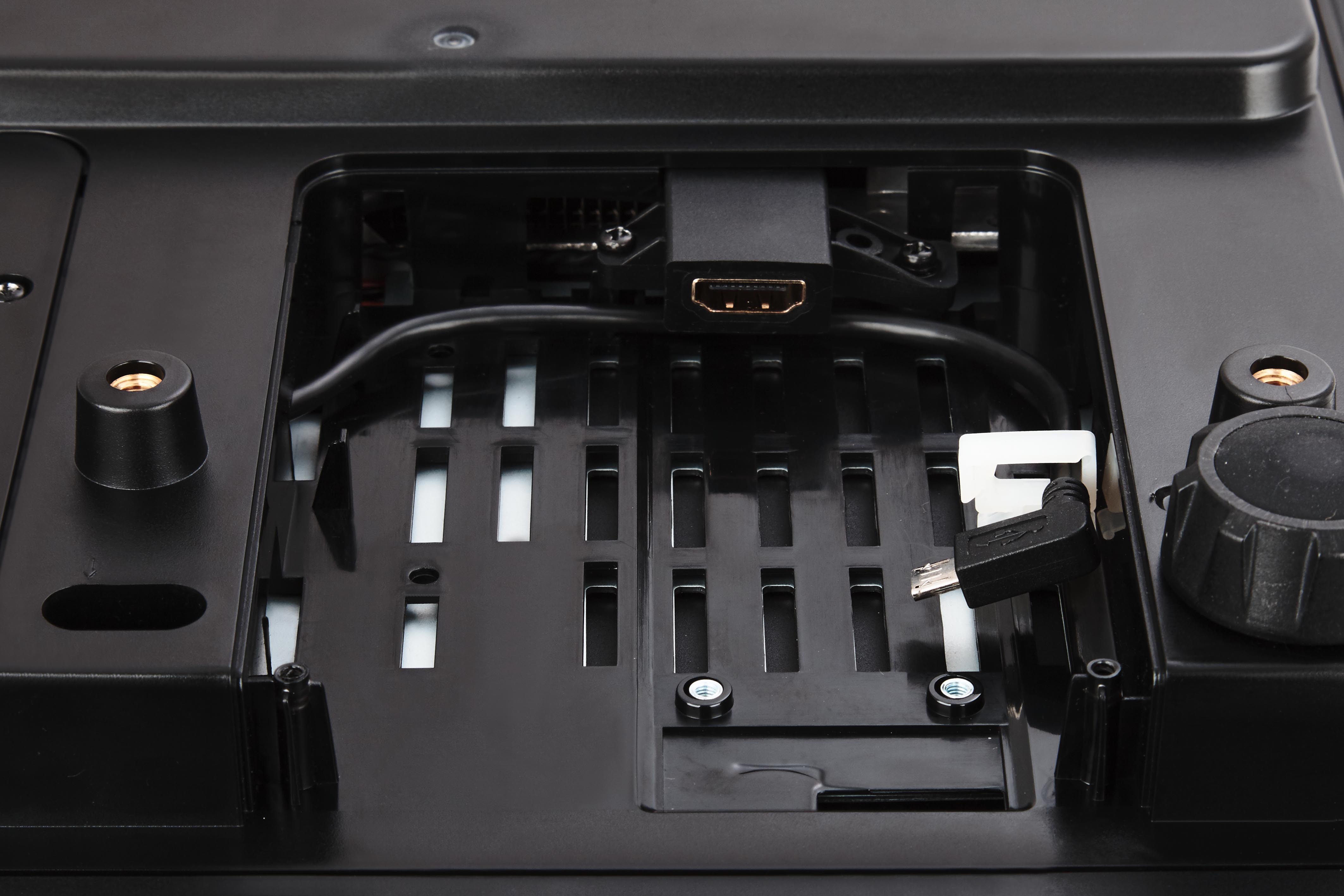

Digital Input: HDMI x1 / HDMI (MHL2.0) x1
Composite Input: RCA x1
S-Video Input: x1
Component: x2 (Share with VGA input )
Audio Input: 3.5mm mini jack x1, RCA(L/R) x1
Audio Output: 3.5mm mini jack x1, RCA(L/R) x1
Control: RS-232
USB: Type A x1 (Power Charging) / Mini type B x1 (Maintenance and mouse control) / Micro USB Wire x1 (Power Charging)
Lan: x1
3D VESA: x1
DC Output: x1 - POWERVoltage: 100~240Vac 50/60Hz (Auto Switching)
Power Consumption: 450 W (Max.)
Standby: <0.5W - OPERATING CONDITIONTemperature: 0°C ~ 40°C (32°F ~ 104°F)
Humidity: 0% ~ 90% (non-condensing) - NOISE LEVELNormal / Eco Mode: 28dB (Eco Mode)
- DIMENSIONSPhysical (WxDxH): 508 x 392 x165 mm/ 20” x 15.43 ” x 6.5”
- WEIGHTNet: 13.6 kgs / 29.96 lbs
- PACKAGE CONTENTSPower Cord, 1.8m, black 1 /VGA Cable, 1.8m, black x 1 / Remote Control with Batteries (With Laser pointer) x1 / Quick Start Guide (one sheet version) x1 / ViewSonic CD Wizard (With User Manual) x 1 /HDMI Cable
