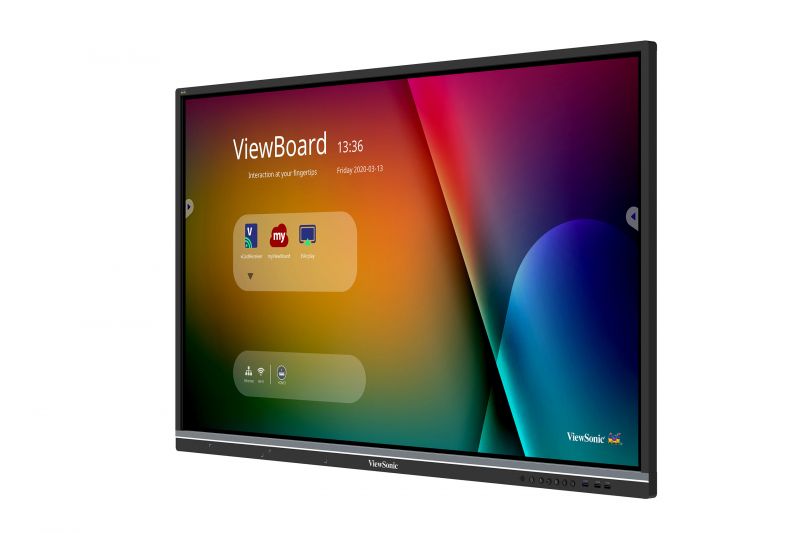

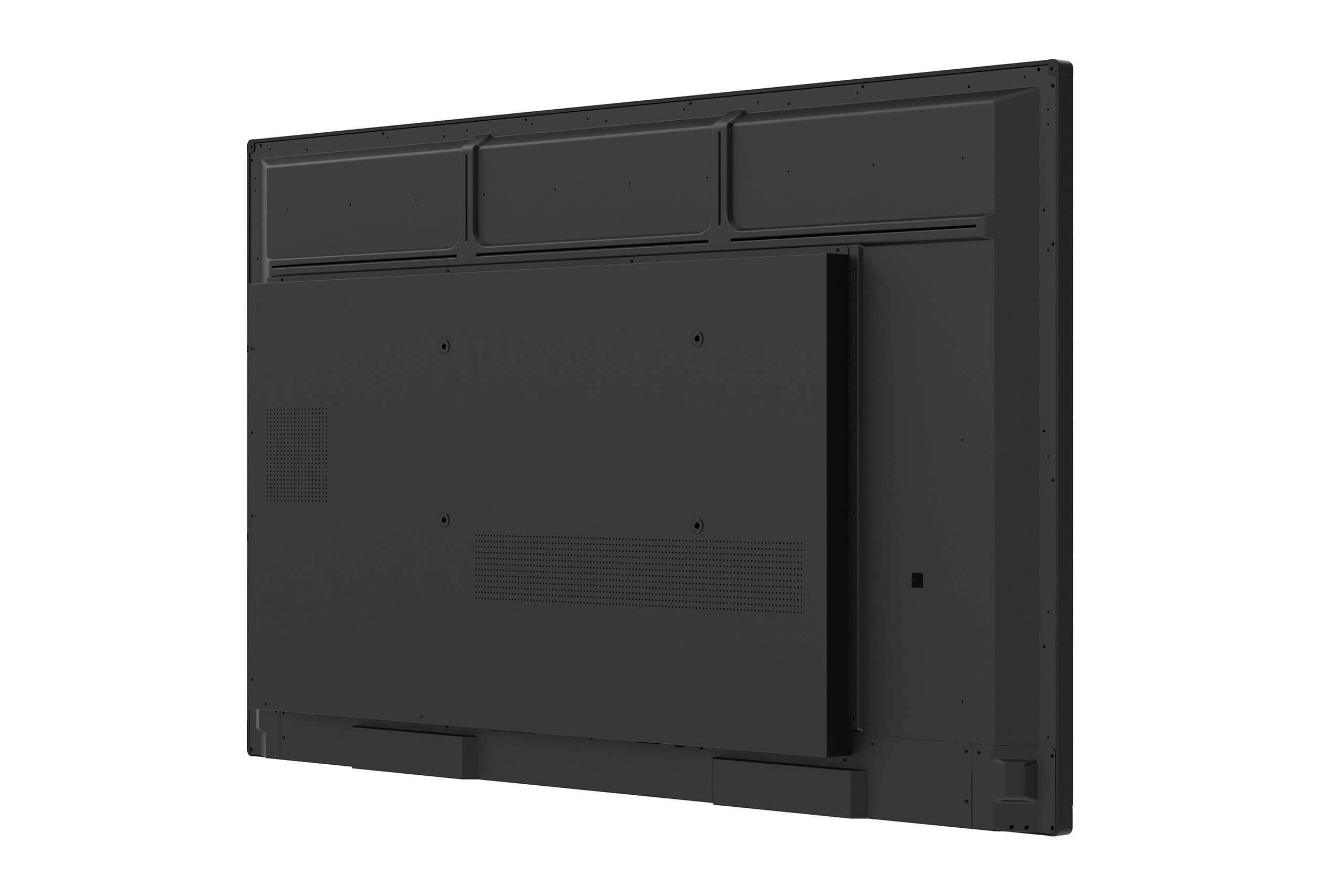

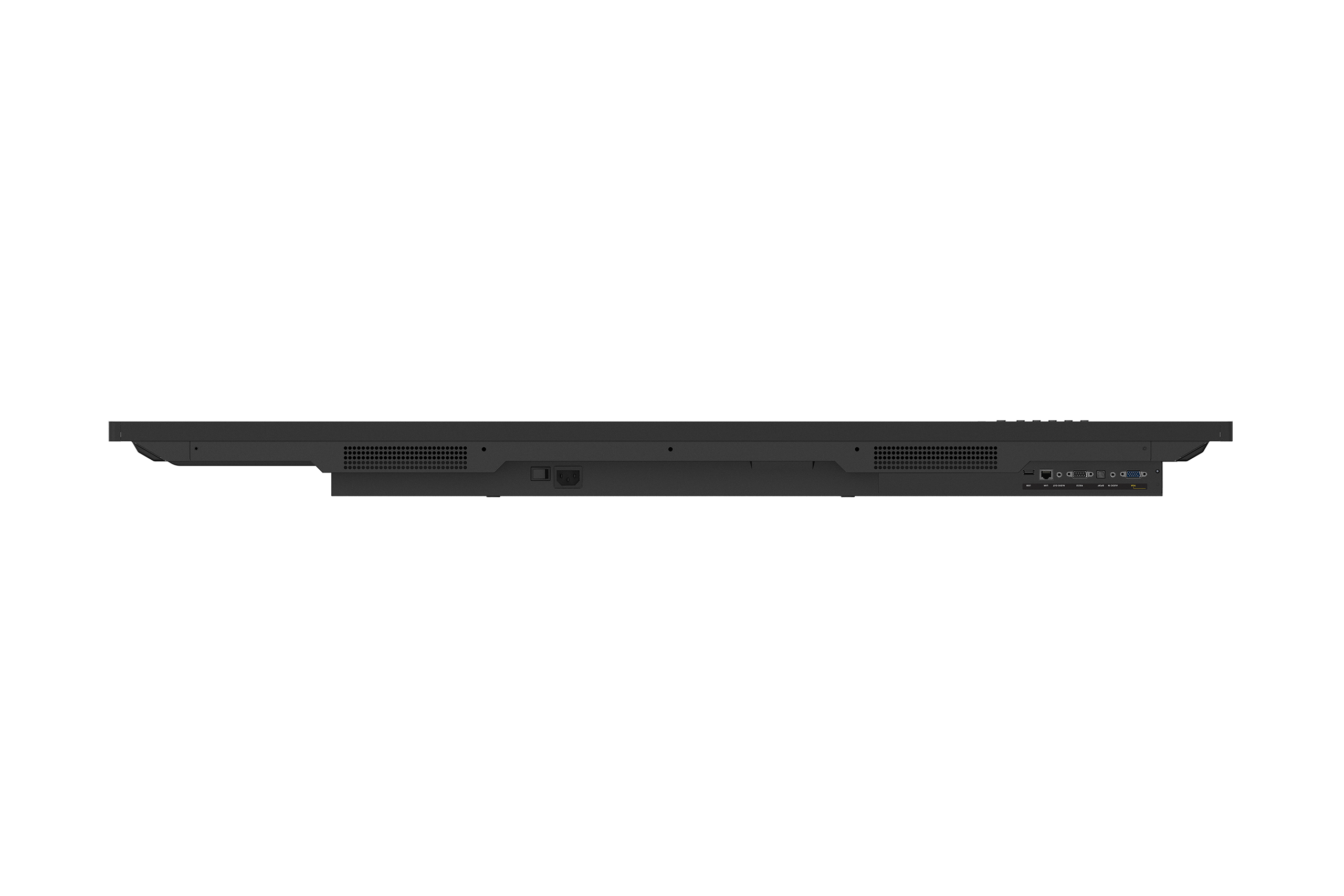

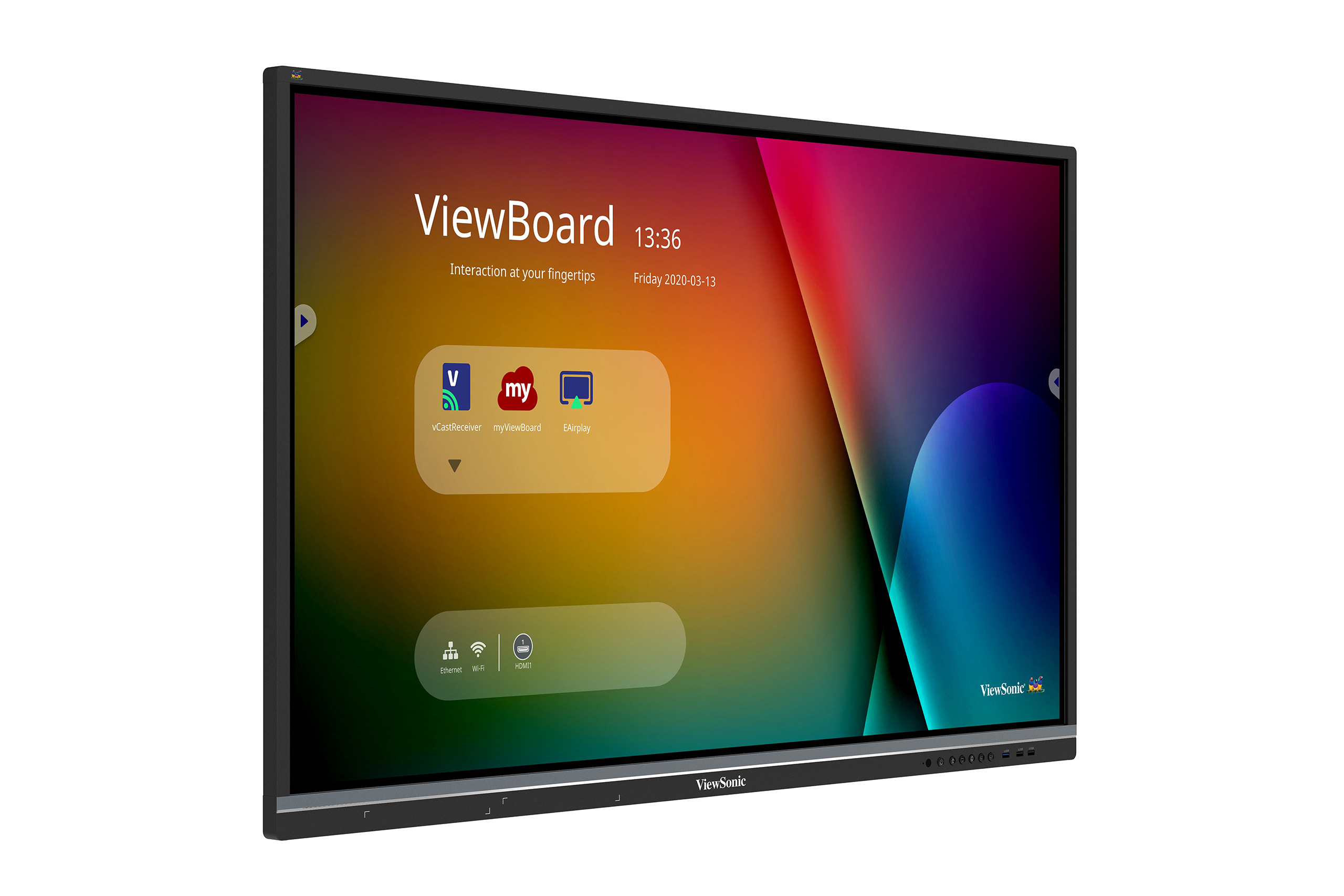

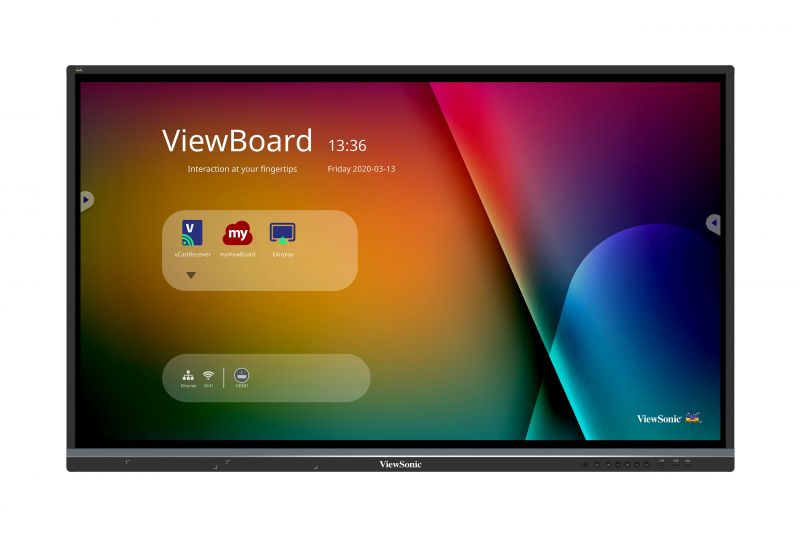

ViewBoard IFP5550-3
ViewBoard® 55" 4K Interactive Display
- Intuitive Interactive Interface and Eye-care Certified Display

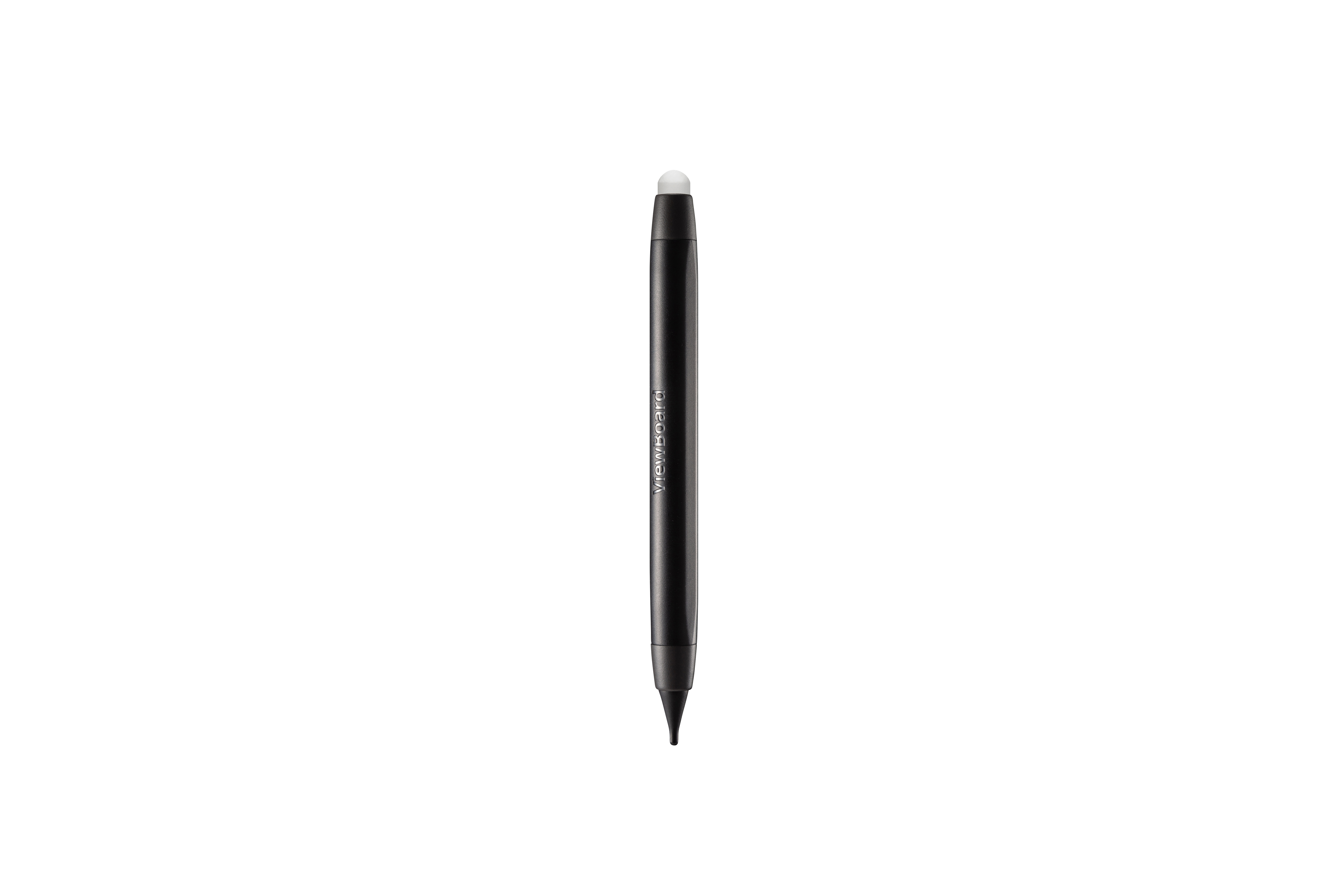

- Synchronous Writing Performance with Dual Pens
- Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
- Native Whiteboarding Tool with built-in myViewBoard® App
- Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
SPECIFICATIONS
- DisplayPanel Size: 55"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1209.6 (H) x 680.4 (V) (54.64” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hrs
Surface Treatment: Hardness: 9H , Anti-flare coating

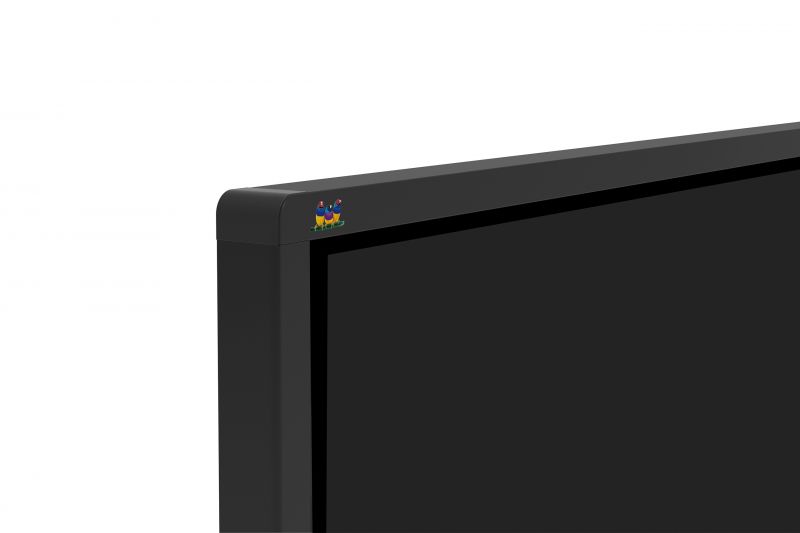

Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
RAM: 3GB DDR4
Storage: 32GB - TouchType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTAudio: x1 (Earphone out)
SPDIF: 1(optical) - LANRJ45: x1

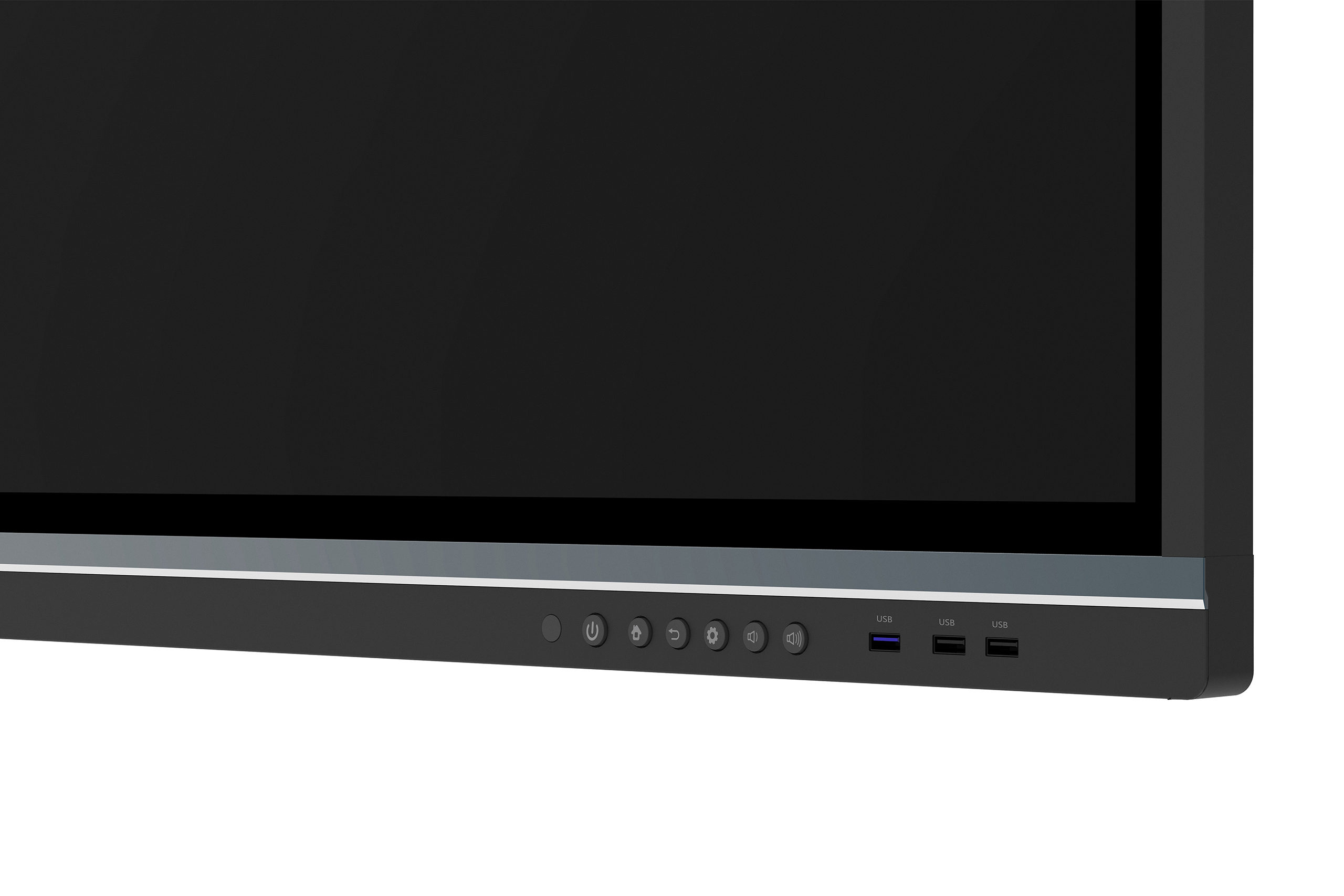

- USBType A: USB2.0: Front x2, Rear x1 (SmartPort™ for all), USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
Type B: x2, for touch - SPEAKERS10W x 2 + 15W x 1
- Top Camera PlateYes
- COMPATIBILITYHDMI: 3840x2160
- Embedded OSAndroid 8
- Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) - Special FeaturesAll-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10M/100M/ for Android, 10M/100M/1000M for slot-in PC - PowerVoltage: 100-240VAC +/- 10% Wide Range

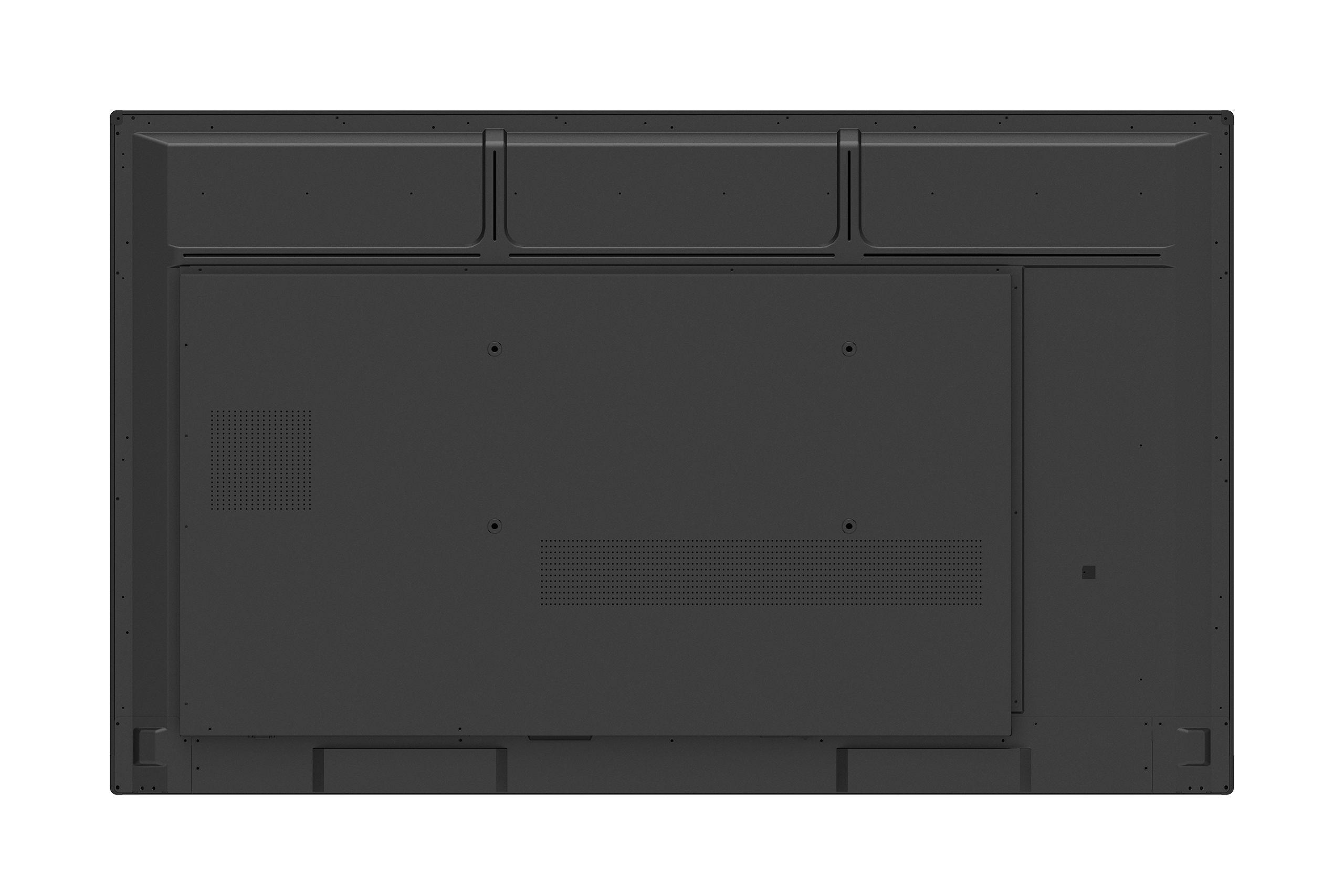

Consumption: On: 80W(typ.) / Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 400 x 200
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm
Packaging (inch / mm): 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm - WEIGHTNet (lb / kg): 58.2 lb / 26.4 kg

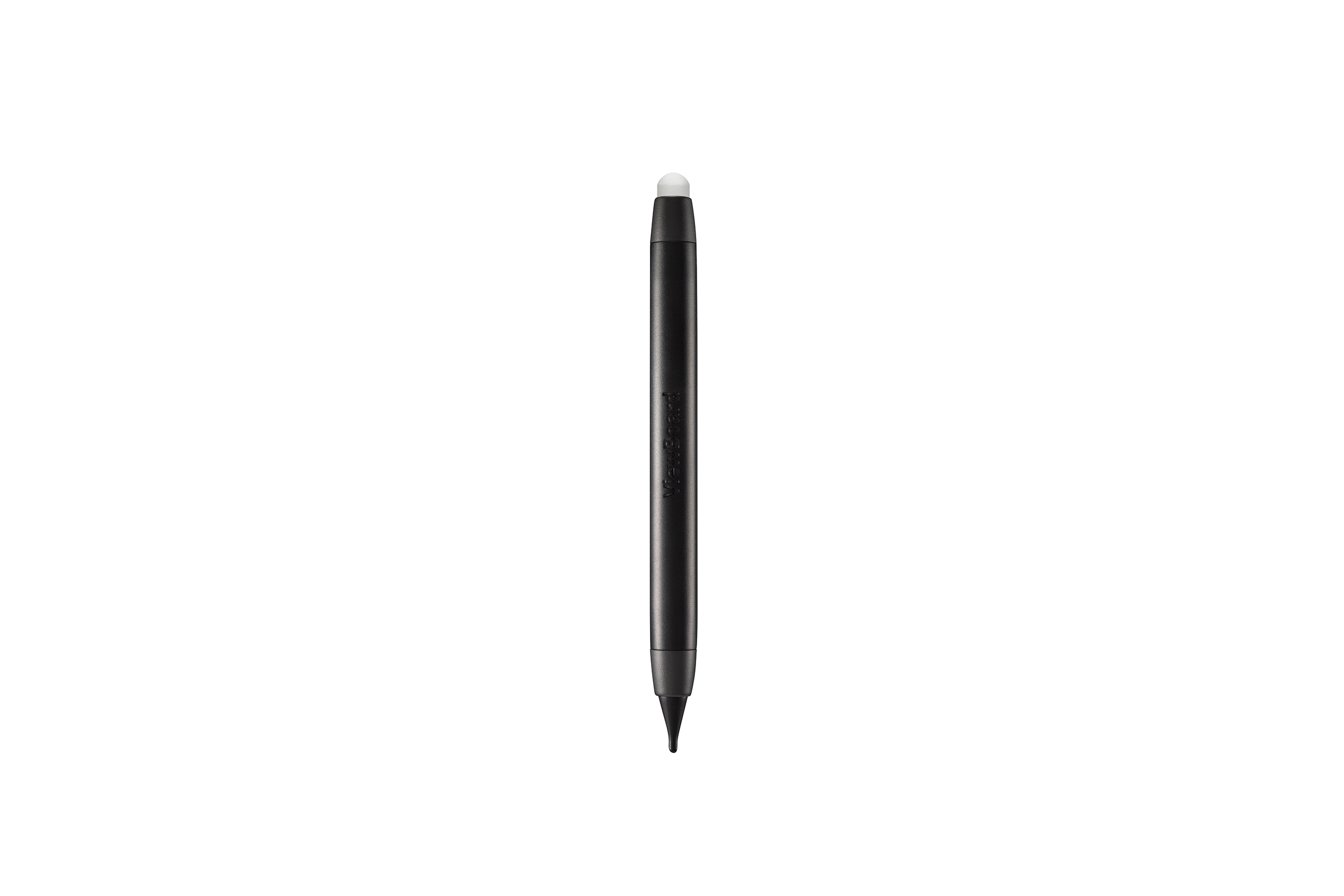

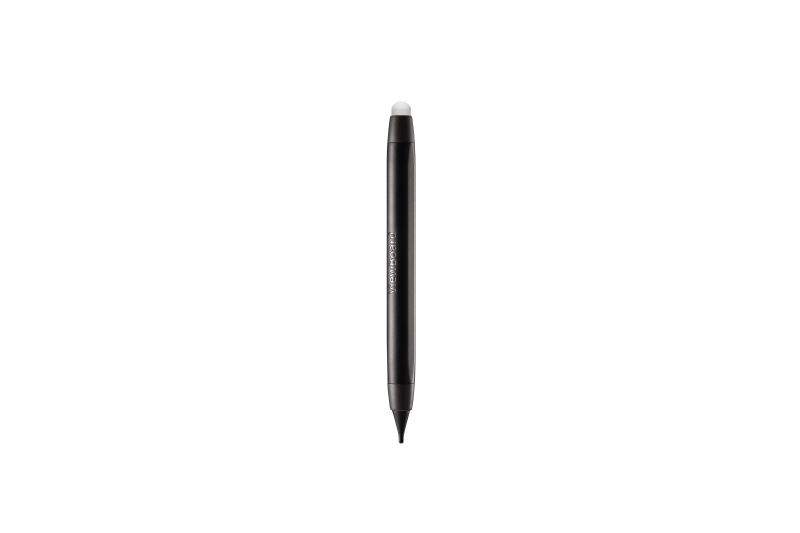

Gross (lb / kg): 78.3 lb / 35.5 kg - PACKAGE CONTENTS1. Power cable (3 meters) x22. Remote control3. USB cable (3 meters)4. Touching pen x25. Quick Start Guide6. RS232 adapter7. Clamp x58. Plate9. Screw x810. HDMI cable 3M
- Compatible Slot-in PCVPC14-WP series, VPC10-WP series, VPC15-WP series, VPC16-WP series, VPC17-WP series
