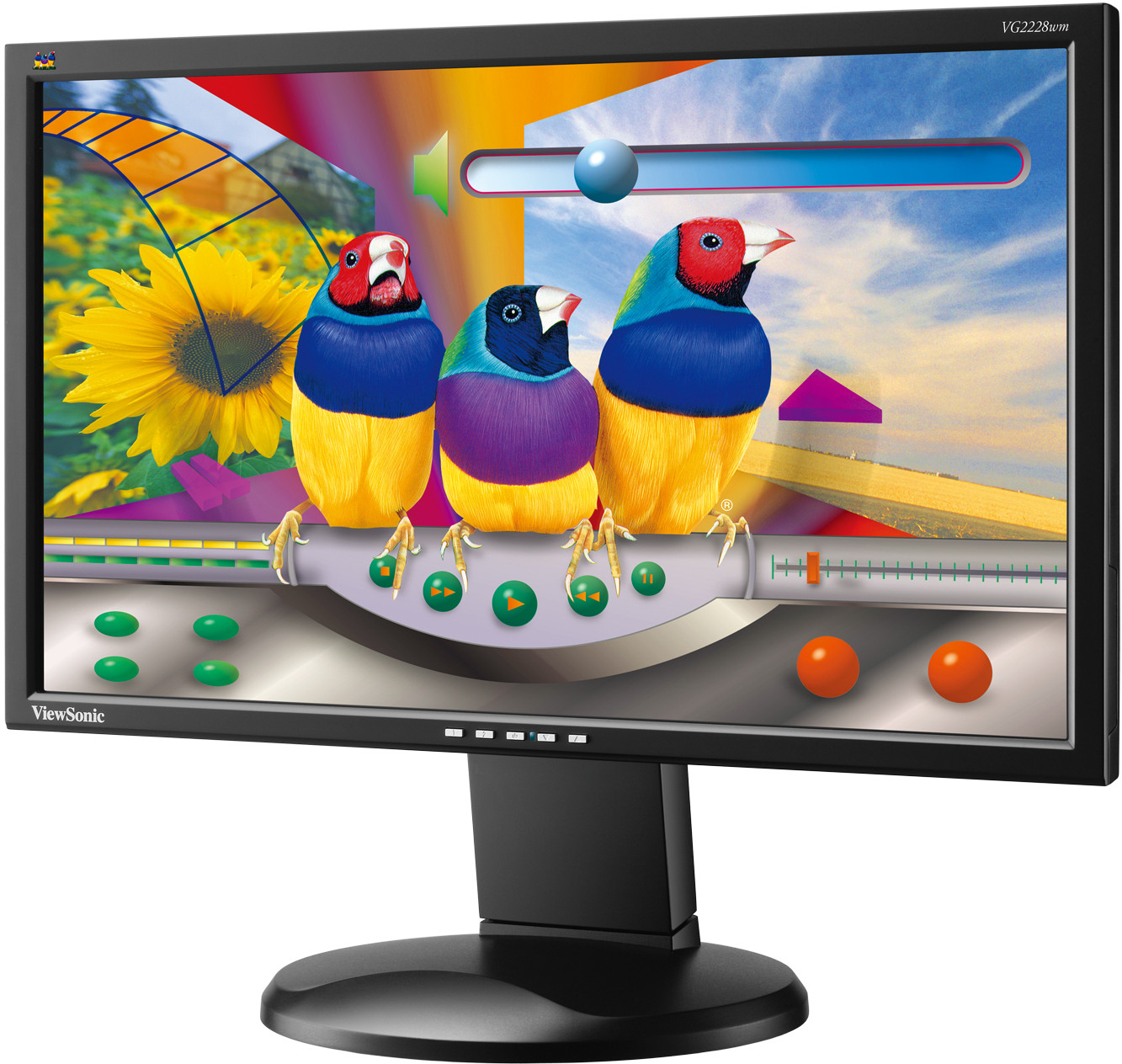

ViewSonic VG2228wm 56cm/22" (55cm/21.5" VIEWABLE) WIDESCREEN LCD WITH DYNAMIC CONTRAST RATIO

COLORS

Black

LCD

Коефіцієнт контрастності:	1000:1 typical, 100,000:1 dynamic
Кути перегляду:	160o(H), 160o(V)
Display Area:	476.64mm (H) x 268.11mm (V)
Optimum Resolution:	1920×1080
Час відповіді:	5ms typical
Джерело світла:	50,000 hrs typical
Panel Surface:	Anti-Glare
Pixel Pitch:	0.248mm(H)×0.248mm(V)
Colour Support:	16.7 M(6-bits + Hi FRC)
Size:	55cm/21.5" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Яскравість:	300 cd/m² typical

COMPATIBILITY

PC: VGA up to 1920×1080 non-interlaced

Mac®: Mac os, up to 1920×1080
DIMENSIONS

Physical With Stand: 511mmx412mmx230mm

Physical Without Stand: 511mmx306mmx62mm
ВМІСТ УПАКОВКИ

DVI-D Cable, Power Cable, Audio cable, USB cable
INPUT

Sync: H/V Separated

Analogue: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)

Digital: DVI-D(TMDS, 100 ohms)

Frequency: Fh: 24-82kHz, Fv: 50-75Hz
CONNECTOR

Analogue: 15 pin mini D-sub×1

Digital: DVI-D

USB: down stream x 2 / up stream x 1

Аудіо: 3.5 mm Audio in

Живлення: Built-in power Adapter, 3-Pin plug
POWER

Напруга: AC 100-240V(Universal); 50/60Hz(Switch)

Споживання: 42W typical

Eco Mode: Optimize 31W (typ.) / conserve 26W (typ.)

Save Mode (W): ≦0.5W

CONTROLS

Basic:

Power, Mute,[1], Up[▲], Down[▼], [2]

OnView®:

Power, Mute,[1], Up[▲], Down[▼], [2]
Auto image adjust, Contrast/Brightness, Audio adjust: Volume,
mute, Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user
colour [R, G, B] Information, Manual image adjust: H/V position,
Horizontal size, fine tune, sharpness, dynamic contrast, aspect
ratio, Eco mode, Setup menu: Language select, resolution
notice, OSD position, OSD timeout, OSD background, memory
recall

POWER MANAGEMENT

VESA 100mmx100mm
ERGONOMICS

Нахил: 20˚~-5˚

Поворотний: 360˚(180 ˚left / 180 ˚right)

Height Adjustment: 0~80mm
AUDIO

Speakers: 2 x 2 watt
WEIGHT

Брутто: 7.1 kg

Нетто: 5.2 kg
OPERATING CONDITIONS

Вологість: 10-90%(Non condensed)

Температура: 0-40°C(32-104°F)

PC:	VGA up to 1920×1080 non-interlaced
Mac®:	Mac os, up to 1920×1080

Physical With Stand:	511mmx412mmx230mm
Physical Without Stand:	511mmx306mmx62mm

Sync:	H/V Separated
Analogue:	RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital:	DVI-D(TMDS, 100 ohms)
Frequency:	Fh: 24-82kHz, Fv: 50-75Hz

Analogue:	15 pin mini D-sub×1
Digital:	DVI-D
USB:	down stream x 2 / up stream x 1
Аудіо:	3.5 mm Audio in
Живлення:	Built-in power Adapter, 3-Pin plug

Напруга:	AC 100-240V(Universal); 50/60Hz(Switch)
Споживання:	42W typical
Eco Mode:	Optimize 31W (typ.) / conserve 26W (typ.)
Save Mode (W):	≦0.5W

Нахил:	20˚~-5˚
Поворотний:	360˚(180 ˚left / 180 ˚right)
Height Adjustment:	0~80mm

Вологість:	10-90%(Non condensed)
Температура:	0-40°C(32-104°F)

Брутто:	7.1 kg
Нетто:	5.2 kg
