LCD-дисплей

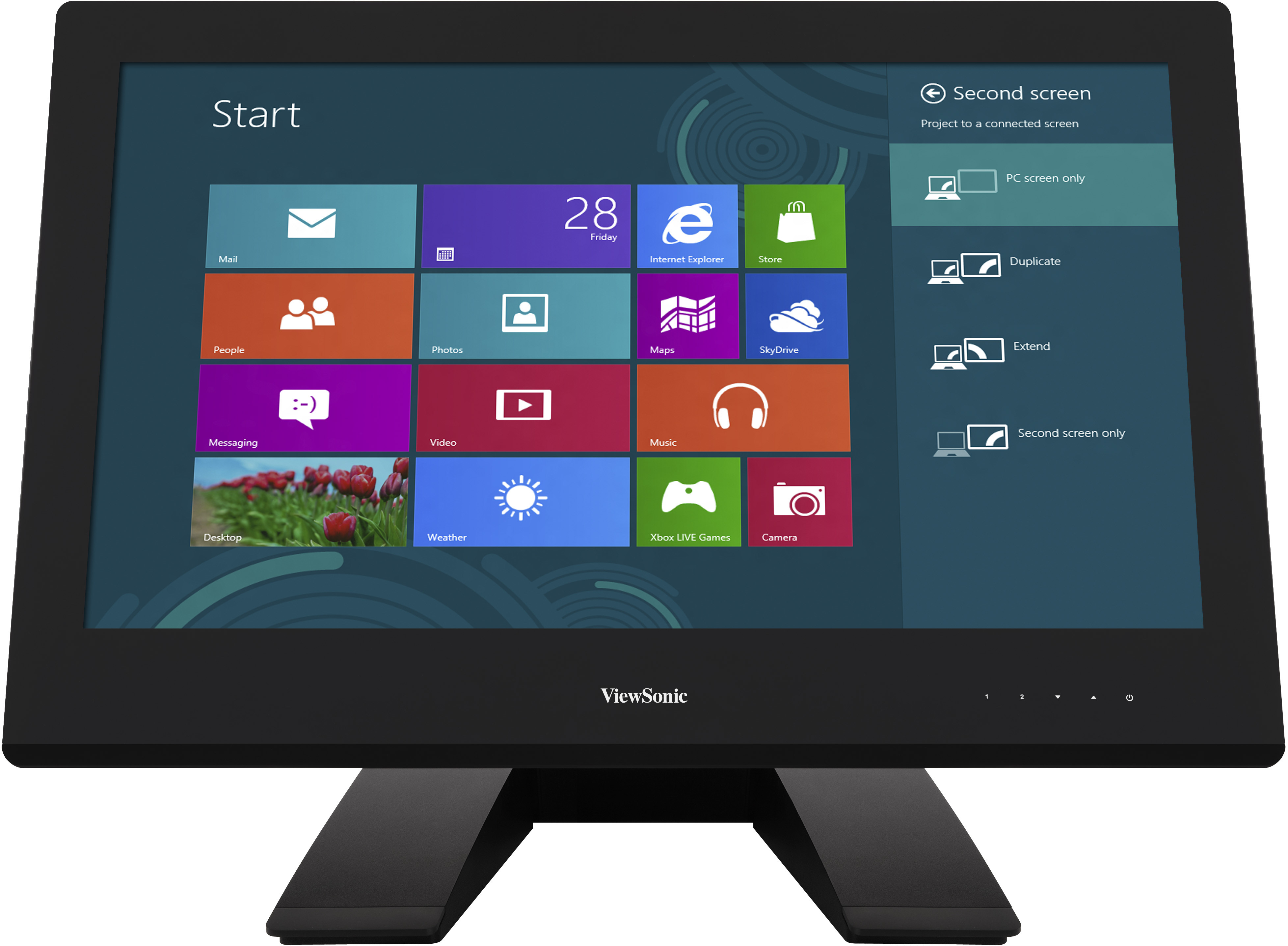

TD2340
Основні особливості
Опис товару
Exceptional interactivity comes standard in the ViewSonic® TD2340 Windows® 8 certified 23"" 10-point multi-touch IPS monitor. 1920x1080 Full HD resolution with projected capacitive touch technology delivers seamless and accurate touch experience. Stunning color performance with IPS technology and 20,000,000:1 MEGA Dynamic Contrast Ratio. Integrated speakers with SRS Premium Sound® complete the multimedia package. DisplayPort®, HDMI, VGA inputs provide flexible and convenient connectivity. Dual hinge stand design ensures outstanding ergonomic comfort and productivity. Even VESA mountable design for additional convenience. The TD2340 is fully USB HID compliant and certified with Windows 8. This is the gateway to the new world of interactivity.
Відвідайте нас
- www.viewsonic.com
-
LCD
Тип: 23" Wide Color TFT Active Matrix LED Optimum Resolution: 1920x1080 Коефіцієнт контрастності: 1000:1 (typ.) Кути перегляду: 178º horizontal, 178º vertical Час відповіді: 7ms (typ.) Panel Surface: hard-coating (7H) Display Area: 20.0" horizontal x 11.3" vertical; 23.0" diagonal Яскравість: 250 cd/m² (typ.) Динамічний коефіцієнт контрастності: 20,000,000:1 Backlight: White-light LED Термін служби підсвітки: 30,000 hours (min.) -
Відео вхід
Digital: HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E) Frequency: Fh: 24~83kHz, Fv: 50~76Hz Sync: Separate Sync Analogue: RGB analog (0.7 / 1.0 Vp-p, 75 ohms) -
Сумісність
PC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced) Mac®: Power Mac (up to 1920 x 1080) -
Роз'єм
Analog: 15-pin mini D-sub (VGA) Аудіо: Audio In (3.5mm mini-jack)
Earphone Out (3.5mm mini-jack)USB: USB x2, USB Upstream x1 Живлення: Internal power board, 3-pin plug (CEE22) -
Елементи керування
Front Panel: 1, 2, Down, Up, Power -
DIMENSIONS
Physical Without Stand: 22.7 x 17.9 x 2.6 in. / 576.6 x 453.8 x 66.5 mm Packaging: 26.4 x 20.1 x 9.2 in. / 671 x 510 x 234 mm Physical With Stand: 22.7 x 17.9 x 12.8 in. / 576.6 x 453.8 x 324.5 mm -
WARRANTY
Three-year limited warranty on parts, labor and backlight. -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws. -
POWER
Споживання: w/o audio 22W (typ.) / w/ audio 45W (typ.) Optimize: 23W (typ.) Conserve: 18.5W (typ.) Напруга: AC 100–240V (universal), 50 / 60Hz -
VESA® MOUNT
100mm x 100mm -
POWER MANAGEMENT
ENERGY STAR® standards / EPEAT Gold -
ERGONOMICS
Rotation: 90º Нахил: 50º~-5º -
WEIGHT
Net With Stand: 20.4 lb. / 9.2 kg Net Without Stand: 14.5 lb. / 6.6 kg Брутто: 26.9 lb. / 12.2 kg -
OPERATING CONDITIONS
Температура: 32–104º F (0–40º C) Вологість: 20–90% (non-condensing) -
AUDIO OUT
Speakers: 2-watt (x2) -
ВМІСТ УПАКОВКИ
TD2340 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)
