Основні особливості
  • 0.61 short throw ratio
  • SuperColor™ technology
  • 15,000 hours lamp life
  • Built in USB type A for charging
  • Optional PJ-vTouch-10S interactive module

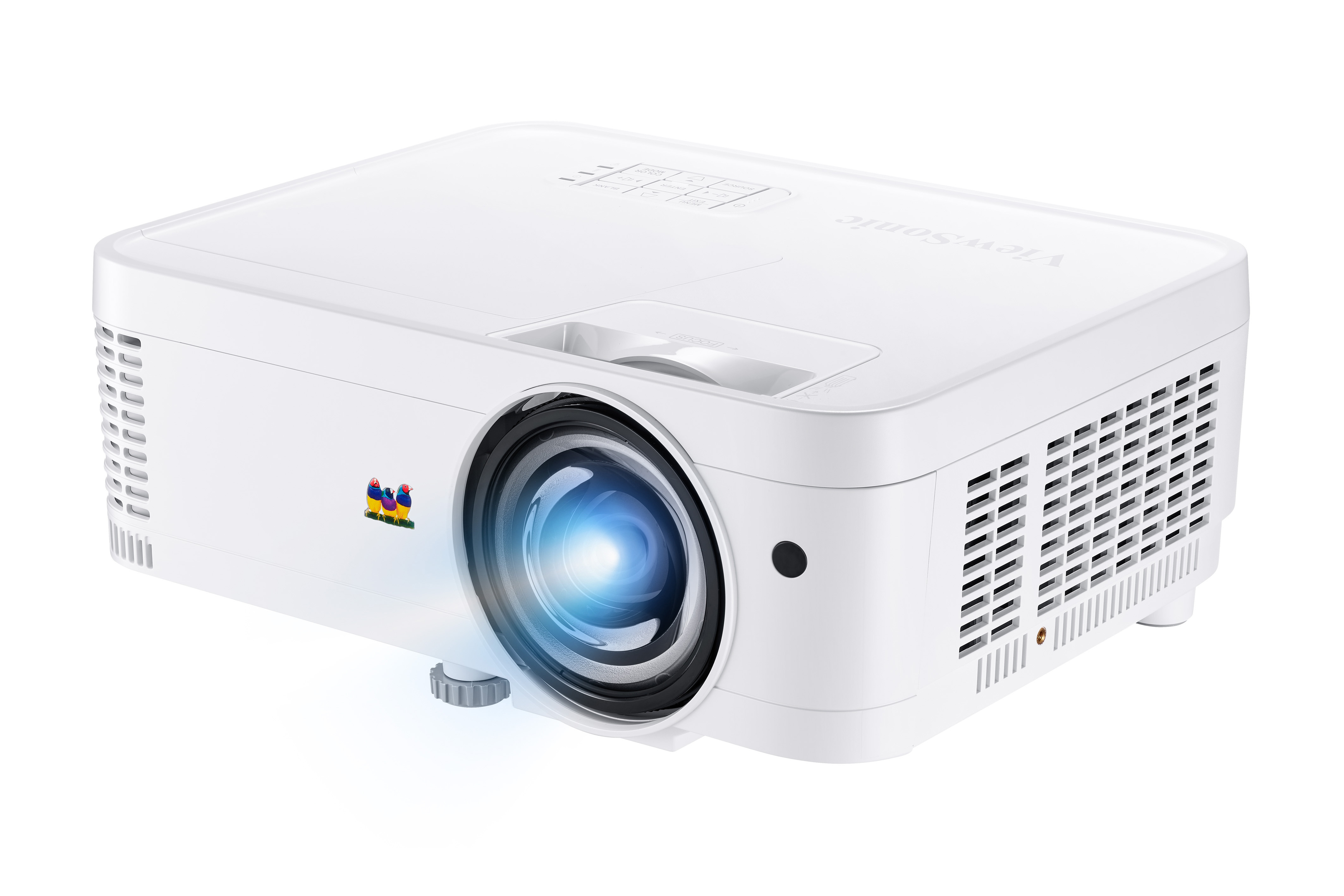

PS501X
Опис товару
The PS501X is a high brightness XGA short throw projector for education. With the ability to project 100” images from a distance of 124cm from any projection surface, the projector is flexible enough to fit any classroom design and keeps the presenter clear of the projection beam. For times when lights in the classroom must be kept on, a high brightness of 3,600 ANSI Lumens ensures that images remain clear and detailed. ViewSonic exclusive SuperColor™ technology offers a true-to-life color accuracy for projected images. The energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours. In addition, PS501X is compatible with the optional PJ-vTouch-10S interactive module, which allows you to use a stylus or finger touch to annotate on projected images – turning class into an engaging interactive teaching environment.
  1. Keypad
  2. LED indicator
  3. Power Key
  4. Focus
  5. Front IR
  6. Lens
  7. Audio in/out
  8. HDMI
  9. COMPUTER
  10. Monitor out
  11. Mini USB
  12. USB 5V/1.5A OUT
  13. RS232
  14. Video
Відвідайте нас
  • www.viewsonic.com
  • SPECIFICATION
    Projection system: 0.55" XGA
    Рідна роздільна здатність: 1024x768
    DC type: DC3
    Яскравість: 3600 ANSI Lumens
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Джерело світла: Lamp
    Light source life (Nor/SuperEco): 5000/15000
    Вати лампи: 190W
    Об'єктив: F=2.6, f=6.9mm
    Зсув проекції: 130%+/-5%
    Проекційний коефіцієнт: 0.61
    Image size: 40" - 300"
    Проекційна відстань: 0.74m-3.72m (100"@1.24m)
    Трапеція: ±40° (Vertical)
    Оптичний зум: Fixed
    Audible Noise (Eco): 27dB
    Підтримка роздільної здатності: VGA(640 x 480) to FullHD(1920 x 1080)
    Сумісність з HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Сумісність відео: NTSC, PAL, SECAM
    Горизонтальна частота: 15K~102KHz
    Швидкість вертикального сканування: 23~120Hz
  • Вхід
    Computer in (D-SUB 15 pin): 2
    Композитний: 1
    Аудіовхід (3,5 мм): 1
    HDMI/HDCP: 1
    (HDMI 1.4/ HDCP 1.4)
  • Вихід
    Monitor out (D-SUB 15 pin): 1
    Аудіовихід (3,5 мм): 1
    Динамік: 2W
    USB type A (Power): 1 (5V/1.5A)
  • Управління
    RS232: 1
    USB type mini B (Services): 1
  • Інші
    Напруга джерела живлення: 100-240V+/- 10%, 50/60Hz AC
    Споживання енергії: Normal: 260W
    Standby: <0.5W
    Робоча температура: 0~40℃
    Carton: Brown
    Вага нетто: 2.6kg
    Dimensions (WxDxH) w/adjustment foot: 292x236x115mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Шнур живлення: 1
    VGA cable: 1
    Пульт ДК: 1
    QSG: 1
    Кришка об'єктива: 1
  • Додаткові аксесуари
    Лампа/Джерело світла: RLC-108
