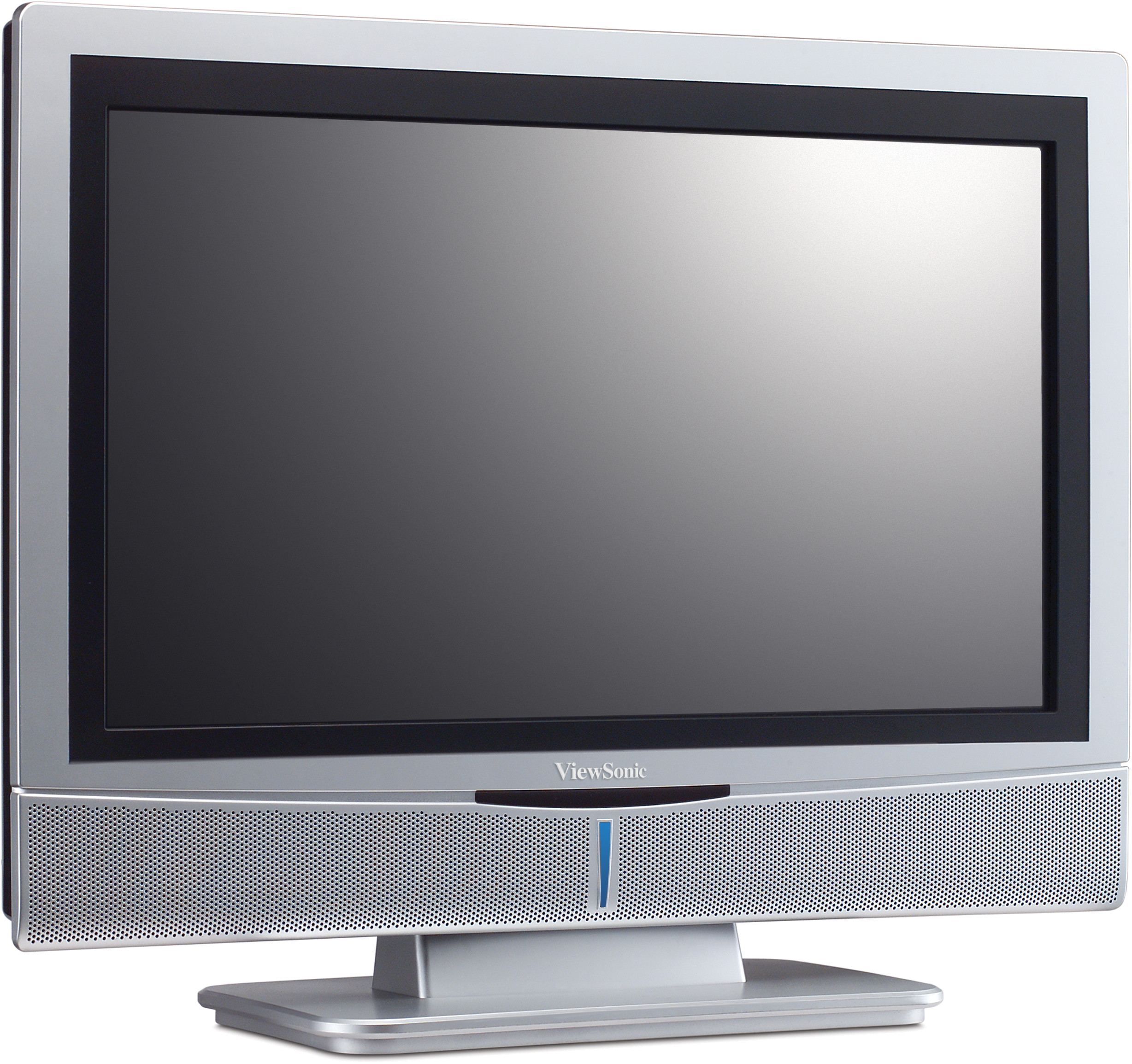

ViewSonic N2060w 20" WIDE-SCREEN HD-READY HIGH DEFINITION LCD TV

LCD

Тип:	51cm / 20.1" Super MVA colour TFT active matrix, wide 1366 x 768
Коефіцієнт контрастності:	1000:1(typ.)
Кути перегляду:	176° horizontal, 176° vertical (at 20:1)
Яскравість:	500cd/m² (typ.)
Display Area:	44.5cm (horizontal) x 25.0cm (vertical), 50.8cm diagonal
Час відповіді:	8ms (grey-to-grey)
Співвідношення сторін:	16:9
Panel Surface:	Anti-glare

COMPATIBILITY

PC: Compatible from VGA up to 1360 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 1360 x 768 @ 60Hz preferred
DIMENSIONS

Фізичні (ШxВxГ): 522 x 420 x 191 (with base)
522 x 215 x 101 (without base)
ВМІСТ УПАКОВКИ

LCD TV, 1.8m power cable, 15-pin VGA video cable, PC audio cable,
remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Динамік: 2 x 3 watt SRS WOW (virtual surround-sound)

CONNECTOR

Digital:	1 x HDMI (HDCP)
Живлення:	3-pin plug (CEE22)
Composite Video Input:	1 x RCA (CVBS)
Component Video Input:	1 x RCA set (YPbPr/YCbCr)
Audio Input:	1 x RCA Audio set L/R for S-video/composite 1 x RCA Audio set L/R for component 1 x 3.5mm mini stereo jack for PC/HDMI
S-Video:	1 x 4-pin mini DIN jack
Headphone:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART2 (CVBS In/Out, RGB In, Audio In/Out)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub

POWER

Напруга: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Споживання: <90 watt (max.)

CONTROLS

Basic:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, tint, preset, reset),
Audio Menu (bass, treble, balance, SRS surround), PIP/POP Menu (dual
mode, position, video source, audio source), TV Channel Menu (auto
search, manual search), Setup Menu (OSD language [English, French,
Spanish, German, Italian, Finnish, Swedish, Russian], OSD timeout, OSD
background, sleep timer, blue screen, teletext language), OSD/power lock

OPERATING CONDITIONS

Температура: 5 °C – 35 °C

Вологість: 10%–85% (non condensation)
WEIGHT

Нетто: 6.9kg (with base), 5.9kg (without base)
VESA MOUNT COMPLIANT

VESA® FDMI 100mm x 100mm, M6 10mm screws
TELETEXT

Yes (1000 pages)
VIDEO INPUT

PAL, SECAM, NTSC3, SD (480i/p, 576i/p), HD (720p, 1080i)

PC:	Compatible from VGA up to 1360 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 1360 x 768 @ 60Hz preferred

Напруга:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Споживання:	<90 watt (max.)

Температура:	5 °C – 35 °C
Вологість:	10%–85% (non condensation)
