Основні особливості
  • 2nd generation laser phosphor technology with up to 30,000 hours lifespan
  • 4,200 ANSI Lumens offering bright images in any environment
  • Up to 300" ultra large screen that is easily installed and set up
  • 0.49 short throw for immersive edge blending without any shadows
  • Installation flexibility: H/V keystone, 4 corner adjustment, 360° projection and portrait mode
  • HDMI 2.0b for accessibility of 4K contents with HDR/HLG support

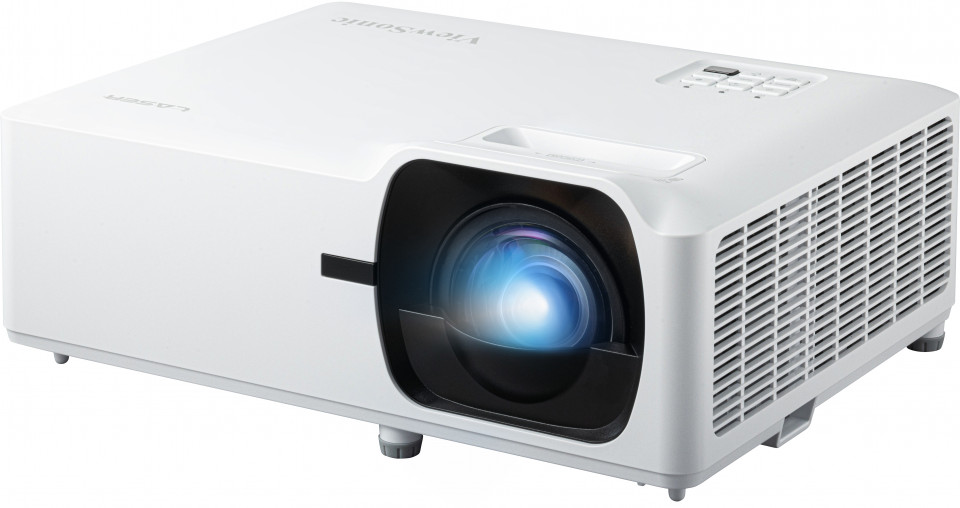

LS710HD
Опис товару
The Luminous Superior series is ViewSonic’s lamp-free high brightness projector for both business and education. The LS710HD adopts industry-leading 2nd generation laser phosphor technology, delivers 4,200 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering clear and bright images with vivid colors and 1080p resolution. Boasting short throw ratio, flexible installation and easy image adjustments, the projector enables effortless edge blending to create an immersive experience for any space, be it a restaurant, gym, gallery, etc. With 0.49 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being bothered by the shadows. The LS710HD allows perfectly-shaped images even from an angled projection with H/V keystone and 4 corner correction and offers versatile application with 360° projection and portrait mode. The projector also comes with HDMI 2.0b, ensuring you access to original 4K quality content with HDR/HLG support.
  1. Front IR
  2. Lens
  3. HDMI 1.4/ HDCP 1.4
  4. HDMI 2.0/ HDCP 2.2
  5. USB-A (5V/1.5A, Service)
  6. Audio Out
  7. RJ45 (LAN Control)
  8. RS232
  9. Focus Ring
  10. LED Indicator
  11. Power Button
  12. Keypad & IR
Відвідайте нас
  • www.viewsonic.com
  • Характеристика
    Проекційна система: 0.65" 1080p
    Рідна роздільна здатність: 1920x1080
    Яскравість: 4200 (ANSI Lumens)
    Brightness (Center Lumens): 4600
    Коефіцієнт контрастності: 3000000:1
    Display Color: 1.07 Billion Colors
    Тип джерела світла: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Об'єктив: F=2.8, f=7.51mm
    Зсув проекції: 132%+/-5%
    Проекційний коефіцієнт: 0.49
    Оптичний зум: Fixed
    Цифрове збільшення: 0.8x-2.0x
    Розмір зображення: 40"-300"
    Проекційна відстань: 0.43-3.25m (100"@1.08m)
    Трапеція: H:+/-15° , V:+/-15°
    Чутний шум (звичайний): 32dB
    Чутний шум (Eco): 29dB
    Затримка введення: 49.9ms
    Підтримка роздільної здатності: VGA(640 x 480) to 4K UHD(3840 x 2160)
    Сумісність з HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K UHD
    Горизонтальна частота: 15K-102KHz
    Швидкість вертикального сканування: 23-120Hz
  • Вхід
    HDMI: 2 (HDMI 2.0/ HDCP 2.2 HDMI 1.4/ HDCP 1.4)
  • Вихід
    Audio-out (3.5mm): 1
    Динамік: 15W x2
    USB Type A (Живлення): 1 (5V/1.5A)
  • Управління
    RS232 (9-контактний штекер DB): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1 (share with USB A Output)
  • Інші
    Напруга джерела живлення: 100-240V+/- 10%, 50/60Hz (AC in)
    Споживання енергії: Normal: 245W Standby: <0.5W
    Робоча температура: 0~40℃
    Carton: Brown
    Вага нетто: 4.5kg
    Gross Weight: 6.6kg
    Розміри (ШxГxВ) з регулювальною ніжкою: 337x265x131.5mm
    Packing Dimensions: 496x195x387mm
    Мова екранного меню: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • Стандартний аксесуар
    Шнур живлення: 1
    Пульт ДК: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • Додаткові аксесуари
    Wall/Ceiling Mount: PJ-WMK-007
