Основні особливості
  • Pre-assembled kit, ready for immediate use—no installation required
  • Foldable screen that fits easily into large passenger elevators for convenient transport
  • Shockproof, dustproof, and moisture-resistant with GOB surface treatment
  • Built-in stand with an integrated control box and motorized height adjustment
  • Seamless large display designed to captivate audiences in any space

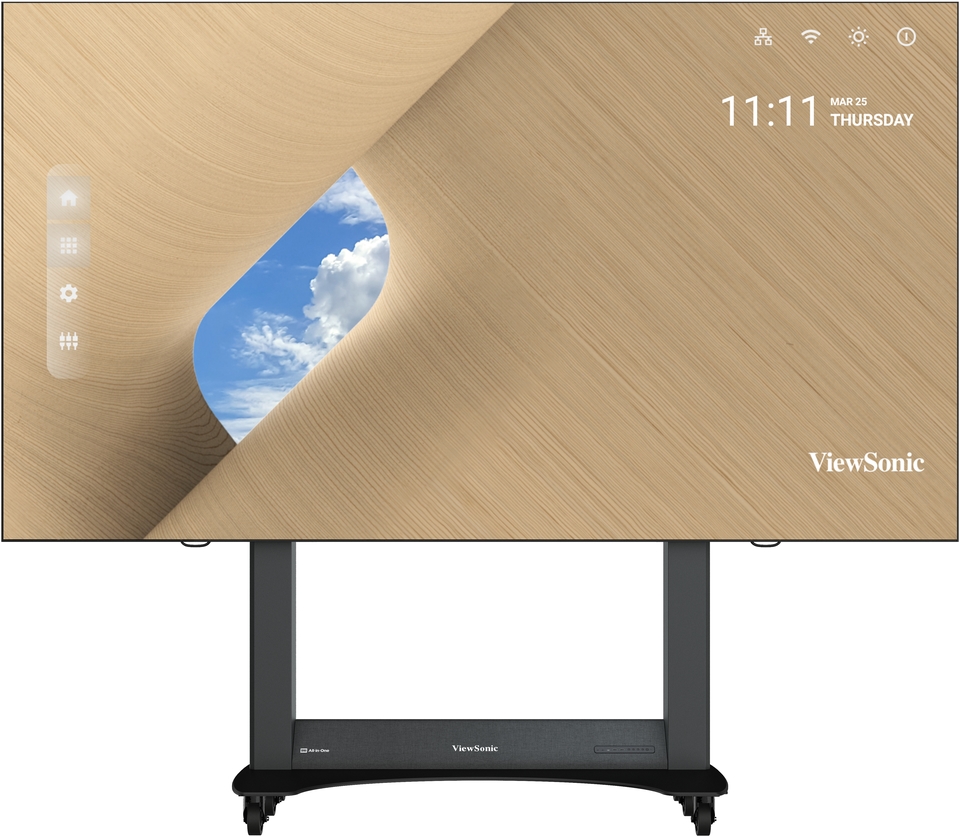

LDS138-151
Опис товару
The ViewSonic® LDS138-151 is a foldable 138” All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.
  1. HDMI Out
  2. Audio Out
  3. HDMI In x4
  4. S/PDIF Out
  5. USB 2.0 (5V/2A)
  6. LAN
  7. IR Extension
  8. Control Panent:Height Adjust
  9. Light Sensor
  10. IR Receiver
  11. USB-C (5V/1.0A)
  12. USB 3.0 (5V/0.9A)
  13. USB 2.0 (5V/0.5A)
  14. Menu Control: Setting
  15. Menu Control: Enter
  16. Menu Control: Brightness Level
  17. Power Button
  18. Indicator Light
Відвідайте нас
  • www.viewsonic.com
  • Характеристика
    Screen Size: 138"
    Площа екрана (мм): 3050 (H) x 1715 (V)
    Рідна роздільна здатність: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.588
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K -10000K
    Орієнтація: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Пам'ять для зберігання: Total 32GB
    (26GB available storage)
    Вбудована ОС: Android 9.0
    Підтримка роздільної здатності: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    Сумісність з HDTV: 480p, 576p, 720p, 1080p, 2160p
    Горизонтальна частота: 31K-94kHz
    Швидкість вертикального сканування: 56-85Hz
  • Вхід
    HDMI: 4
    (HDMI 2.0/HDCP 2.2)
    (internal x3, external x1)
    USB Type A: 3
    (USB3.0 x1, USB2.0 x2)
    Вхід RJ45: 3
    (internet x2, control x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: 1
    (data only)
  • Вихід
    HDMI out: 1
    (HDMI 1.4/HDCP 1.4)
    (internal x1)
    Динамік: 30Wx2
    Аудіовихід (3,5 мм): 2
    S/PDIF: 1
    USB Type A (Живлення): Shared with USB A input
    (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (Power): Shared with USB Type C input
    (5V/1A x1)
  • Управління
    RJ45 (LAN control): 1(shared with internet)
    USB Type A (Services): 1(shared with USB A input)
    RS232 (DB 9-pin female): 1
    IR Receiver: 1
    Light Sensor: 1
  • Інші
    Напруга джерела живлення: 100-240V ~ 50/60Hz
    (vary by country)
    Power Consumption (W/unit): 581W (typ), 1745W (max)
    < 0.5W (Hibernate)
    Inrush Current:
    220V: 84A / 110V: 58A
    Робоча температура: 0~40℃
    Total LED Module Quantity: 200
    Ingress Protection Rating: IP54(Front)
    Impact Protection Rating: IK06(Front)
    Вага нетто: 676.82 lbs
    (307 kg)
    Gross Weight: 1044.99 lbs
    (474 kg)
    Product Dimensions (WxHxD): 72.87x76.71x30.71 inches (min.)
    (1850.81x1948.4x780 mm (min.))
    120.63x102.28x30.71 inches (max.)
    (3064x2598x780 mm (max.))
    Packing Dimensions (WxHxD): 81.5x78.58x33.35 inches
    (2070x1996x847 mm)
  • STANDARD ACCESSORIES
    Шнур живлення: 1
    LAN Cable (Cat 5E): 1
    IR Extender Cable: 1
    Пульт ДК: 1
    QSG: 1
    Spare Parts: LED module x14
    3 in 1 hub board x3
    Maintenance Tool: LD-MK-006 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-006
