ViewBoard
IFP8650
Основні особливості
- 20-Point Multi-Touch
- Floating Pen - Annotation on Demand
- ViewBoard® Cast Content Sharing Software
- Built-in ARM Quad-core CPU with 16GB Storage
- Out-of-Box Collaboration
Опис товару

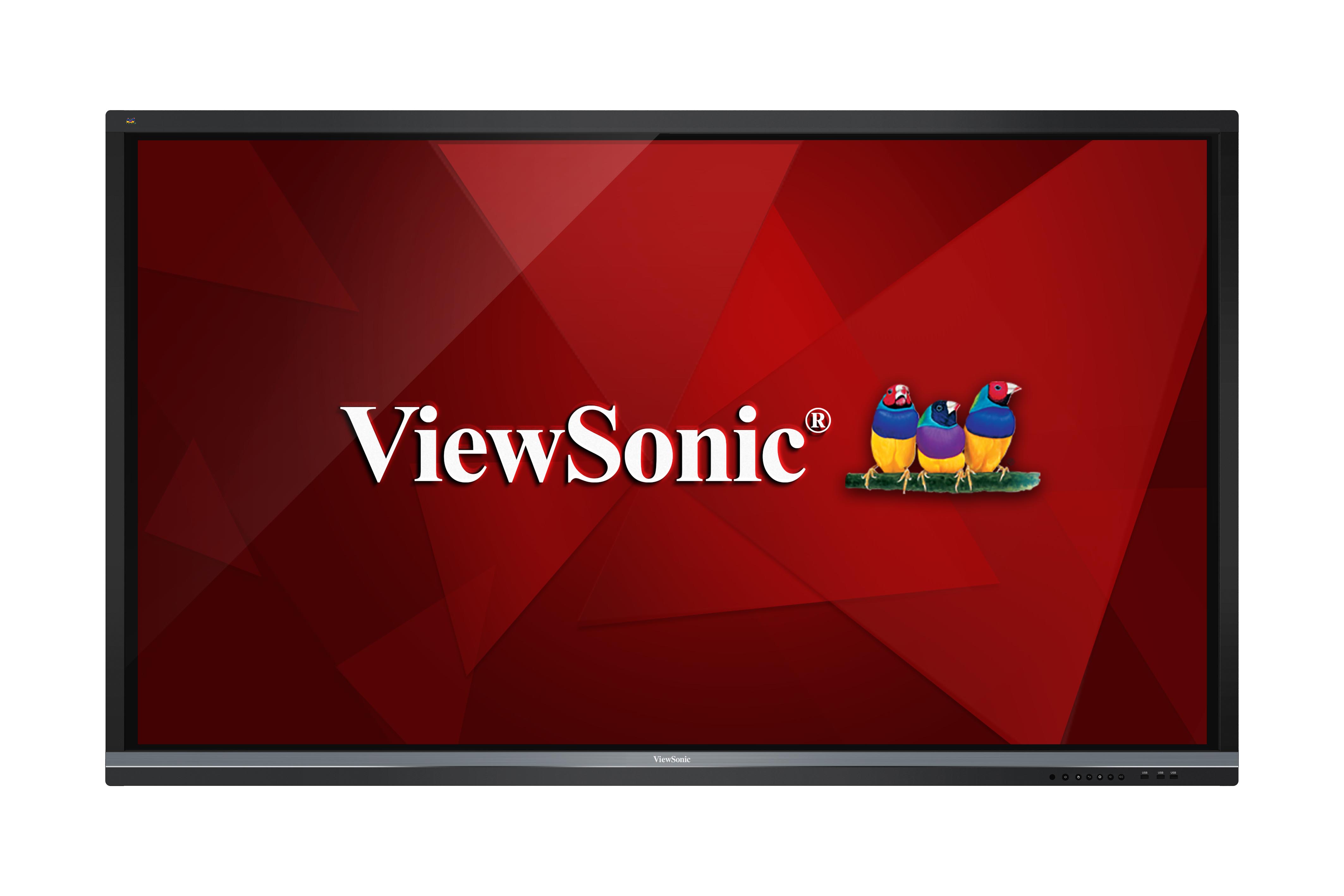

Featuring 4K Ultra HD resolution and an immersive 20-point touch screen, the ViewSonic® ViewBoard® IFP8650 delivers incredible collaborative capabilities for 21st century boardrooms and classrooms. With astonishing 20-point simultaneous touch capabilities and pre-installed ViewSonic vBoard® annotation software, this 86” interactive flat panel lets multiple users write or draw on the screen with their fingers and styluses. With a built-in quad-core processor, as well as versatile connectivity options including multiple HDMI, VGA, RS232, RJ45, and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. IFP8650 display delivers optional slot-in PC capability, for more computing-intensive interactive applications. The IFP8650 features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
- SPEAKERS
- VESA® WALL MOUNT 800x600 mm
- MENU CONTROLS
- USB 2.0
- CVBS IN (AV IN)
- SPDIF (COAX OUT)
- RS232 IN
- AUDIO OUT
- RJ45 (LAN)
- POWER ON/OFF
- AC IN
- USB 2.0
- HDMI IN
- AUDIO IN
- USB 3.0
- PC SLOT
- HDMI OUT
- WIFI & BLUETOOTH MODULE SLOT
- USB 2.0(Touch)
- DisplayPort
- VGA IN
Відвідайте нас
- www.viewsonic.com
-
LCD PANEL
Розмір панелі: 86" Тип/ Технологія: TFT LCD Module with DLED Backlight Площа екрана (мм): 1895.04 (H) x 1065.96 (V) (85.6” diagonal) Співвідношення сторін: 16:09 Роздільна здатність: 3840 x 2160 Colors: 1.07B colors (10bit) Яскравість: 350 nits (typ.) 300 nits (min.) Коефіцієнт контрастності: 1200:1 (typ.) Час відповіді: 8 ms Кути перегляду: H = 178, V = 178 (typ.) Backlight: DLED Термін служби підсвітки: 30,000 Hours Min. Hardness: 7H -
TOUCH
Тип/ Технологія: IR Recognition Сенсорна роздільна здатність: 32767 x 32767 Точка дотику: 20 points touch, 10 points writing Час відповіді: <15ms System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome Life Time: 80,000hrs -
INPUT
HDMI: x 3 RGB / VGA: x 1 DisplayPort: x 1 Аудіо: x 1 CVBS (AV): x 1 RS232: x 1 PC Slot: x 2 -
OUTPUT
HDMI: x 1 (for all sources) Audio (Earphone out): x 1 SPDIF: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC) 3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC) 2.0 Type B (For touch): x 2 -
ДИНАМІКИ
2 x 20W -
BUILT-IN PC
Процесор: ARM Cortex A53 Quad Core 1.2G Hz CPU Graphic: ARM Mali-450 Quad Core Пам'ять: 2GB DDR3 Зберігання: 16GB eMMC Networking: 10/100M auto-identification and DHCP -
COMPATIBILITY
VGA: Refer to timing table HDMI: 3840x2160 DP: 3840x2160 Композитне відео: 480i -
POWER
Напруга: 100-240VAC +/- 10% Wide Range Споживання: 361W(Typ, without Slot-In PC); 456W(Typ, Including Slot-In PC) -
ERGONOMICS
Настінне кріплення (VESA® ): 800 x 600mm; Screw: M8 x 25mm -
OPERATING CONDITIONS
Температура (º C): 32°F to 104°F (0°C to 40°C) Вологість: 10% ~ 90% non-condensing -
DIMENSIONS (W X H X D)
Physical W/o Stand (mm / Inch): 1988 x 1186 x 100 mm / 78.3 x 46.7 x 3.9 inch Packaging (mm / Inch): 2211 x 1380 x 280 mm / 87.0 x 53.1 x 11.0 inch -
WEIGHT
Net (kg / lb): 78kg / 171.96lbs Gross (kg / lb): 105kg / 231.49lbs -
WHAT'S IN THE BOX?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
